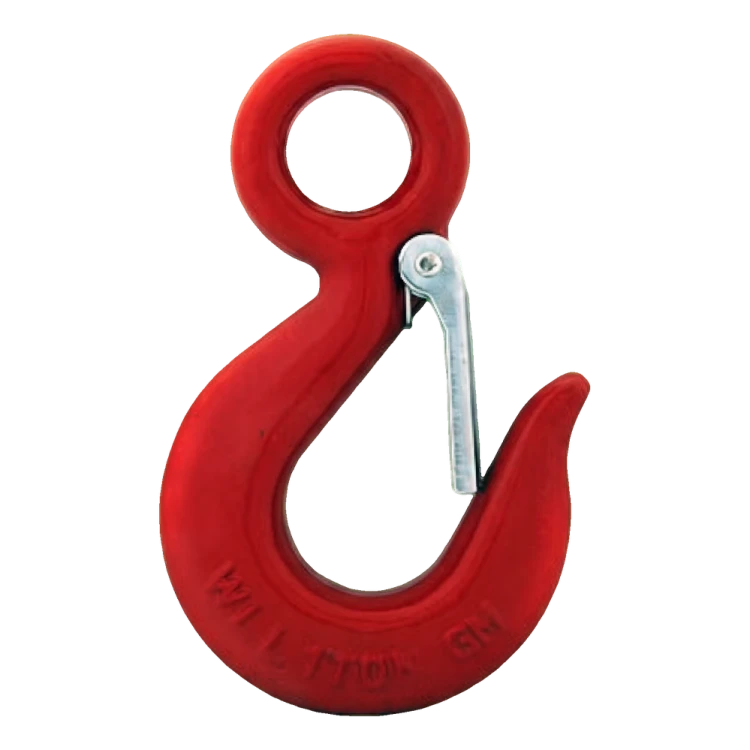

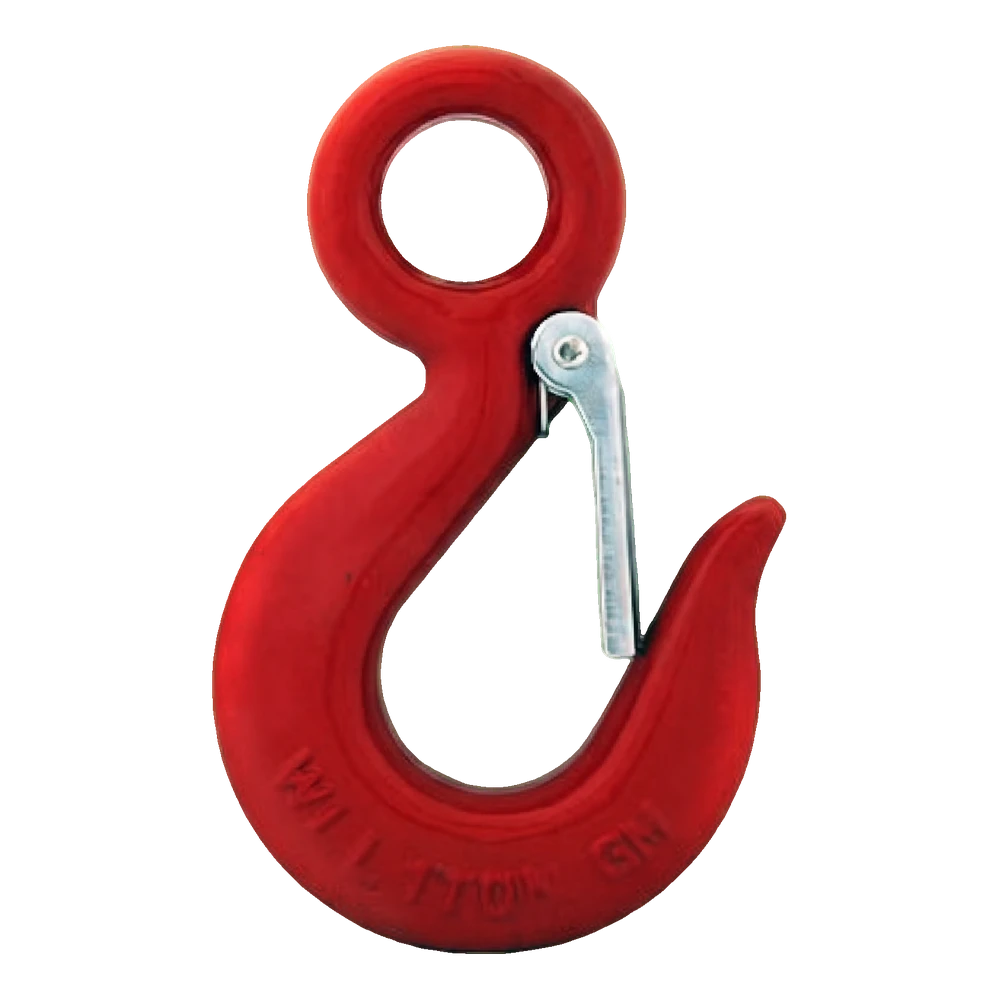

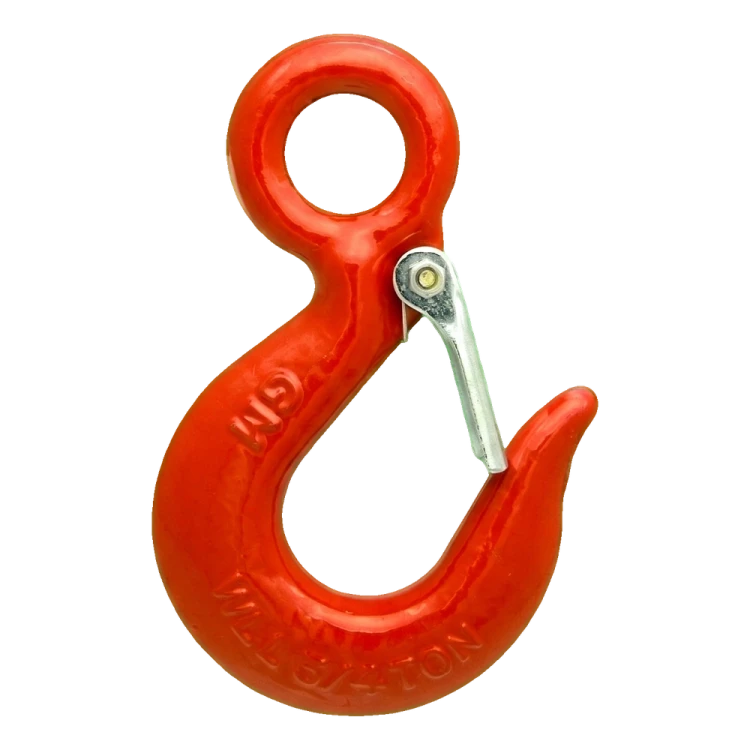

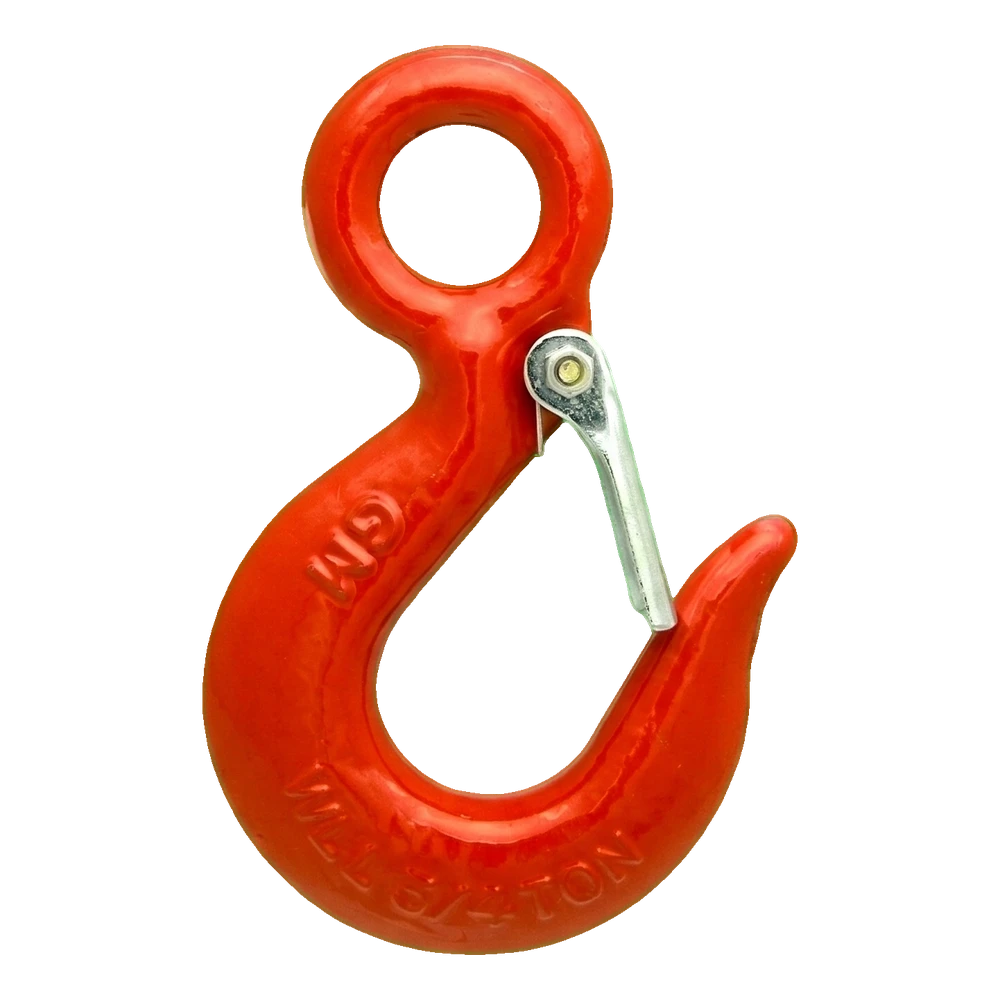

Eye hook with safety catch 750 kg – C45 steel, galvanised and painted
Leave feedback on the product
Eye hook with safety catch HUZ, C45 steel, galvanised and red powder-coated (RAL 3020). Working load limit WLL 750 kg, proof force 14.8 kN, breaking force 36.8 kN. Overall height 110 mm, throat opening 81.5 mm. Spring-loaded latch.
Product code: 002-527
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Eye hook with safety latch
- Max. load capacity [kg] 750
Description
Eye hook with safety catch 750 kg – C45 steel, galvanised and painted
Eye hook with safety catch HUZ is a durable piece of rigging hardware designed for professional lifting and transport applications. Made of C45 steel and protected by a double anti-corrosion coating (zinc plating + powder coating in red RAL 3020), it offers high durability even in demanding outdoor conditions. The spring-loaded safety latch prevents the rope or chain from accidentally slipping out of the hook throat, increasing the safety of lifting operations. The compact design and low self-weight make it easier to assemble multi-leg slings.
Key advantages
- The spring-loaded safety latch prevents the rope from slipping uncontrollably out of the hook throat
- Double anti-corrosion protection — zinc plating and powder coating — provides visual recognition and resistance to weather conditions
- Compact design allows convenient storage and quick assembly of slings
- The HUZ series is available in many load capacity variants — easy scaling of equipment for different projects
- High safety factor thanks to load testing of every hook

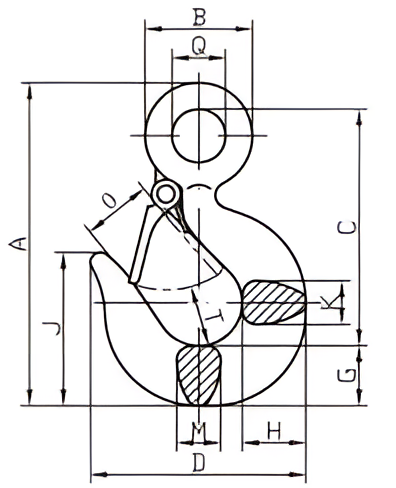

The dimensional drawing shows the markings of the individual hook dimensions. Detailed values for each dimension can be found in the Dimensions tab below.

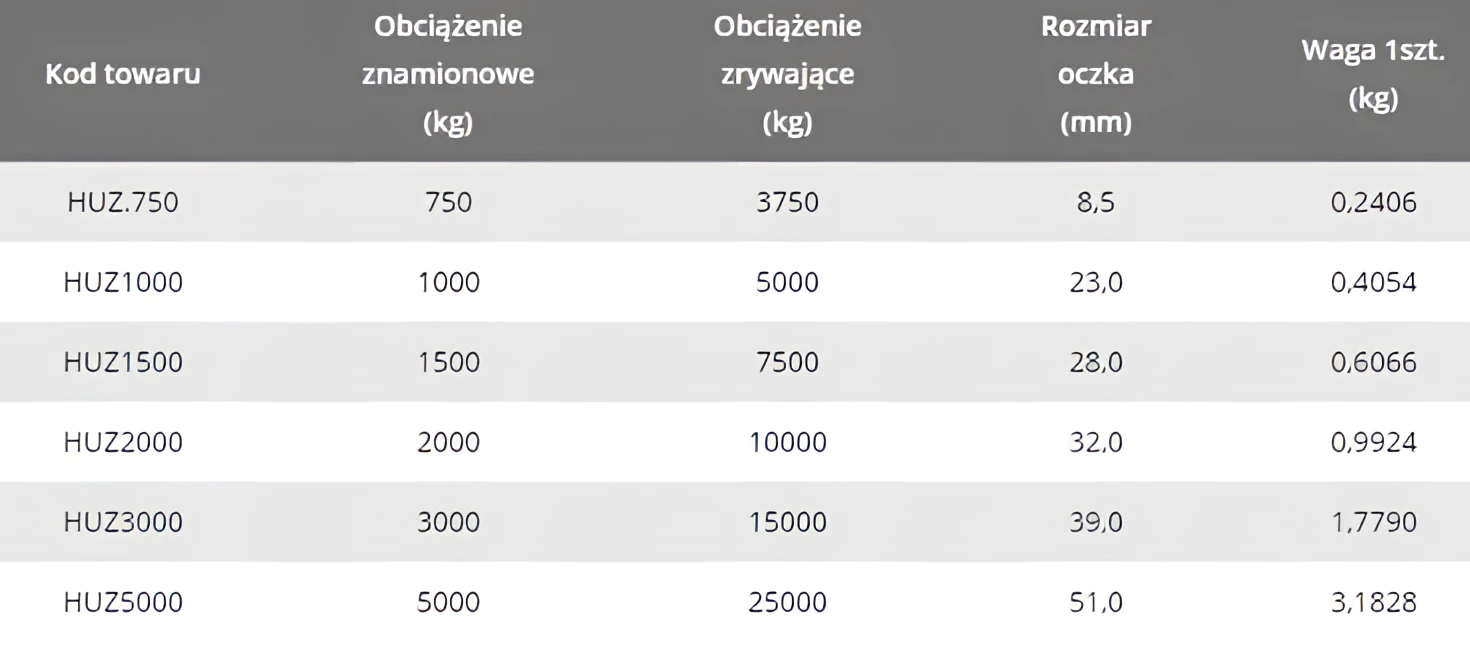

The hook belongs to the manufacturer's HUZ series, which covers load capacity variants from 0.5 t to 5 t. All sizes are made of C45 steel with a zinc plating + paint coating, ensuring a uniform quality standard across the entire series. This makes it possible to assemble slings of different load capacities while maintaining full material and visual compatibility of the hardware components.
