Eye hook with safety catch 500 kg – galvanised and painted C45 steel
Leave feedback on the product

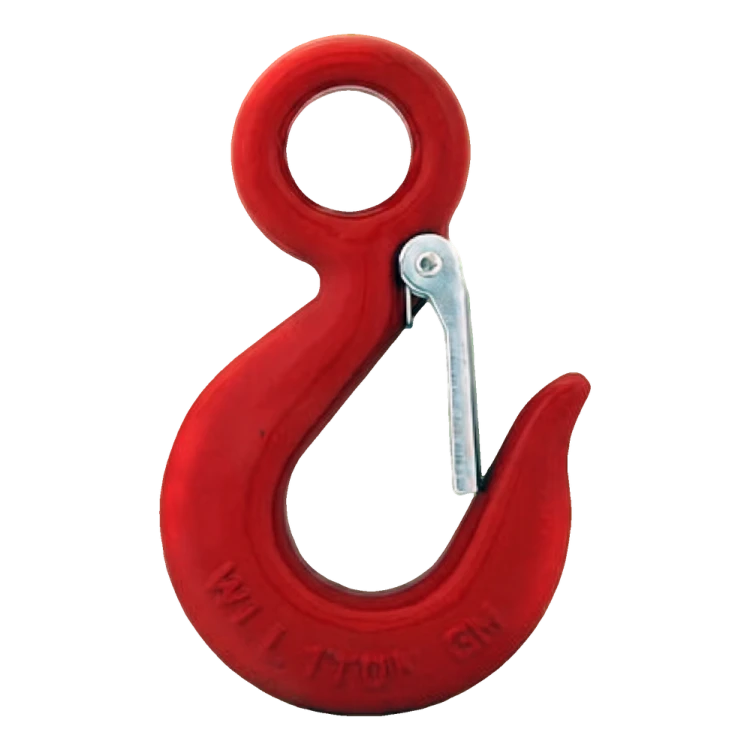

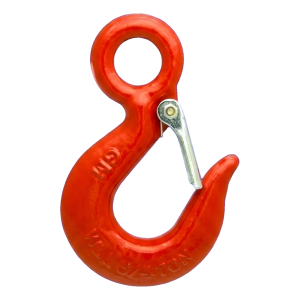

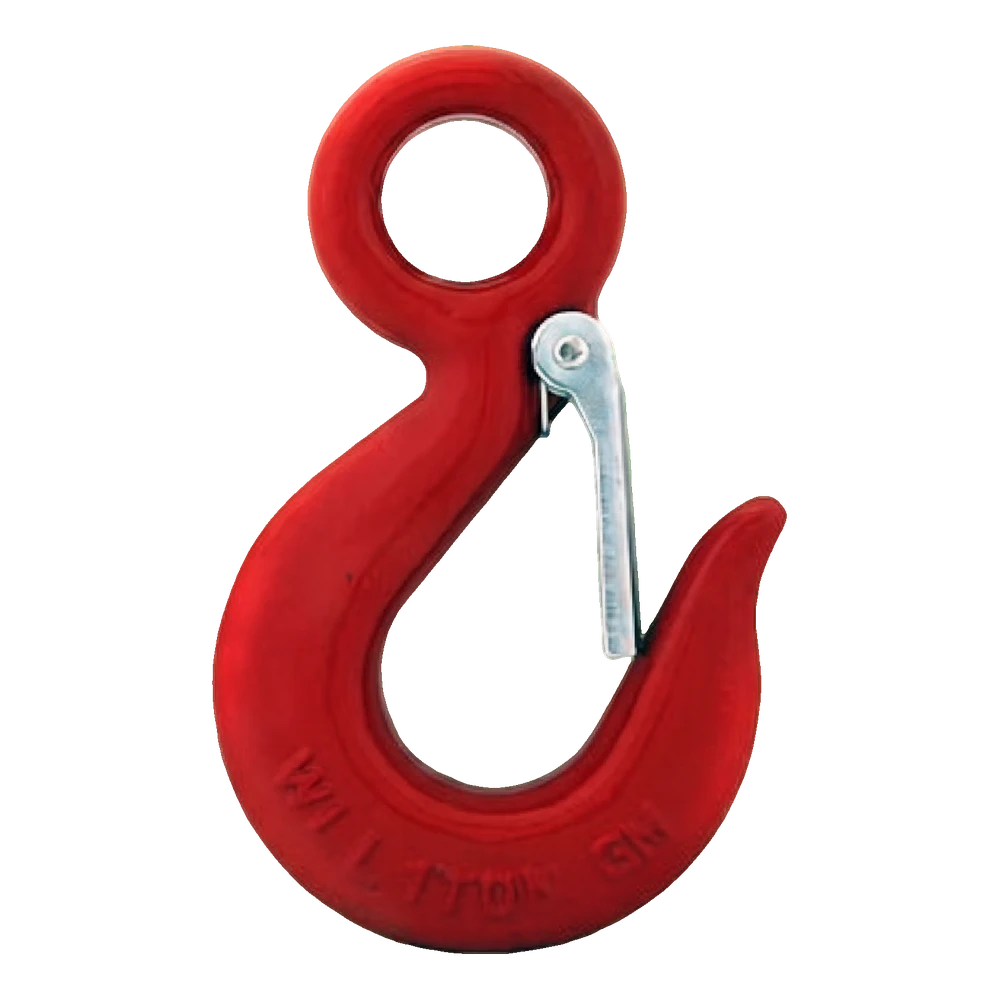

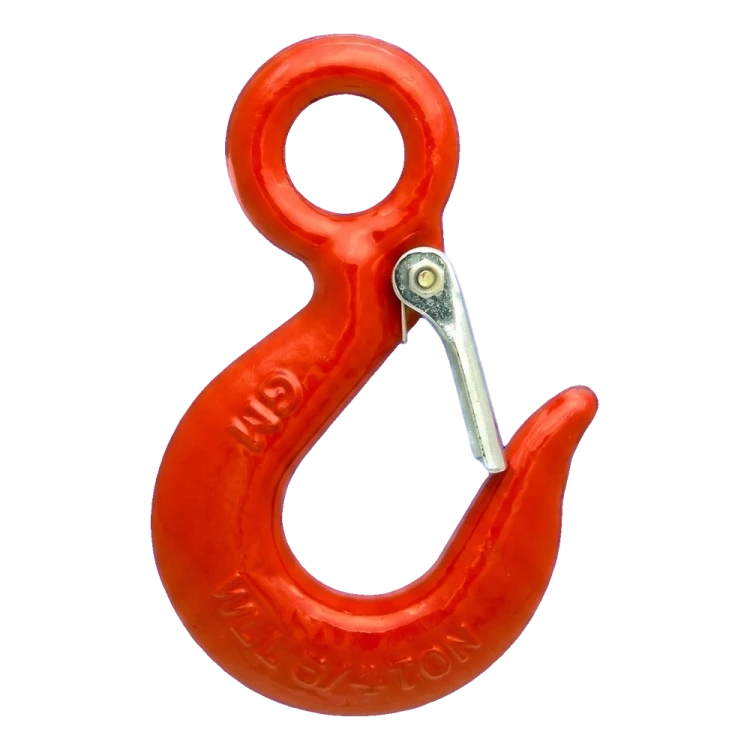

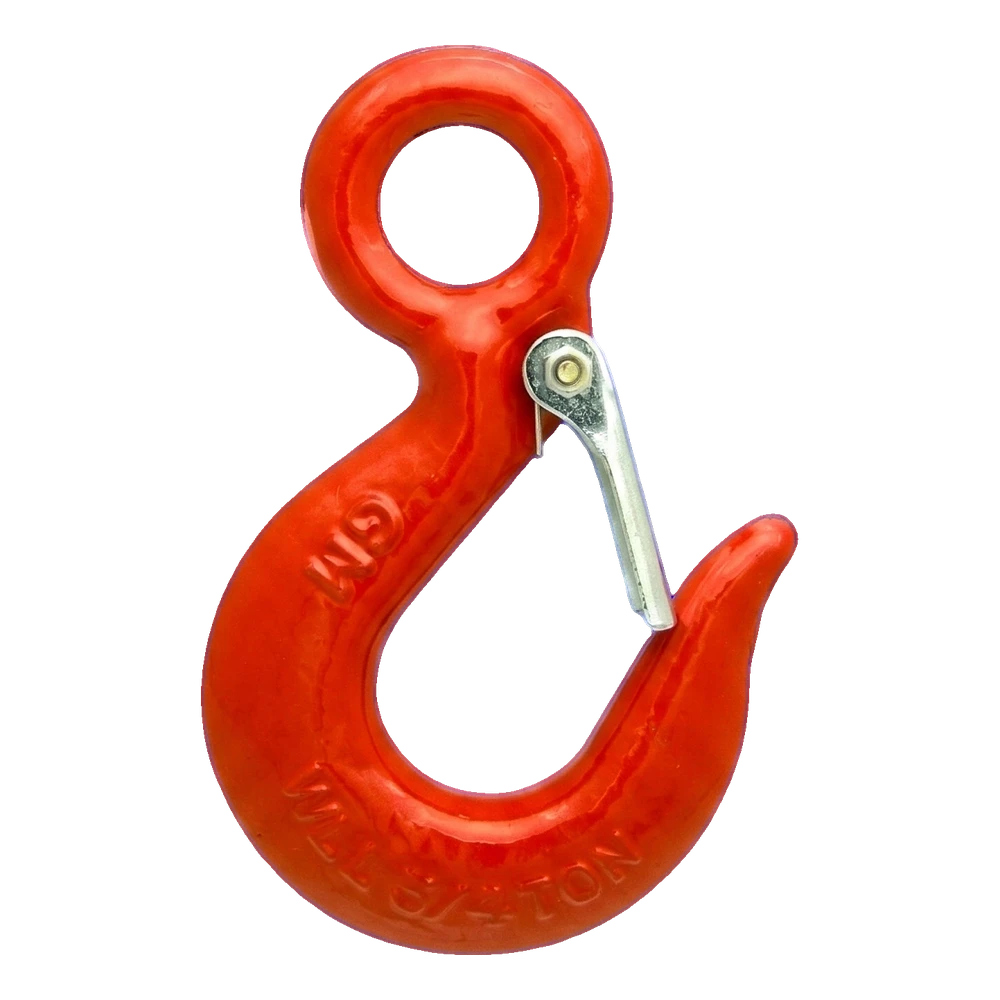

Eye hook with safety catch HUZ, 500 kg working load limit, C45 steel, galvanised and red powder-coated (RAL 3020). Spring-loaded latch. Height 97 mm, throat width 70.5 mm, eye hole 16 mm. Tolerance ±5%. For steel wire ropes.
Product code: 002-526
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Eye hook with safety latch
- Max. load capacity [kg] 500
Description
Eye hook with safety catch 500 kg – galvanised and painted C45 steel
The Eye hook with safety catch from the HUZ series is proven hardware for steel wire ropes, designed for professional lifting and transport applications. Made from C45 steel and protected with a double coating of zinc plating + RAL 3020 powder coating (red), it offers high corrosion resistance even in demanding weather conditions. The built-in spring-loaded safety latch effectively prevents the rope from accidentally slipping out of the hook throat, which makes lifting operations safer. A high safety factor – almost 5:1 between breaking force and working load – guarantees the solid strength reserve required for professional slings. The hook is sold individually, which makes it easier to put together hardware for specific configurations.
Key features of the HUZ hook
- The spring-loaded safety latch prevents the rope from slipping uncontrollably off the hook
- Double corrosion protection – zinc plating plus red powder coating for easy visual identification
- Made of C45 steel, combining high strength with good ductility
- Dimensional tolerance of ±5% in accordance with the manufacturer's data sheet
- WLL marking and identifier stamped directly on the hook body

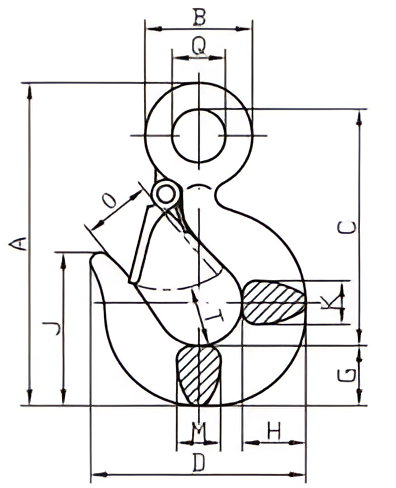

The dimensional drawing shows the characteristic dimensions of the hook, marked with letters from A to T. The eye at the top allows connection to a shackle or chain link, and the proportions of the throat allow convenient fitting of ropes of the appropriate cross-section. The compact design and low weight mean the hook does not overload the sling, while still retaining its full working load capacity. All dimensions are given in the specification tables below.

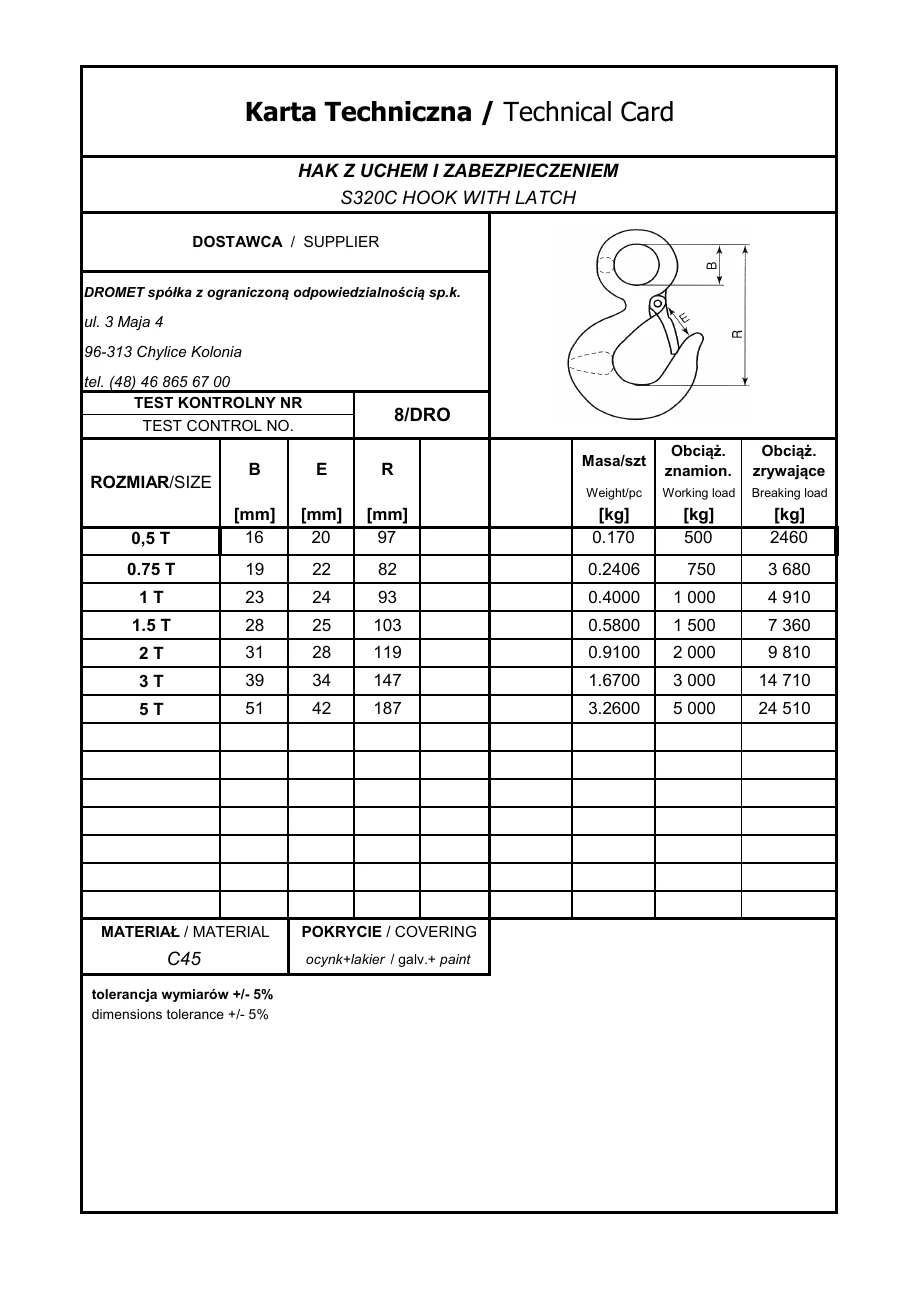

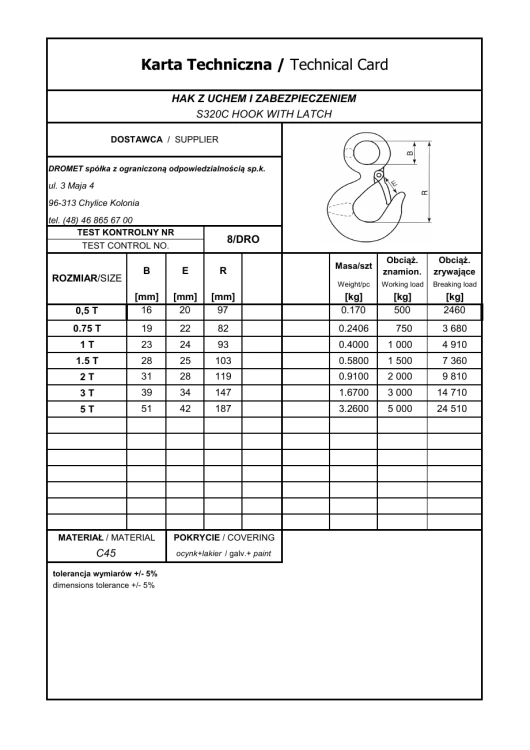

The manufacturer's data sheet (inspection test 8/DRO) confirms the strength parameters of the entire HUZ series – from the 0.5 T variant to 5 T. The high safety factor applies to every size in the series, meeting the requirements for professional lifting operations.

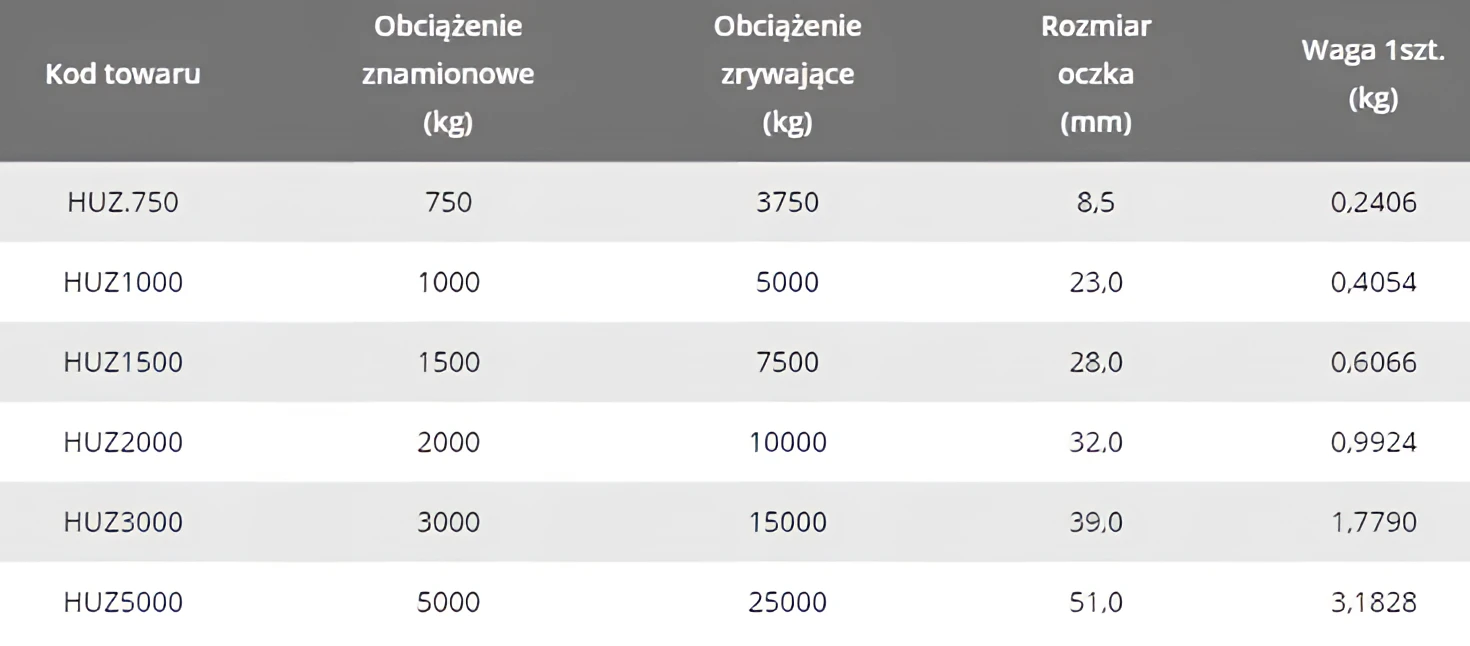

The HUZ series includes hooks with load capacities from 500 kg to 5000 kg, so you can choose the right size for your specific wire rope or chain sling. All variants are made from the same C45 steel and covered with an identical protective coating, ensuring consistent quality across the entire hardware system.
