Eye hook with safety catch 1000 kg – galvanised and painted C45 steel

Go to Product feedback

Eye hook with safety catch HUZ1000 and spring latch, red (RAL 3020). C45 steel, galvanised and powder-coated. WLL 1000 kg, proof force 19.7 kN, breaking force 49.1 kN. Height 125 mm, eye width 44.5 mm, weight 0.40 kg.

Go to full description
with VAT without VAT
Price €3.72
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] osprzet-do-lin-i-lancuchow #1023

  • Fitting type Eye hook with safety latch
  • Max. load capacity [kg] 1000

Description

Eye hook with safety catch 1000 kg – galvanised and painted C45 steel

Eye hook with safety catch HUZ1000, red, 1000 kg
Eye hook with safety catch HUZ1000, red, 1000 kg

HUZ1000 is a steel eye hook with safety catch, fitted with a spring latch, designed for professional rope and chain rigging equipment. Made of C45 steel and protected by a double anti-corrosion coating (galvanising + RAL 3020 powder coating), it delivers reliable performance in demanding industrial and construction environments. The working load limit (WLL) is 1000 kg, which allows heavy loads to be lifted and transported safely. The spring safety latch prevents the rope or chain from accidentally slipping out of the hook throat, improving safety in the workplace. The mounting eye allows easy connection to shackles, links and other lifting accessories.

Applications and advantages

  • Accessory for rope and chain slings in hoists, cranes and winches
  • The spring safety latch protects against the rope slipping out uncontrollably
  • Double anti-corrosion coating (galvanising + powder coating) increases durability in outdoor conditions
  • Red RAL 3020 colour ensures good visibility on a construction site
  • Dimensional tolerance of ±5% in accordance with the manufacturer's data sheet

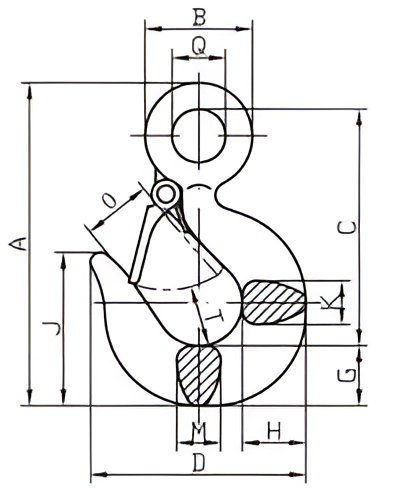

Dimensional drawing of the HUZ hook with dimensions A, B, C, J, Q, O, T, G, M marked
Dimensional drawing of the HUZ hook with dimensions A, B, C, J, Q, O, T, G, M marked

The technical drawing shows the full outline of the hook with the key dimensions marked: A – overall height, B – eye width, Q – eye opening, C – throat depth, J – throat height, T – throat width, G – blade thickness, M – shank width. All dimensions are given with a tolerance of ±5%.

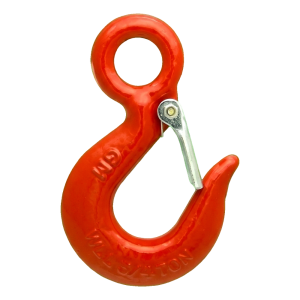

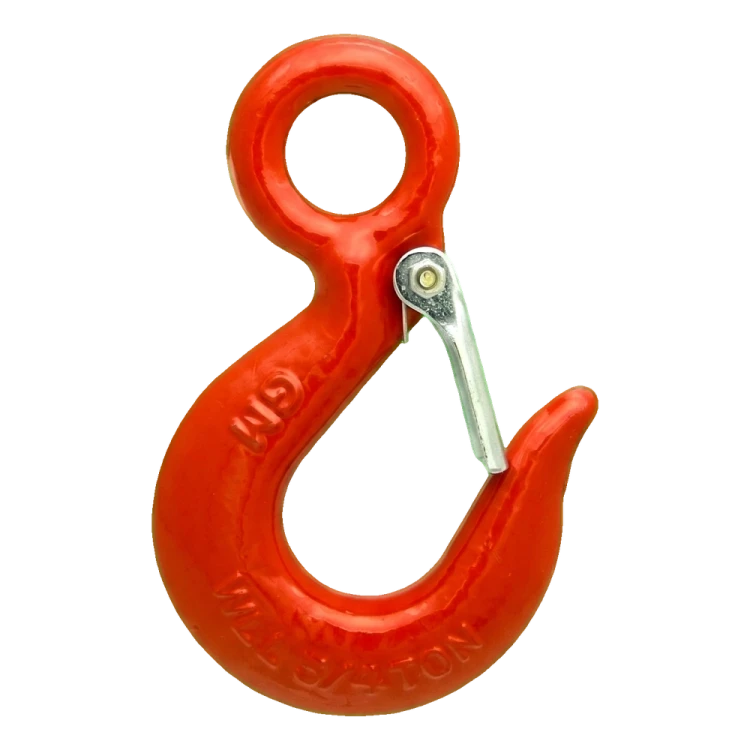

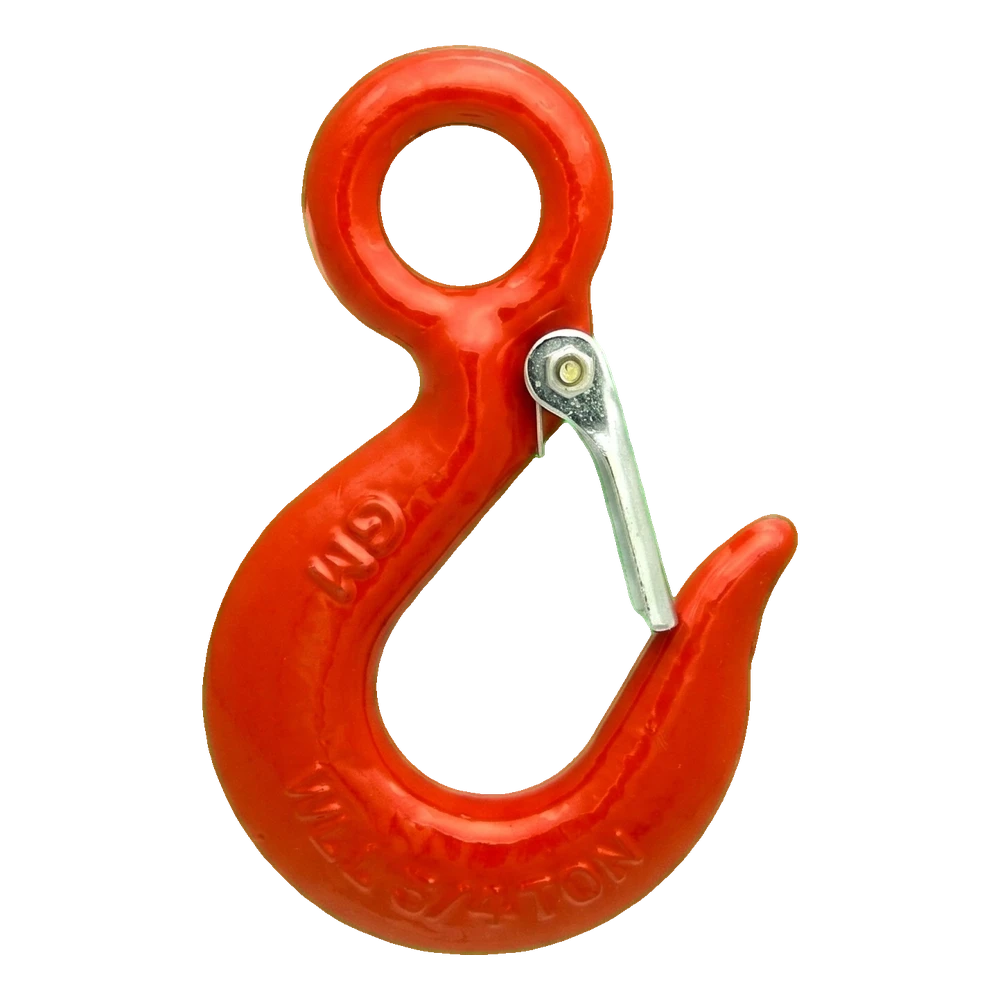

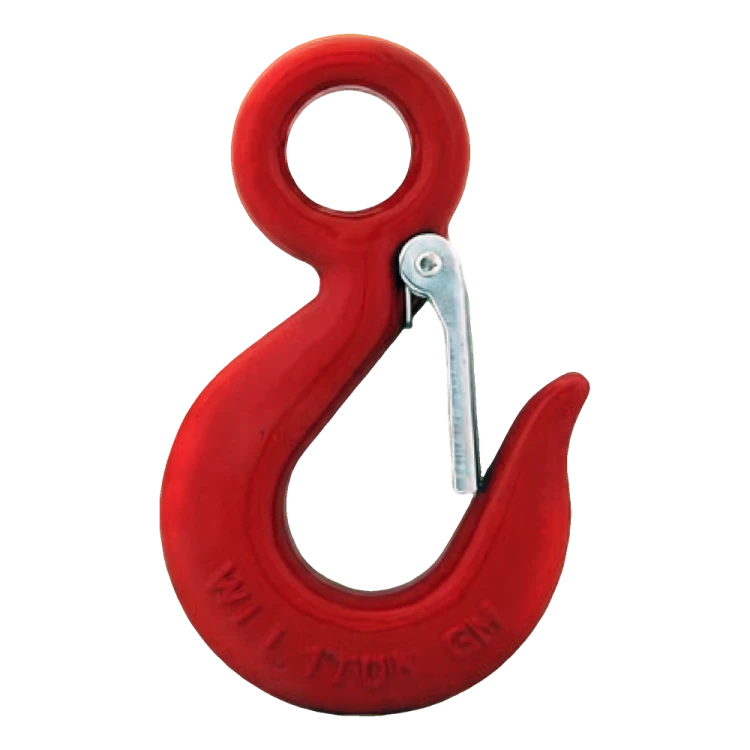

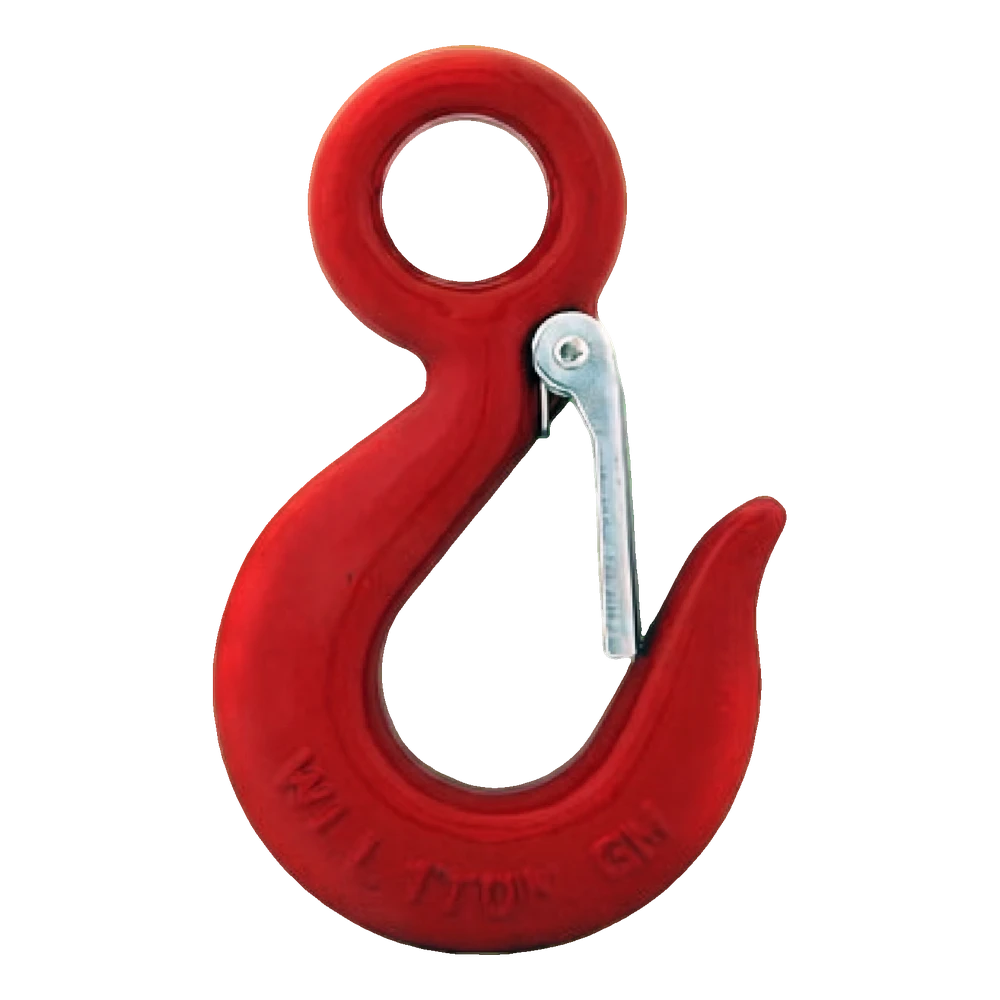

HUZ1000 hook, side view with spring safety latch
HUZ1000 hook, side view with spring safety latch

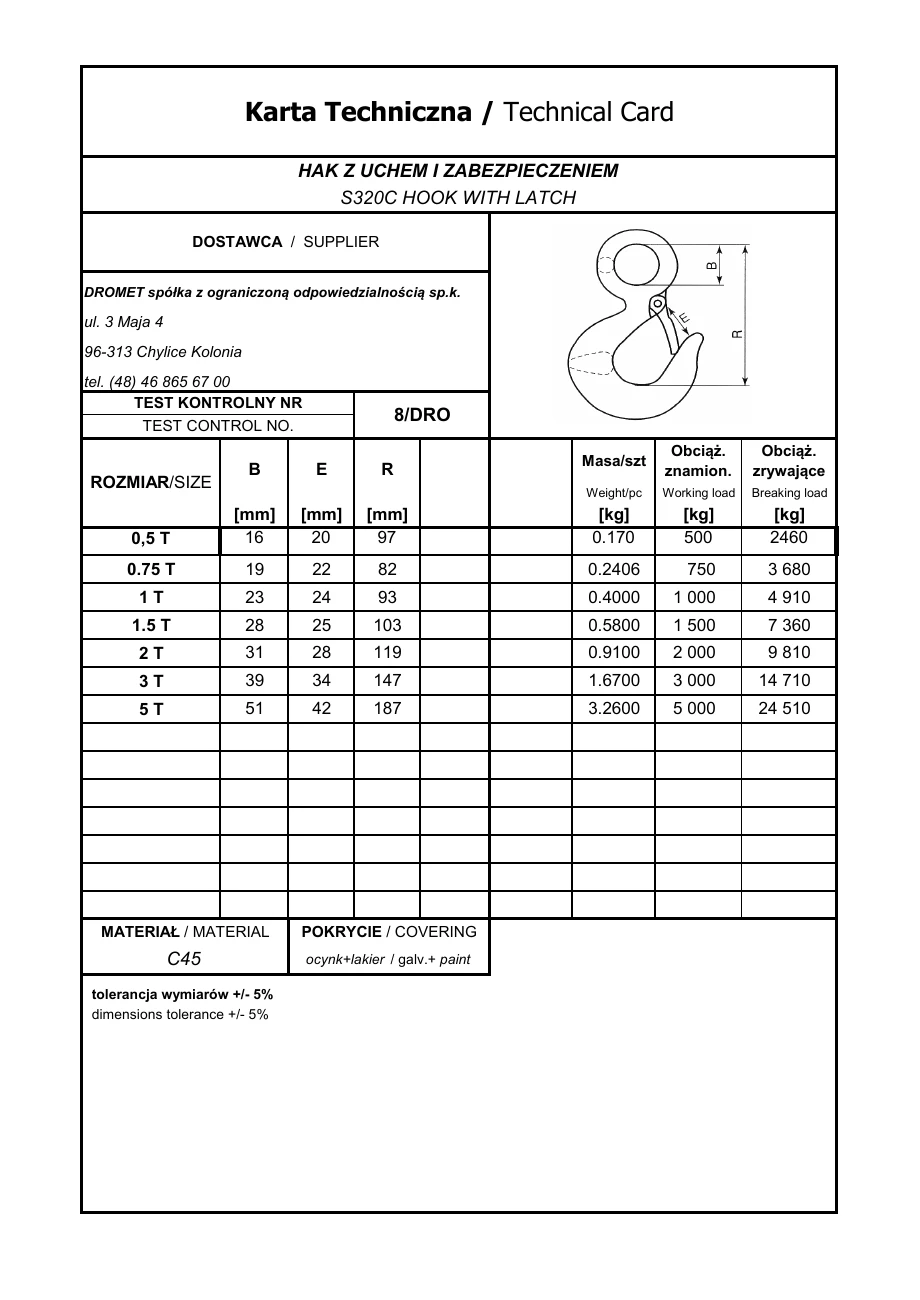

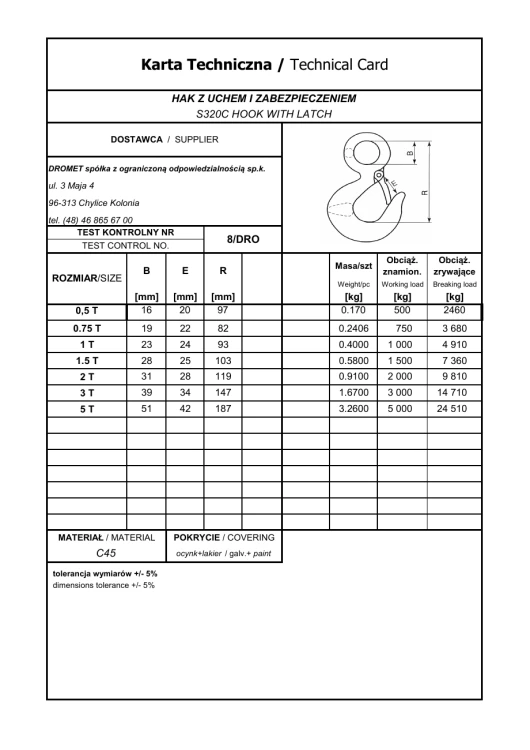

Data sheet – eye hook with safety catch, HUZ series S320C
Data sheet – eye hook with safety catch, HUZ series S320C

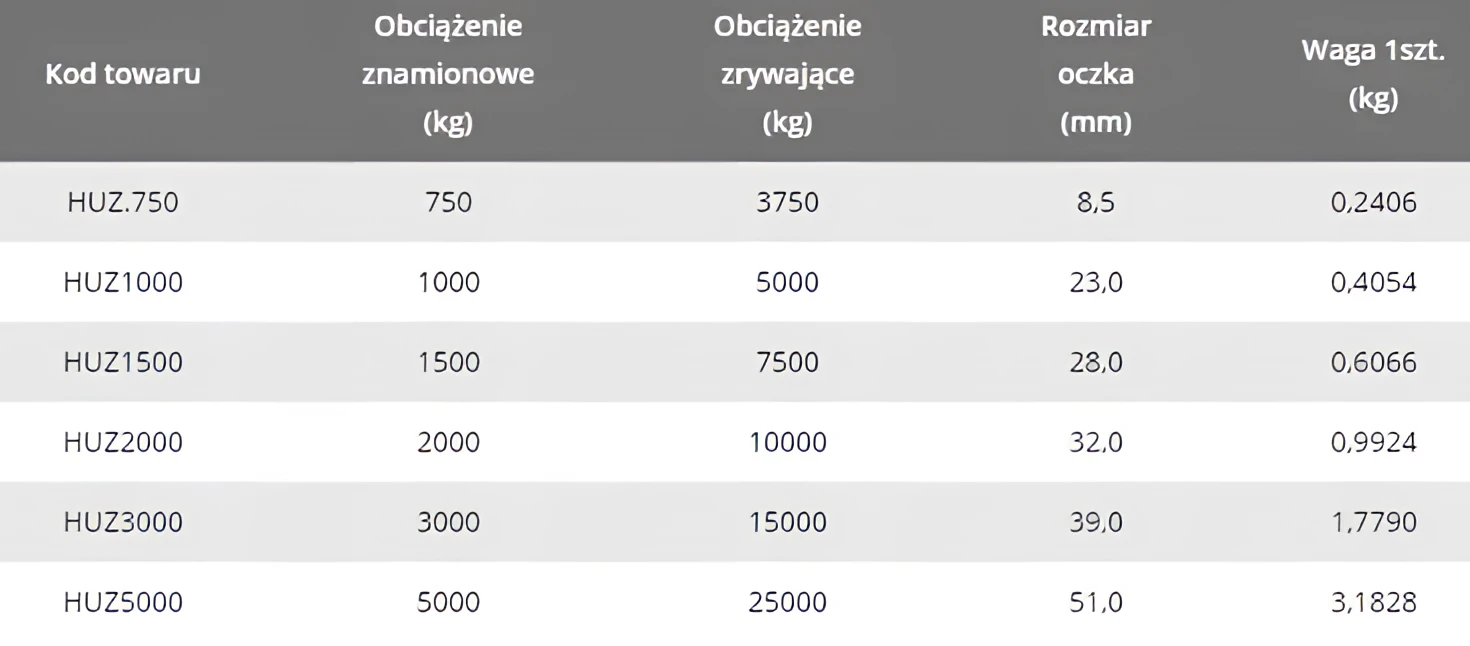

HUZ series comparison table – loads and dimensions of variants from 750 to 5000 kg
HUZ series comparison table – loads and dimensions of variants from 750 to 5000 kg

Technical parameters

Working load limit (WLL)1000 kg
Proof force19.7 kN
Breaking force49.1 kN
Head type / shapeeye hook with safety catch and spring latch
Weight0.40 kg

Dimensions

A – overall height125 mm
B – eye width44.5 mm
Q – eye opening23 mm
O – dimension O24 mm
C – throat depth93 mm
J – throat height57 mm
T – throat width20.5 mm
G – blade thickness21 mm
M – shank width17 mm
Dimensional tolerance±5%

Material and coating

MaterialC45 steel
Coating / finishgalvanised + red powder coating RAL 3020

Other parameters

Quantity per pack1 piece
Applicationrope and chain accessory – slings, hoists, winches
