Eye hook, metric thread, galvanised M10×250 mm
Leave feedback on the product
Bent eye hook, metric thread, type HO, M10, galvanised. Length 250 mm, class 5.8 steel, electroplated zinc coating. Closed eye, weight 0.145 kg. For fixing components in ceilings and roof trusses.
Product code: 002-329
Product features
[PIM] haki-budowlane #1022
- Hook end closed eye HO
- Thread type M10
- Length [mm] 250
Description
Threaded rod ending in a closed eye – for screwing into a metric thread and suspending ropes, chains and items on a carabiner; property class 5.8 steel, zinc-plated
About the product

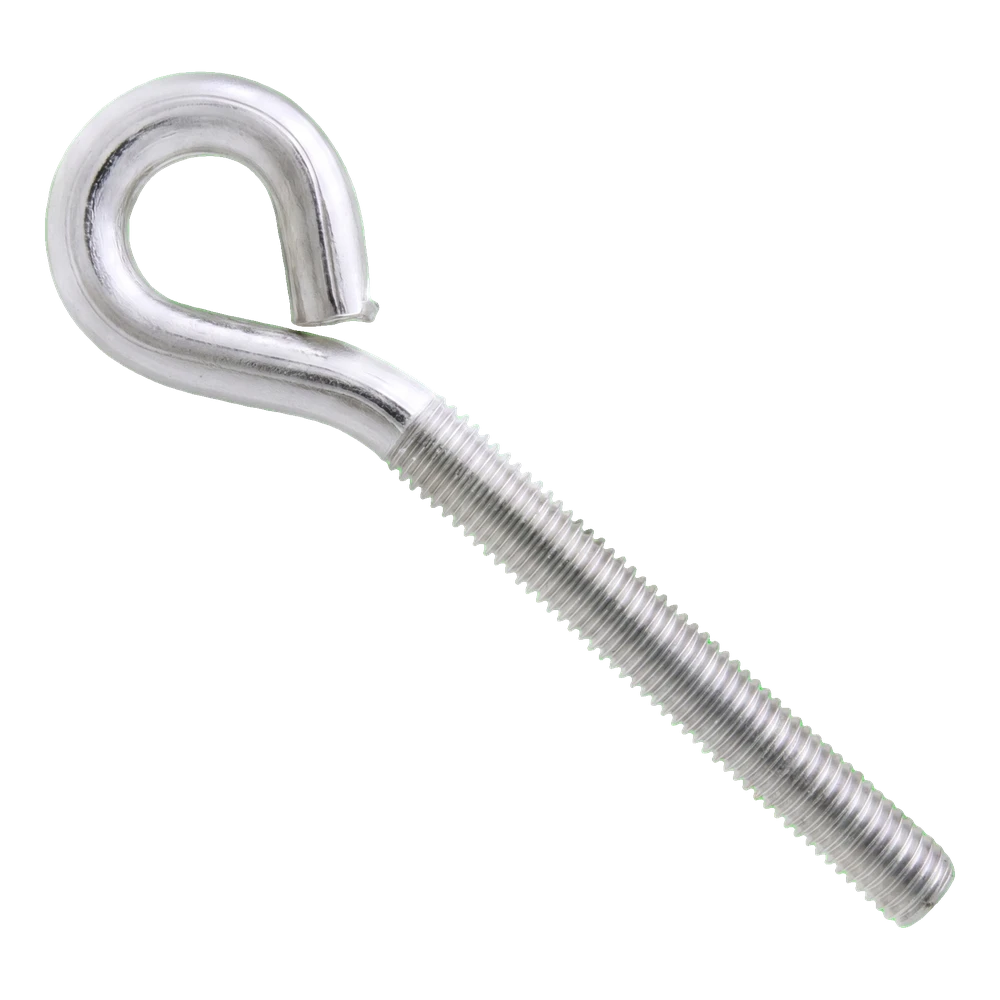

An eye hook with a metric thread is a threaded rod ending in a closed eye. It is used for suspending ropes, cords, chains and items fitted with a carabiner. The threaded section screws into an internally threaded component (an anchor sleeve, nut or tapped hole).

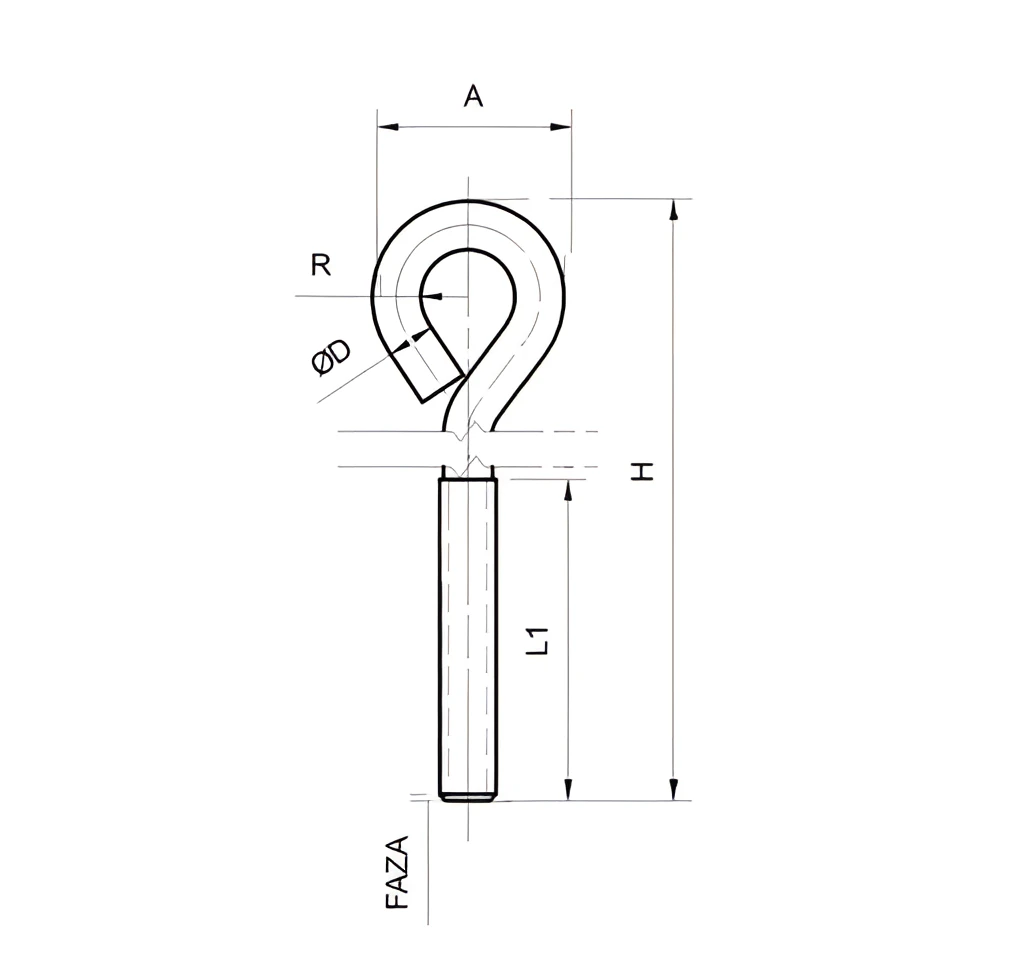

The designation M10 specifies the hook's metric thread – the anchor sleeve, nut or tapped hole must have a matching internal thread. The overall length H is 250 mm, measured from the end of the thread to the furthest point of the bent section. The available thread length L1 is 202 mm, and the outside diameter of the bend Dz is 33 mm. These are nominal values according to the manufacturer's table. Screw the hook in to the depth required by the mating component; secure any thread projecting beyond it with a locknut. After installation, align the eye with the direction of the load and do not apply sideways loads to the hook at the bend.
The material is steel of property class 5.8, and the coating is electro-galvanised. The zinc coating protects the steel against corrosion under typical conditions. Where exposed to salt, chemicals or persistent moisture, choose a version suitable for the exposure conditions. The manufacturer does not specify the hook's load capacity, and the stated property class applies only to the steel itself. The permissible load depends on the substrate and fixing method – it is specified by the design or the anchor manufacturer. Do not use the hook for lifting loads or for personal fall protection.
Selection and installation
- ✓Match the mating component's thread to M10 – an internally threaded anchor, nut or sleeve.
- ✓Screw the hook in to the depth required by the mating component (available thread: L1 = 202 mm); secure any thread projecting beyond the component with a locknut.
- ✓After installation, align the eye with the direction of the load; do not apply sideways loads to the hook at the bend.
Important
The manufacturer does not specify the hook's load capacity. The permissible load depends on the substrate and fixing method – it is specified by the design or the anchor manufacturer. Do not use the hook for lifting loads or for personal fall protection.
