End clamp for fencing panels 100x100 mm green

000-783 (1)
  • New Product
Availability: In stock (large quantity)
Delivered within: 10 Business days
Delivery: The price does not include any possible payment costs check the delivery methods
Weight: 0.2 kg
Price / pcs.: £0.96 0.96
excl. shipping costs
quantity pcs.

product unavailable

add to wish list
Visa Mastercard Google Pay Apple Pay PayPal Bank Transfer
Rating: 0
Vendor: Synerga
Product code: 000-783

Description

End fencing clamp for square post 100×100 mm – green RAL 6005

End clamp for fencing panels designed for mounting mesh and panels on posts with 100×100 mm cross-section. Complete mounting kit allows for quick and secure fence installation in both private and commercial investments — without the need to separately source bolts and spacers.

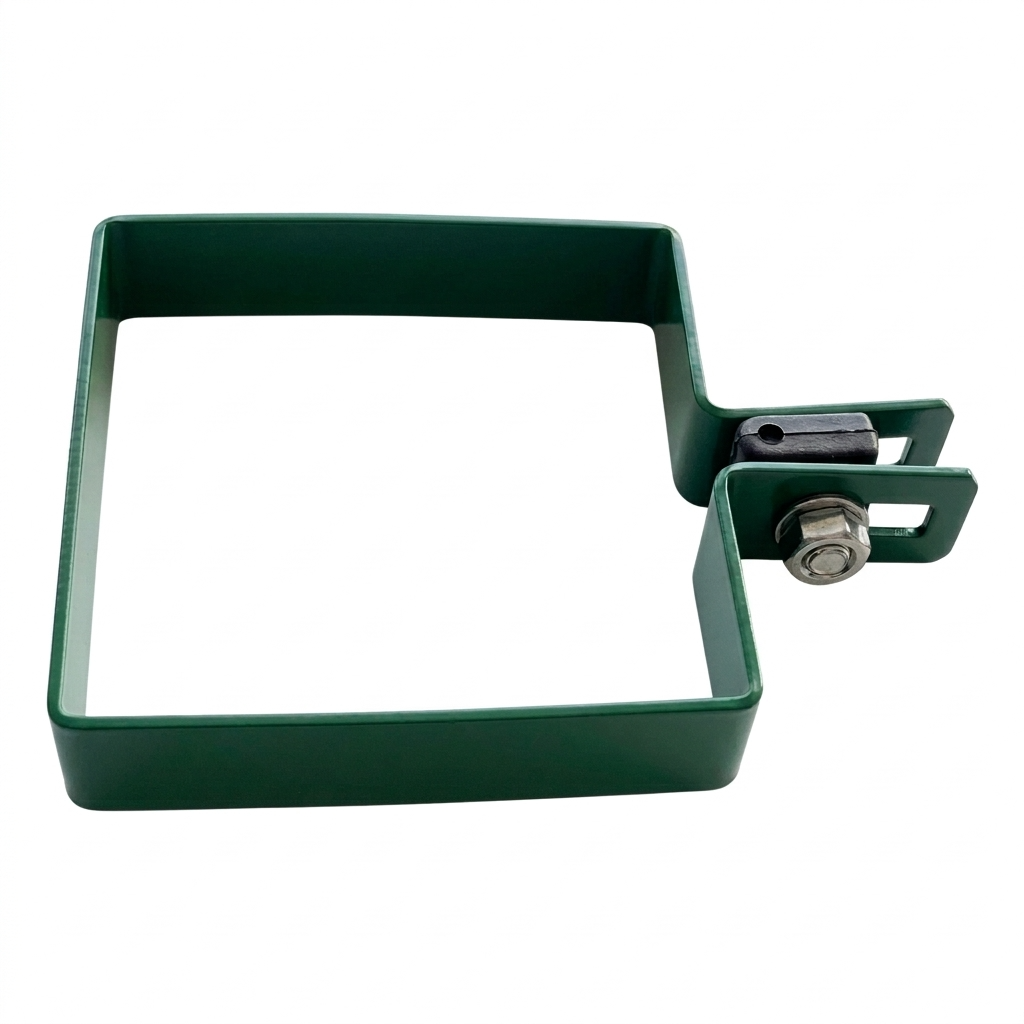

End fencing clamp 100x100 mm – top view, green RAL 6005 colour
End fencing clamp 100x100 mm – top view, green RAL 6005 colour

The clamp is made from 2 mm thick steel sheet coated with powder coating in green RAL 6005, which ensures high corrosion resistance, aesthetic appearance and long-term durability in variable weather conditions. RAL 6005 colour perfectly complements the most popular panel fencing systems available on the market. Solid construction guarantees stable retention of the fencing panel on the post, eliminating the risk of mounting loosening due to wind or vibration.

The end (starting) type clamp is mounted on corner fence posts — where the panel approaches from only one side. Thanks to the included plastic spacers, it ensures proper panel offset from the post and vibration damping.

Kit contents

  • 1 pc. end clamp 100×100 mm – green RAL 6005 colour
  • 2 pcs. M8×25 bolt with nut and washer (galvanised)
  • 2 pcs. plastic spacer – black colour (standard for fi 4 mm wire)

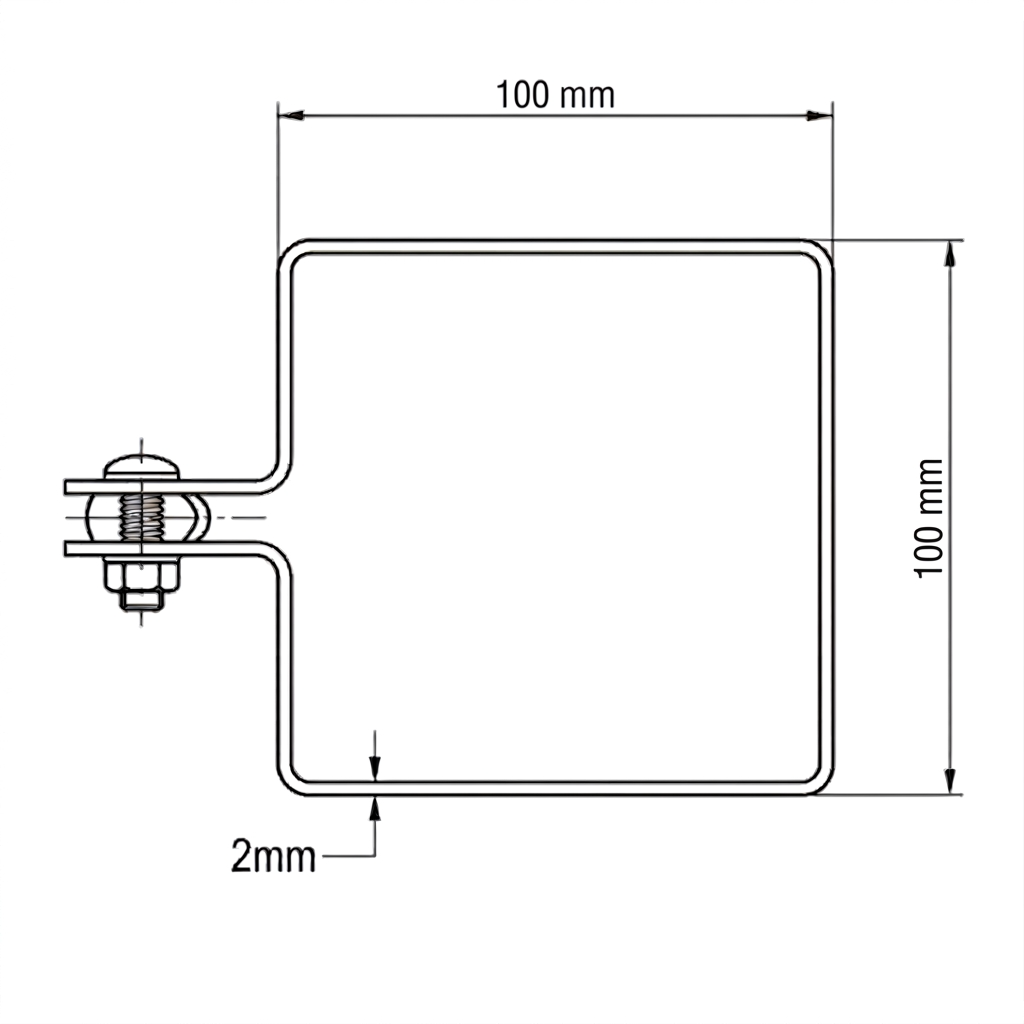

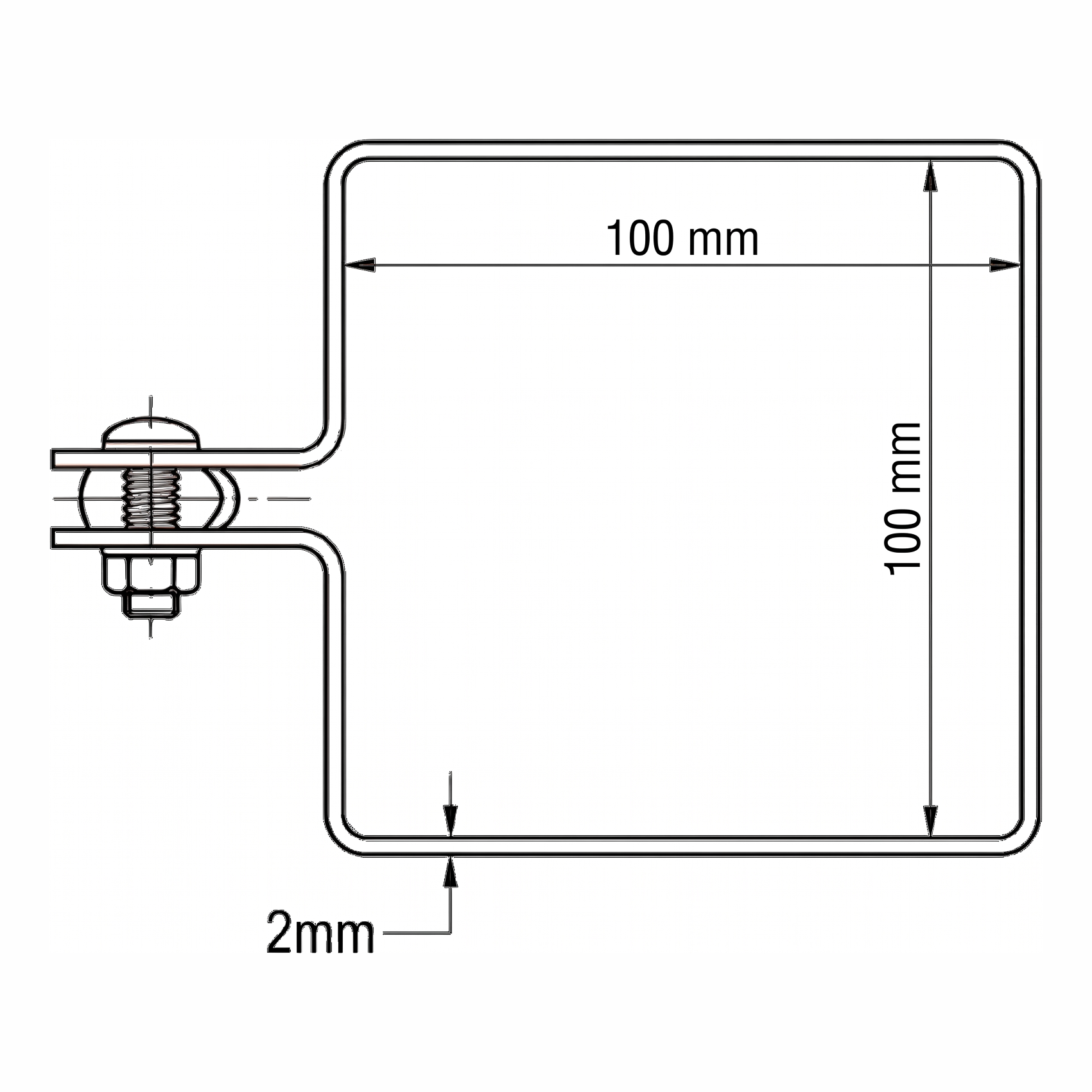

Dimensional drawing of end fencing clamp 100x100 mm with 2 mm sheet thickness marking
Dimensional drawing of end fencing clamp 100x100 mm with 2 mm sheet thickness marking

Technical specifications

  • Compatibility: square post 100×100 mm
  • Clamp dimension: 100×100 mm
  • Sheet thickness: 2 mm
  • Material: steel with powder coating
  • Colour: green RAL 6005
  • Bolts: M8×25 with nut and washer
  • Standard spacer: for wire fi 4 mm
  • Available spacers (on order): fi 3 mm, fi 5 mm
  • Type: end (starting) clamp
  • Application: private and commercial panel fencing

Product photos from different perspectives

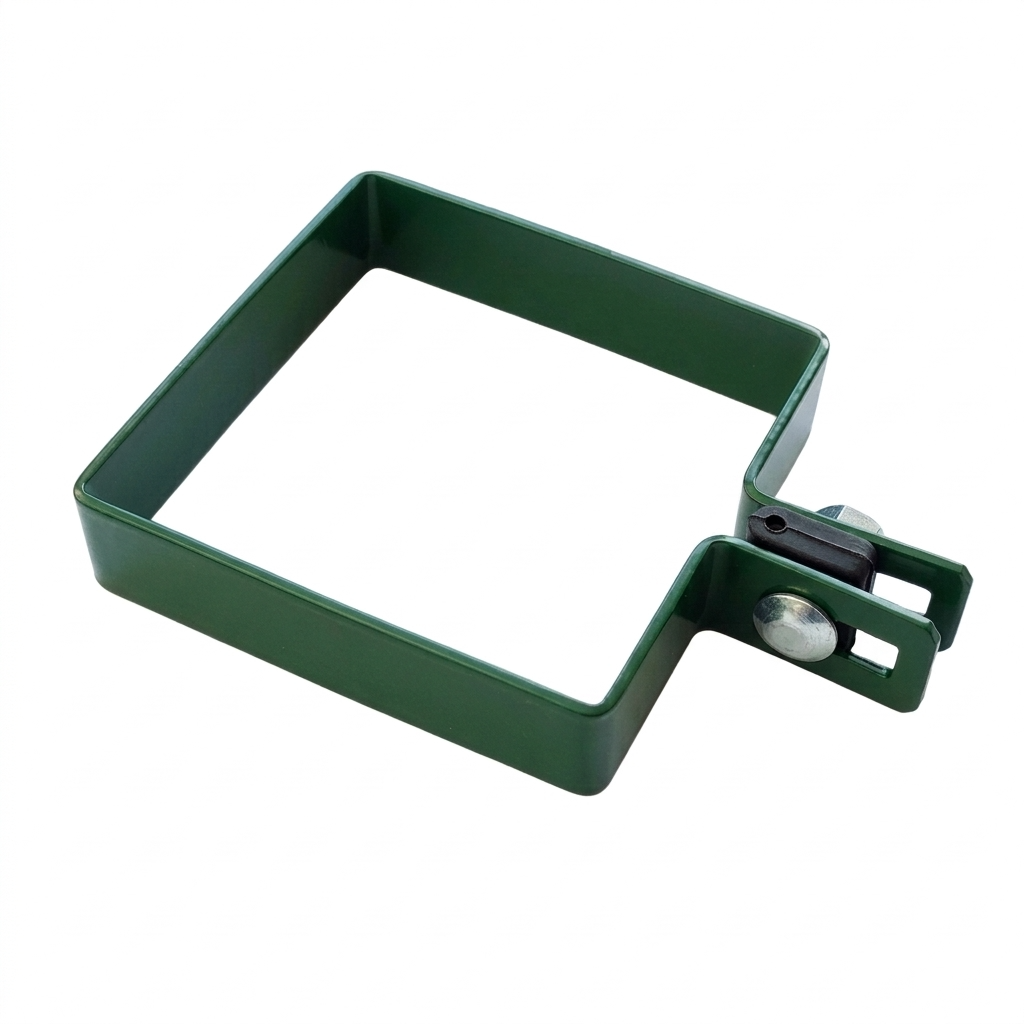

End fencing clamp 100x100 mm green RAL 6005 – view from mounting side with spacer
End fencing clamp 100x100 mm green RAL 6005 – view from mounting side with spacer

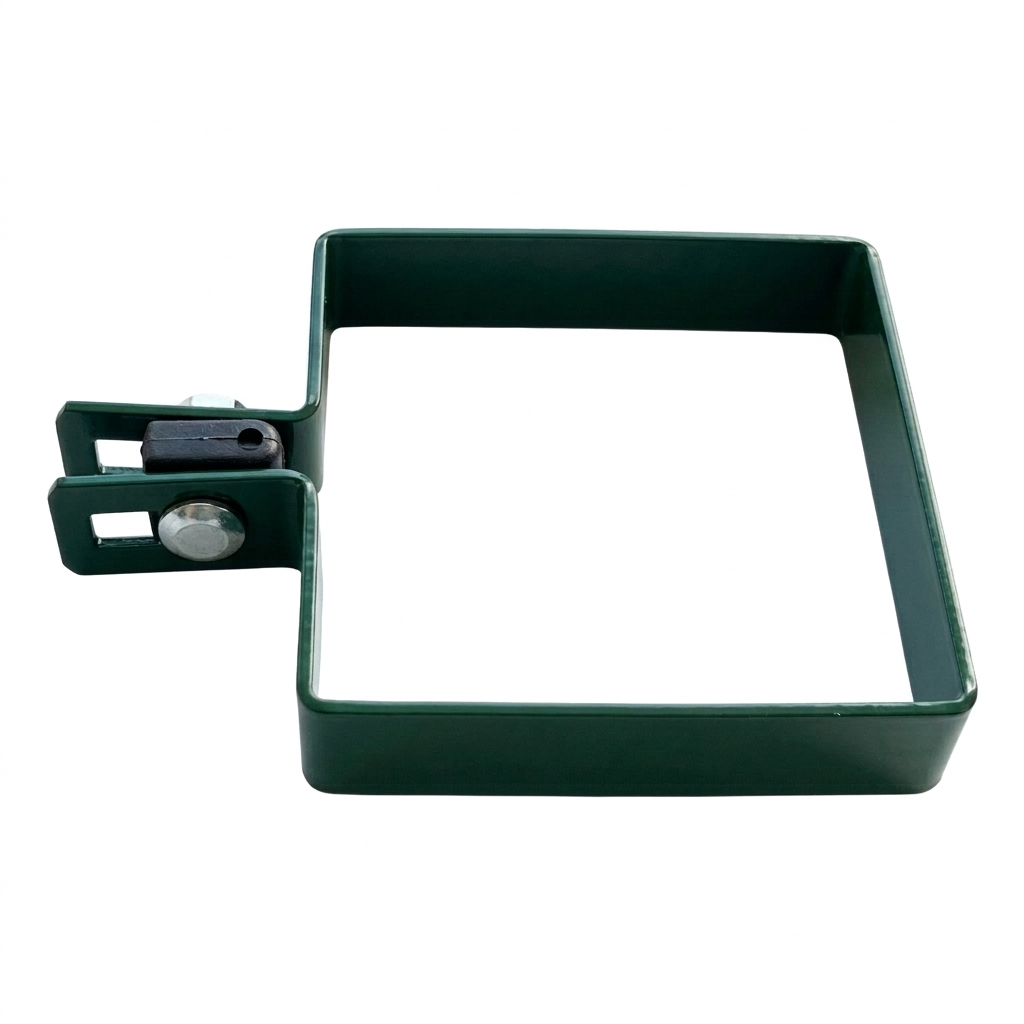

End fencing clamp 100x100 mm green RAL 6005 – view from mounting bolt side
End fencing clamp 100x100 mm green RAL 6005 – view from mounting bolt side

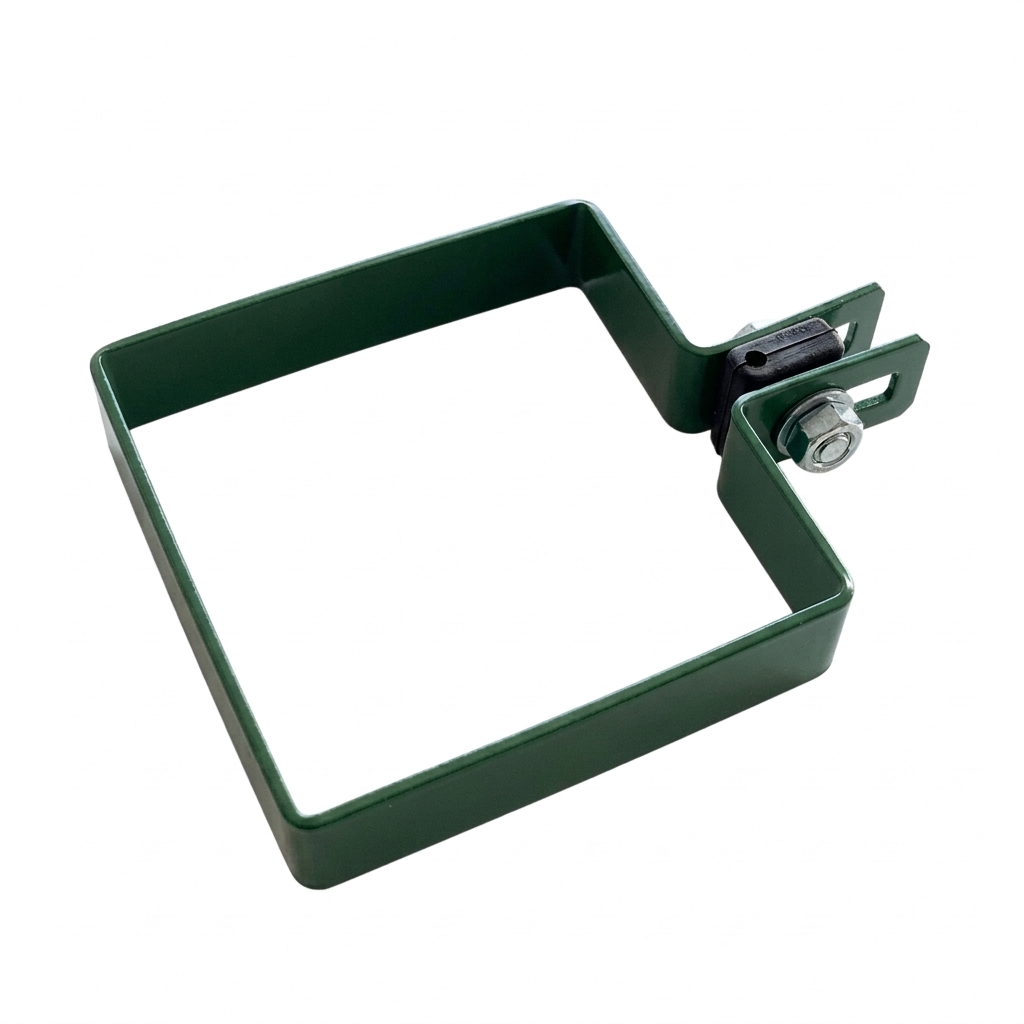

End fencing clamp 100x100 mm green RAL 6005 – perspective view with spacer
End fencing clamp 100x100 mm green RAL 6005 – perspective view with spacer

Note: The kit includes as standard a spacer (insert) matched to mesh with wire diameter fi 4 mm. When using panels with wire of different thickness (fi 3 mm or fi 5 mm) — please report this fact when placing an order to select the appropriate spacer insert size.

Technical data

Accessory Type End clamp
Colour Green RAL 6005
Post Profile Dimension [mm] 100x100
