End clamp for fencing panels 100x100 mm black
Leave feedback on the product

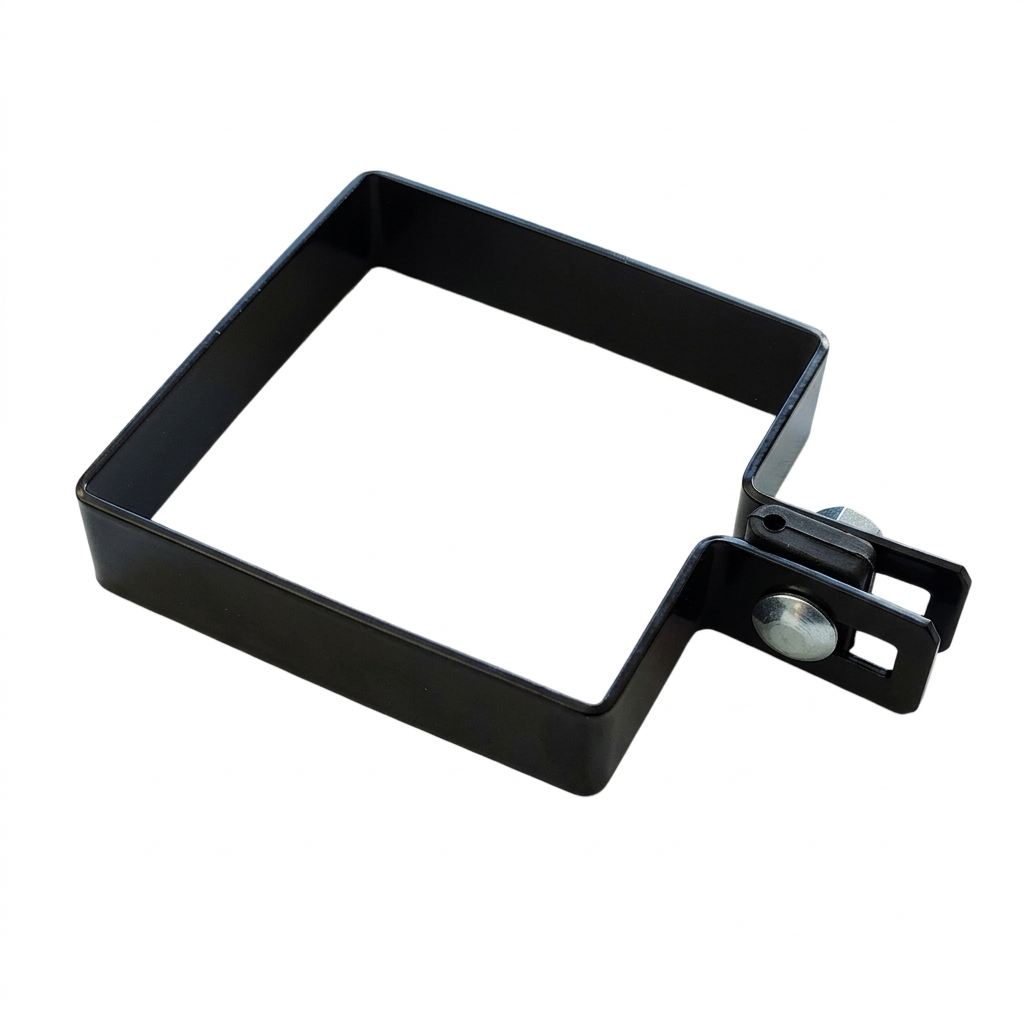

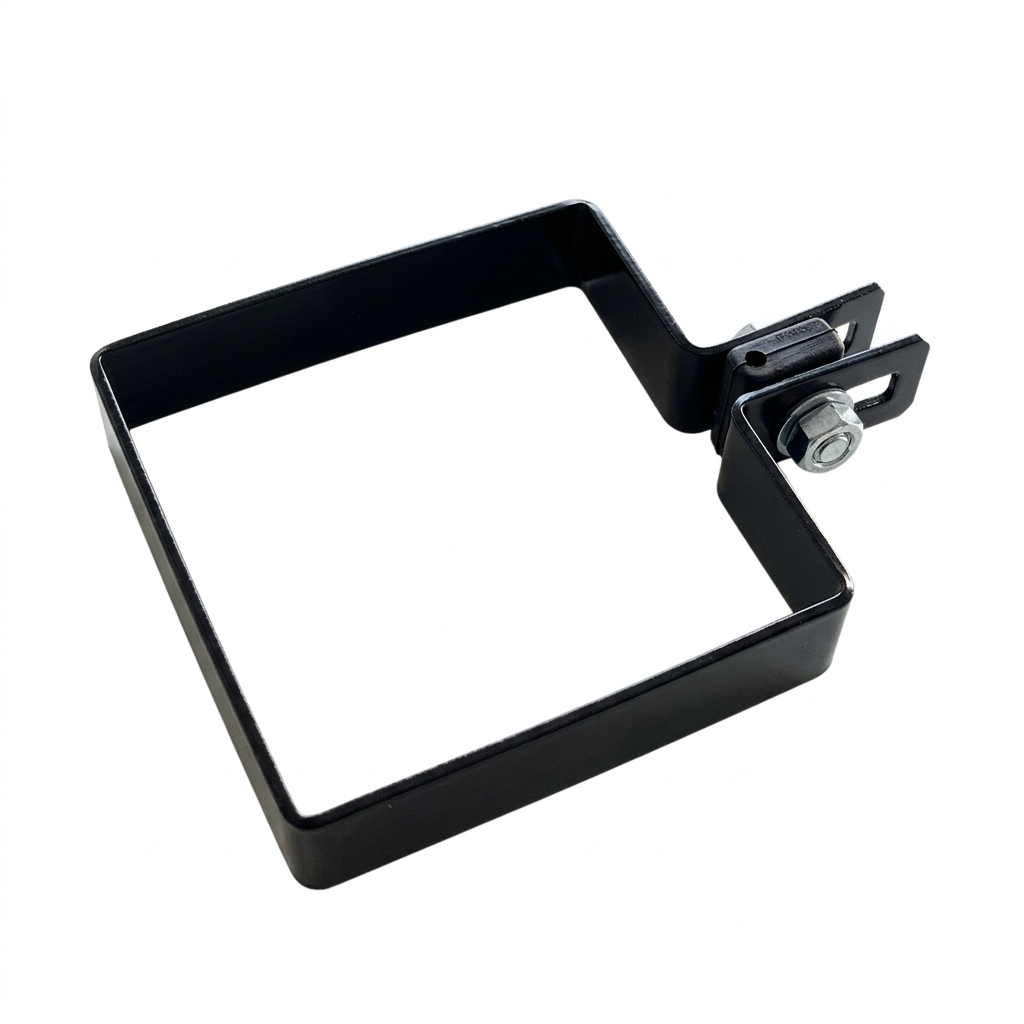

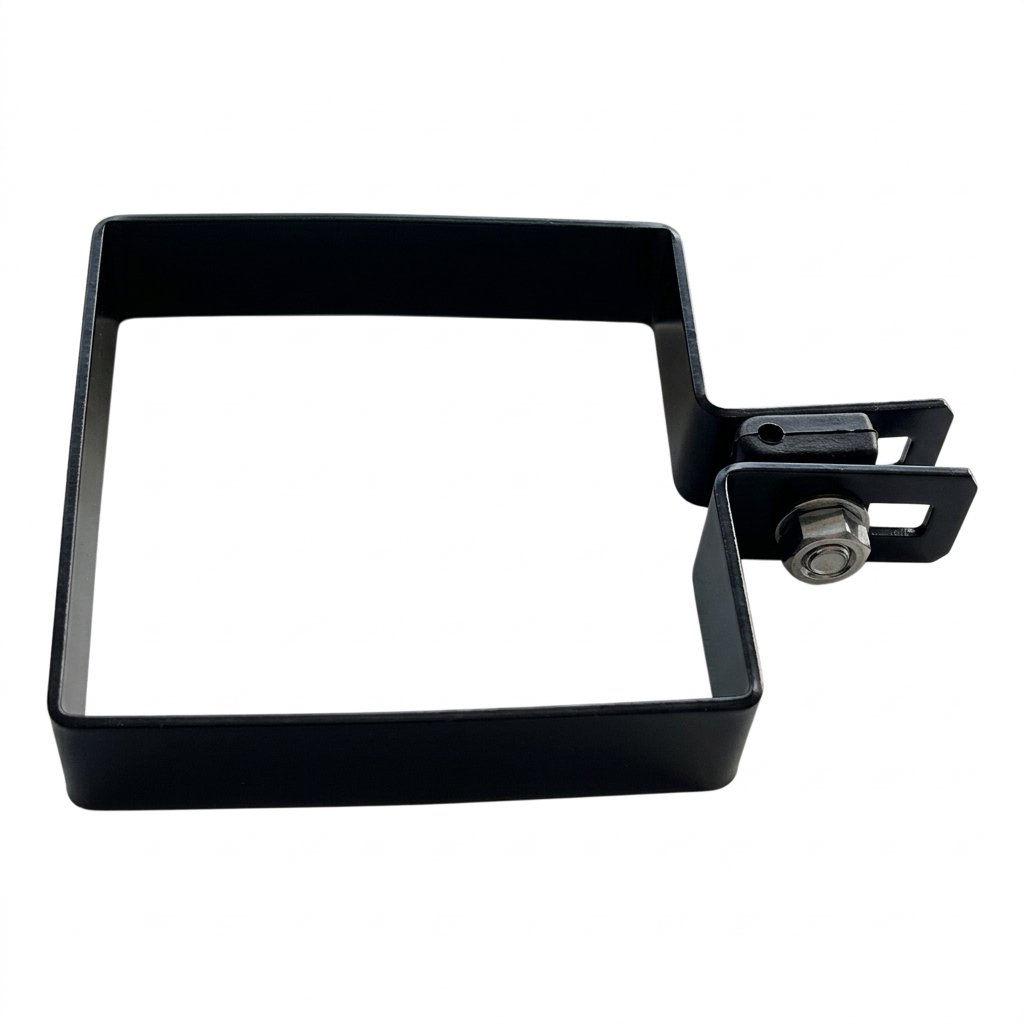

End fence bracket for 100×100 mm square post, made of 2 mm steel sheet. Black RAL 9005 colour, powder-coated finish. For fixing fence panels. Set includes M8×25 bolt and spacer.
Product code: 000-782
Product features
[PIM] obejmy #164
- Accessory Type End clamp
- Colour Black RAL 9005
- Post Profile Dimension [mm] 100x100
Description
Sheet metal band, 2 mm thick, around a 100 × 100 mm post, with one lug, a M8 × 25 bolt and a spacer for Ø 4 mm wire
About the product
The end fence post clamp is used to secure a single fence panel to the post where the fence ends – for example, beside a gate, pedestrian gate or wall. The sheet metal band wraps around the post, and a single lug holds the panel wire.

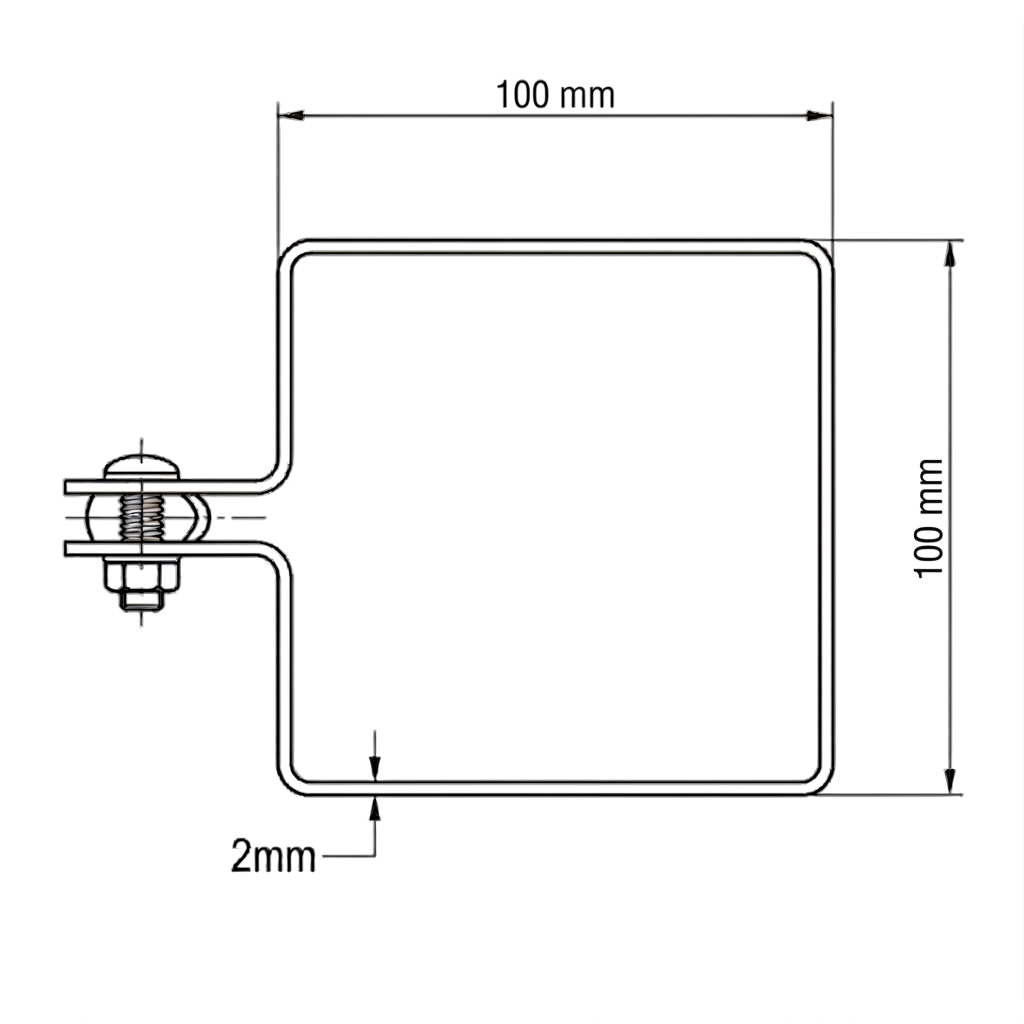

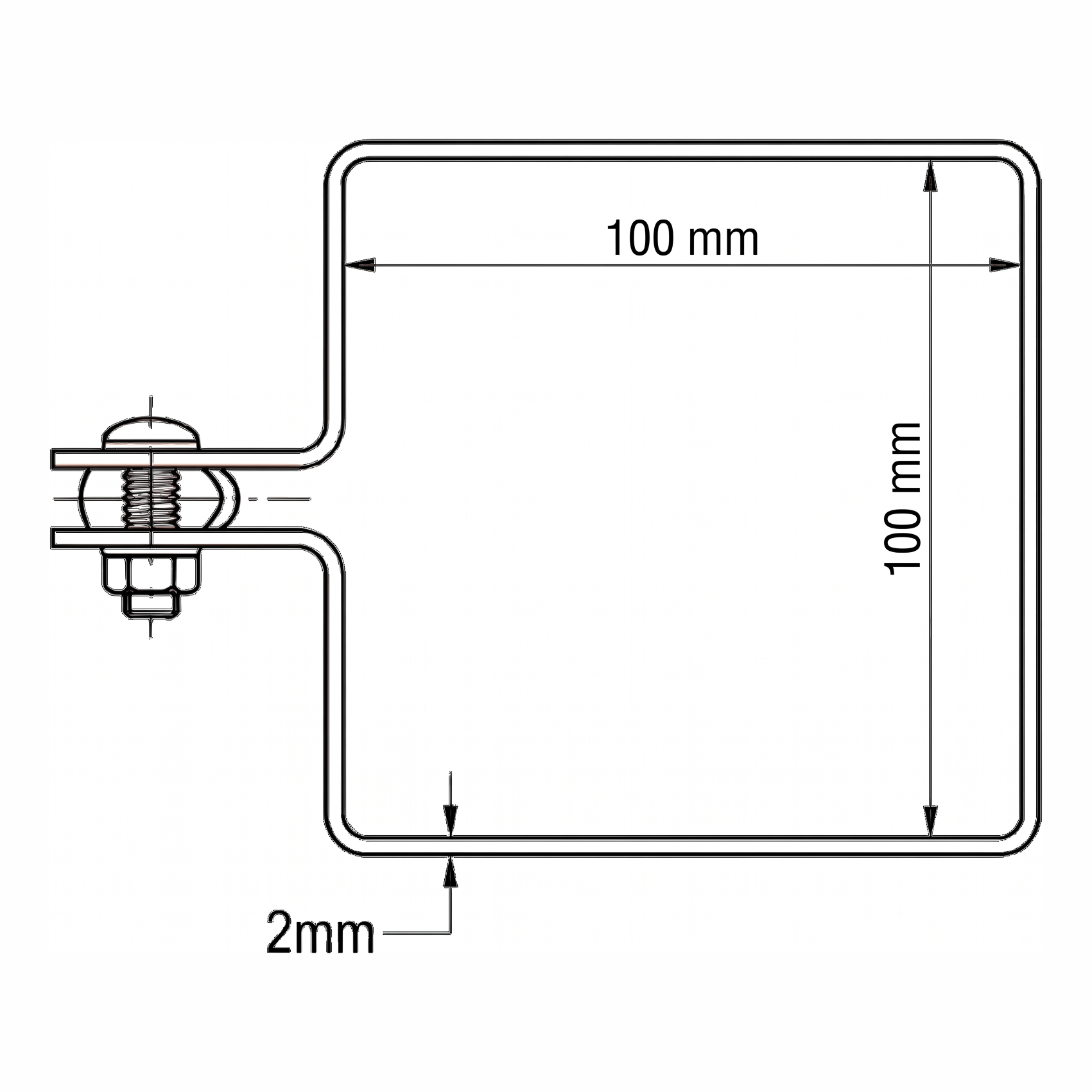

The internal dimensions a × a are 100 × 100 mm, so the clamp fits a post with this cross-section. The sheet thickness s is 2 mm. The set includes a M8 × 25 bolt with nut and a plastic spacer for Ø 4 mm wire.
The coating (zinc-coated and powder-coated, black RAL 9005) protects the steel against corrosion under typical conditions. In the event of contact with salt, chemicals or constant moisture, choose a version suitable for the exposure conditions.
Selection and installation
- ✓Check the post cross-section – the clamp fits 100 × 100 mm posts.
- ✓Fit the clamp around the post with the lug facing the panel.
- ✓Insert the panel wire into the plastic spacer and tighten the M8 bolt in the lug.
Important
The supplied spacer is sized for Ø 4 mm wire. For panels with a different wire diameter, choose a suitable spacer.
