End clamp for fence panels 100x100 mm galvanised
Description
End fence clamp for square post 100×100 mm – galvanised steel
End clamp for fence panels designed for mounting mesh and panels on posts with 100×100 mm cross-section. The complete mounting set allows for quick and secure fence installation in both private and commercial projects — without the need to separately source bolts and spacers.
The clamp is made from steel sheet with 2 mm thickness with galvanised coating, which provides high corrosion resistance and many years of durability in varying weather conditions. The solid construction guarantees stable retention of the fence panel on the post, eliminating the risk of mounting loosening due to wind or vibration.
End type (starting) clamps are mounted on the outer posts of the fence — where the panel approaches from only one side. Thanks to the included plastic spacers, it ensures proper spacing of the panel from the post and vibration dampening.
Set contents
- 1 pc. end clamp 100×100 mm – galvanised finish (raw)
- 2 pcs. M8×25 bolt with nut and washer (galvanised)
- 2 pcs. plastic spacer – black colour (standard for ø 4 mm wire)
Technical data
- Compatibility: square post 100×100 mm

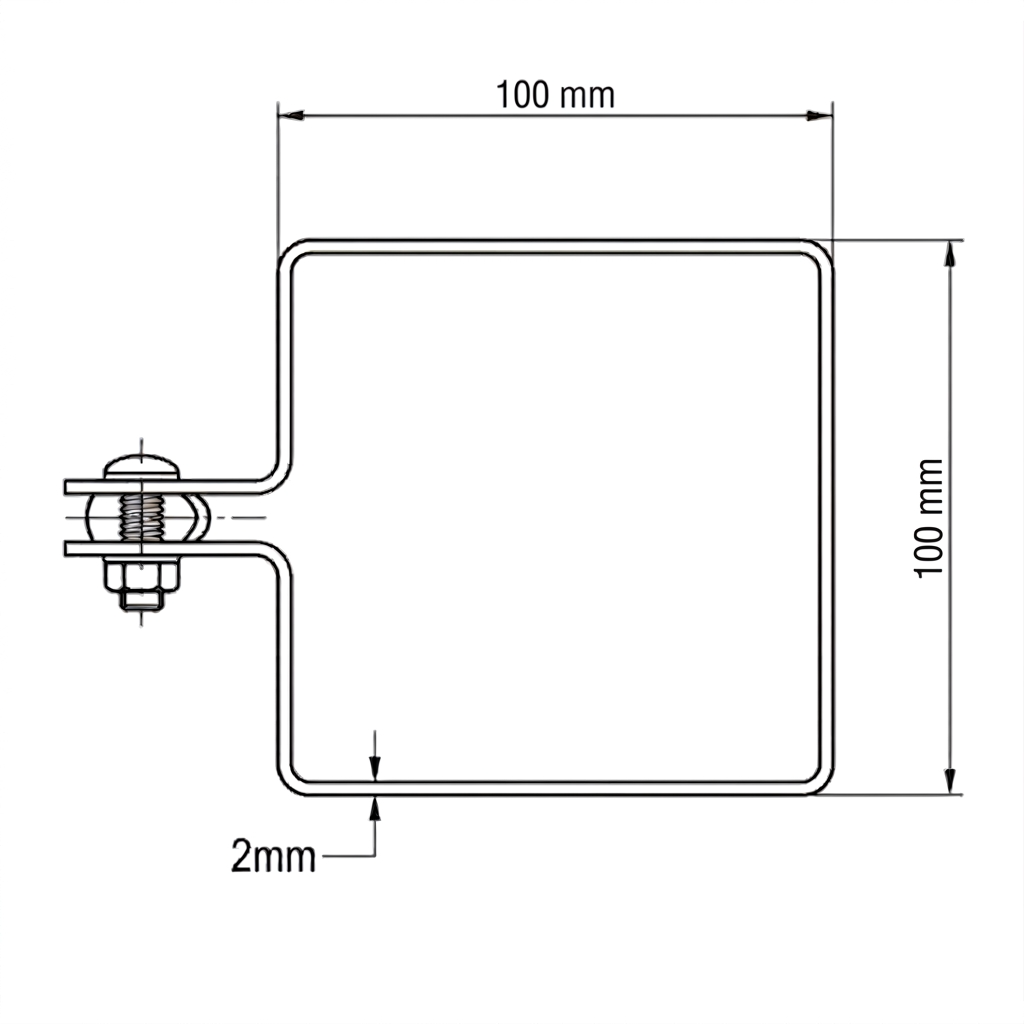

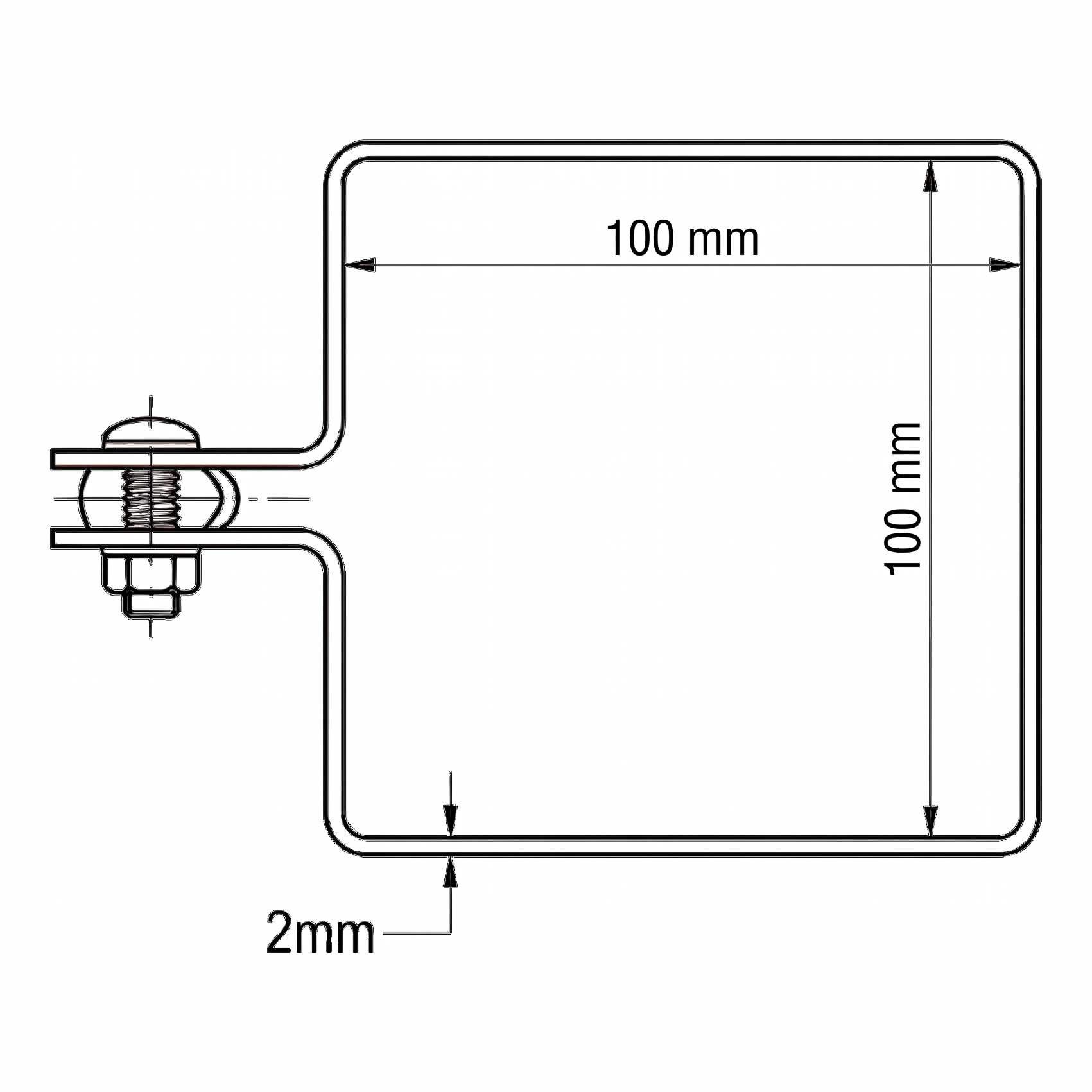

- Clamp dimensions: 100×100 mm
- Sheet thickness: 2 mm
- Material: galvanised steel
- Bolts: M8×25 with nut and washer
- Standard spacer: for ø 4 mm wire
- Available spacers (on order): ø 3 mm, ø 5 mm
- Type: end (starting) clamp
- Application: private and commercial panel fencing

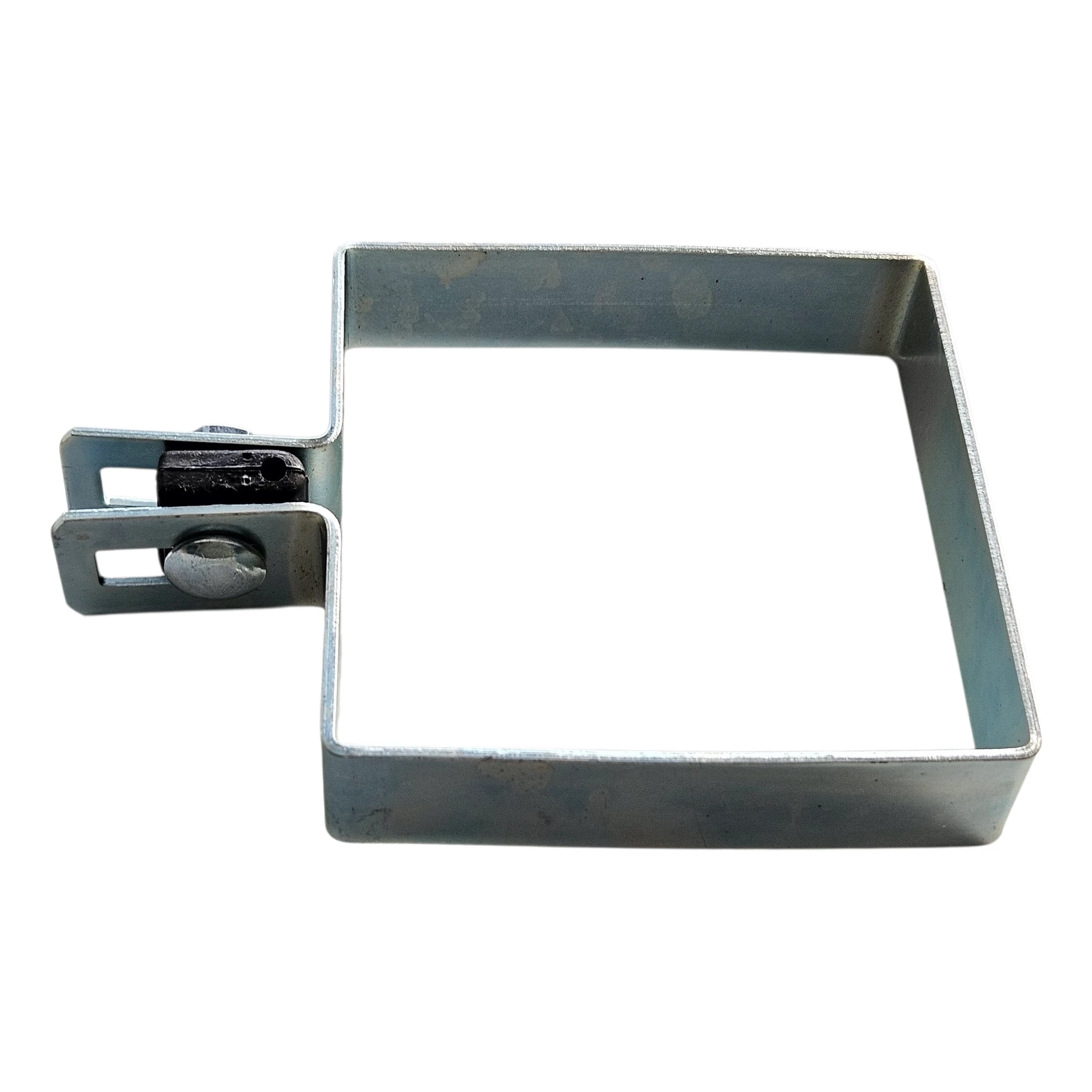

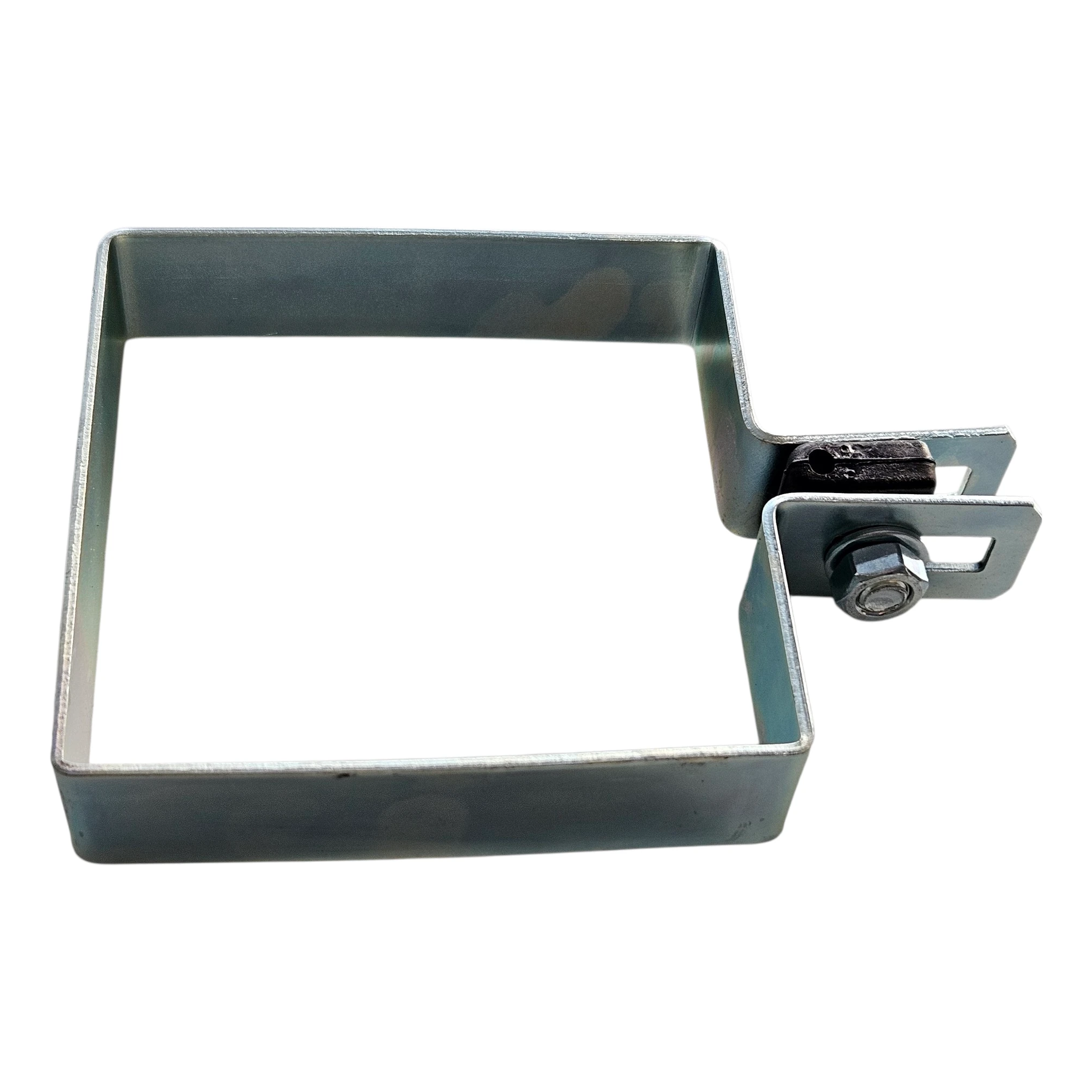

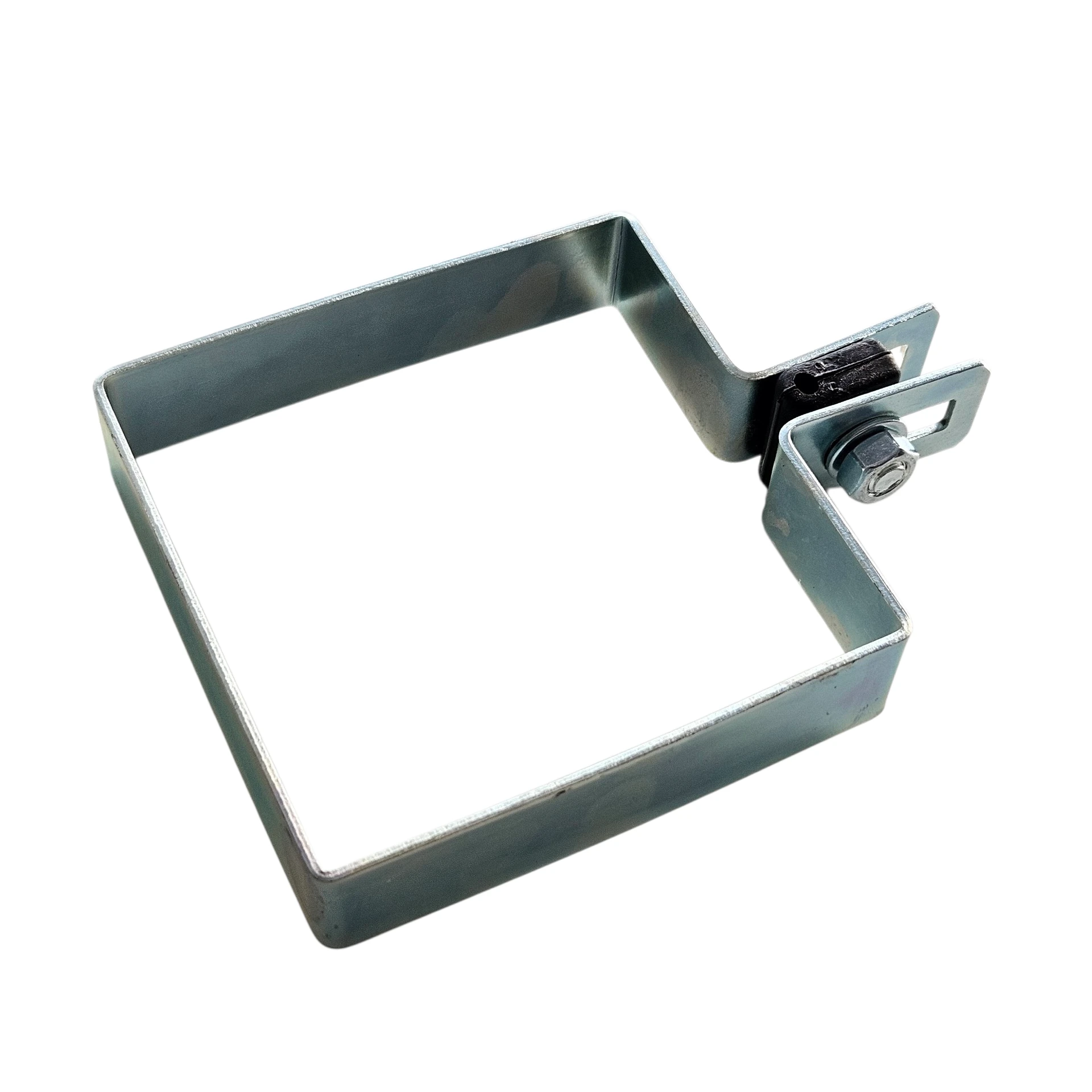

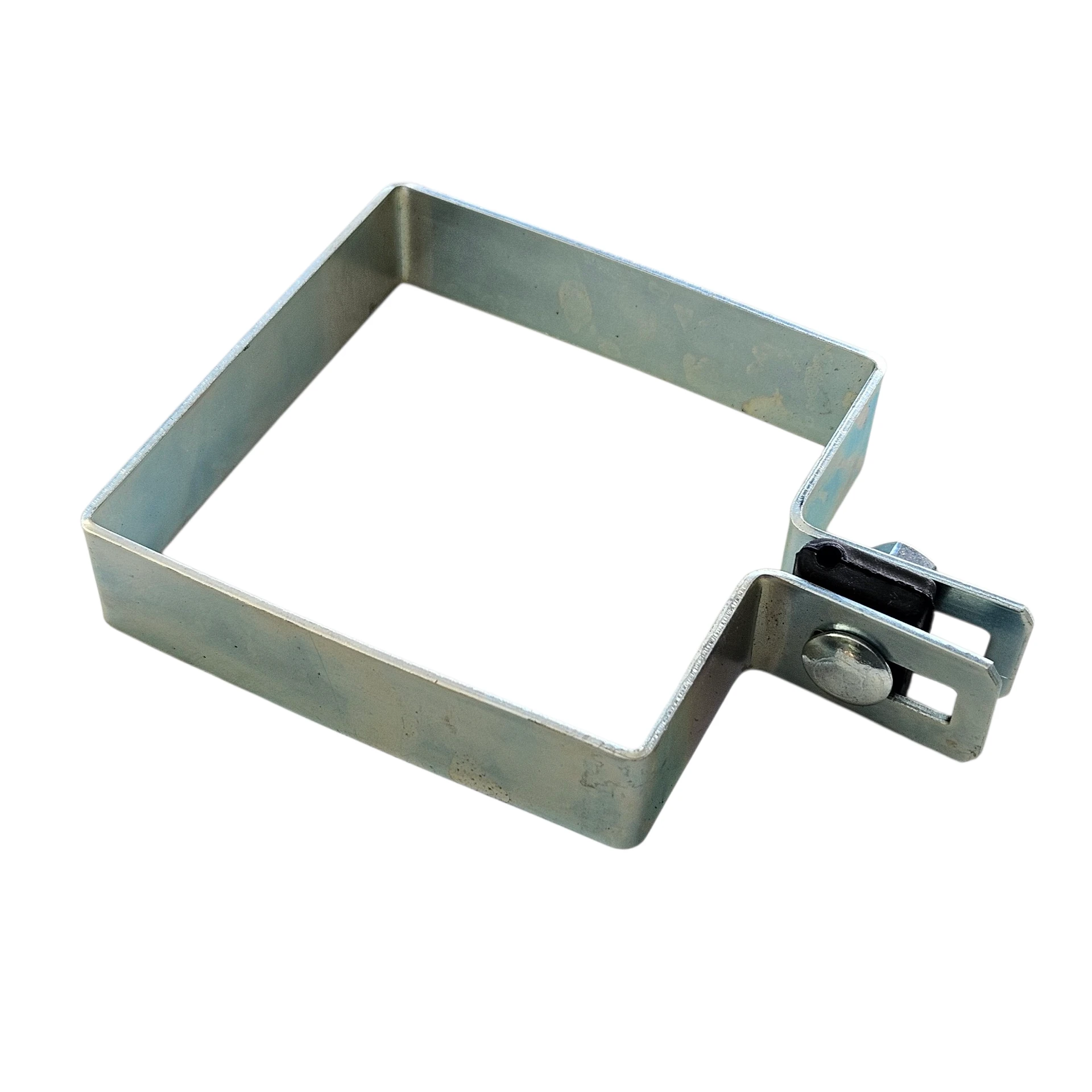

Product photos from different perspectives
Note: The set includes a spacer (insert) fitted as standard for mesh with ø 4 mm wire diameter. When using panels with different wire thickness (ø 3 mm or ø 5 mm) — please notify us when placing your order so we can select the appropriate spacer insert size.
Technical data
| Accessory Type | End clamp |
| Colour | Galvanised |
| Post Profile Dimension [mm] | 100x100 |
