Eaton Overcurrent Circuit Breaker B 16A 1P 6kA
product unavailable
add to wish list
Description

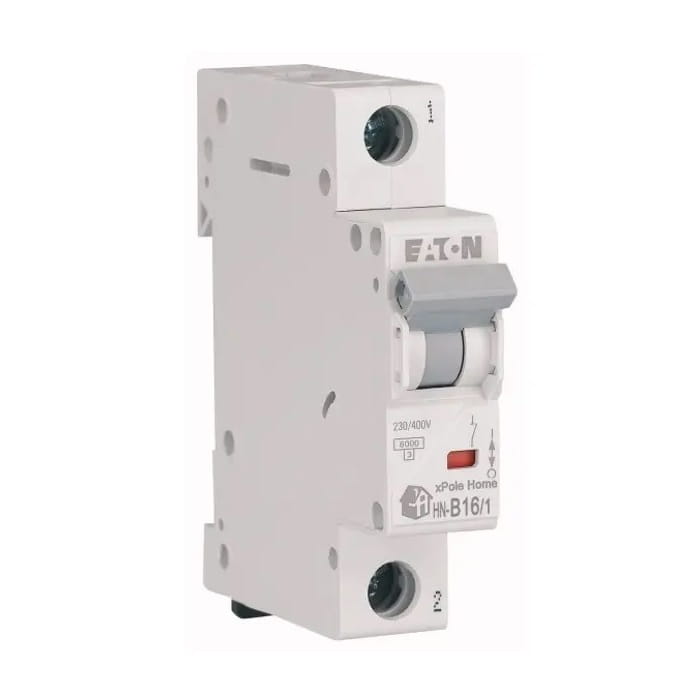

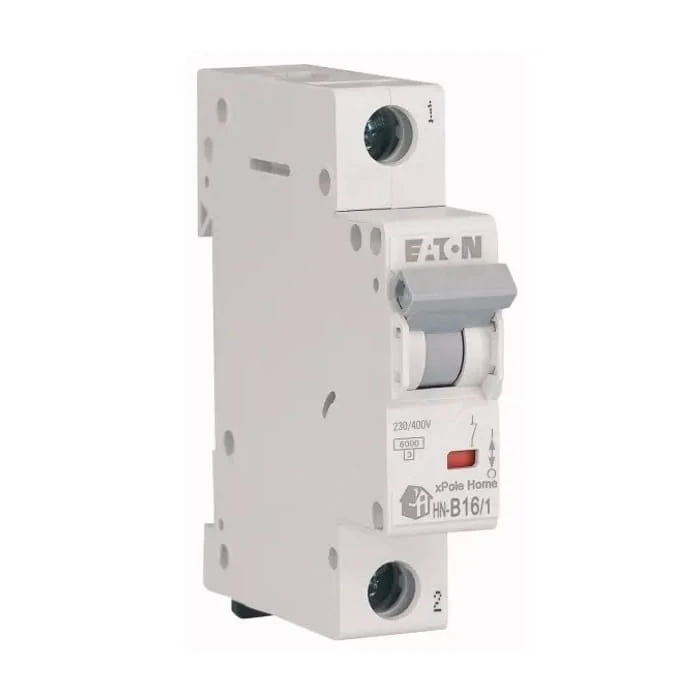

Eaton Miniature Circuit Breaker B 16A 1P 6kA
Miniature circuit breaker B 16A 1P 6kA HN-B16/1 xPole Home 194821 EATON protects electrical installations against overload and short circuit.
In the event of exceeding the permissible current intensity, it automatically interrupts the circuit, preventing damage. This reliable device guarantees peace of mind and safety in every home and business.
xPole Home modular equipment
The xPole Home modular equipment series by EATON is an excellent choice for those seeking reliable solutions in electrical protection. These products are characterised by a high level of safety and functionality, making them ideal even for the most demanding users. The xPole Home series is valued for its reliability and the possibility of easy expansion with additional elements such as auxiliary contacts, releases, or busbars.
Features and advantages of xPole Home equipment
- High-quality materials and solid workmanship ensure long-lasting operation.
- Double connection terminals (screw and busbar), mounted on both sides of the equipment, facilitate installation.
- Possibility of top or bottom supply and ease of mounting thanks to clips on TH35 rail.
- Aesthetic and modern design.
- Possibility of subsequent product expansion.
About the xPole Home HN miniature circuit breaker series
The HN series, successor to the popular CLS6 models, offers excellent performance and maximum safety. Thanks to its ergonomic shape, the equipment handles heat dissipation better and is an excellent choice for electricians and designers.
Technical parameters of xPole Home HN circuit breakers
- Tripping characteristic: type B and C
- Rated current: from 6 to 63 A
- Rated breaking capacity: 6 kA
- Configuration: 1, 1+N, 2, 3, 3+N poles
Specification
| Parameter | Value |
|---|---|
| Package weight | 0.15 kg |
| Manufacturer | EATON |
| Series | xPole Home HN |
| Characteristic | B |
| Rated voltage [V] | 230 |
| Rated current [A] | 16A |
| Frequency | 50-60 Hz |
| Breaking capacity [kA] | 6kA |
| Number of poles | 1 |
| Number of modules | 1 |
| Pollution degree | 3 |
| Overvoltage category | 3 |
| Energy limiting class | 3 |
| Mounting depth | 44 mm |
| Simultaneously switched N pole | no |
| Possibility of additional equipment | yes |
| Voltage type | AC |
| Degree of protection | IP 20 |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 0 kA |
| Rated short-circuit breaking capacity according to EN 60898 | 6 kA |
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Files to download:
Technical data
| Trip characteristic | B |
| Circuit breaker type | overcurrent |
| Rated current [A] | 16A |
| Number of poles | 1P |
| Breaking capacity [kA] | 6 kA |
| Brand | EATON |
