Eaton Motor protection circuit breaker 3-phase 3P 2.5-4A 1.5kW
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.15 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

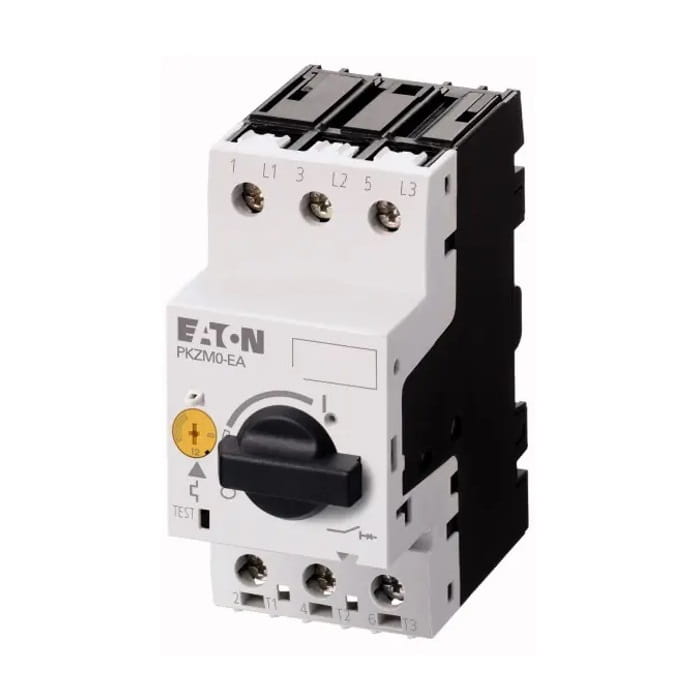

Eaton Motor protection circuit breaker 3-phase 3P 2.5-4A 1.5kW
Motor protection circuit breaker 3-phase 3P 2.5-4A 1.5kW PKZM0-4-EA 189901 by EATON is an electromechanical device that is used to protect electric motors.
It provides protection against damage in the event of a blocked start, short circuit, overload or missing one phase in a three-phase network. Motor circuit breakers, also known as thermistors, are also used to manually control motor operation, allowing the motor to be switched on and off.
General characteristics of motor switches PKZM0
- High breaking capacity of up to 150kA.
- Compatibility with IE3 motors.
- Compatibility with DIL contactors
- Integration with SmartWire-DT system
- Can be converted to a main switch or emergency stop switch, according to EN 60204 and/or VDE 0113 standards.
- Certified to UL/CSA, CCC, ATEX.
SPECIFICATION
Manufacturer
EATON
Number of phases
3-phase
Number of poles [xP]
3P
Rated current (max) [A]
4A
Maximum motor power [kW]
1.5kW
Degree of protection [IP]
IP20
Overload trigger setting range
2.5–4 A
Short-circuit tripping setting range
62 A
Standards
IEC/EN 60947, VDE 0660, UL, CSA IEC/EN 60947, VDE 0660
Available Configuration
Files to download:
Technical data
| Circuit breaker type | motor protection |
| Number of poles | 3P |
| Brand | EATON |
