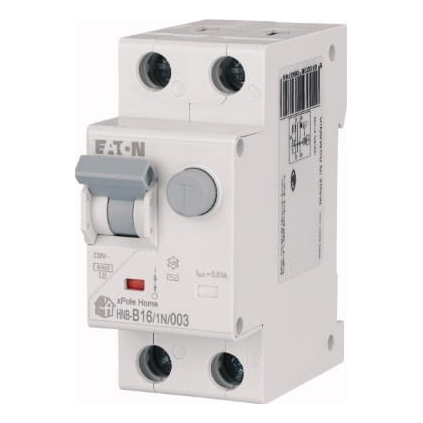

Eaton HNB-B16/1N/003 – residual current circuit breaker with overcurrent protection B16A 30mA AC
Leave feedback on the product
Residual current circuit breaker with overcurrent protection Eaton HNB-B16/1N/003, xPole Home series. Rated current 16 A, characteristic B, sensitivity 30 mA, type AC, 1P+N, breaking capacity 6 kA. Weight 0.15 kg. Cat. No. 195121.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-roznicowopradowe #91
- Circuit breaker type RCD with overcurrent protection
- Number of poles 1P+N
- Rated current [A] 16A
- Residual Current [mA] 30 mA
- Trip characteristic AC
- Breaking capacity [kA] 6 kA
- Brand EATON
- Overcurrent Trip Characteristic B
Description
Eaton HNB-B16/1N/003 – residual current circuit breaker with overcurrent protection B16A 30mA AC
Eaton HNB-B16/1N/003 is a compact residual current circuit breaker with a built-in overcurrent protection module from the xPole Home series, combining overcurrent protection and residual current protection in a single device. This means it takes up less space in the switchboard than a classic set of a separate circuit breaker and residual current device — which is particularly important where installation space in residential switchboards is limited.
The B tripping characteristic ensures fast disconnection in the event of short circuits typical of lighting and socket circuits, while the 30 mA residual sensitivity guarantees effective protection against electric shock for people. The AC tripping type responds to sinusoidal residual currents — suitable for standard installations without appliances generating pulsating leakage currents.
Advantages of the xPole Home series
- Dual connection terminals — cage and rail type, enabling flexible cable connection
- Top or bottom supply — freedom in designing the switchboard layout
- Mounting clip for quick installation and removal on TH35 rail without tools
- Compatibility with EVG and Z-GV connecting busbars — efficient construction of multi-module sets
- Possibility of expansion with auxiliary contacts and accessories from the xPole Home system
- Modern, ergonomic design with clear labelling
Technical specification
| Parameter | Value |
|---|---|
| Manufacturer | EATON |
| Series | xPole Home |
| Catalogue No. | 195121 |
| Designation | HNB-B16/1N/003 |
| Rated current | 16 A |
| Tripping characteristic | B |
| Residual current | 30 mA |
| Residual tripping type | AC |
| Number of poles | 1P+N |
| Rated breaking capacity | 6 kA |
| With overcurrent protection module | Yes |
| Weight | 0.15 kg |
| EAN | 9010238060746 |
