Eaton DC Isolator Switch 2-Pole 30A 1000V Single-Phase
Leave feedback on the product
2-pole DC isolator switch rated 30A and 1000V DC. Double-pole switching, IP20 protection degree, DIN rail 35mm mounting. Durability 10,000 mechanical cycles, operating temperature -25~+60°C.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] rozlaczniki-izolacyjne #95
- Application DC (photovoltaic)
- Disconnector Type isolator
- Rated current [A] 30A
- Number of poles 2P
- Rated Voltage [V] 1000V DC
- Brand EATON
Description

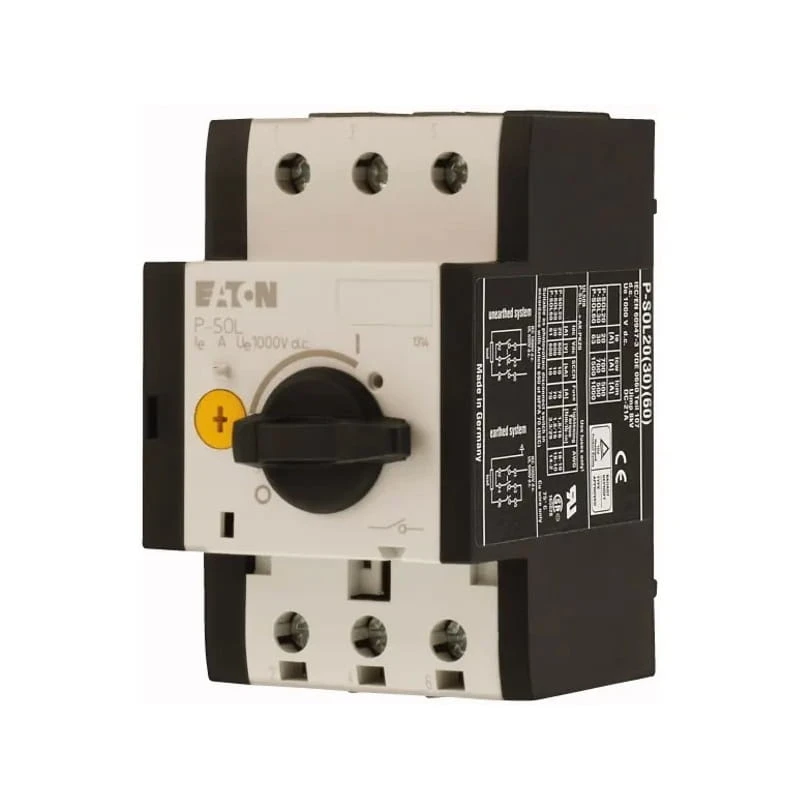

Eaton DC Isolator Switch 1-phase 2P 30A 1000V
DC Isolator Switch 1-phase 2P 30A 1000V P-SOL30 120935 EATON is used for safe disconnection of DC circuits and enables safe de-energised operation. It is particularly useful as a separate switch for safely disconnecting a faulty inverter.
The Eaton P-SOL30 isolator switch offers double-pole switching, making it ideally suited for use in unearthed photovoltaic installations. This model is designed to operate at voltages up to 1000 V, guaranteeing efficiency and reliability under various operating conditions.
Specification
| Parameter | Value |
|---|---|
| Package weight | 0.285 kg |
| Manufacturer | EATON |
| Series | P-SOL |
| Rated current | 30 A |
| Number of poles | 2 |
| Number of modules | 2 |
| Maximum rated operating voltage | 1000 V DC |
| Degree of protection | IP20 |
| Rated operating current at DC-21A | 26 A |
| Rated operating current at DC-PV1 | 26 A |
| Rated operating current at DC-PV2 | 10 A |
| Poles | 2-pole |
| Rated operating voltage | 1000 V |
| Isolator characteristics | YES |
| Standards and regulations | IEC/EN 60947-3 |
| Mechanical durability | 10,000 cycles |
| Electrical durability | 1,500 cycles |
| Maximum switching frequency | 120 S/h |
| Climatic resistance | humid/warm climate, constant, acc. to IEC 60068-2-78; humid/warm climate, variable, acc. to IEC 60068-2-30 |
| Ambient temperature | -25~+60°C |
| Mounting position | any, in accordance with requirements |
| Dimensions | width 58 mm, height 93 mm, depth 76 mm |
| DIN rail | 35 mm |
| Cross-section of connecting conductors | stranded with ferrule: 1x (1-6), 2x (1-6) mm²; solid or stranded: 18-14 AWG |
| Measured short-circuit current withstand (t=1s) | 0.36 kA |
| Up to 440 V 50/60 Hz | 0.32 kA |
| Internal resistance | 5 mΩ |
