Eaton Circuit Breaker B 10A 1P 6kA
Leave feedback on the product
Single-pole miniature circuit breaker with 10A rated current and B-curve characteristic. Breaking capacity 6kA, voltage 230V AC. EATON xPole Home HN series with double terminals and DIN rail mounting TH35.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Trip characteristic B
- Circuit breaker type overcurrent
- Rated current [A] 10A
- Number of poles 1P
- Breaking capacity [kA] 6 kA
- Brand EATON
Description

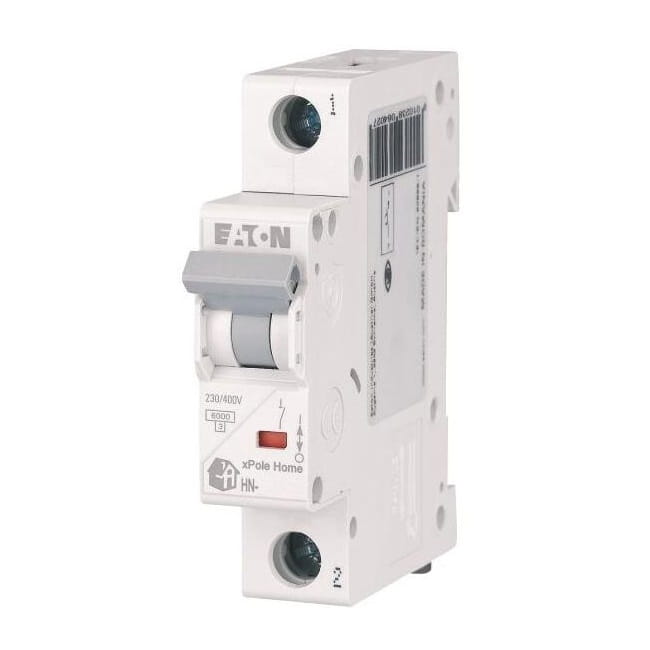

Miniature Circuit Breaker B 10A 1P 6kA HN-B10/1 xPole Home 194819 EATON
Miniature Circuit Breaker B 10A 1P 6kA HN-B10/1 xPole Home 194819 EATON protects electrical installations against overload and short circuit.
In the event of exceeding the permissible current intensity, it automatically interrupts the circuit, preventing damage. This reliable device guarantees peace of mind and safety in every home and business.
xPole Home Modular Switchgear
The xPole Home modular switchgear series by EATON is an excellent choice for those seeking reliable electrical protection solutions. These products are characterised by a high level of safety and functionality, making them ideal even for the most demanding users. The xPole Home series is valued for its reliability and the ease of expansion with additional elements such as auxiliary contacts, releases, or busbar systems.
Features and Benefits of xPole Home Switchgear
- High-quality materials and solid construction ensure long-lasting operation.
- Dual connection terminals (screw and busbar), mounted on both sides of the device, facilitate installation.
- Possibility of top or bottom supply and easy mounting thanks to clips for TH35 rail.
- Aesthetic and modern design.
- Possibility of subsequent product expansion.
About the xPole Home HN Miniature Circuit Breaker Series
The HN series, successor to the popular CLS6 models, offers excellent performance and maximum safety. Thanks to its ergonomic shape, the switchgear handles heat dissipation better and represents an excellent choice for electricians and designers.
Technical Parameters of xPole Home HN Circuit Breakers
- Tripping characteristic: type B and C
- Rated current: from 6 to 63 A
- Rated breaking capacity: 6 kA
- Configuration: poles 1, 1+N, 2, 3, 3+N
SPECIFICATION
| Parameter | Value |
|---|---|
| Manufacturer | EATON |
| Series | xPole Home HN |
| Tripping characteristic | B |
| Rated voltage [V] | 230 |
| Rated current [A] | 10A |
| Frequency | 50-60 Hz |
| Breaking capacity [kA] | 6kA |
| Number of poles | 1 |
| Number of modules | 1 |
| Installation depth | 70.5000 mm |
| Simultaneously disconnected N pole | no |
| Overvoltage category | 3 |
| Energy limiting class | 3 |
| Possibility of additional equipment | yes |
| Voltage type | AC |
| Pollution degree | 2 |
| Width expressed in number of modules | 1 |
| Degree of protection | IP 20 |
| Rated short-circuit making capacity according to IEC 60947-2 | 0 kA |
| Rated short-circuit breaking capacity according to EN 60898 | 6 kA |
