Eaton B 32A 3-Pole Circuit Breaker 6kA Breaking Capacity
Leave feedback on the product
3-pole miniature circuit breaker with B 32A characteristic and 6kA breaking capacity. EATON xPole Home HN series with double connection terminals and expandable with accessories. Protection degree IP20, DIN rail TH35 mounting.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] wylaczniki-nadpradowe-i-silnikowe #90
- Trip characteristic B
- Circuit breaker type overcurrent
- Rated current [A] 32A
- Number of poles 3P
- Breaking capacity [kA] 6 kA
- Brand EATON
Description

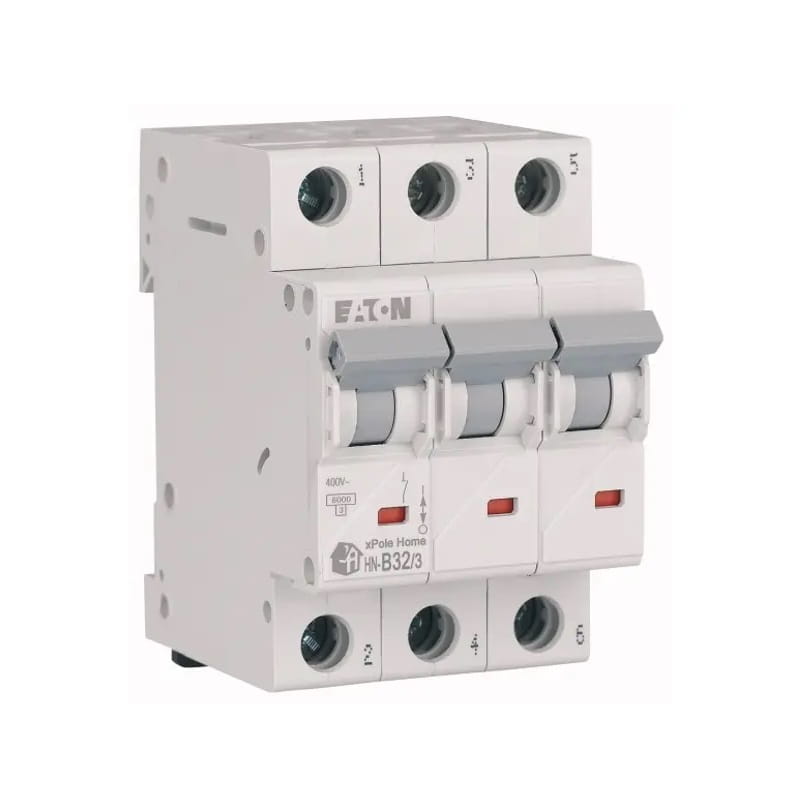

Eaton Miniature Circuit Breaker B 32A 3P 6kA
Miniature circuit breaker B 32A 3P 6kA HN-B32/3 xPole Home 194884 by EATON protects electrical installations against overload and short circuit.
In the event of exceeding the permissible current intensity, it automatically interrupts the circuit, preventing damage. This reliable device guarantees peace of mind and safety in every home and business.
xPole Home modular equipment
The xPole Home modular equipment series by EATON is an excellent choice for those seeking reliable electrical protection solutions. These products are characterised by a high level of safety and functionality, making them ideal even for the most demanding users. The xPole Home series is valued for its reliability and the ease of expansion with additional elements such as auxiliary contacts, releases, or busbars.
Features and advantages of xPole Home equipment
- High-quality materials and solid construction ensure long-lasting operation.
- Double connection terminals (screw and busbar), mounted on both sides of the equipment, facilitate installation.
- Possibility of top or bottom feeding and easy mounting thanks to clips on TH35 rail.
- Aesthetic and modern design.
- Possibility of subsequent product expansion.
About the xPole Home HN miniature circuit breaker series
The HN series, successor to the popular CLS6 models, offers excellent performance and maximum safety. Thanks to its ergonomic shape, the equipment better handles heat dissipation and is an excellent choice for electricians and designers.
Technical parameters of xPole Home HN circuit breakers
- Tripping characteristic: type B and C
- Rated current: from 6 to 63 A
- Rated breaking capacity: 6 kA
- Configuration: poles 1, 1+N, 2, 3, 3+N
SPECIFICATION
| Parameter | Value |
|---|---|
| Manufacturer | EATON |
| Series | xPole Home HN |
| Tripping characteristic | B |
| Rated voltage [V] | 230 |
| Rated current [A] | 32 |
| Frequency [Hz] | 50-60 |
| Breaking capacity [kA] | 6 |
| Number of poles | 3 |
| Number of modules | 3 |
| Pollution degree | 3 |
| Overvoltage category | 3 |
| Energy limiting class | 3 |
| Installation depth [mm] | 44 |
| Simultaneously disconnected N pole | no |
| Possibility of additional equipment | yes |
| Voltage type | AC |
| Degree of protection | IP 20 |
| Rated short-circuit making capacity according to IEC 60947-2 | 0 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 6 kA |
| Package weight | 0.15 |
