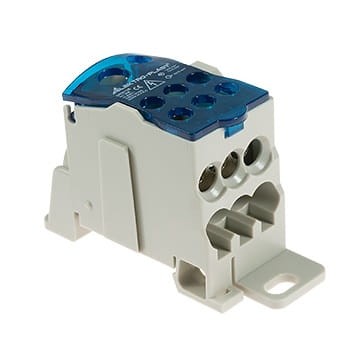

ELEKTRO-PLAST Distribution block 1-pole 125A TH35 blue UKK-125
Availability:
In stock (almost sold out)
Delivered within:
10 Business days
Weight:
0.14 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description
ELEKTRO-PLAST Distribution block 1-pole 125A TH35 blue UKK-125
Distribution block 1-pole UKK-125 for TH35 rail or for Al/Cu flat surfaces 1x35mm 1x16mm 6x16mm 415V AC/DC 125A 49.5125 ELEKTRO-PLAST is a versatile electrical device for effective circuit management in installations.
Key product features:
- Compatible with aluminium and copper conductors
- Variable connection cross-sections: 1x35mm², 1x16mm² and 6x16mm²
- Adapted for operation at 415V AC/DC
- Maximum current load: 125A
The use of this resolution block enables:
- Connection of conductors with different diameters
- Separation of phase, neutral and protective terminals
- Flexible configuration of electrical circuits
The product is characterised by high quality workmanship, which translates into its reliability and resistance to external factors. Thanks to its design, the UKK-125 is a key component of modern electrical installations, ensuring safety and efficiency in energy distribution.
SPECIFICATION

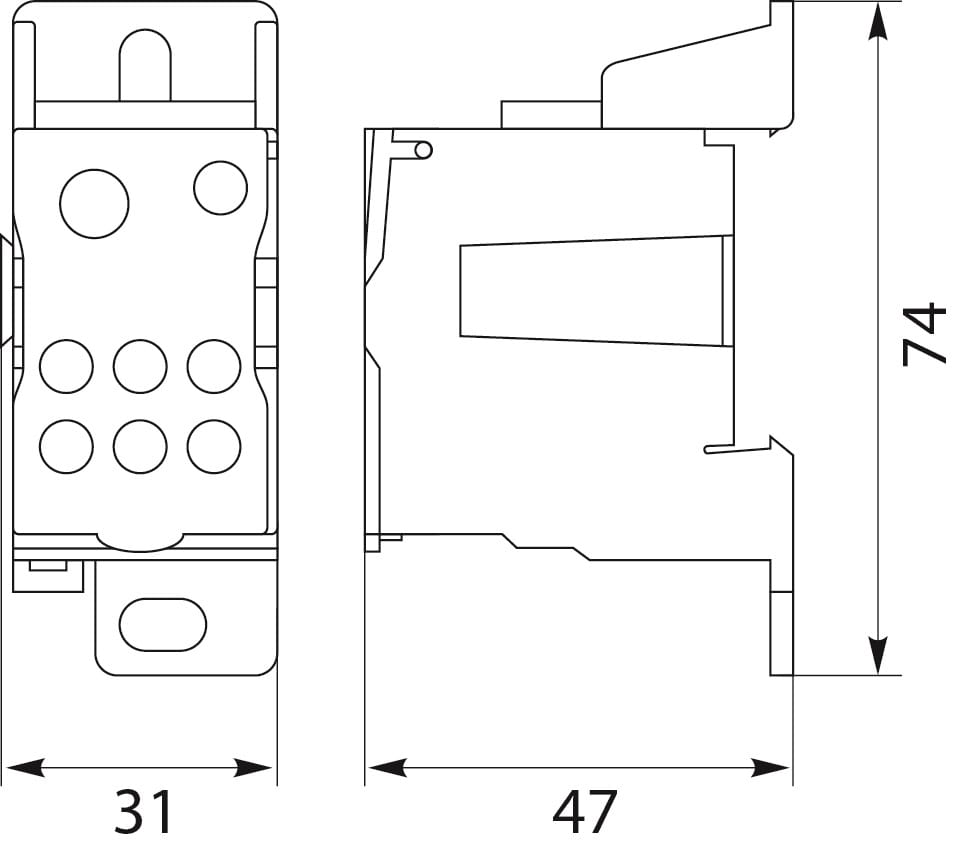

Dimensions
31 mm x 47 mm x 74 mm
Number of openings - entrance
1 x 35 mm2, 1 x 16 mm2
Number of holes - entrance
6 x 16 mm2
Mounting
For TH35 rail or flat surfaces
Voltage
690 V
Current intensity
125 A
Standards
EN 55014-1:2006+A2:2011, EN 55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013
Colour
Grey-blue
Packing weight
0.14 kg
Manufacturer
ELEKTROPLAST OPATÓWEK
Number of poles
1-pole
