Dromet ring anchor expansion bolt PSRe M6x100/42 galvanised
Leave feedback on the product
PSRe M6x100/42 ring anchor by Dromet, electrolytically galvanised. Structural steel, length 100 mm, anchoring depth 55 mm, thickness of the fixed element 42 mm, weight 0.02 kg. For non-cracked concrete min. B20, natural stone and solid brick. Certificates ETA 05/0242, CE, AT-15-
Product code: 002-009
Product features
[PIM] kotwy-pierscieniowe-ocynkowane #180
- Thread type M6
- Length [mm] 100
Description

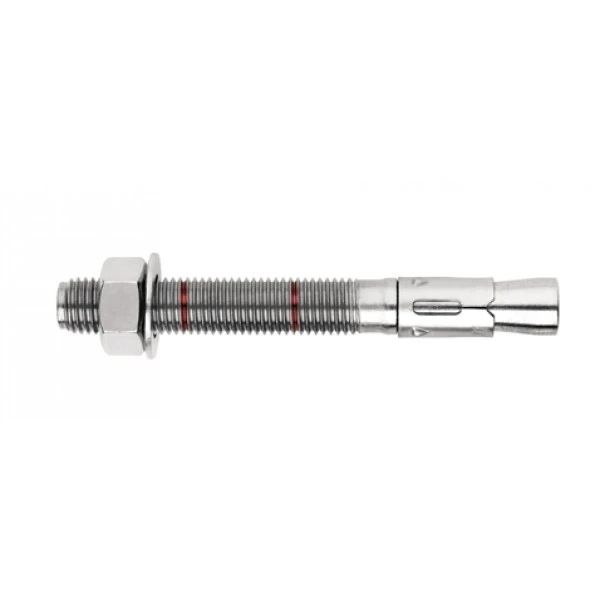

Dromet PSRe M6x100/42 zinc-plated ring expansion anchor for concrete
The PSRe M6x100/42 ring anchor by Dromet is a proven solution for the permanent fastening of profiles, metal structures, grilles, railings, machines and other construction fittings. The ring design with a nut and washer ensures secure expansion in the mounting hole and even pressure of the fastened element against the substrate.
The anchor is designed for use in substrates made of non-cracked concrete, min. class B20, dense-structure natural stone and solid brick. Thanks to ETA 05/0242 certification, CE marking and the national approval AT-15-7574/2008, the product meets the highest quality requirements and can be used in structural connections requiring high reliability.
Technical parameters
- Designation: PSRe 6x100/42
- Thread: M6
- Drilling diameter (Ø): 6 mm
- Total length (L): 100 mm
- Thickness of the fastened element (E): 42 mm
- Anchoring depth (F): 55 mm
- Hole depth (D): 100 mm
- Material: structural steel, electro-galvanised
- Design: ring type with nut and washer
- Weight: 0.02 kg
- EAN: 5907518682825
- Sales unit: piece
Certificates and approvals
- European Technical Approval: ETA 05/0242
- Certificate: CE
- National Technical Approval: AT-15-7574/2008
Installation diagram and dimensions
The cross-sectional drawing illustrates how the anchor is installed in the concrete substrate. The markings on the diagram correspond to the following parameters:
- M – thread diameter
- E – thickness of the fastened element (protrusion above the substrate)
- F – anchoring depth in the substrate
- L – total length of the anchor
- D – depth of the mounting hole
- H – diameter of the hole in the substrate
Installation recommendations
The mounting hole should be drilled perpendicular to the substrate surface and then thoroughly cleaned of dust and drilling debris. The fastener should be inserted into the hole with light hammer taps. The nut should be tightened using a torque wrench — after the anchor has expanded, the washer under the nut must be firmly pressed against the fastened element. All permissible loads and installation parameters are given in the Technical Approval AT-15-7574/2008 — the values stated therein must not be exceeded.
Application
- Fastening profiles and metal structures
- Installation of grilles, railings and balustrades
- Anchoring machines and equipment
- Fastening support structures for photovoltaic installations
- Permanent fastening of building fittings and equipment
