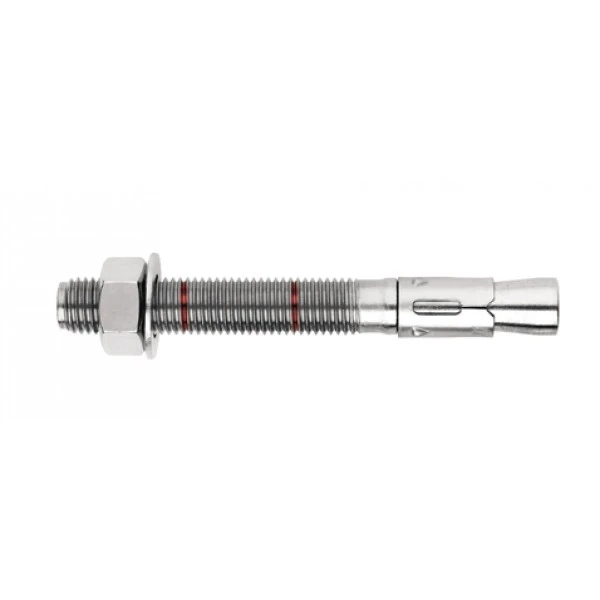

Dromet PSRe M8x60/5 ring expansion anchor, galvanised
Leave feedback on the product
PSRe 8x60/5 Dromet ring expansion anchor, electrolytically galvanised steel. M8 thread, 60 mm length, weight 0.026 kg. For non-cracked concrete min. B20, natural stone, solid brick. Holds ETA 05/0242, CE, AT-15-7574/2008.
Product code: 002-002
Product features
[PIM] kotwy-pierscieniowe-ocynkowane #180
- Thread type M8
- Length [mm] 60
Description
Dromet PSRe 8x60/5 Steel Galvanised Expansion Ring Anchor
The PSRe 8×60/5 ring anchor from Dromet is a proven expansion fastener designed for the permanent fixing of mounting profiles, metal structures, grating platforms, handrails, machinery and equipment components. Thanks to its European Technical Approval ETA 05/0242, CE certificate and national approval AT-15-7574/2008, the anchor meets the highest requirements set for fastening techniques in professional construction.
The ring design ensures an even distribution of stress within the mounting hole, resulting in high load capacity and reliable connection. The fastener is supplied complete with a nut and washer — ready for immediate installation without the need to source additional components.
Compatible substrates
- Non-cracked concrete of at least class B20 (C16/20)
- Natural stone with a dense structure
- Solid brick
Technical parameters
- Designation: PSRe 8x60/5
- Thread: M8
- Drilling diameter (Ø): 8 mm
- Overall length (L): 60 mm
- Thickness of the fixed element (E): 5 mm
- Anchorage depth (F, approximate): 50 mm
- Hole depth (D): 55 mm
- Material: structural steel, electro-galvanised
- Design: ring type with nut and washer
- Weight: 0.026 kg
- EAN: 5907518692213
- Sales unit: piece
Certificates and approvals
- European Technical Approval ETA 05/0242
- CE certificate
- National Technical Approval AT-15-7574/2008
Installation recommendations
The mounting hole should be drilled perpendicular to the substrate surface, then thoroughly cleaned of drilling dust. The fastener should be able to be inserted into the hole with light hammer taps. The nut should be tightened using a torque wrench to achieve the correct torque in accordance with the approval guidelines. Once the fastener has expanded, the washer under the nut should be firmly pressed against the fixed element. The parameters specified in Technical Approval AT-15-7574/2008 must not be exceeded.
