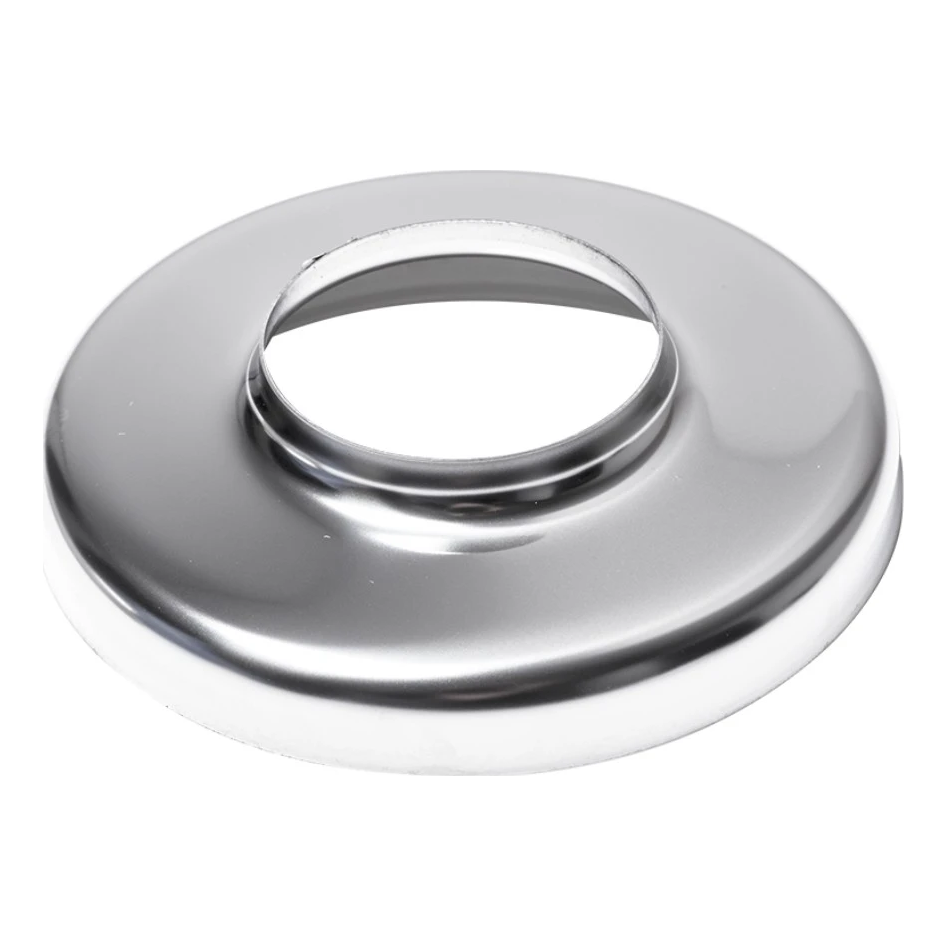

Decorative rosette with collar for 40mm diameter pipe – AISI 304 stainless steel polished
0
Description
Decorative rosette with collar for 40mm diameter pipe – AISI 304 stainless steel polished
Decorative rosette with collar designed for aesthetic finishing of pipe penetrations with diameter fi 40mm through floors, ceilings or walls. Ideal for balustrade installation — covers post bases, mounting holes and assembly screws, giving the structure a professional, elegant appearance.
The cover is made from AISI 304 stainless steel with mirror finish (polished), which guarantees high corrosion resistance and long-lasting visual effect. The collar with height 17mm effectively covers the mounting zone whilst protecting structural elements made from mild steel against the harmful effects of atmospheric conditions.

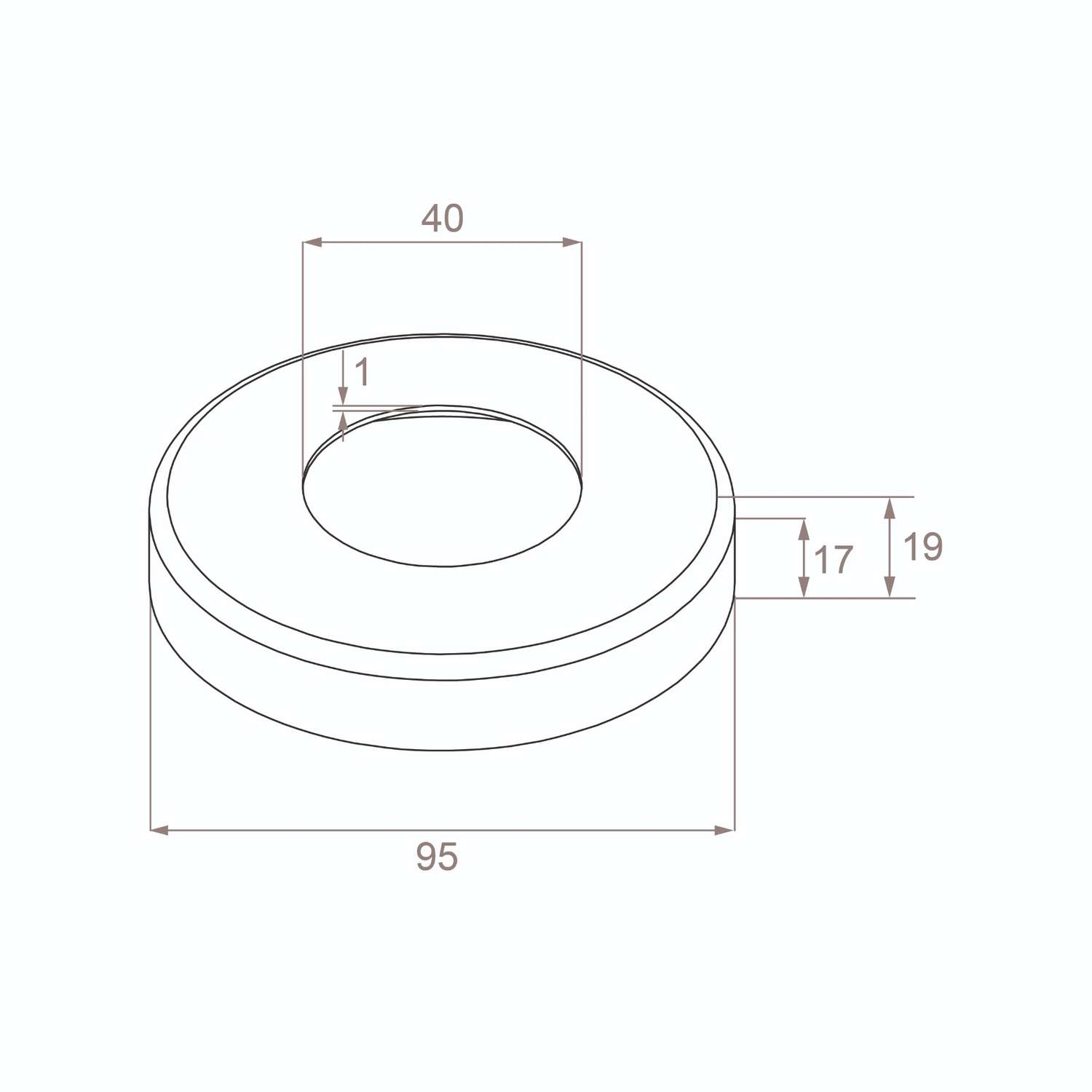

Dimensions and technical parameters
- External diameter: 95mm
- Hole diameter (for pipe): 40mm
- Total height: 19mm
- Internal collar height: 17mm
- Wall thickness: 1mm
- Material: AISI 304 stainless steel
- Finish: mirror (polished)
- Shape: round, universal
- Weight: 0.035kg
- EAN: 5901289673778
Application
Rosette intended primarily for masking balustrade post bases — both inside and outside buildings. The universal shape allows it to be used also as a cover for pipe penetrations in plumbing and heating installations, wherever aesthetic finishing of mounting points or 40mm diameter pipe penetrations is required.
The high quality of AISI 304 stainless steel and precise mirror polishing ensure that the cover maintains its aesthetic appearance for many years — even when exposed to moisture and variable temperatures.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
