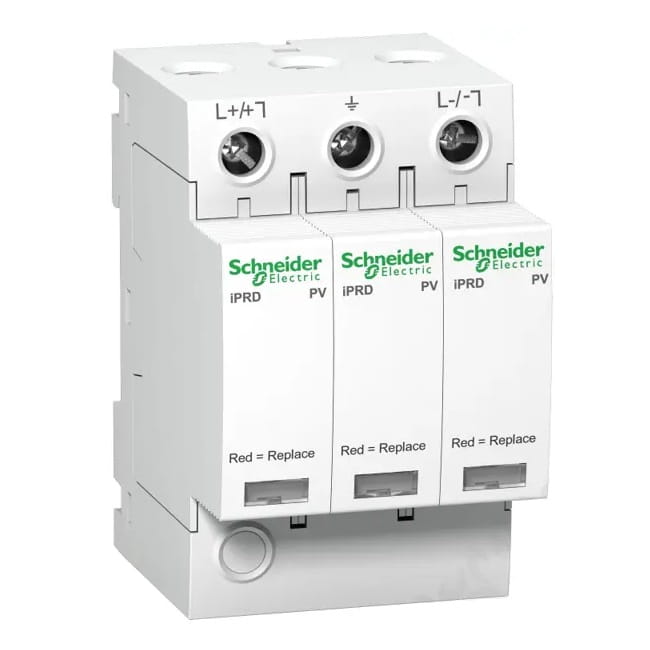

DC Surge Protector iPRD-DC40r-T2 3-Pole Type 2 15kA With Contact
Leave feedback on the product
DC Type 2 surge protection device, 3-pole 1000V with nominal discharge current 15kA and maximum 40kA. Protection level 3.9kV, DIN rail 35mm mounting, local signalling white-red flag, IP20.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
[PIM] ograniczniki-przepiec #93
- Application DC (photovoltaic)
- Surge Protector Type (SPD Class) T2 (C)
- Rated Voltage [V] 1000V DC
- Number of poles 3P
- Lightning Current (Iimp/In) [kA] 15 kA
- Brand SCHNEIDER ELECTRIC
- Protection Level (Up) [kV] 3,9 kV
Description
DC Surge Protective Device iPRD-DC40r-T2-3-Pole Type 2 15kA With Contact
PV DC Surge Protective Device Type 2 (C) 3P 1000V 15kA 3.9kV with contact iPRD-DC40r-T2-3-1000 A9L40281 SCHNEIDER ELECTRIC
- rated operating voltage [Ue]: 1000 V DC +/- 10%
- nominal discharge current [In]: 15 kA
- maximum discharge current [Imax]: 40 kA
- maximum continuous operating voltage [Ucpv]: differential mode: 1000 V L+/L-, common mode: 1000 V L+/PE, common mode 1000 V L-/PE
- maximum protection level: 3.9 kV
- signalling circuit voltage: 250 V AC 50/60 Hz
- signalling output current: 0.25 A
- dimensions: 85 x 54 x 69 mm
SPECIFICATION
| Parameter | Value |
|---|---|
| Package weight | 0.363 kg |
| Elektroklub | yes |
| For network | DC (Photovoltaic PV) |
| Surge protective device class | C (Type 2) |
| Number of poles | 3 |
| Nominal discharge current (In) | 15kA |
| Voltage protection level | 3.9kV |
| Width expressed in number of modules | 3 |
| IP protection rating | IP20 |
| Nominal discharge current (In) | 40kA |
| nominal discharge current | 15 kA |
| Local signalling | White-red flag |
| Colour | White |
| Mounting bracket | 35 mm DIN rail |
| Mounting mode | fixed |
