Countersunk head screw M6x10 DIN 7991 – stainless steel A2 (AISI 304), hexagon socket
Description

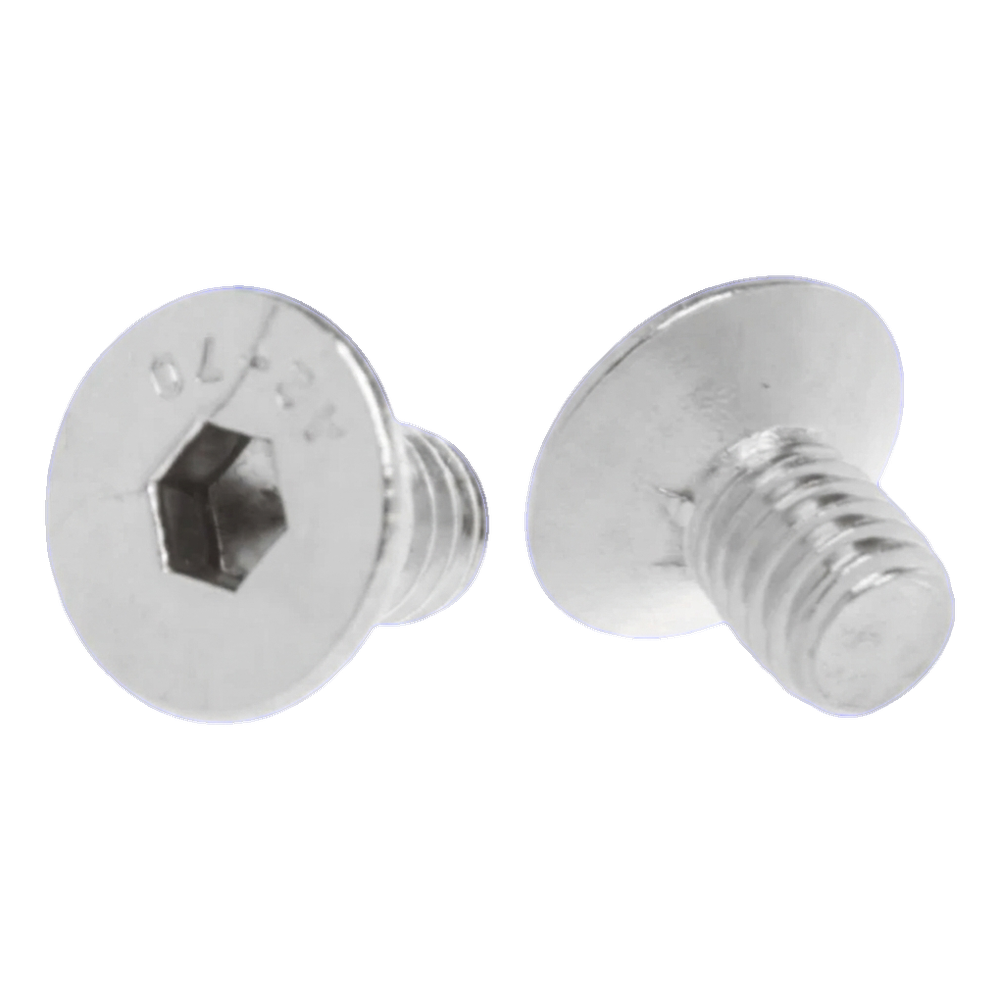

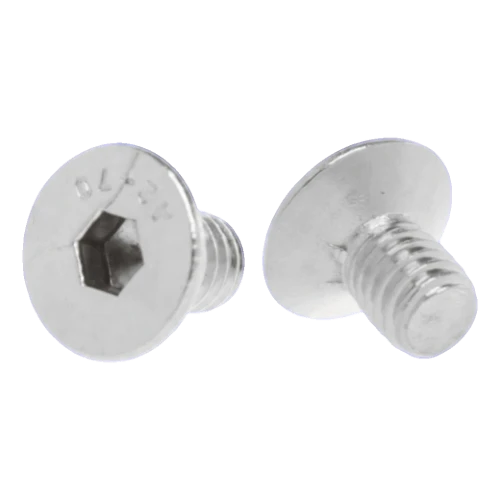

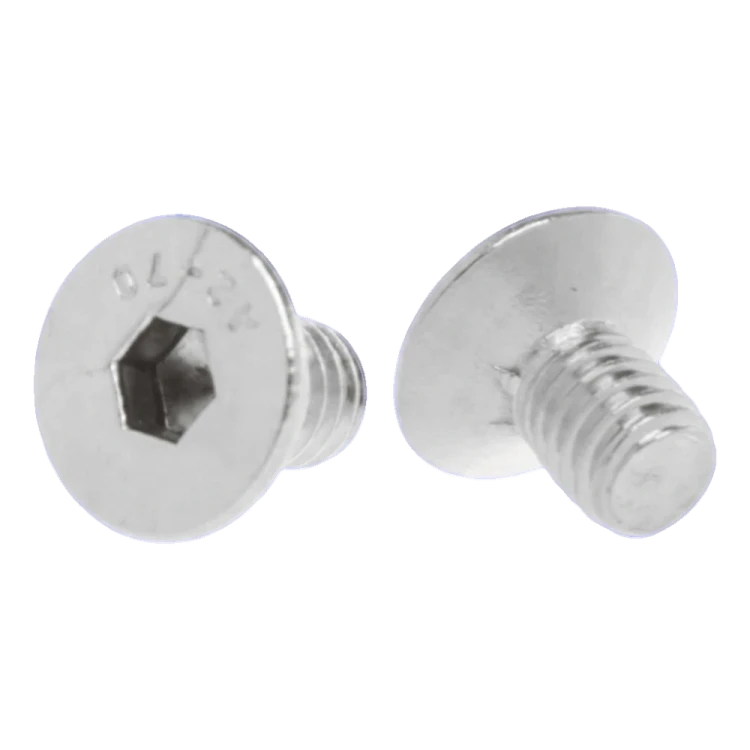

Countersunk head screw M6x10 DIN 7991 – stainless steel A2 (AISI 304), hexagon socket
Countersunk head screw M6x10 DIN 7991 made of stainless steel A2 (AISI 304) with hexagon socket (Allen key) — universal mounting element used in balustrade structures, photovoltaic installations and wherever connection with countersunk head resistant to corrosion is required. The conical head allows flush mounting with the profile wall, ensuring aesthetic and even appearance of joints without protruding elements.
Construction from stainless steel AISI 304 guarantees high corrosion resistance — both in external conditions and in humid environments. The hexagon socket (Allen key) enables secure tightening with an Allen key with high torque, which is particularly important for professional structural assembly.
Technical parameters

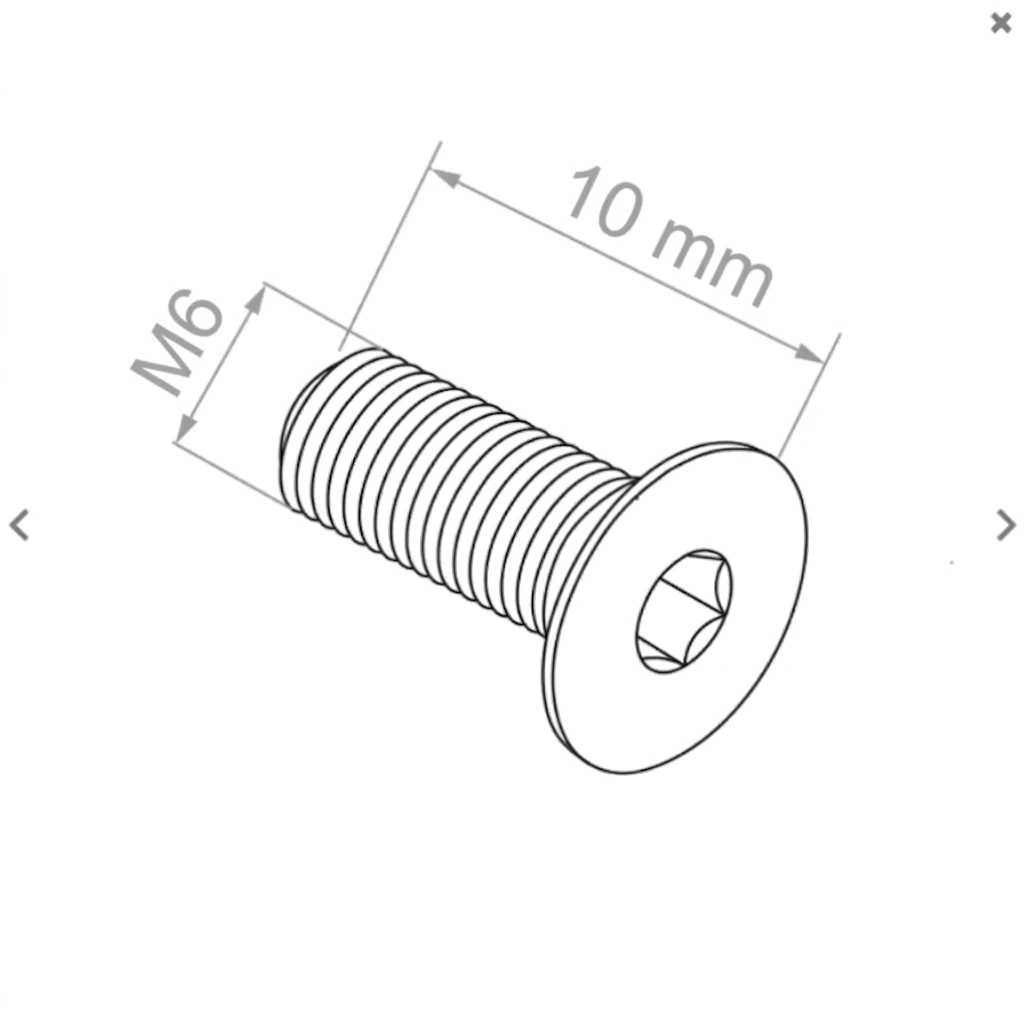

- Standard: DIN 7991
- Thread: M6
- Length (H): 10 mm
- Thread diameter (d): 6 mm
- Head type: countersunk (flush)
- Socket: hexagon (Allen)
- Material: stainless steel A2 (AISI 304)
- Weight: 0.002 kg
- EAN: 99915708
Application
The screw finds wide application in balustrade assembly, mounting systems for stainless steel elements, aluminium and steel structures and as a connecting element in installations exposed to atmospheric conditions. The countersunk head recessed into a conical recess ensures a completely flat surface after installation — ideal solution where aesthetics matter and there are no protruding screws.
Thanks to compact dimensions (1.6 × 0.6 × 1.0 cm) and low weight (2 g) the screw works excellently in precise connections where discreet mounting and resistance to external factors is required.
Technical data
| Material | A2 - stainless steel |
| Thread type | M6 |
