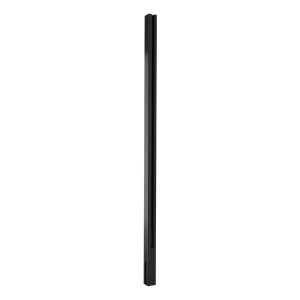

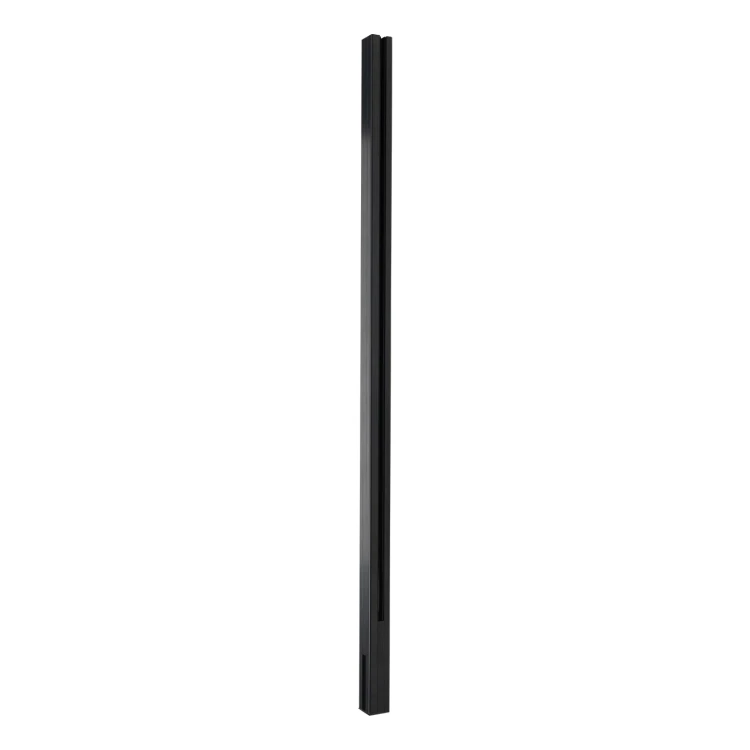

Corner railing post 45x45x1283mm glass 8.72mm dark grey Kozza KR7500
Description

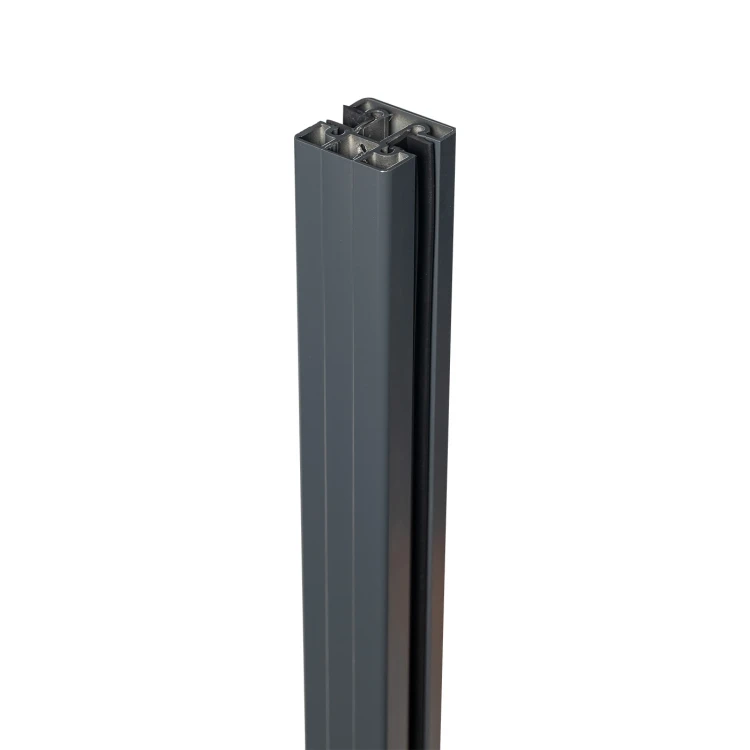

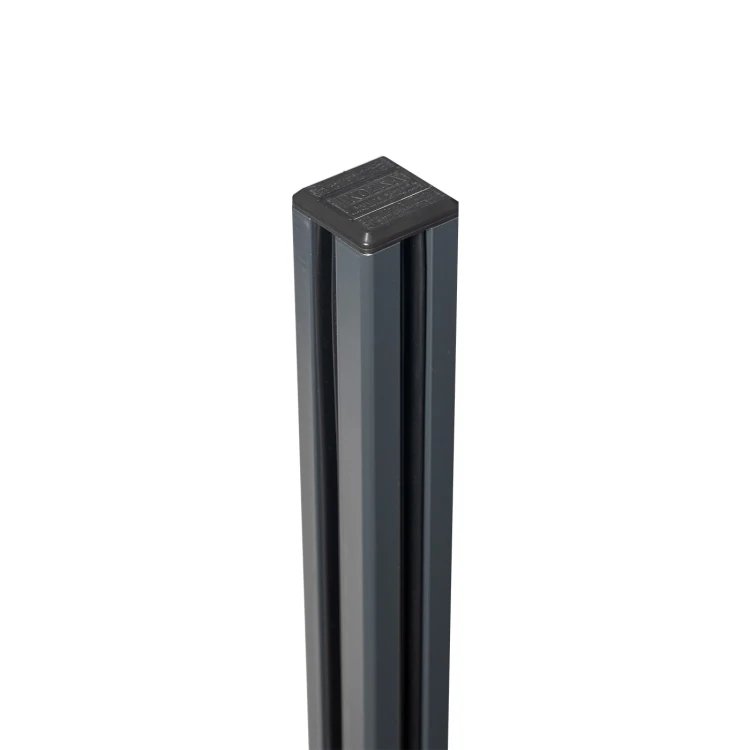

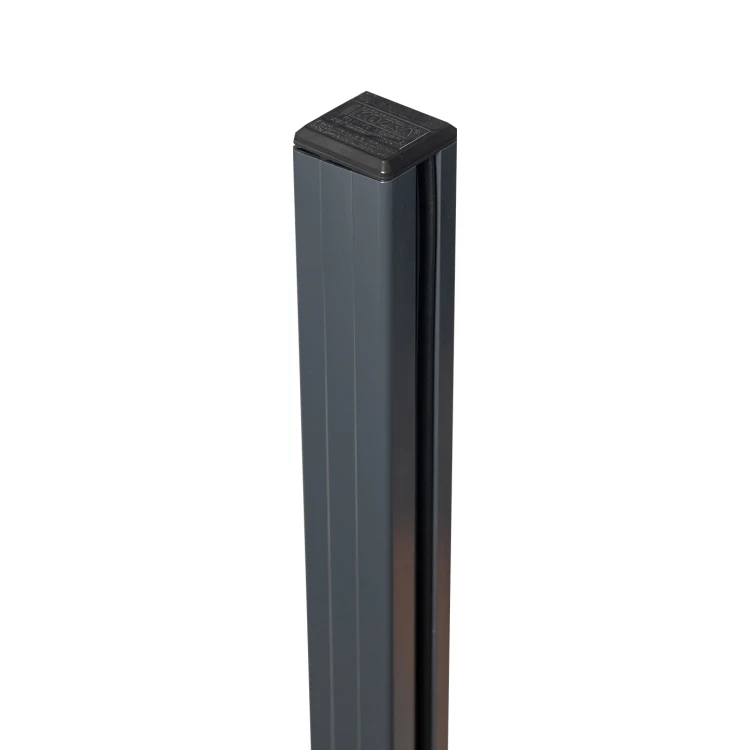

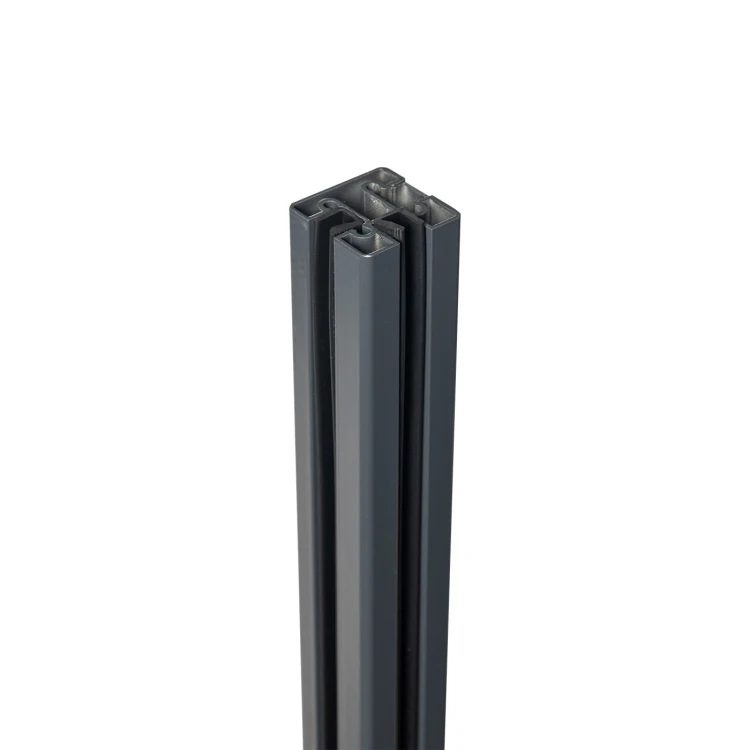

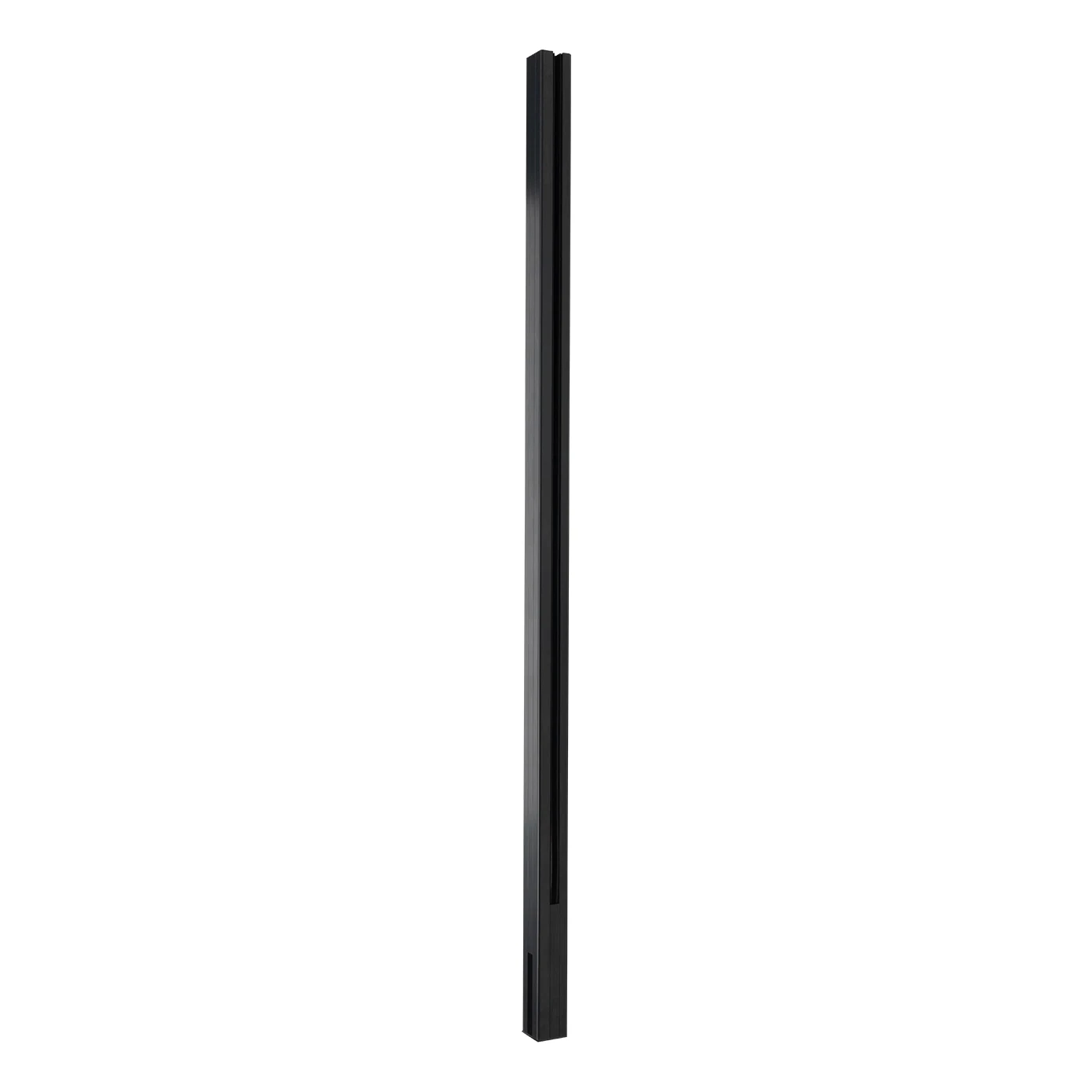

Kozza KR7400 – aluminium intermediate railing post 45×45×1283 mm dark grey
Kozza KR7400 is an aluminium intermediate post designed for building railings with laminated glass of 8.72 mm thickness. The construction with 45×45 mm cross-section and total height of 1283 mm ensures optimal rigidity and stability of the entire railing line. Installation between glass panels allows for creating straight, long sections of spans — without disturbing the geometry and without the need for additional connections.
Dark grey finish in RAL 7021 colour (powder coating) guarantees a durable, resistant coating that harmonises with concrete, glass and steel. The post works well in residential developments, villas and commercial buildings — from balconies and terraces to recreational areas. Parameters confirmed by static tests and strength certificates provide assurance of compliance with applicable safety standards.

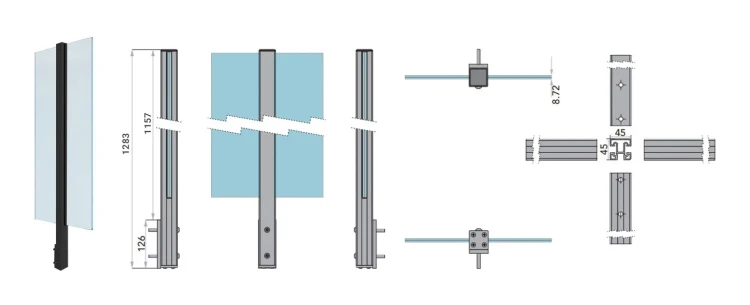

Dimensions and technical parameters
- Manufacturer: Kozza, series KR7400
- Post variant: intermediate — mounting between glass panels
- Profile dimensions: 45 × 45 × 1283 mm
- Material: aluminium
- Finish: dark grey RAL 7021 (powder coating)
- Dedicated glass thickness: 8.72 mm
- Maximum glass height: 1095 mm ±5 mm
- Height of part with glass guide: 1157 mm

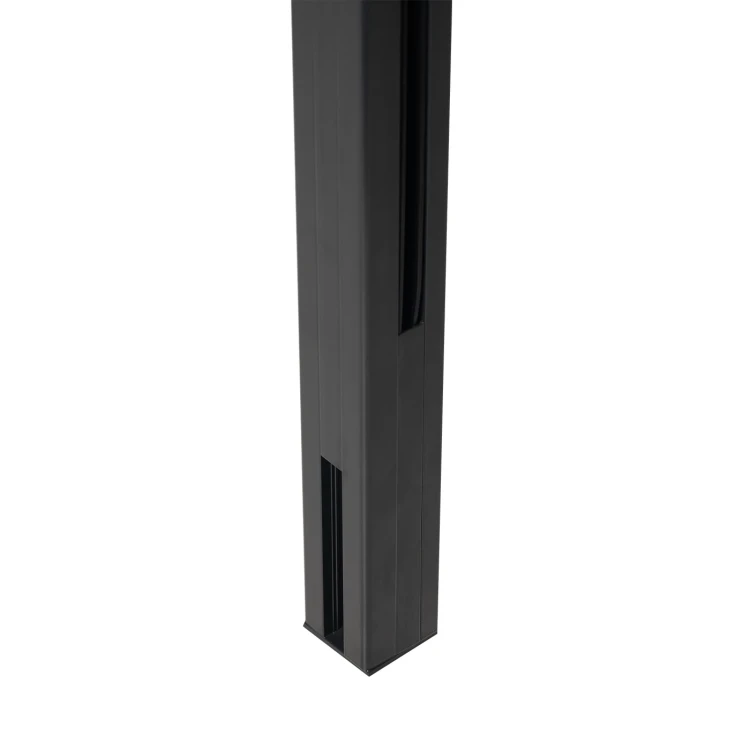

- Mounting base height: 126 mm
- Mounting: side (to ceiling face or stair flight) — 4 mounting holes
- Weight: 2.3 kg
- EAN: 5903313208123

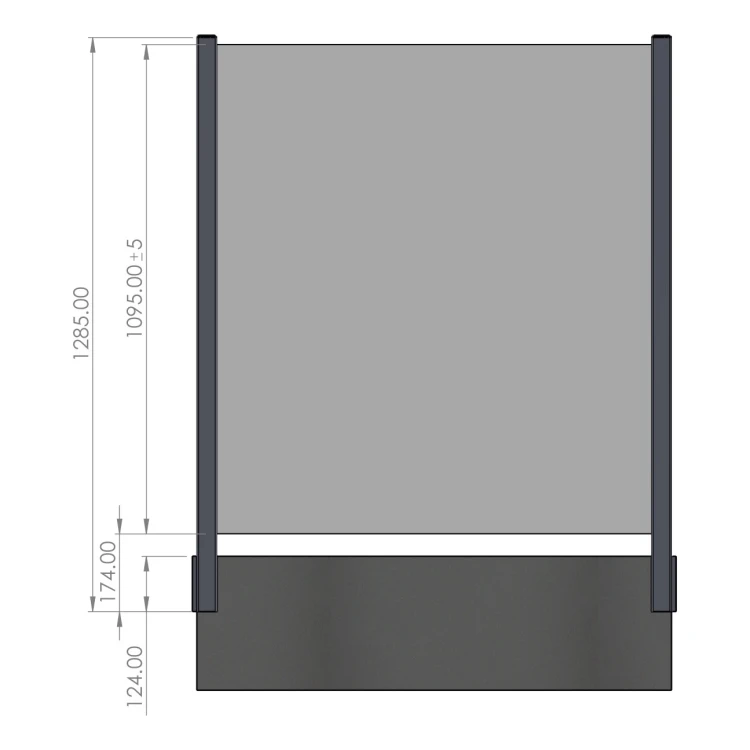

Mounting dimensions with glass panel
After mounting the post with glass panel, the total height of the railing is 1285 mm. Glass with maximum height of 1095 mm ±5 mm is seated in the profile guide, and the distance from the bottom edge of the post to the bottom edge of glass is 174 mm. The height of the bottom cover (mounting element) is 124 mm. Side mounting method allows maintaining full usable surface of the balcony or terrace — nothing protrudes onto the slab.
Stability, safety and aesthetics
The 45×45 mm cross-section ensures optimal rigidity of the entire railing line, even with longer spans. KR7400 series posts have been designed in response to architects' and designers' expectations — their parameters have been confirmed by static tests, and strength certificates guarantee compliance with the requirements of modern safety standards. Dark grey powder coating RAL 7021 ensures coating resistance to weather conditions and ease of maintenance.
Kit contents
- Post (aluminium profile with mounting element)
- Glass seal
- Top cap

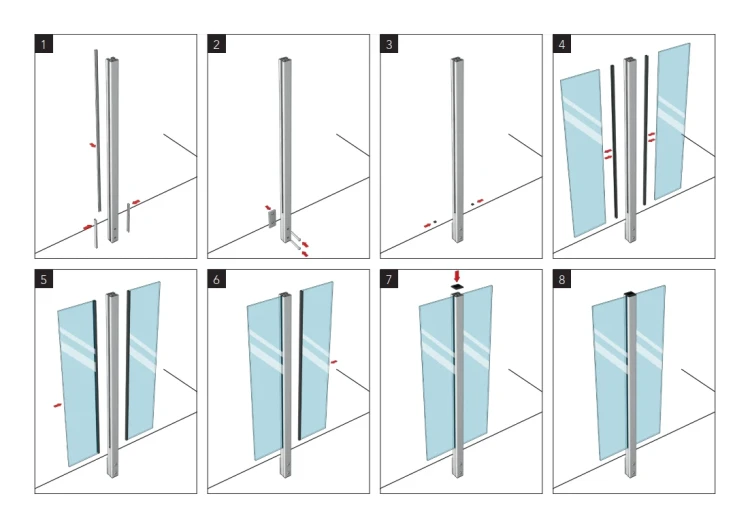

Step-by-step installation
Installation instructions include 8 simple steps — from attaching the mounting profile to the wall, through positioning the post on the base element, to sliding in glass panels and securing with the cap. Thanks to the 4-hole side mounting system, the entire installation is quick and does not require specialist tools.

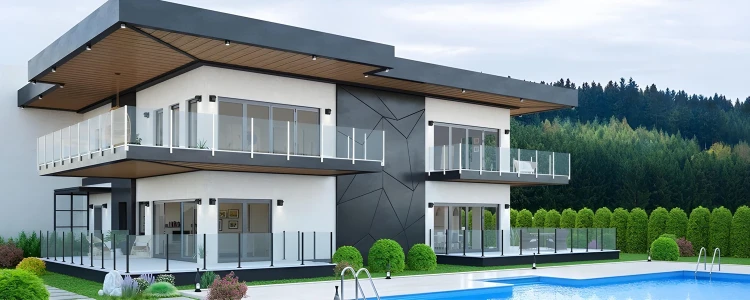

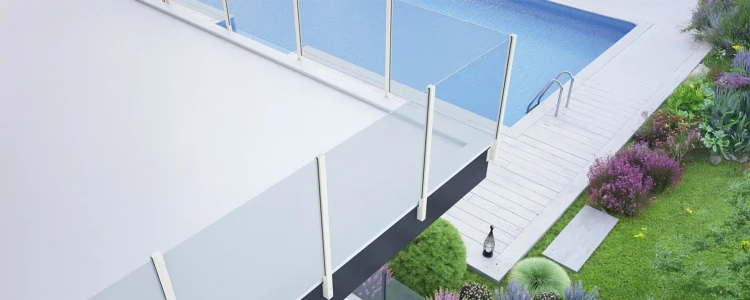

Application visualisations for Kozza KR7400 posts.
Technical data
| Material | Aluminium |
| Finish | Dark Grey |
| Mounting System | Flat |
