Corner clamp for fence panels 100x100 mm green
Description

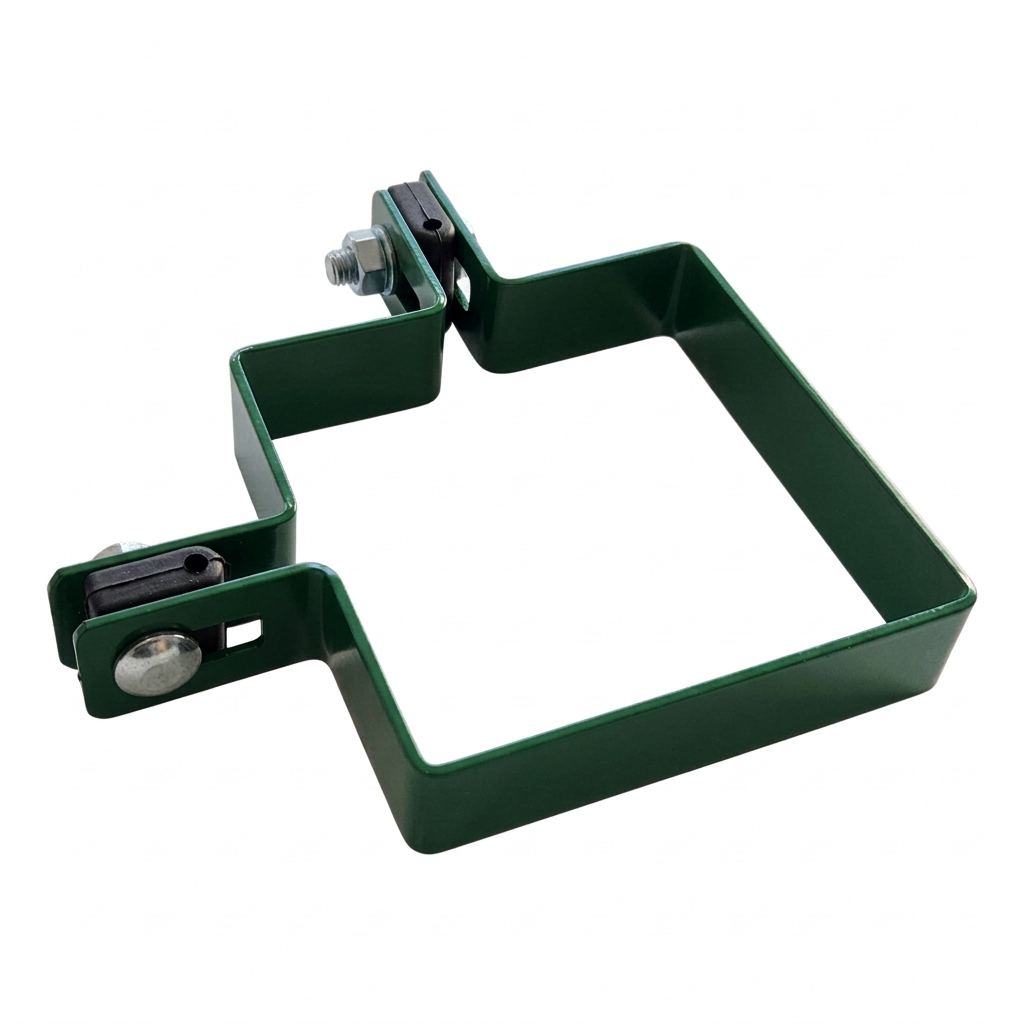

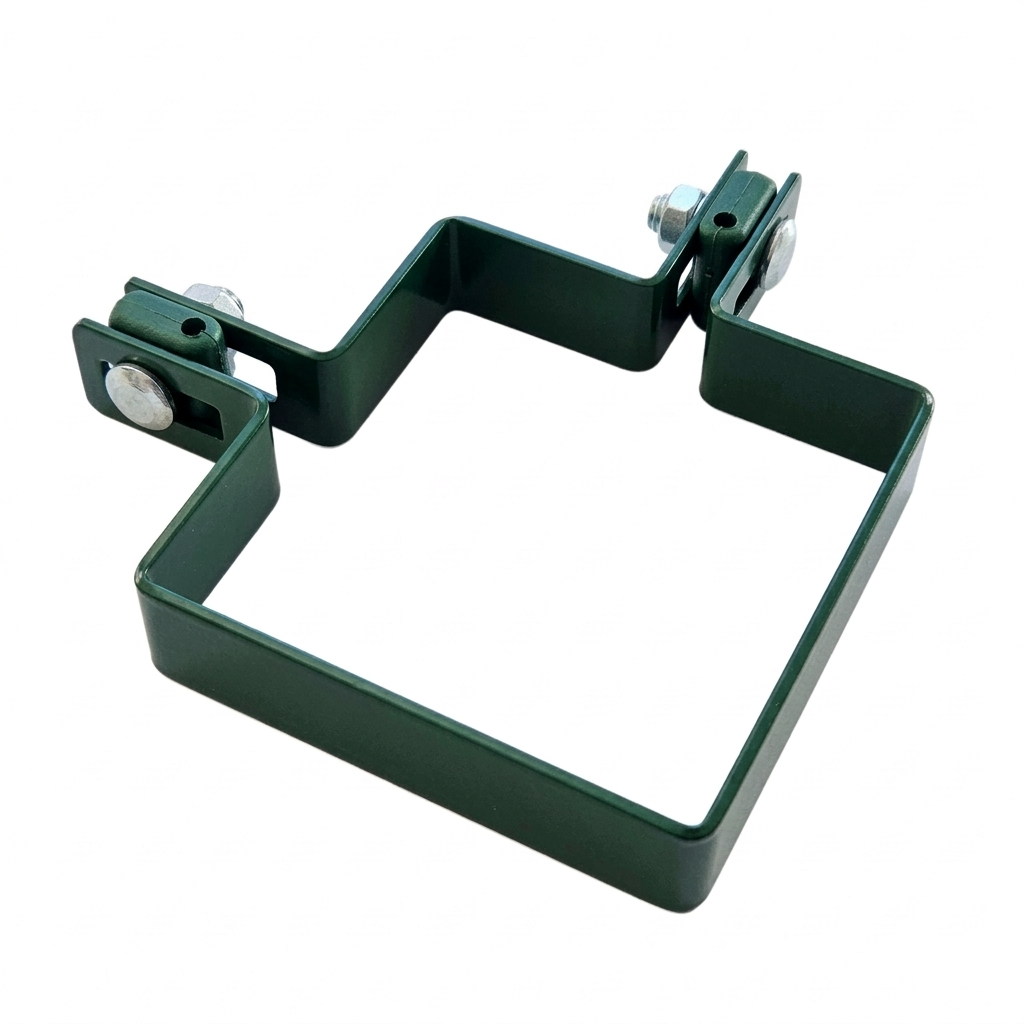

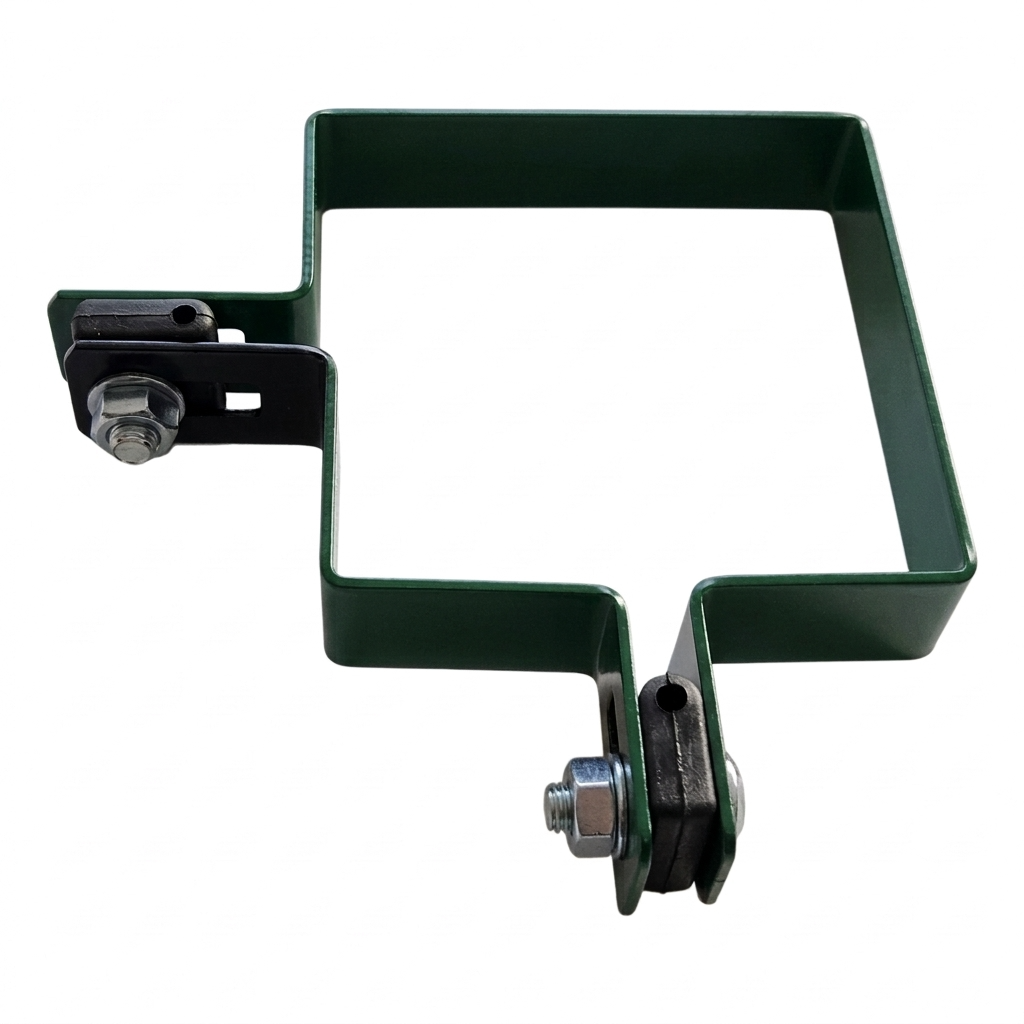

Corner panel clamp 100x100 mm green RAL 6005 – for fence posts
Corner panel clamp 100×100 mm in green RAL 6005 is a robust mounting element designed for securing fence panels at fence corners. Perfectly matched to posts with 100×100 mm cross-section, it provides secure and durable connection between post and fence panel. Thanks to construction from galvanised steel with additional green powder coating RAL 6005, the clamp is corrosion-resistant and withstands years of atmospheric conditions — whilst aesthetically complementing green panel fencing systems.
Complete mounting kit
The kit includes everything needed for immediate installation — without requiring additional components:
- 1 pc. corner clamp 100×100 mm — green RAL 6005
- 2 pcs. M8×25 bolt with nut and washer (galvanised)
- 2 pcs. plastic spacer (booklet) — black colour

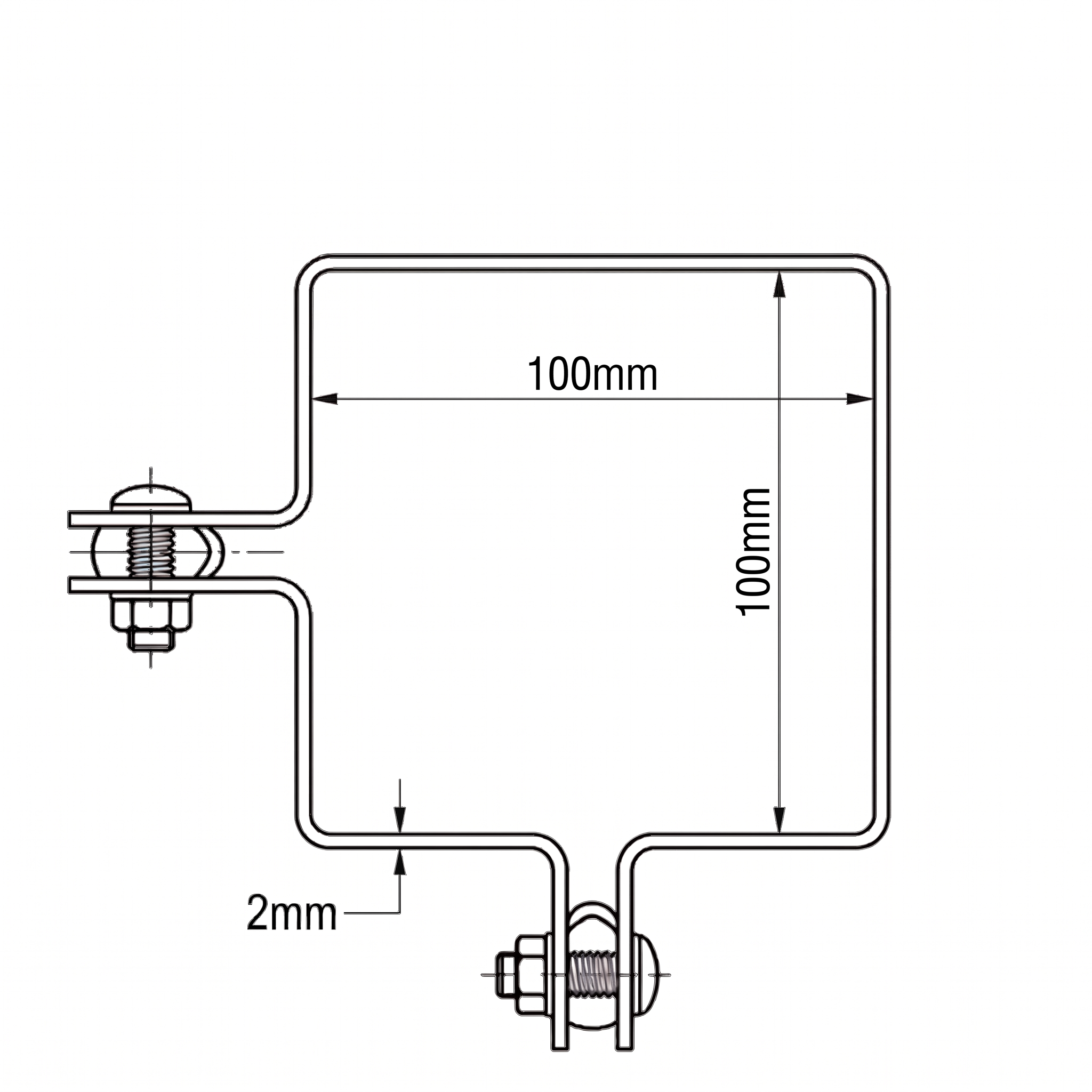

Dimensions and technical parameters
- Internal clamp dimension: 100×100 mm
- Wall thickness: 2 mm
- Material: galvanically galvanised steel
- Finish coating: green powder coating RAL 6005
- Colour: green (RAL 6005)
- Type: corner (for mounting panels at fence corners)
- Mounting hole: kidney-shaped — enables position adjustment
- Bolts: M8×25 with nut and washer (galvanised)
- Standard spacer: for 4 mm diameter wire
Precise fitting and easy installation
The clamp is perfectly matched to 100×100 mm post cross-section, guaranteeing stable and secure connection of the fence structure. Kidney-shaped mounting holes enable position adjustment of the panel relative to the post — facilitating fence alignment even on uneven terrain.
NOTE: The included plastic spacers (booklets) are factory-matched to wire diameter — ensuring the kit works precisely with fence panels. Standard included inserts are for 4 mm diameter wire. If using mesh with different wire thickness (3 mm diameter or 5 mm diameter), simply specify this in the order comments to receive the appropriate spacer type.
Aesthetics and finish durability
The green powder coating RAL 6005 not only provides elegant, uniform fence appearance, but also constitutes additional anti-corrosion protection layer applied over galvanic zinc coating. Thanks to dual protection (zinc + powder coating), the clamp maintains its aesthetic appearance and rust resistance for many years — even in demanding atmospheric conditions.
Applications
- Mounting fence panels at fence corners
- Construction of panel fencing on square posts 100×100 mm
- Traditional fencing with mesh on square posts
- Ideal for green (RAL 6005) fencing systems — visual consistency with green posts and panels
Technical data
| Accessory Type | Corner Clamp |
| Colour | Green RAL 6005 |
| Post Profile Dimension [mm] | 100x100 |
