Corner T-connector for balustrade – tube 42.4x2 mm, stainless steel AISI 304, satin
0
Description

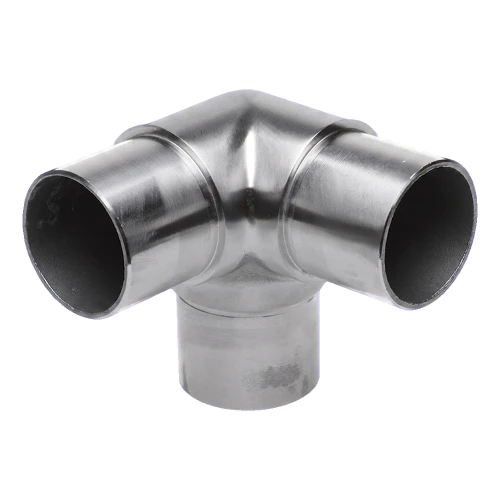

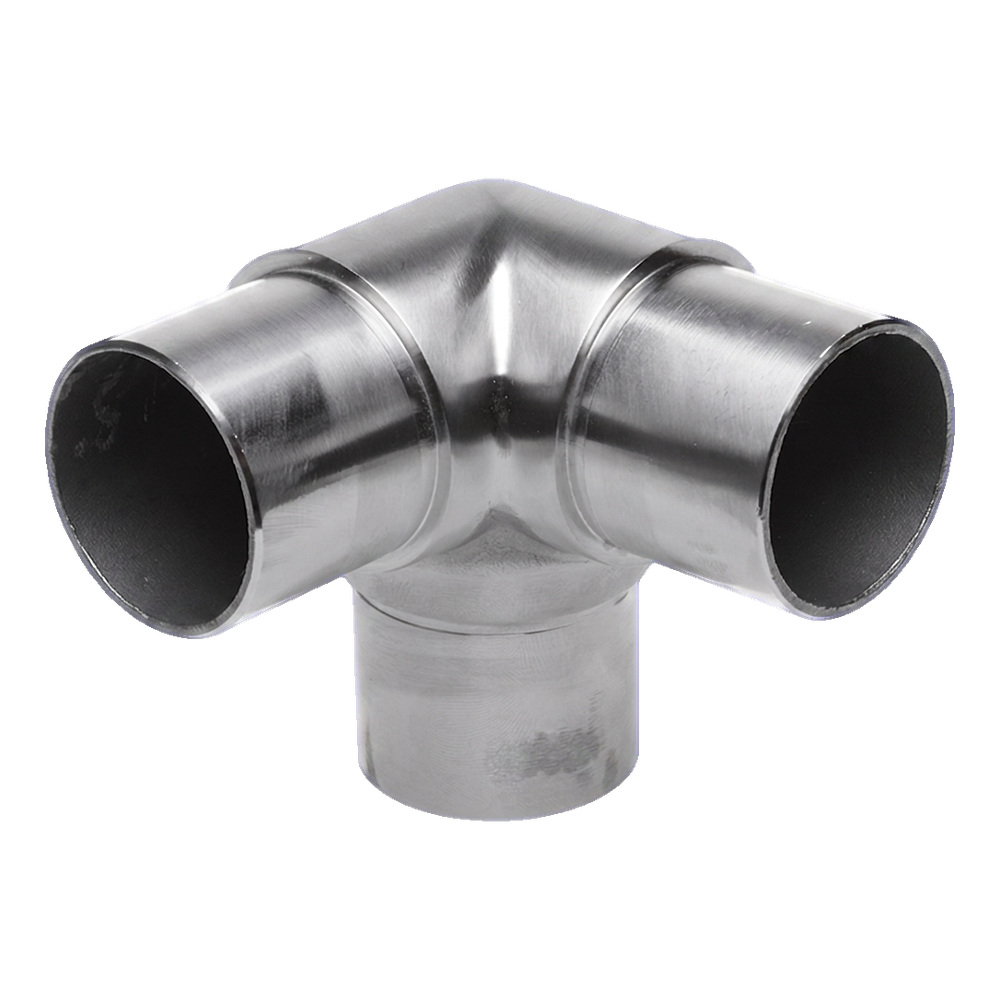

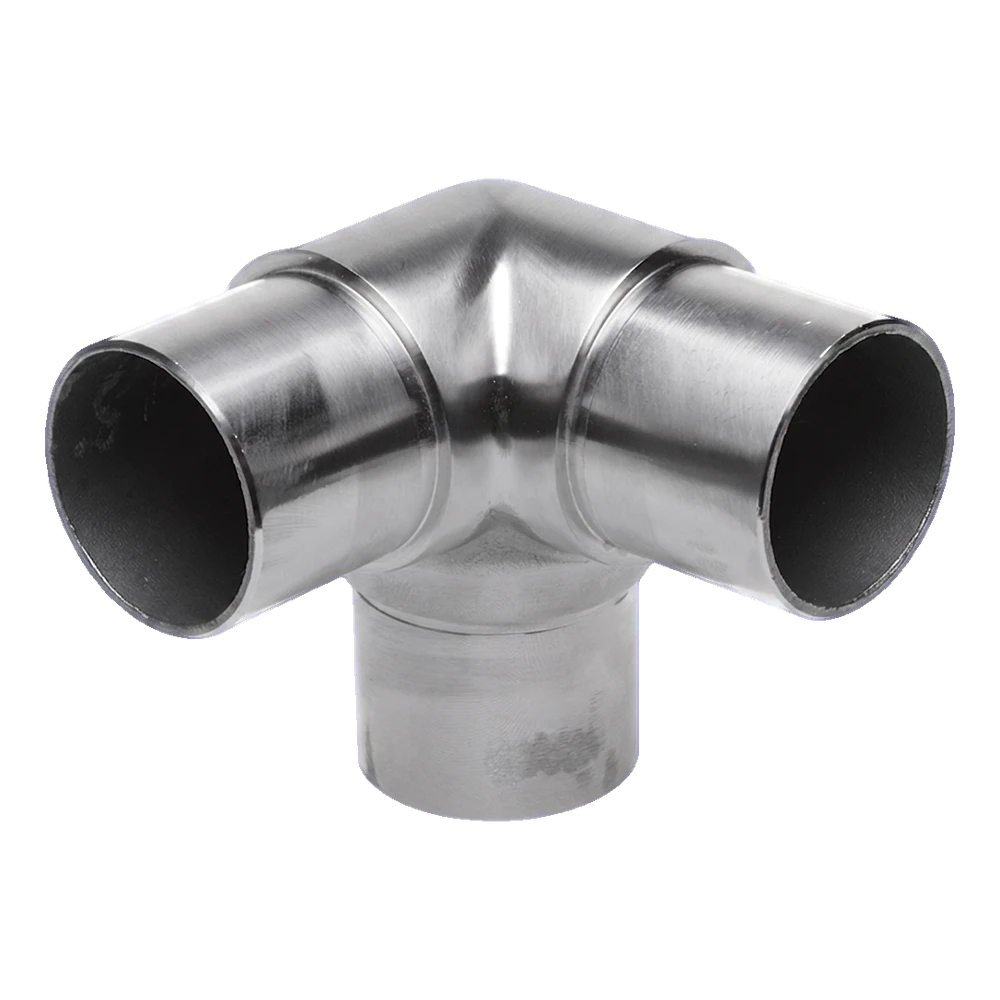

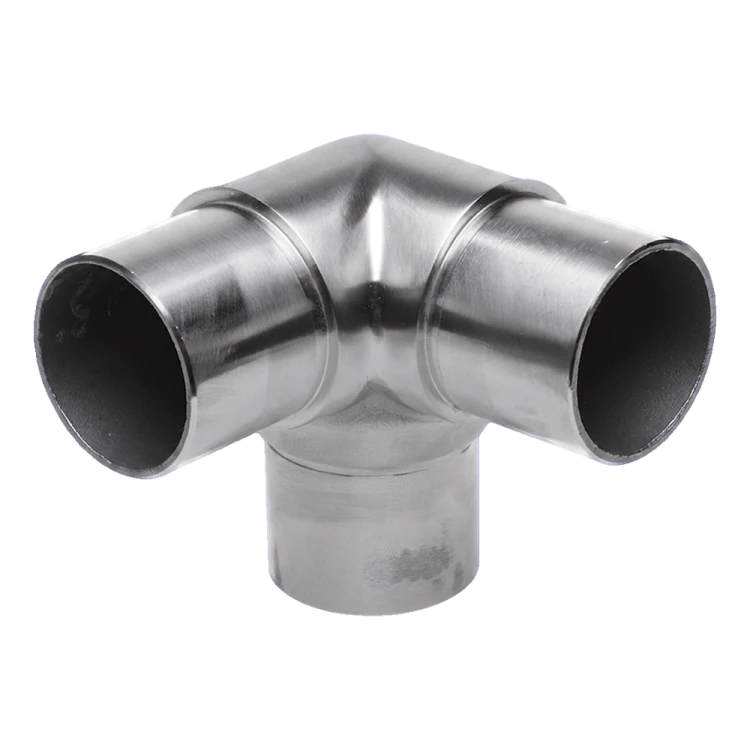

Corner T-connector for balustrade – tube 42.4x2 mm, stainless steel AISI 304, satin
Corner T-connector designed for building balustrades with tubes of 42.4 mm diameter and 2 mm wall thickness. The element connects three tube sections converging at one point — two horizontal arms positioned at 90° angle and one vertical arm (post). This solution enables the creation of a balustrade corner whilst simultaneously connecting the handrail and post in one aesthetically pleasing structural node.
The connector is made from stainless steel AISI 304 with satin finish, ensuring high corrosion resistance and an elegant, matt appearance that perfectly complements modern stainless steel balustrades. Installation is carried out using the adhesive method with anaerobic adhesive — the connection is invisible from the outside, guaranteeing clean, professional aesthetics without visible welds or screws.

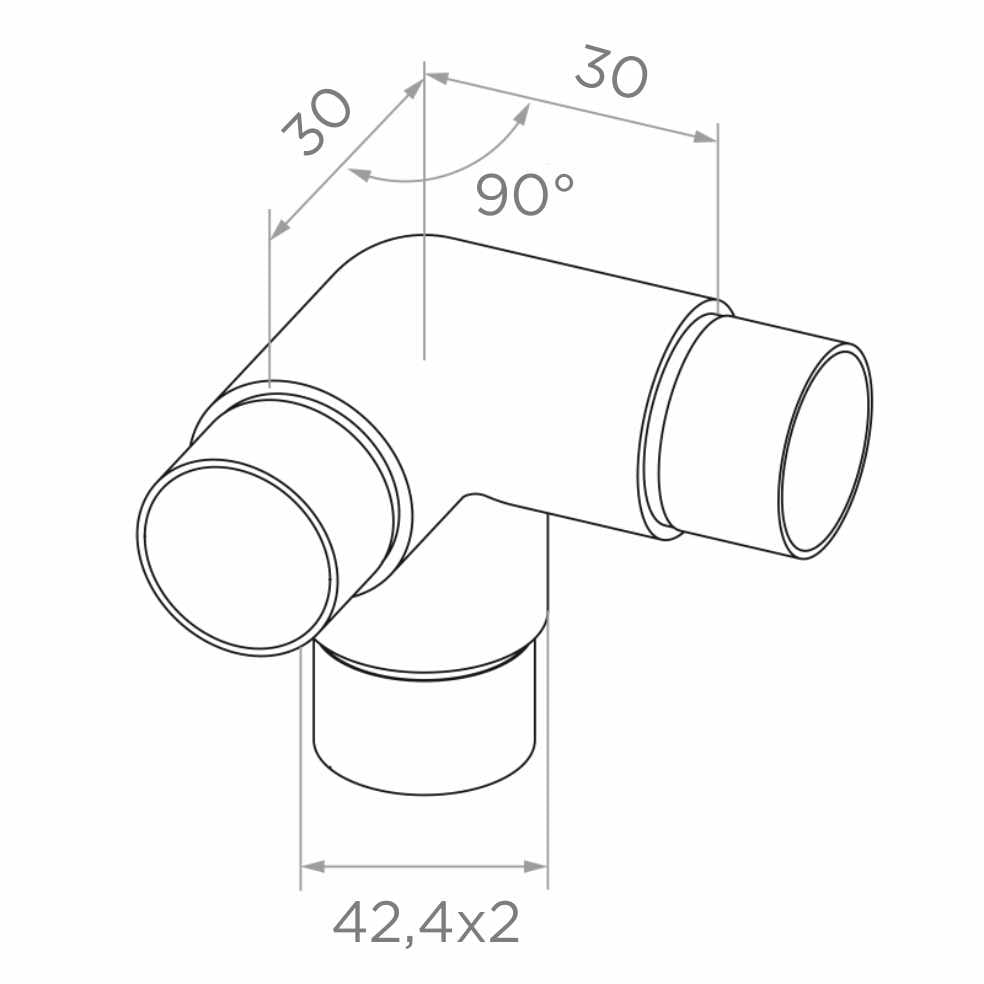

Dimensions and technical specification
- Tube diameter: 42.4 mm
- Tube wall thickness: 2 mm
- Angle between horizontal arms: 90°
- Length of horizontal arms (from axis): 30 mm
- Height H: 30 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Installation method: adhesive (anaerobic adhesive)
- Weight: 0.31 kg
- EAN: 5901289673174
Application
The corner T-connector is a key structural element in locations where the balustrade handrail changes direction by 90° whilst simultaneously connecting to a post. One adhesive installation replaces complex welding work — you save time on site and eliminate the need for grinding welds. An ideal solution for internal and external balustrades in commercial properties, residential buildings, and on terraces and balconies.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
