Control indicator light 3×230V+N 3xLED green LK-713 G F&F FILIPOWSKI

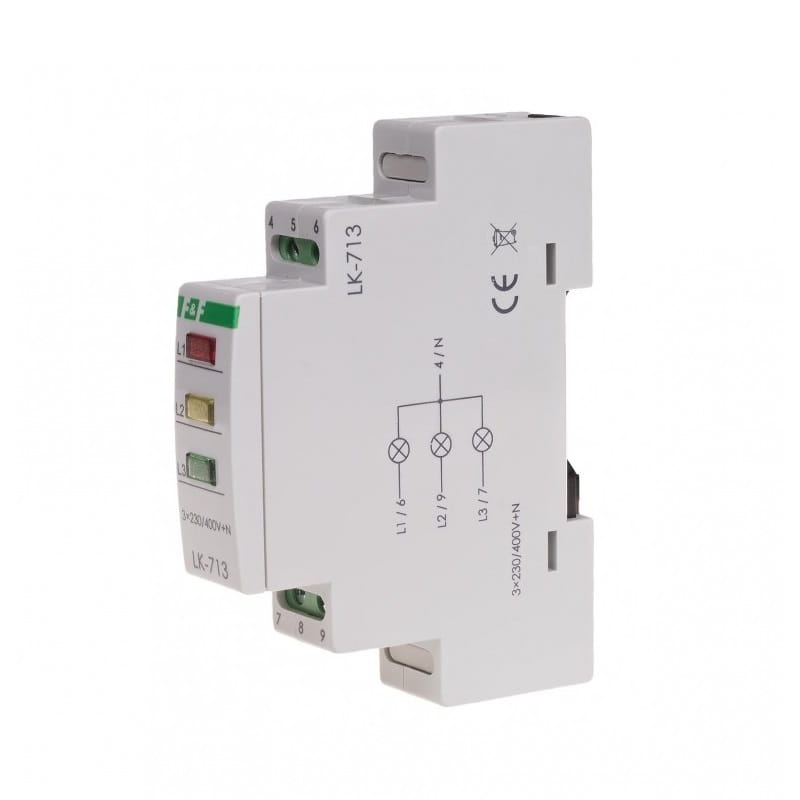

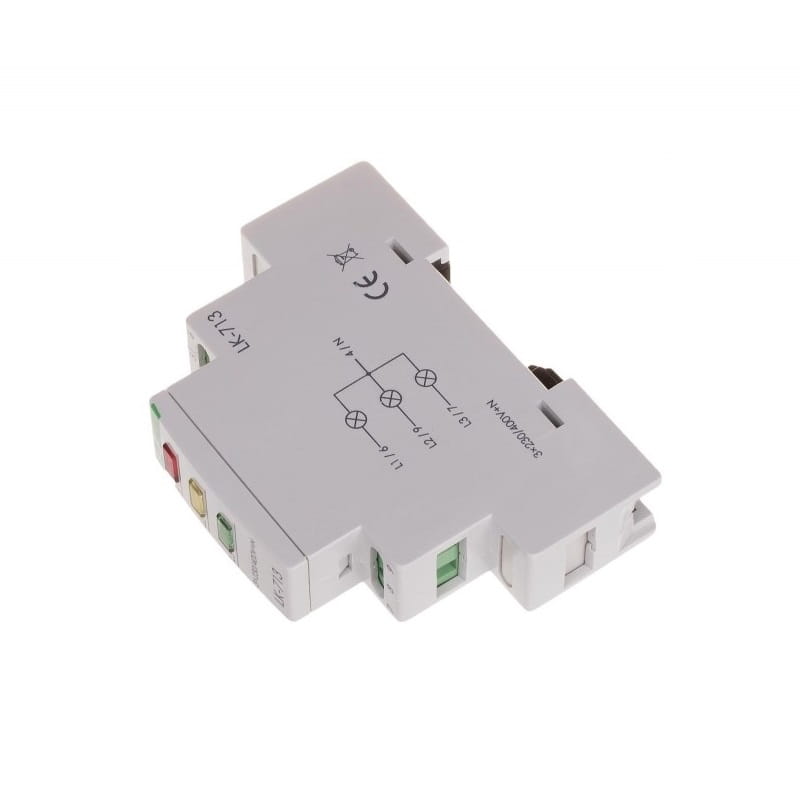

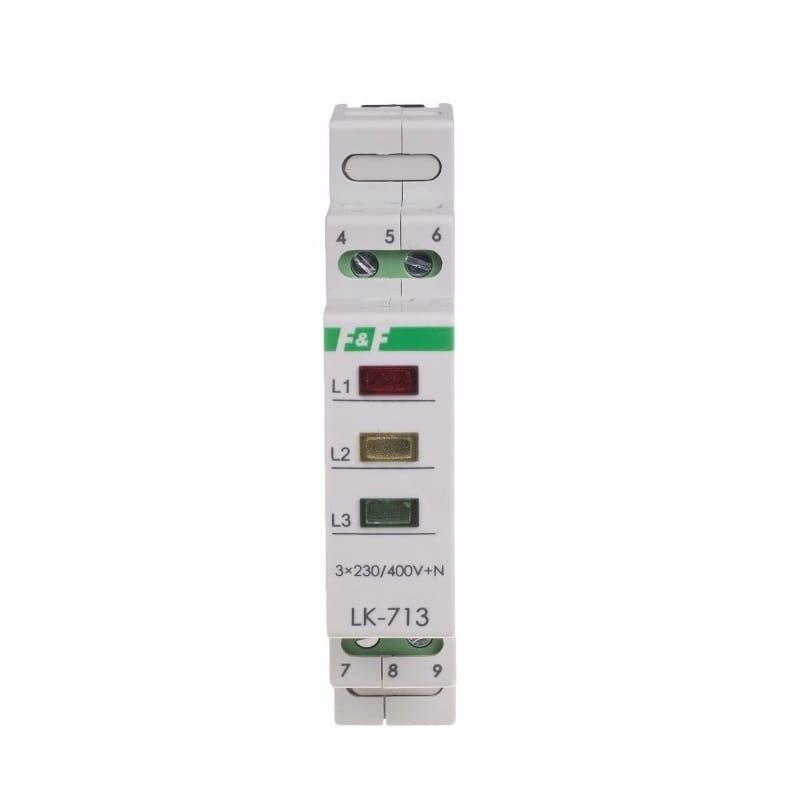

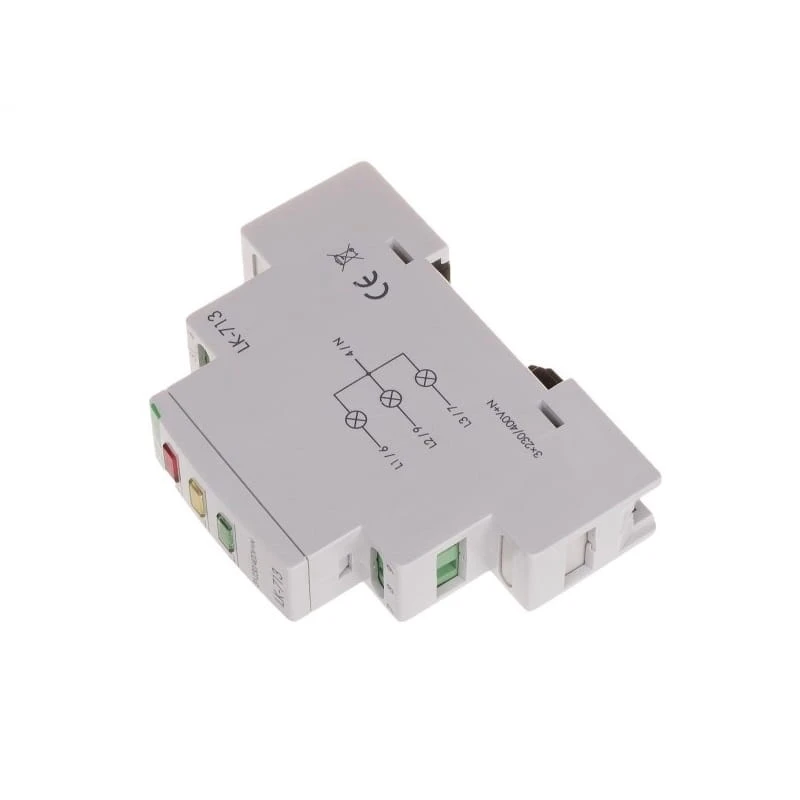

Control indicator light 3×230V+N 3xLED green LK-713 G by F&F FILIPOWSKI is designed to optically signal the presence of voltage on each of the three phases of a three-phase network. When there is voltage on a phase, the corresponding green LED lights up. The whole unit is powered by 3×230 V+N and contains three green LEDs.
Specification
Manufacturer
F&F
Type
3×230V+N
Colour of lamp / LED
Green
Number of phases
3
Number of modules
1
Rated current [A]
1.7 mA
Series and type
Control indicator light 3×230V+N 3xLED green LK-713 G F&F FILIPOWSKI
Supply voltage
3×230 V +N
Power supply control
3 x LED (8 x 4 mm)
LED colours
3 x green
Rated current
1.7 mA
Connection
Screw terminals 2.5 mm²
Tightening torque
0.4 Nm
Power consumption
1,1 W
Operating temperature
-25 ÷ 50 °C
Dimensions
1 module (18 mm)
Mounting
On a 35 mm rail
Degree of protection
IP20
Available Configuration
Technical data
| Indicator Light Colour | green |
| Brand | F&F FILIPOWSKI |
