Comunello galvanised round gate stopper for swing gates ø160 mm H30
Leave feedback on the product
Comunello galvanised round gate stopper ø160 mm, height 30 mm. Galvanised steel, weight 0.8 kg. M14 mounting stud length 69 mm. Base plate thickness 2.5 mm. For swing gates, bolted installation.
Product code: 001-533
Product features
[PIM] stopery-blokady-odbojniki #116
- Material Steel
Description
Comunello galvanised round gate stopper for swing gates ø160 mm H30
Comunello round stopper ø160 mm is a durable, bolted gate buffer designed for use with swing gates. The galvanised surface provides high corrosion resistance and mechanical damage protection, ensuring years of trouble-free operation — even in demanding weather conditions.
The floor-mounted stopper prevents gate leaf deflection outwards, effectively protecting hinges from excessive load and premature wear. Thanks to solid galvanised steel construction and threaded M14 stud, the component is easy to install and guarantees secure fixing in concrete or flooring.

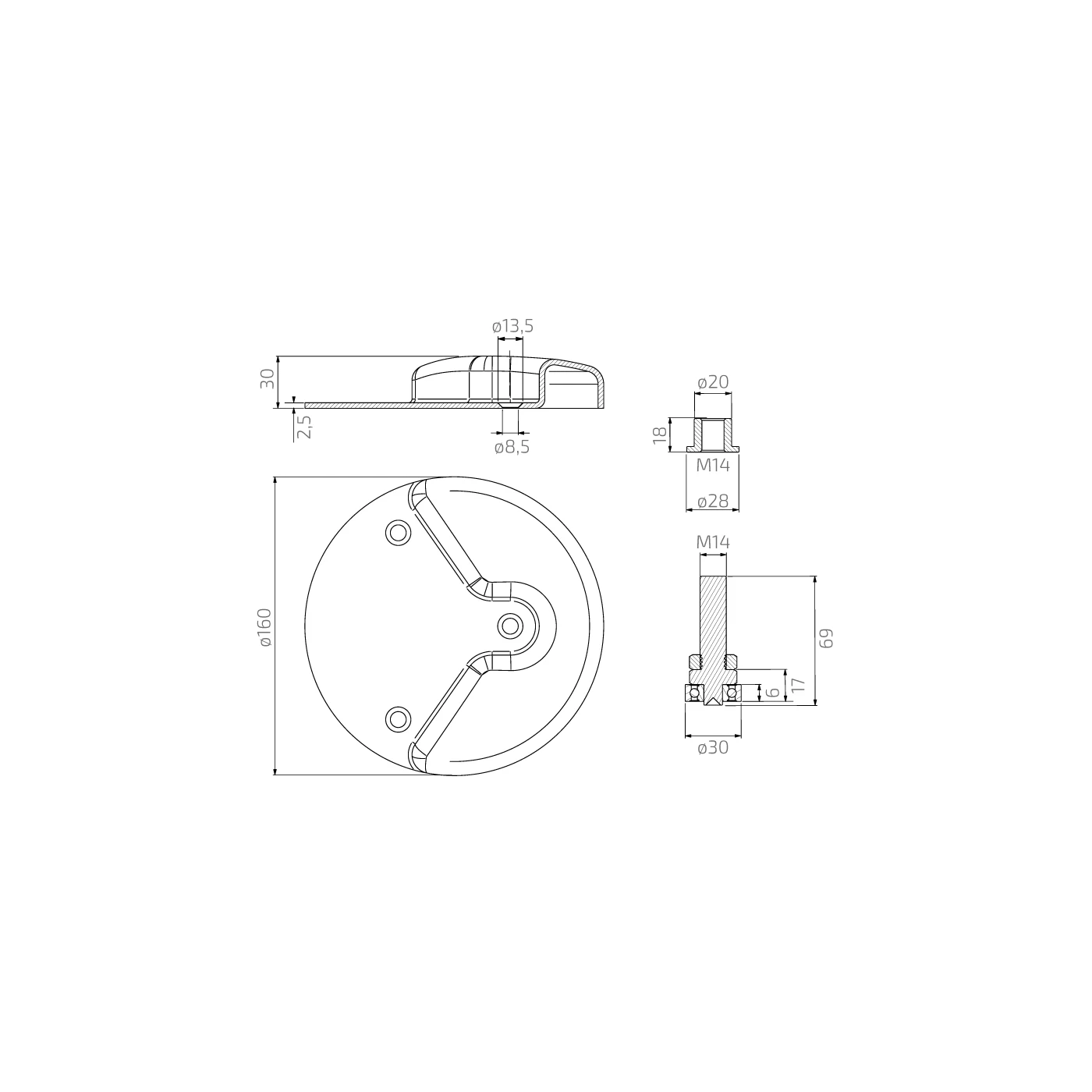

Dimensions and technical parameters
- Manufacturer: Comunello
- Type: bolted stopper, round
- Surface finish: galvanising (zinc coating)
- Plate diameter: ø160 mm
- Cup height: 30 mm
- Base plate thickness: 2.5 mm
- Mounting holes: ø8.5 mm (through) / ø13.5 mm (countersunk)
- Weight: 0.8 kg
- Overall dimensions (L × W × H): 190 × 160 × 30 mm
Mounting stud
- Thread: M14
- Overall stud length: 69 mm
- Stud base diameter: ø30 mm
- Lower stud section height: 17 mm
Threaded sleeve
- Internal thread: M14
- Upper sleeve diameter: ø20 mm
- Collar diameter: ø28 mm
- Sleeve height: 18 mm
Application and benefits
- Designed for swing gates — prevents leaf deflection outwards
- Protects hinges from excessive load and damage
- Galvanised steel — high corrosion resistance and mechanical impact resistance
- Simple bolted installation with M14 threaded stud
- Compact construction — does not impede daily gate operation

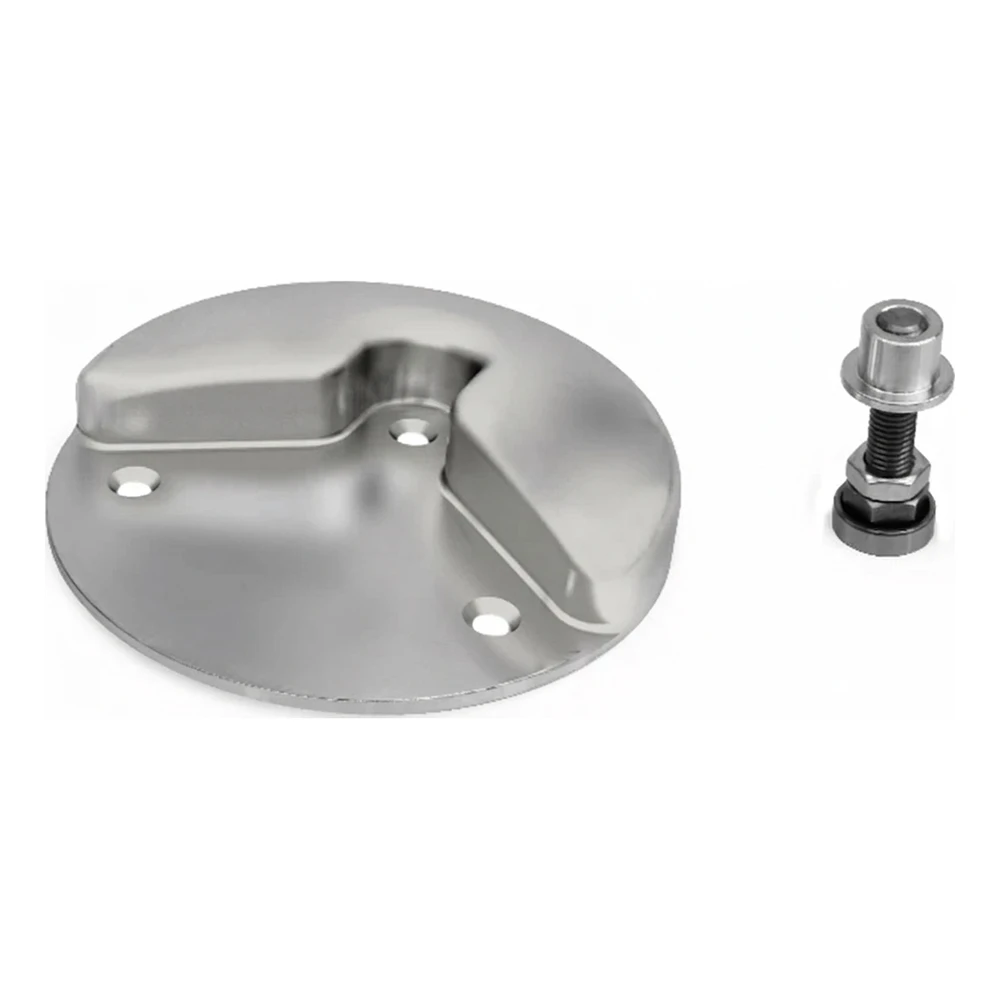

Kit includes: round buffer plate ø160 mm + mounting stud with M14 threaded sleeve.
