Comunello CGA-347P – running roller with nylon wheel for sliding gate profile
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
1.25 kg
Rating:
0
0
Vendor:
-
Product code:
001-238
Description

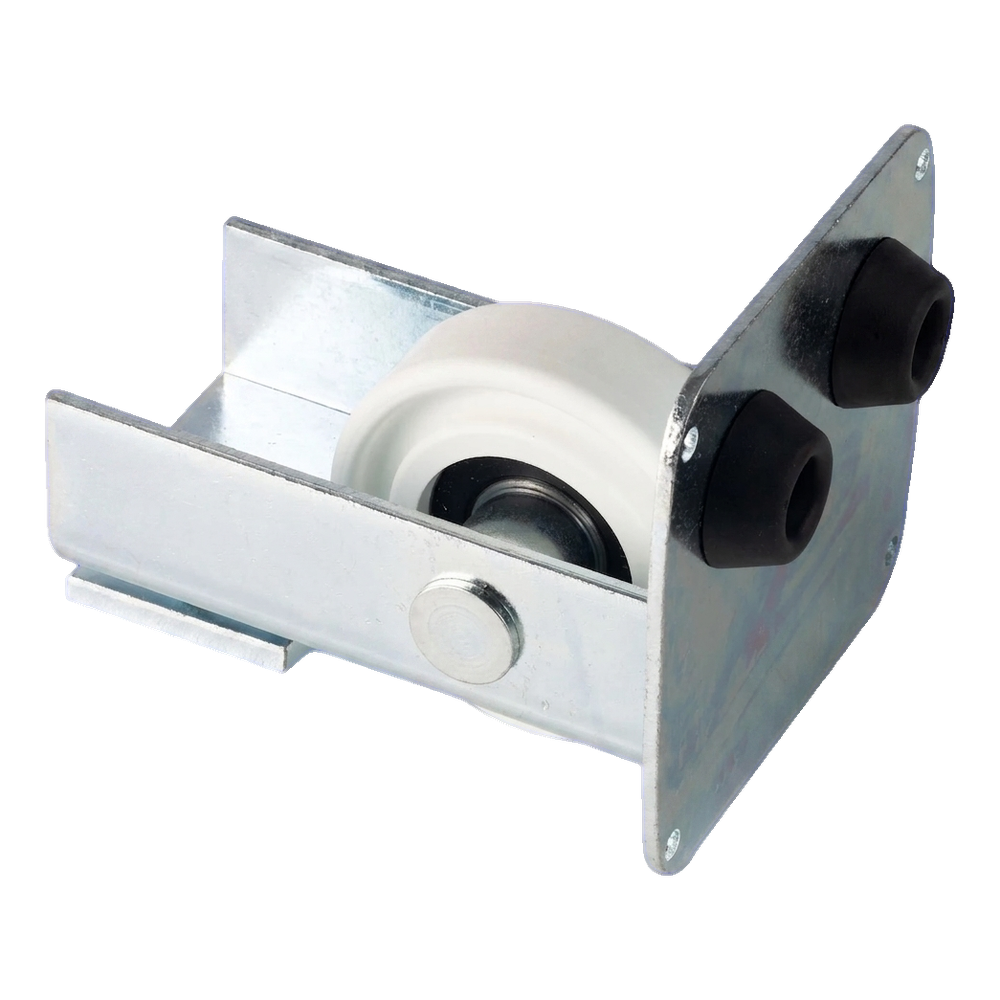

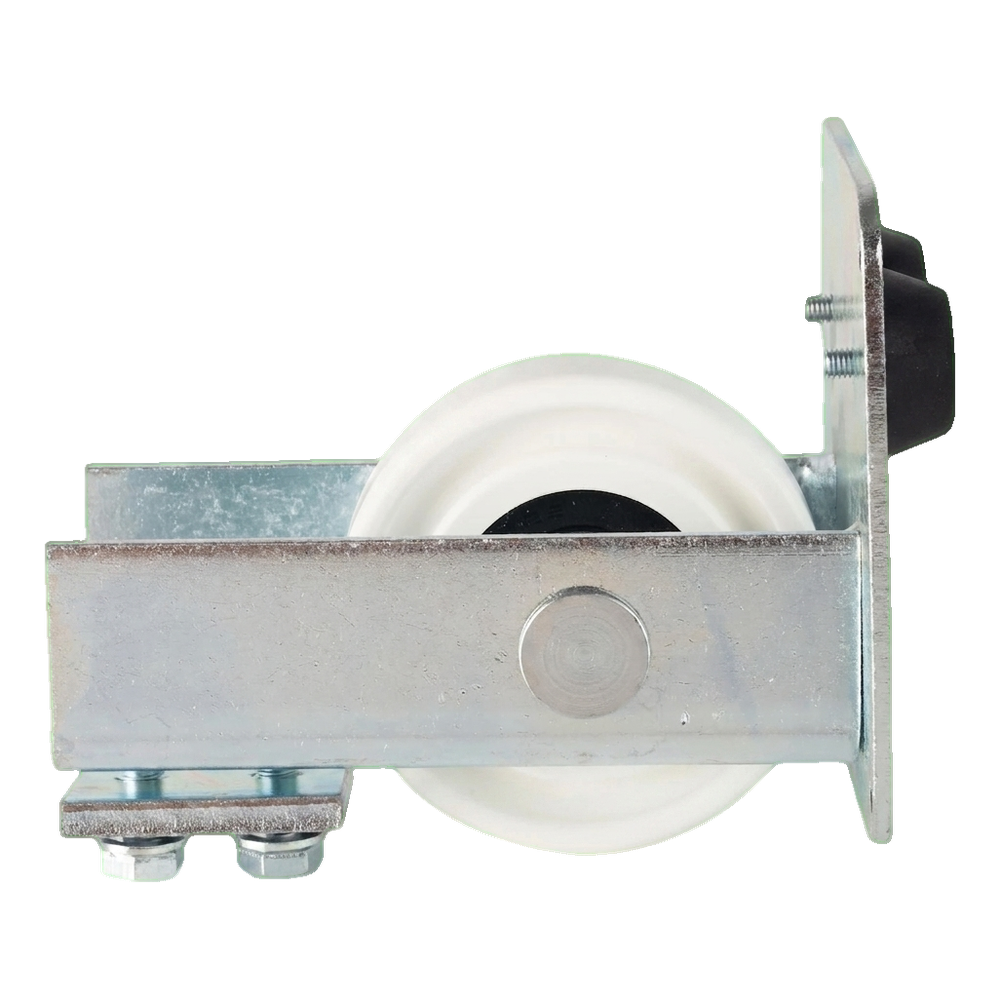

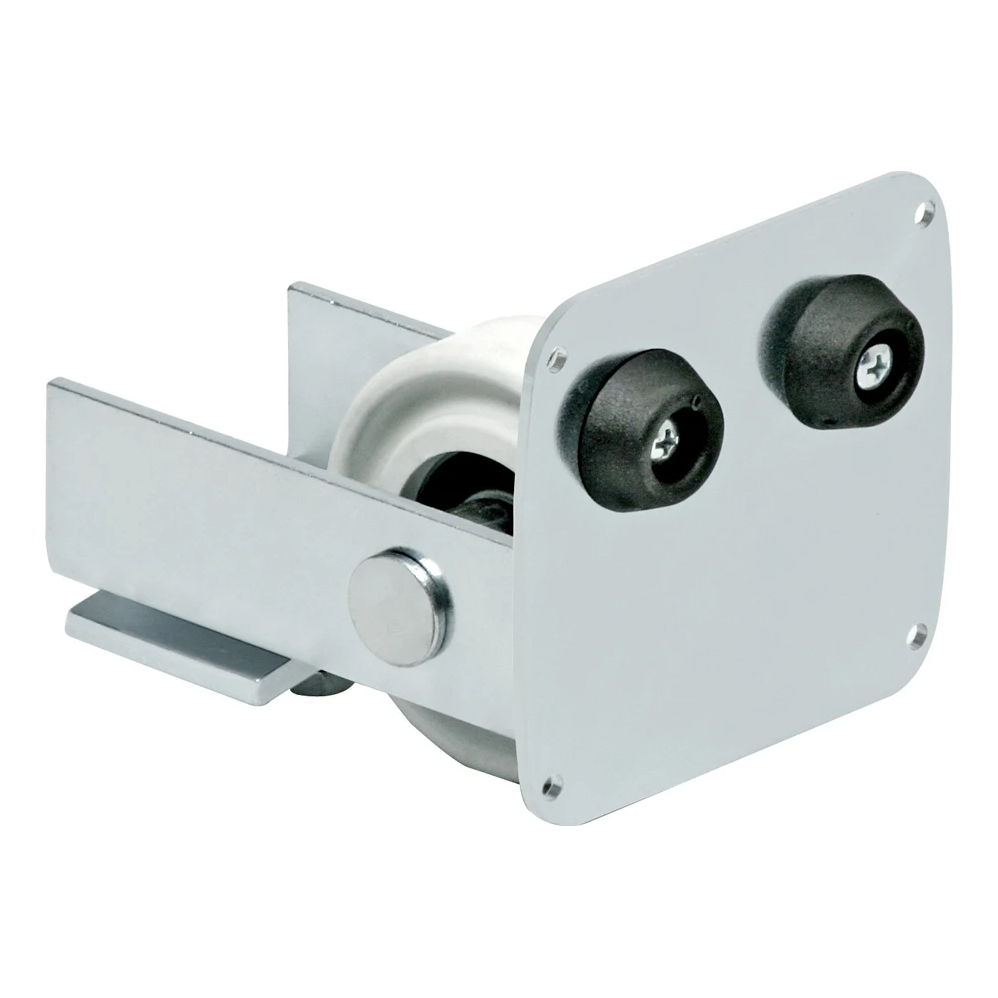

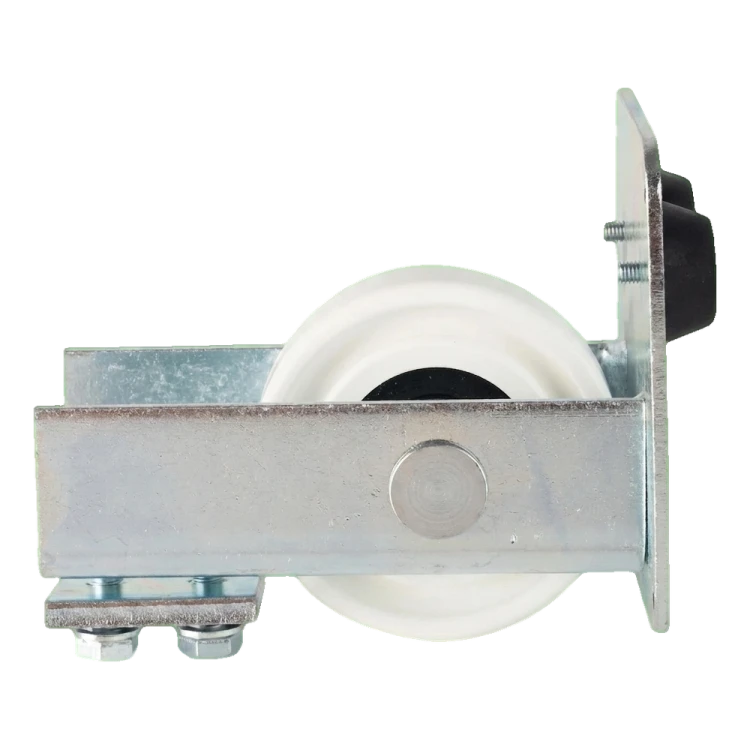

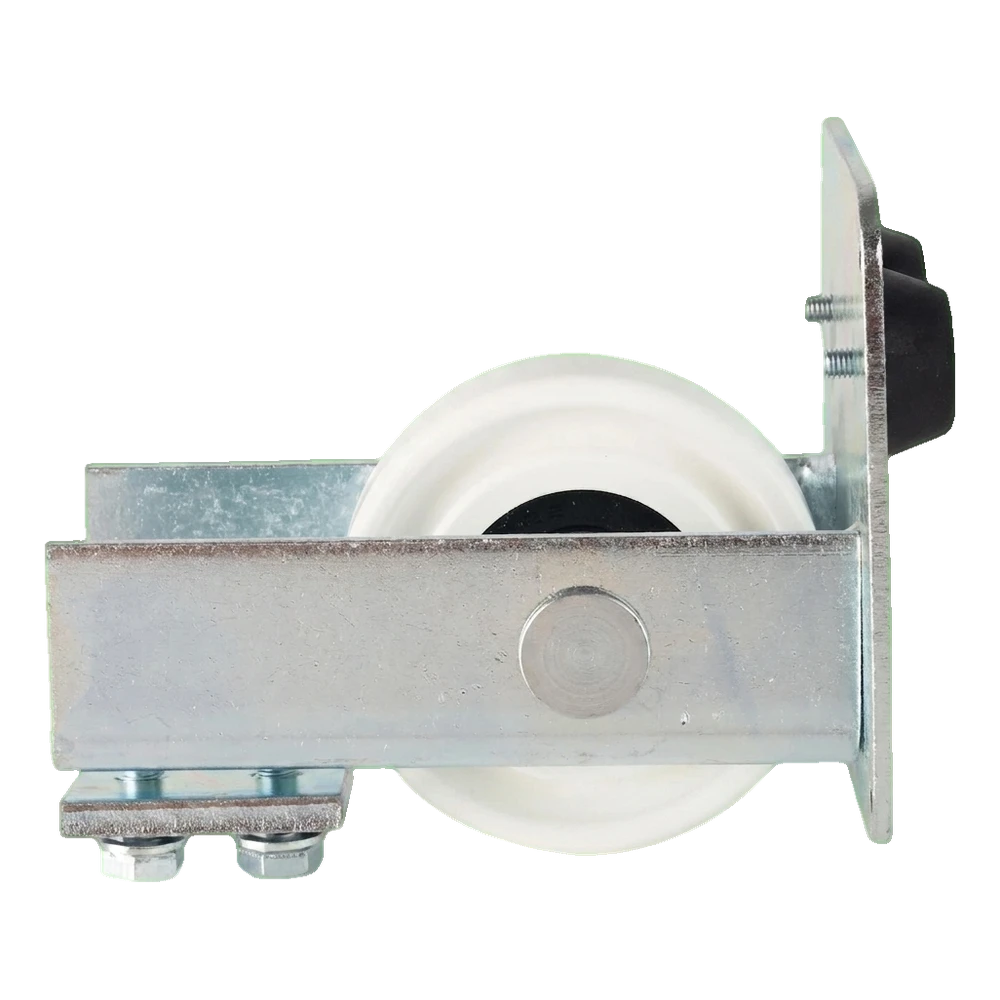

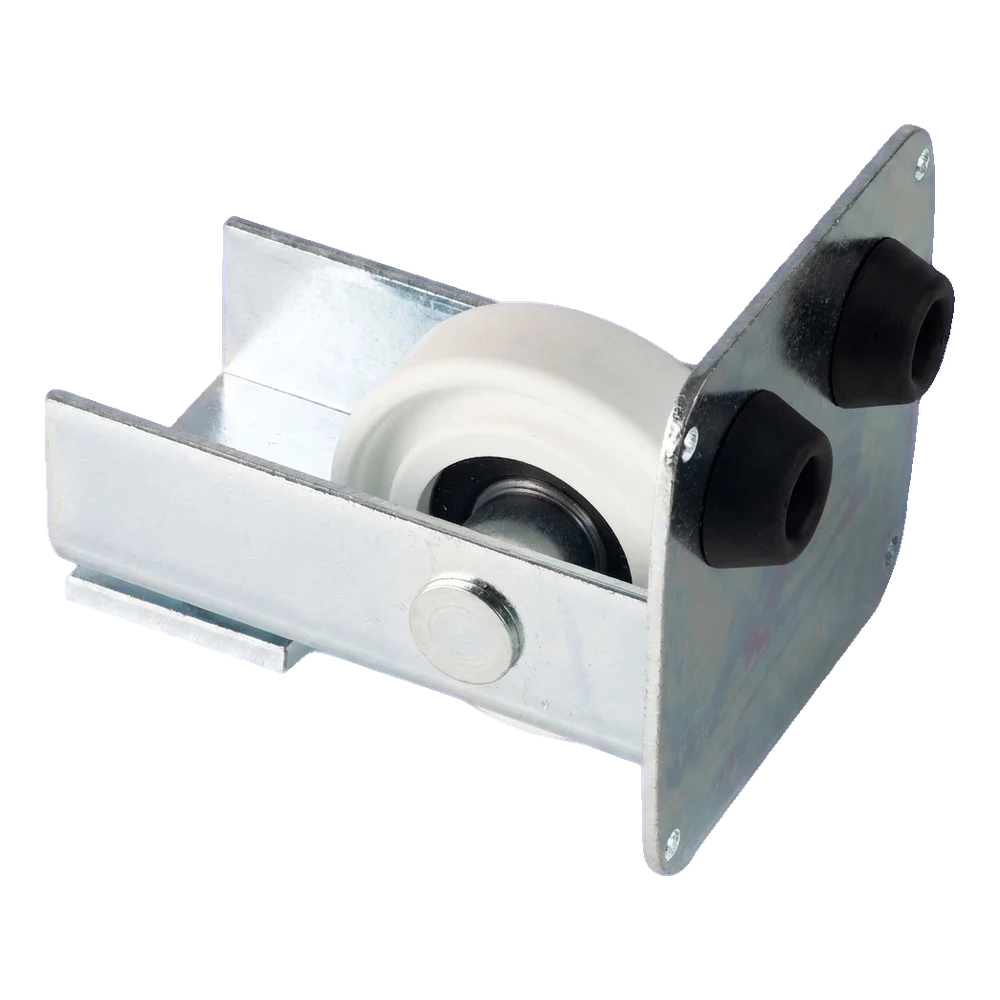

Comunello CGA-347P – running roller with nylon wheel for sliding gate profile
Comunello CGA-347P is a running roller with nylon wheel, specially designed to work with CGA-345P aluminium profile in sliding gate systems. Its main purpose is to relieve the load on gate support trolleys, which significantly extends the service life of the entire running mechanism and improves the smoothness of opening and closing the gate leaf.
The body made from galvanised steel guarantees high resistance to corrosion even in harsh weather conditions, whilst the nylon wheel with diameter ø79 mm ensures quiet and trouble-free operation for many years of use. Compact dimensions and weight of only 1.25 kg minimise load on the gate structure and facilitate installation.
Benefits for the installer
- Relieves support trolleys — extends service life of the entire gate system and reduces maintenance costs
- Quiet operation — nylon wheel eliminates troublesome noise during gate opening and closing
- Corrosion resistance — galvanised steel performs well in outdoor conditions throughout the year
- Quick installation — simple construction allows efficient installation without specialist tools
- Compatibility with CGA-345P aluminium rail — optimally matched to the Comunello sliding system

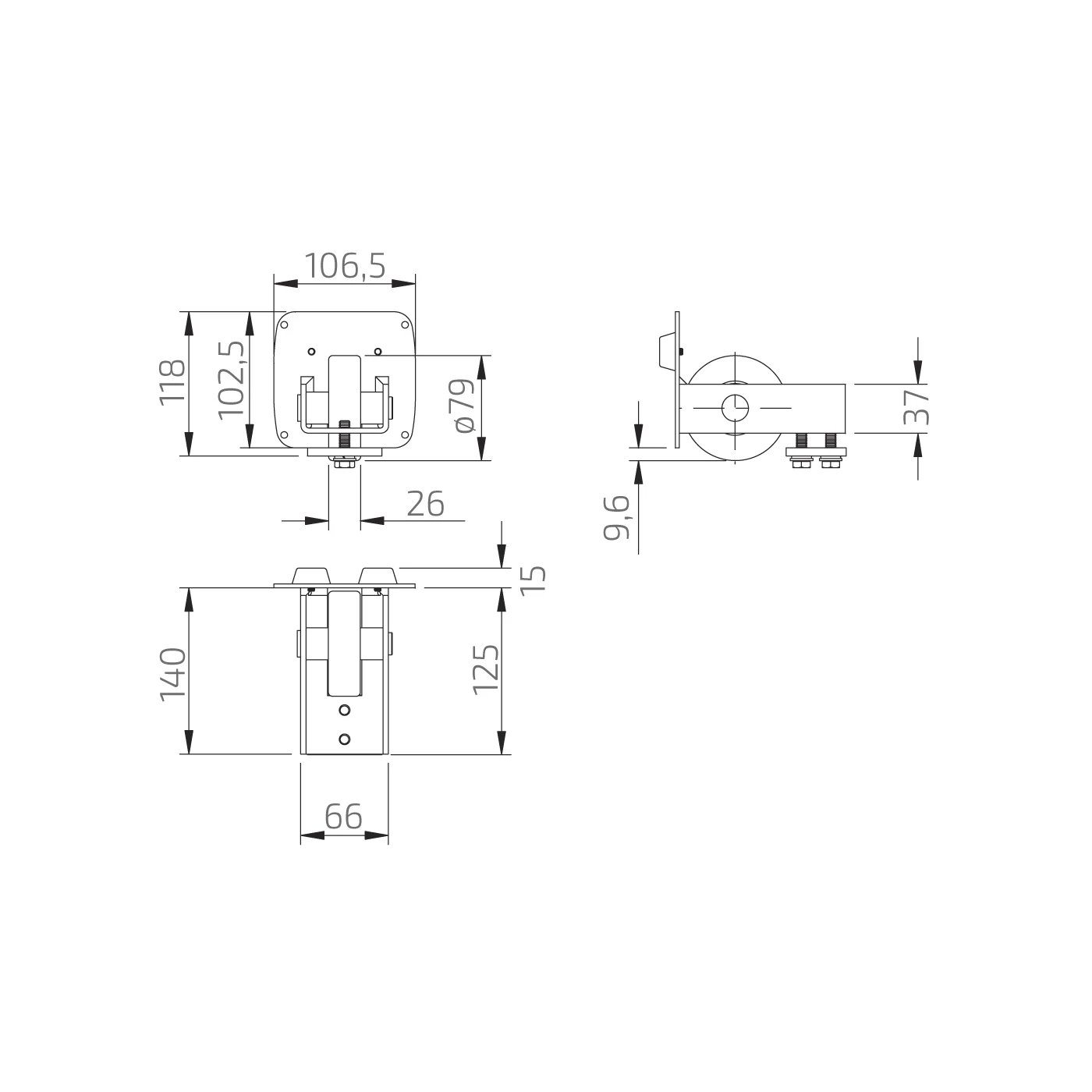

Dimensions and technical specification
- Manufacturer: Comunello
- Manufacturer code: CGA-347P
- Application: for profile CGA-345P
- Body material: galvanised steel
- Wheel material: nylon
- Wheel diameter: ø79 mm
- Front plate width: 106.5 mm
- Front plate height: 118 mm
- Mounting hole spacing (vertical): 102.5 mm
- Total length: 140 mm
- Body length inserted into profile: 125 mm
- Front element thickness: 15 mm
- Body width: 66 mm
- Body height: 37 mm
- Roller bracket internal width: 26 mm
- Weight: 1.25 kg
- EAN: 8028390629962
