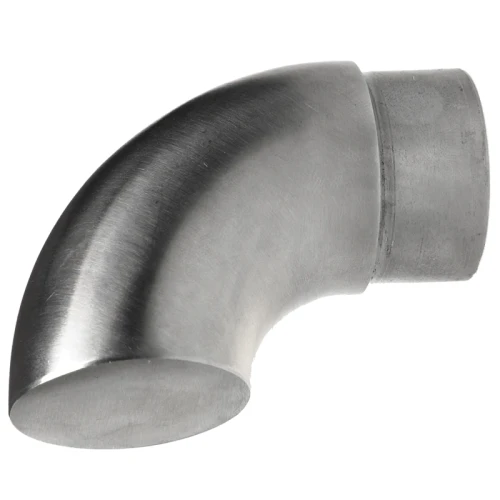

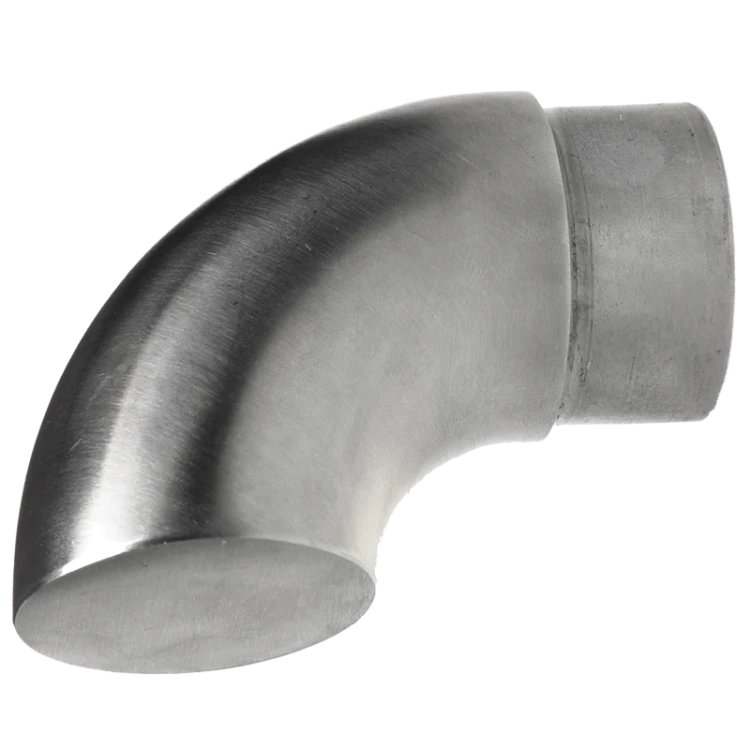

Closed handrail elbow for 42.4 mm tube – AISI 304 stainless steel satin

New Product

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.255 kg

Price / pcs.: £4.81 4.81

excl. shipping costs

quantity pcs.

product unavailable

add to wish list

Rating:

Vendor: -

Product code: 001-102

recommend to a friend

Description

Closed handrail elbow for 42.4 mm tube – AISI 304 stainless steel satin

Closed elbow for 42.4 mm tube is an elegant finishing element for handrail grips, giving the handrail an elegant, rounded shape. Made from AISI 304 stainless steel with satin finish — an ideal solution for installation companies carrying out internal balustrade projects with modern design.

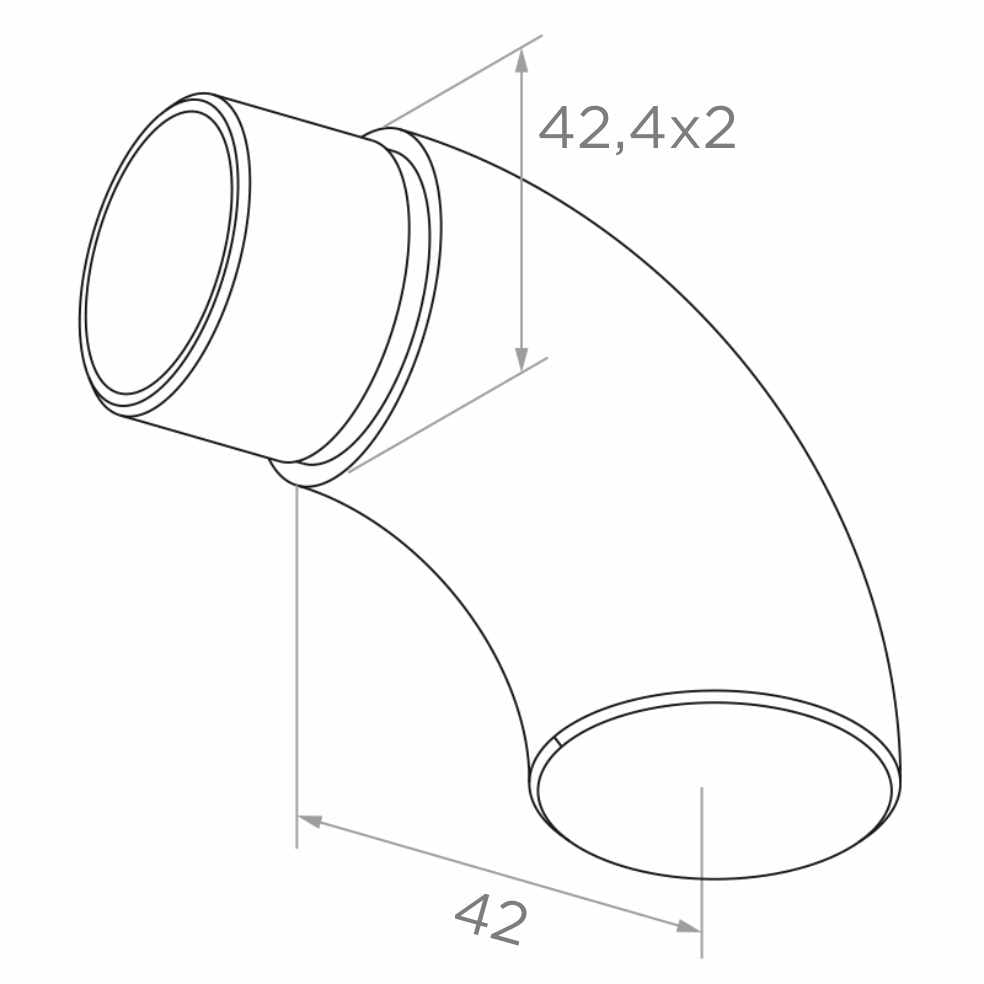

Dimensional drawing of closed elbow for 42.4 mm balustrade tube

Dimensions and technical parameters

External tube diameter: 42.4 mm

Tube wall thickness: 2 mm

Height (H): 42 mm

Material: AISI 304 stainless steel

Surface finish: satin

System: 42.4

Weight: 0.255 kg

EAN: 5901289672627

Application and installation

The elbow serves as a handrail termination — mounted at the end of a balustrade tube with diameter 42.4 mm it creates a closed, elegant arc. The element is intended for internal use. For permanent connection with the handrail, anaerobic adhesive is recommended, which bonds under contact with metal and hardens after oxygen supply is cut off — this ensures a secure, invisible connection without the need for welding.

The satin finish in AISI 304 steel guarantees corrosion resistance in internal conditions and a uniform, matt surface that harmoniously complements the other elements of the 42.4 balustrade system.

Technical data

Material	AISI 304
Finish	Satin
Mounting System	42.4 mm
