Cable for photovoltaic installations with anti-rodent additive (AR) - 10mm Black
Leave feedback on the product
H1Z2Z2-K AR 1×10 mm² photovoltaic cable with anti-rodent additive in sheath. Operating voltage DC 1.5 kV, temperature range -40°C to +90°C, tinned copper conductor class 5. Compliant with EN 50618, CPR Dca certificate.
Product code: 000-110
Product features
[PIM] Cat 92 #92
- Application Solar DC
- Cross-section [mm²] 10
- Colour Black
- Conductor Material Copper
- CPR Class D
- Rodent Protection Yes
- Cable type H1Z2Z2-K
- Brand MG WIRES
Description

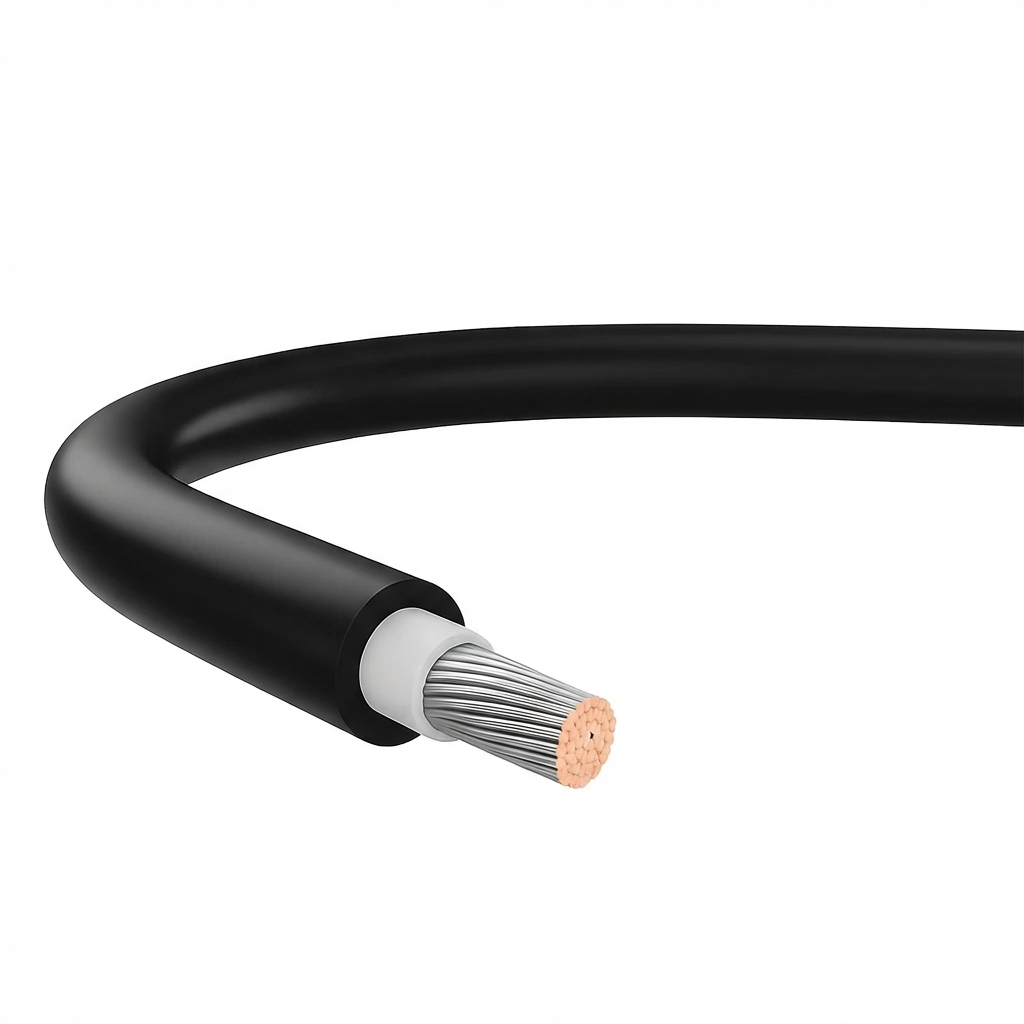

Solar cable H1Z2Z2-K AR 1×10 mm2 black – with anti-rodent protection

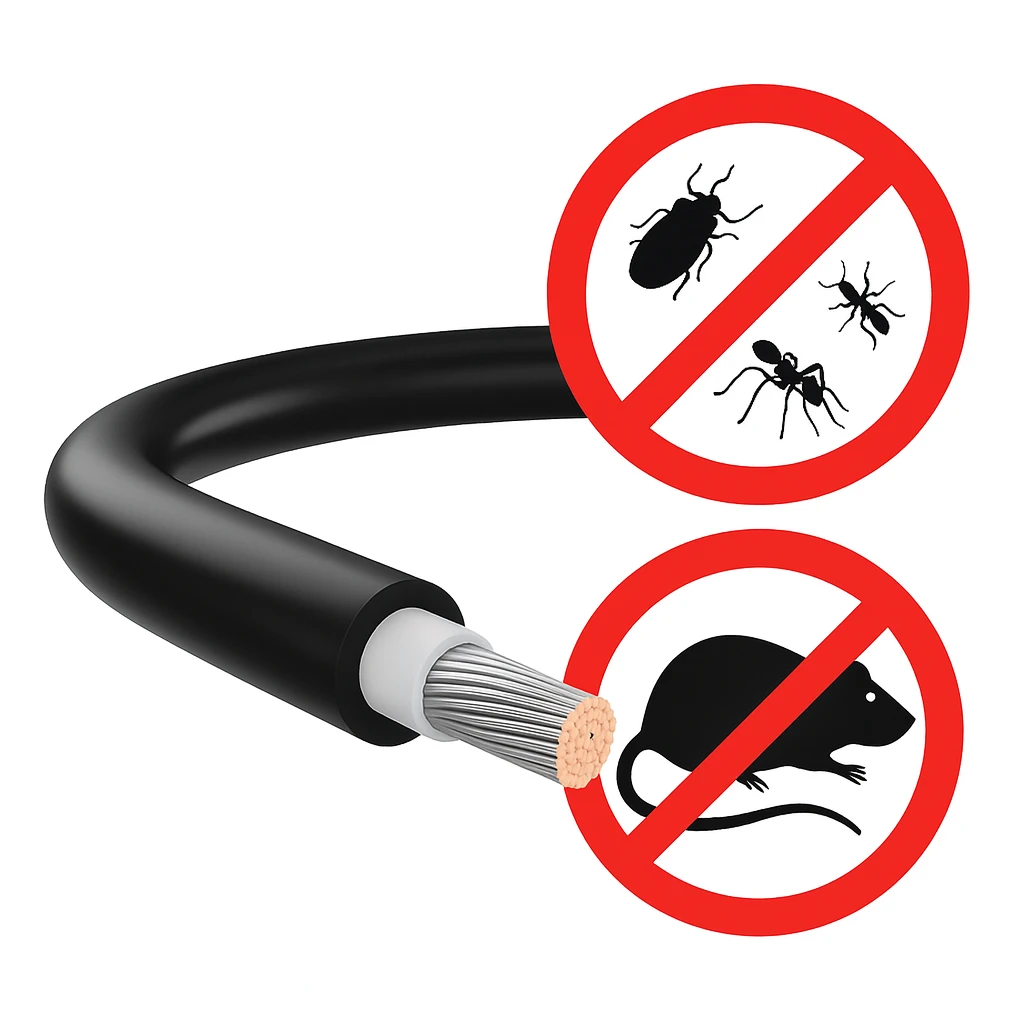

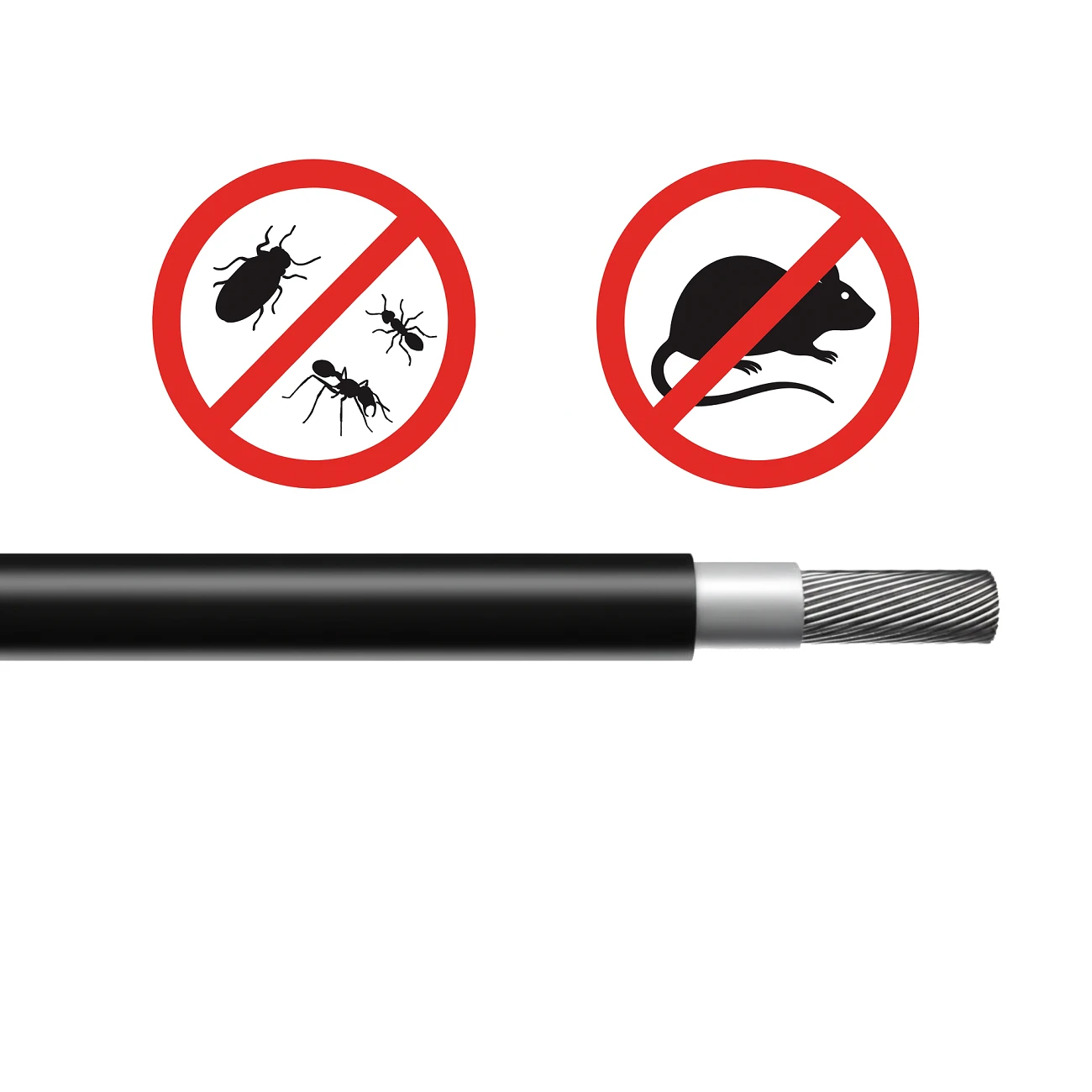

Photovoltaic cable H1Z2Z2-K AR 1×10 mm2 black is a single-core solar cable with an anti-rodent additive (AR) in the outer sheath. Thanks to a special agent that repels rodents, insects and termites, this cable provides a reliable solution wherever traditional cables are exposed to mechanical damage caused by pests.
10 mm2 cross-section ensures low resistance and the ability to transmit higher currents, making this cable an ideal choice for longer cable runs in ground-mounted power plants, higher-power roof installations and for connections between strings and inverters.
Why does AR protection matter? Cable damage caused by rodents is one of the most common causes of PV installation failures, especially in rural areas and near farm buildings. The anti-rodent additive in the outer sheath effectively repels pests, eliminating the risk of costly downtime and repairs.
Cable construction
- Conductor: copper, stranded, tinned, class 5 according to PN-EN 60228
- Insulation: cross-linked halogen-free compound, white colour
- Sheath: cross-linked halogen-free compound with AR additive, black colour
- Optional: screen of CuSn wires or armour of FeZn steel wires
Technical parameters
- Nominal conductor cross-section: 10 mm2
- Max. wire diameter in conductor: 0.41 mm
- Max. cable outer diameter: 8.8 mm
- Min. insulation resistance at 20°C: 420 MΩ·km
- Rated voltage: 1.0/1.0 kV AC
- DC operating voltage: 1.5 kV (1.8 kV) according to EN 50618
- Operating temperature: from -40°C to +90°C (up to +120°C / 20,000 h)
- Short-circuit temperature: +250°C (max. 5 s)
- Test voltage 50 Hz: 6,500 V AC
- Min. bending radius (permanent): 4 × cable O.D.
Standards and certificates
- Compliant with PN-EN 50618:2015-03
- Flame retardancy according to EN 60332-1 / PN-EN 60332-1 / IEC 60332-1
- Low smoke and halogen gas emission according to PN-EN 61034-2, PN-EN 60754-2
- Reaction to fire: class Dca according to PN-EN 50575 (CPR)
- Suitable for direct burial – compliant with UL 854 (Impact and Crushing Resistance Test)
- Resistant to UV, ozone, atmospheric conditions, hydrolysis, ammonia, acids and alkalis
Application: cable designed for photovoltaic installations — connections between PV panels and between strings and inverters. Suitable for installation inside buildings, on roofs and in ground-mounted power plants. Expected service life is 25 years.
Cable cut to length – important information before you buy
This cable is sold by the metre: we cut it from the drum or coil to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and cross-section carefully.
This does not affect your statutory rights: if the cable is faulty, or the length or cross-section delivered does not match your order, please let us know – we will handle your complaint under the general rules.
