Cable for photovoltaic installations H1Z2Z2-K class D 10mm red
Leave feedback on the product

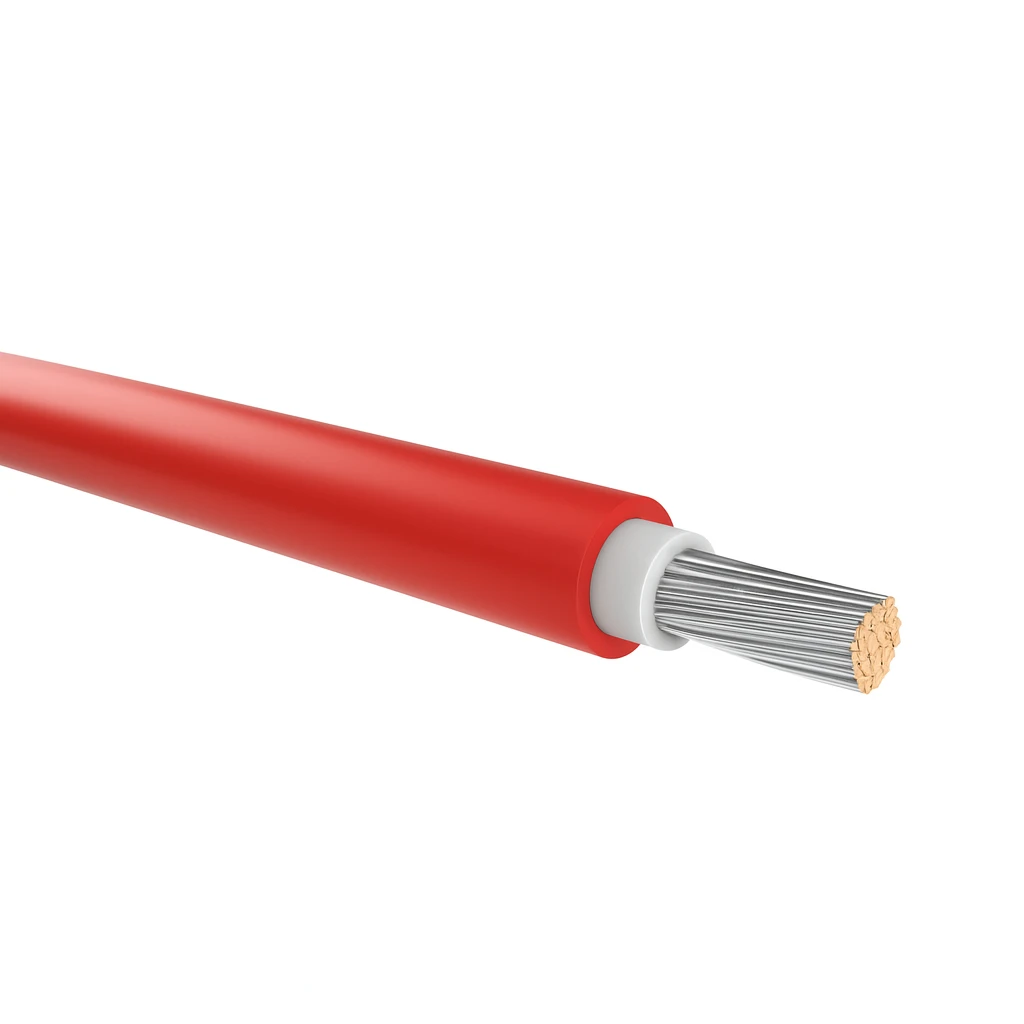

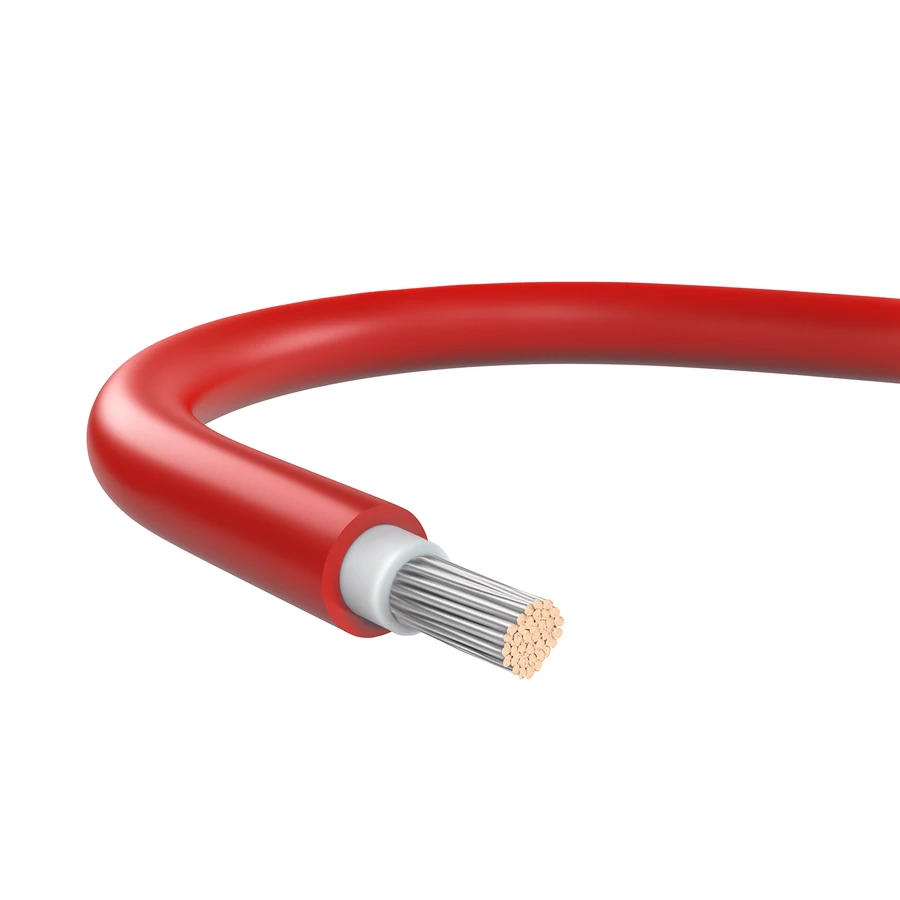

Photovoltaic cable H1Z2Z2-K 1x10 mm² with tinned copper conductor, DC voltage 1.5 kV, class Dca (CPR). Halogen-free insulation and sheath, operating temperature -40°C to +90°C.
Product code: 000-111
Product features
[PIM] Cat 92 #92
- Application Solar DC
- Cross-section [mm²] 10
- Colour Red
- Conductor Material Copper
- CPR Class D
- Rodent Protection No
- Cable type H1Z2Z2-K
- Brand MG WIRES
Description
H1Z2Z2-K solar cable 1x10 mm2 red – class Dca (CPR)
H1Z2Z2-K photovoltaic cable 1x10 mm2 in red is a reliable component of any PV installation. Thanks to the tinned copper conductor with a 10 mm2 cross-section, it ensures low transmission losses even over long cable runs – from module strings all the way to the inverter.
The cable is manufactured in accordance with EN 50618:2015 and classified as Dca under the CPR regulation, which allows it to be used in both rooftop installations and large-scale ground-mounted solar farms.
Cable construction
- Conductor: tinned copper multi-wire, class 5 according to EN 60228 / DIN VDE 0295
- Insulation: cross-linked halogen-free compound, white colour
- Outer sheath: cross-linked halogen-free compound, red colour
- Maximum outer diameter: 8.8 mm
- Min. insulation resistance at 20°C: 420 MΩ·km
Electrical parameters
- Rated voltage AC: U0/U = 1.0/1.0 kV
- Operating voltage DC: 1.5 kV (1.8 kV) according to EN 50618
- Test voltage: 6,500 V AC (50 Hz)
- Short-circuit temperature: +250°C (max. 5 s)
Operating conditions and durability
- Operating temperature: from -40°C to +90°C (up to +120°C for 20,000 h)
- Minimum installation temperature: -25°C
- Min. bending radius: 4 × outer diameter
- UV, ozone and weather resistance: according to EN 50618
- Enhanced resistance to hydrolysis, ammonia, acids and alkalis
- Direct burial capability: confirmed by testing according to UL 854 (Impact-Resistance and Crushing-Resistance)
- Expected service life: 25 years
Fire safety
The cable meets flame retardancy requirements according to EN 60332-1 and IEC 60332-1. During combustion, it does not emit aggressive fumes (compliance with EN 61034-2 and EN 60754-2), which is crucial for rooftop and indoor installations. Reaction to fire classification: Dca according to EN 50575 (CPR).
Application
The H1Z2Z2-K 10 mm2 cable is designed for connections between photovoltaic modules, module strings and for cable runs leading to the inverter. The 10 mm2 cross-section performs particularly well over longer distances and at higher operating currents. The red colour facilitates identification of the positive pole (+) in DC installations.
Additional options: available version with CuSn wire screen and FeZn steel wire armour. There is also the possibility of applying an anti-rodent compound in the insulation to prevent damage by rodents and termites.
Cable cut to length – important information before you buy
This cable is sold by the metre: we cut it from the drum or coil to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and cross-section carefully.
This does not affect your statutory rights: if the cable is faulty, or the length or cross-section delivered does not match your order, please let us know – we will handle your complaint under the general rules.
