Cable for photovoltaic installations H1Z2Z2-K class D 10mm black
Description

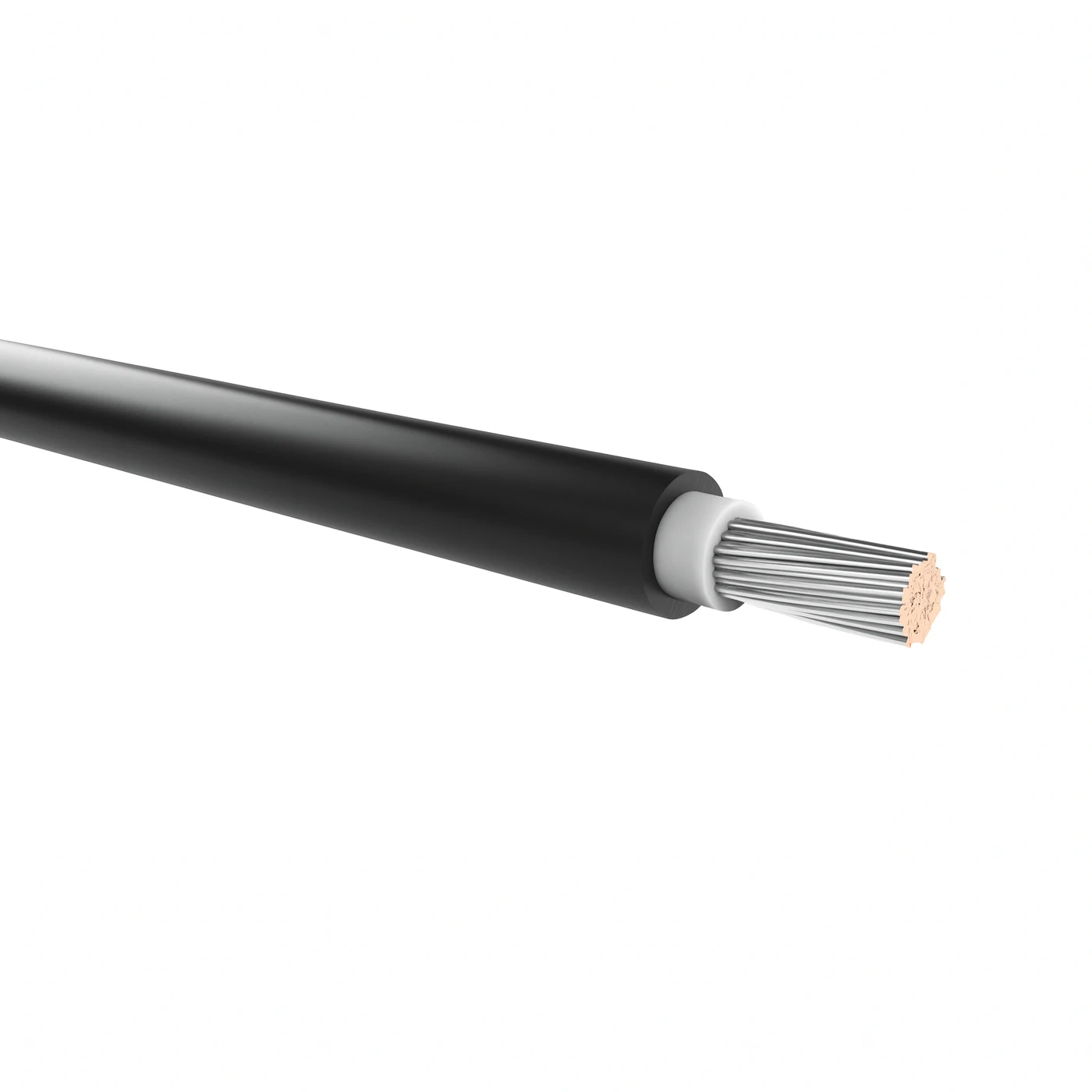

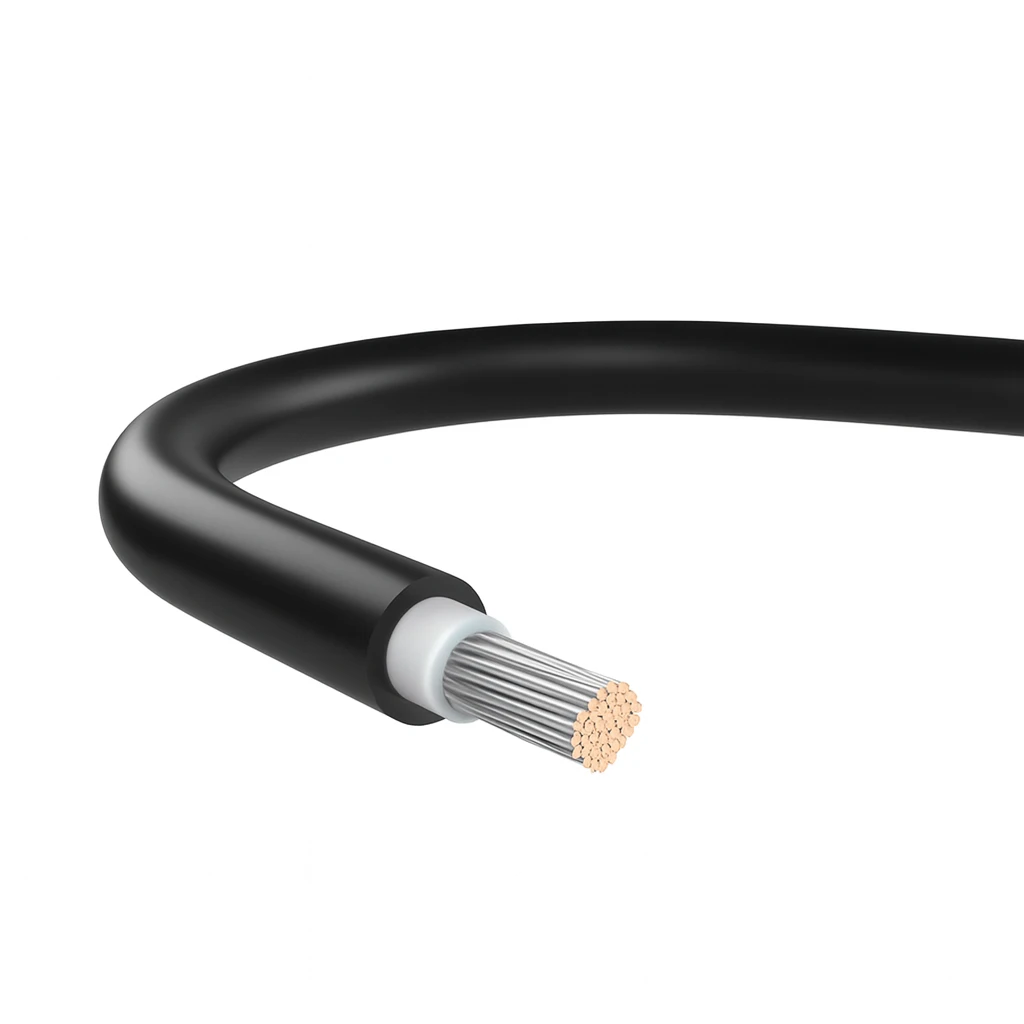

H1Z2Z2-K solar cable 1x10 mm2 black – class Dca (CPR)
H1Z2Z2-K photovoltaic cable 1x10 mm2 in black is a reliable component of any PV installation. Thanks to the tinned copper conductor with a 10 mm2 cross-section, it ensures low transmission losses even over long cable runs – from module strings all the way to the inverter.
The cable is manufactured in accordance with PN-EN 50618:2015-03 standard and classified as Dca under the CPR regulation, which allows it to be used both in rooftop installations and in extensive ground-mounted solar farms.
Cable construction
- Conductor: tinned copper stranded, class 5 according to PN-EN 60228 / DIN VDE 0295
- Insulation: cross-linked halogen-free compound, white colour
- Outer sheath: cross-linked halogen-free compound, black colour
- Maximum outer diameter: 8.8 mm
- Min. insulation resistance at 20°C: 420 MΩ·km
Electrical parameters
- Rated AC voltage: U0/U = 1.0/1.0 kV
- DC operating voltage: 1.5 kV (1.8 kV) according to EN 50618
- Test voltage: 6,500 V AC (50 Hz)
- Short-circuit temperature: +250°C (max. 5 s)
Operating conditions and durability
- Operating temperature: from -40°C to +90°C (up to +120°C for 20,000 h)
- Minimum installation temperature: -25°C
- Min. bending radius: 4 × outer diameter
- UV, ozone and weather resistance: according to EN 50618
- Enhanced resistance to hydrolysis, ammonia, acids and alkalis
- Direct burial capability: confirmed by testing according to UL 854 (Impact-Resistance and Crushing-Resistance)
- Expected service life: 25 years
Fire safety
The cable meets flame retardancy requirements according to EN 60332-1 and IEC 60332-1. During combustion, it does not emit aggressive fumes (compliance with PN-EN 61034-2 and PN-EN 60754-2), which is crucial in rooftop installations and inside buildings. Reaction to fire classification: Dca according to PN-EN 50575 (CPR).
Application
The H1Z2Z2-K 10 mm2 cable is designed for connections between photovoltaic modules, module strings and for cable runs leading to the inverter. The 10 mm2 cross-section performs particularly well over longer runs and at higher operating currents. The black colour facilitates identification of the positive pole (+) in DC installations.
Additional options: available version with CuSn wire screen and FeZn steel wire armour. There is also the possibility of applying an anti-rodent compound in the insulation, preventing damage by rodents and termites.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Application | Solar DC |
| Cross-section [mm²] | 10 |
| Colour | Black |
| Conductor Material | Copper |
| CPR Class | D |
| Rodent Protection | No |
| Cable type | H1Z2Z2-K |
| Brand | MG WIRES |
