Cable for photovoltaic installations H1Z2Z2-K class B2 (CPR) Red 4mm NON-FLAMMABLE
Description

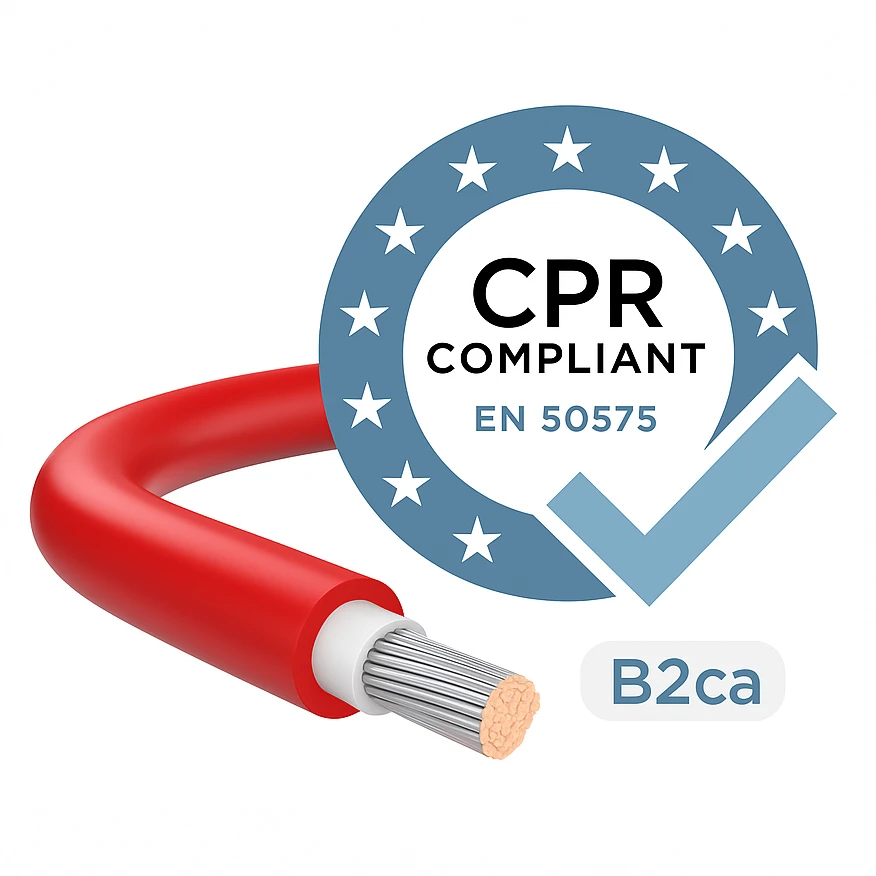

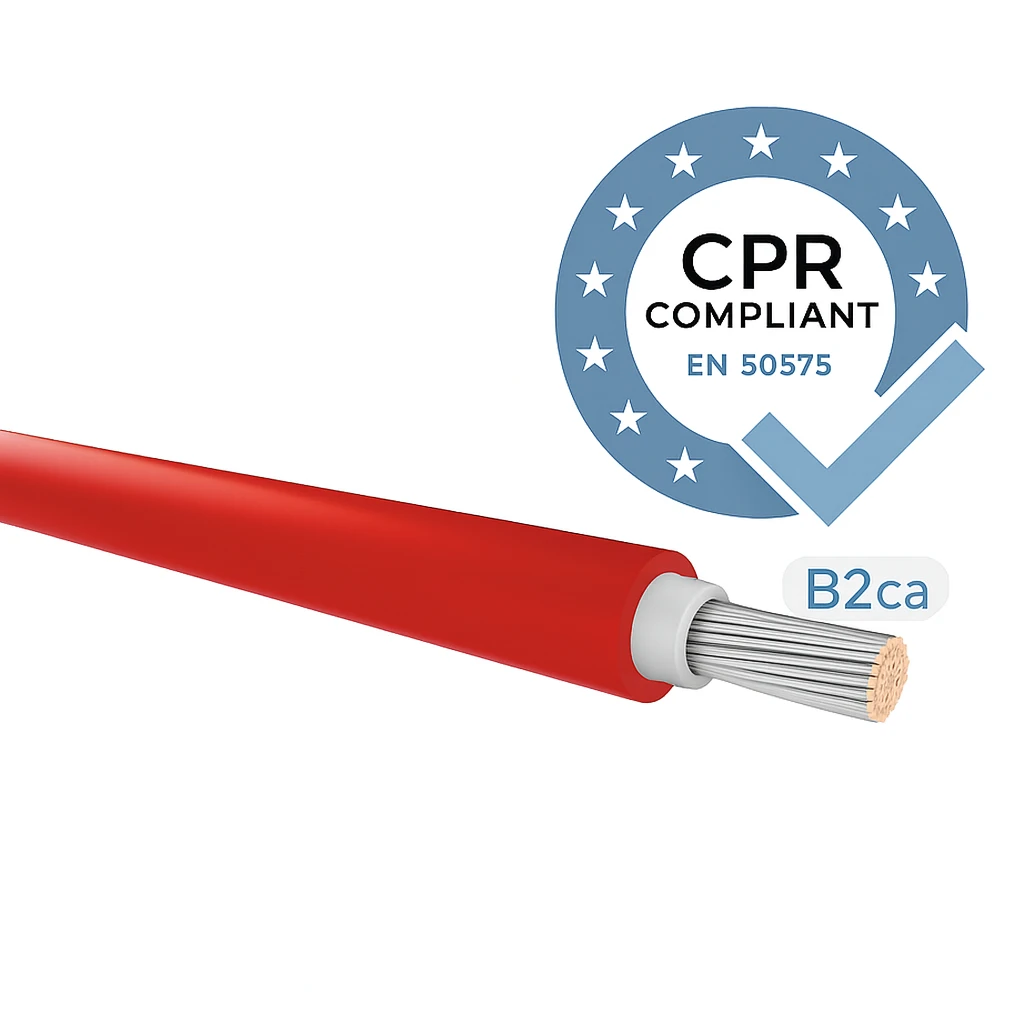

H1Z2Z2-K 4 mm2 solar cable red – class B2ca (CPR), non-flammable
H1Z2Z2-K 4 mm2 red photovoltaic cable is a professional, single-core solar cable with the highest fire reaction class B2ca-s1,d0,a1 compliant with CPR regulations. The ideal choice for installers who need a reliable connection between PV panels and inverters — in both rooftop and ground-mounted installations.
Why does B2ca matter? Fire reaction class B2ca-s1,d0,a1 is the highest fire reaction class available for solar cables. It means zero smoke emission and toxicity during fire — a crucial requirement for installations on public buildings, multi-family residential properties, and anywhere fire safety is a priority.

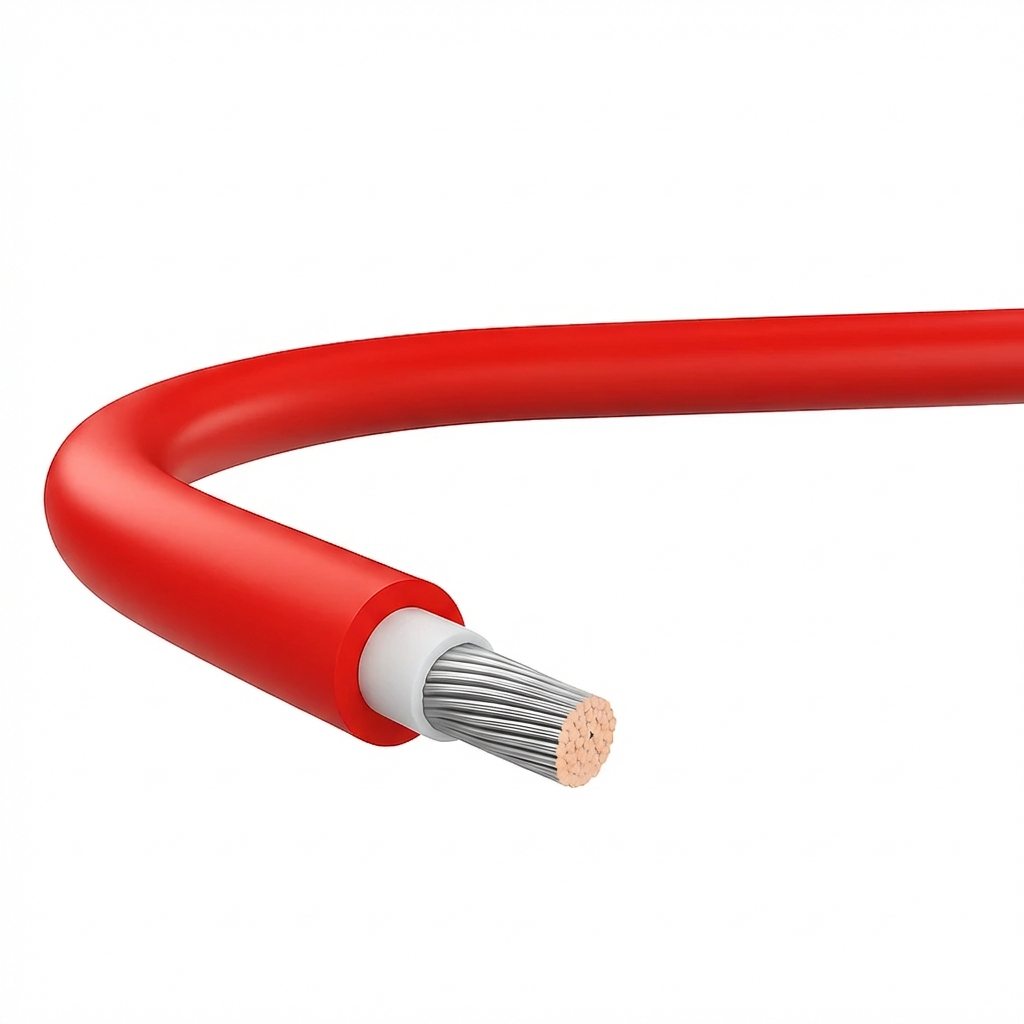

Cable construction
- Conductor: copper, multi-wire, flexible, tinned — class 5 according to PN-EN 60228 / VDE 0295
- Insulation: cross-linked halogen-free compound, white colour
- Outer sheath: cross-linked halogen-free compound, red colour
- Nominal cross-section: 4.0 mm2
- Max. wire diameter in conductor: 0.31 mm
- Max. outer diameter: 6.6 mm
Electrical and temperature parameters
- Rated AC voltage: 1.0/1.0 kV (U0/U = 1000/1000 V)
- DC operating voltage: 1.5 kV (1.8 kV)
- Test voltage: 6.5 kV AC
- Operating temperature: from -40 °C to +90 °C (+120 °C / 20,000 h)
- Conductor short-circuit temperature: +250 °C (max. 5 s)
- Min. installation temperature: -25 °C
- Min. bending radius (fixed): 4 × outer diameter
- Insulation resistance: 580 MΩ·km (at 20 °C)
Resistance and durability
- UV, ozone and weather resistance — according to EN 50618
- Enhanced resistance to hydrolysis, ammonia, acids and alkalis
- Low water absorption — ideal for outdoor applications
- Direct burial capability — meets direct burial requirements according to UL 854
- Excellent mechanical properties — durable during installation and operation
Application: H1Z2Z2-K 4 mm2 cable is used for connections between photovoltaic panels and between panels and inverters. It performs well in both rooftop installations on buildings and in extensive ground-mounted solar farms. The red colour allows easy identification of the positive DC pole (+) in the installation.
Standard: PN-EN 50618:2015-03
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Application | Solar DC |
| Cross-section [mm²] | 4 |
| Colour | Red |
| Conductor Material | Copper |
| CPR Class | B2 |
| Rodent Protection | No |
| Cable type | H1Z2Z2-K |
| Brand | MG WIRES |
