Cable for photovoltaic installations H1Z2Z2-K class B2 (CPR) Red 10mm NON-FLAMMABLE
Leave feedback on the product
Single-core photovoltaic cable 10 mm² | Class B2ca-s1,d0,a1 | DC 1.5 kV. Tinned copper conductor with halogen-free insulation. Operating temperature from -40°C to +90°C, resistant to UV and weather conditions.
Product code: 000-115
Product features
[PIM] Cat 92 #92
- Application Solar DC
- Cross-section [mm²] 10
- Colour Red
- Conductor Material Copper
- CPR Class B2
- Rodent Protection No
- Cable type H1Z2Z2-K
- Brand MG WIRES
Description
H1Z2Z2-K 10 mm2 red solar cable – class B2ca (CPR), non-flammable
H1Z2Z2-K 10 mm2 red cable is a single-core photovoltaic cable in the highest fire reaction class B2ca-s1,d0,a1, designed for connections between PV panels and inverters. Thanks to its halogen-free construction and CPR certification, it is the ideal choice wherever non-flammability and zero toxic smoke emission are required — on roofs of residential buildings, public utility facilities and large ground-mounted solar farms.

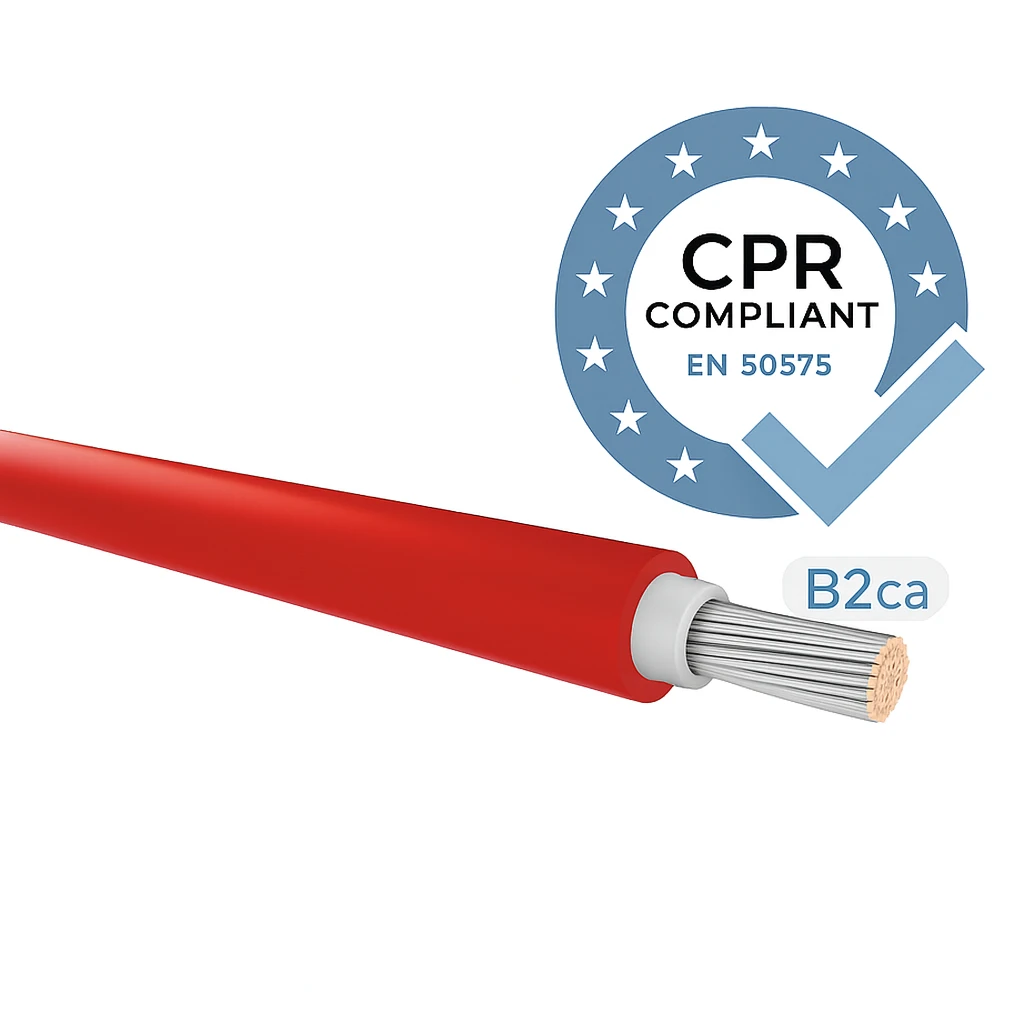

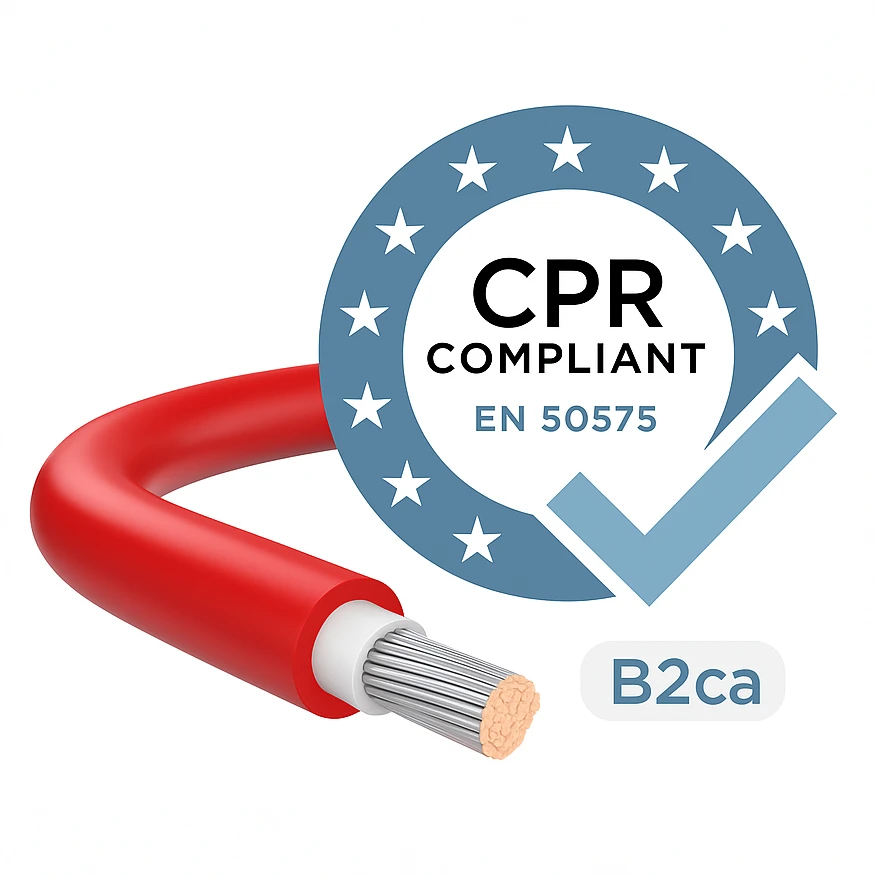

Why does B2ca class matter? The CPR (Construction Products Regulation) increasingly requires the use of cables with enhanced fire reaction class in buildings. Cable in class B2ca means very low flammability, minimal smoke emission (s1), no flaming droplets (d0) and low acidity of fire gases (a1). By choosing this cable, you meet the most stringent design requirements and eliminate the risk of objections during installation acceptance.

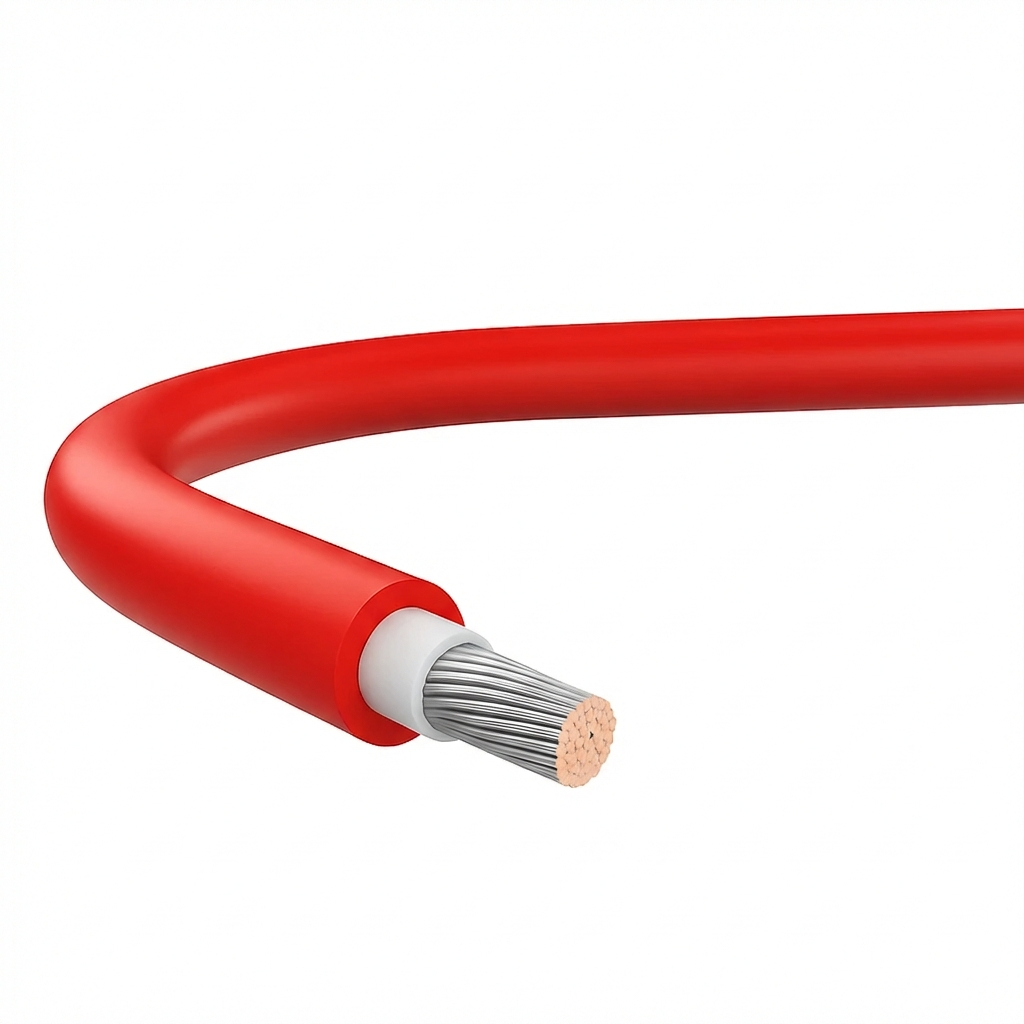

Cable construction
- Conductor: copper, multi-wire, flexible (class 5 acc. to EN 60228), tinned — cross-section 10 mm2
- Insulation: cross-linked halogen-free compound, white colour
- Outer sheath: cross-linked halogen-free compound, red colour
- Max. outer diameter: 8.8 mm
- Min. bending radius (fixed): 4 × cable diameter
Electrical and temperature parameters
- Rated AC voltage: U0/U = 1.0/1.0 kV
- DC operating voltage: 1.5 kV (1.8 kV)
- Test voltage: 6.5 kV AC (50 Hz)
- Operating temperature: -40 °C to +90 °C (+120 °C / 20,000 h)
- Conductor short-circuit temperature: +250 °C (max. 5 s)
- Min. installation temperature: -25 °C
- Min. insulation resistance (20 °C): 420 MΩ·km
Resistance and durability
- Resistant to UV radiation, ozone and atmospheric conditions (acc. to EN 50618)
- Enhanced resistance to hydrolysis, ammonia, acids and alkalis
- Low water absorption — safe operation in humid environments
- Suitable for direct burial (meets direct burial requirements acc. to UL 854)
- Flammability class: B2ca-s1,d0,a1 acc. to EN 13501-6:2018
Application: cable designed for photovoltaic installations — connections between PV panels, strings to inverter, wiring inside buildings and on roofs and in ground-mounted power plants. Red sheath colour facilitates identification of the positive pole in DC installations.
Standard: EN 50618:2015-03
Cable cut to length – important information before you buy
This cable is sold by the metre: we cut it from the drum or coil to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and cross-section carefully.
This does not affect your statutory rights: if the cable is faulty, or the length or cross-section delivered does not match your order, please let us know – we will handle your complaint under the general rules.
