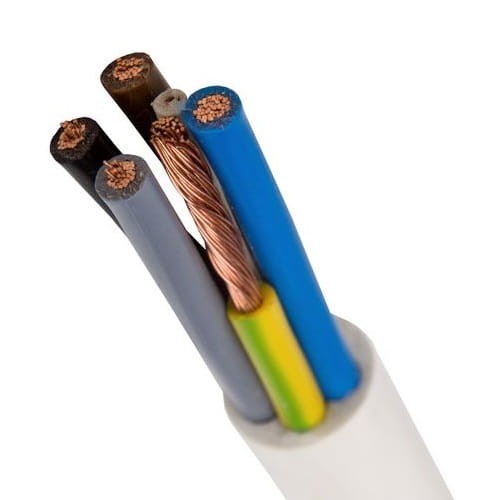

Cable OWY 5x4 mm² 300/500V H05VV-F - White
Leave feedback on the product
5x4 mm² cable | 300/500V rated | Class 5 flexible stranded. H05VV-F power cable with copper conductors and PVC insulation. Designed for household appliances, agricultural and workshop equipment. White, highly flexible multi-strand construction for demanding applications.
Choose a variant:
Individual variants may differ in price
Lengths
Product code:
Description
OWY 5x4 300/500V Cable - White
The OWY 5x4 300/500V H05VV-F cable is a white cable designed for use in domestic, agricultural and workshop equipment with medium power requirements.
It consists of five copper conductors, ensuring conductivity and durability. Its insulation and outer sheath are made of PVC, which guarantees protection and flexibility, enabling easy use in various conditions, mainly in enclosed spaces. This is a flexible cable, ideally suited for movable and portable connections, making it perfect for domestic, agricultural and workshop applications where reliability and safety of use are required.
SPECIFICATION
| Parameter | Value |
|---|---|
| Package weight | 0.348 kg |
| Cable designation | OWY |
| Insulation voltage | 300/500 V |
| Conductor cross-section | 4 mm2 |
| Number of cores | 5 |
| Colour | white |
| Nominal conductor cross-section (AWG) | 0 kcmil |
| Core insulation material | polyvinyl chloride (PVC) |
| Core identification | colour |
| Common screen | none |
| Outer sheath material | polyvinyl chloride (PVC) |
| Reaction to fire class according to EN 13501-6 | Eca |
| Flaming droplets/particles class according to EN 13501-6 | none |
| Approximate outer diameter | 13.9 mm |
| Conductor class | class 5 = flexible stranded |
| Min. permissible bending radius in fixed installations | 83.4 mm |
| Rated voltage U0 | 300 V |
| Rated voltage U | 500 V |
Cable cut to length – important information before you buy
This cable is sold by the metre: we cut it from the drum or coil to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and cross-section carefully.
This does not affect your statutory rights: if the cable is faulty, or the length or cross-section delivered does not match your order, please let us know – we will handle your complaint under the general rules.
