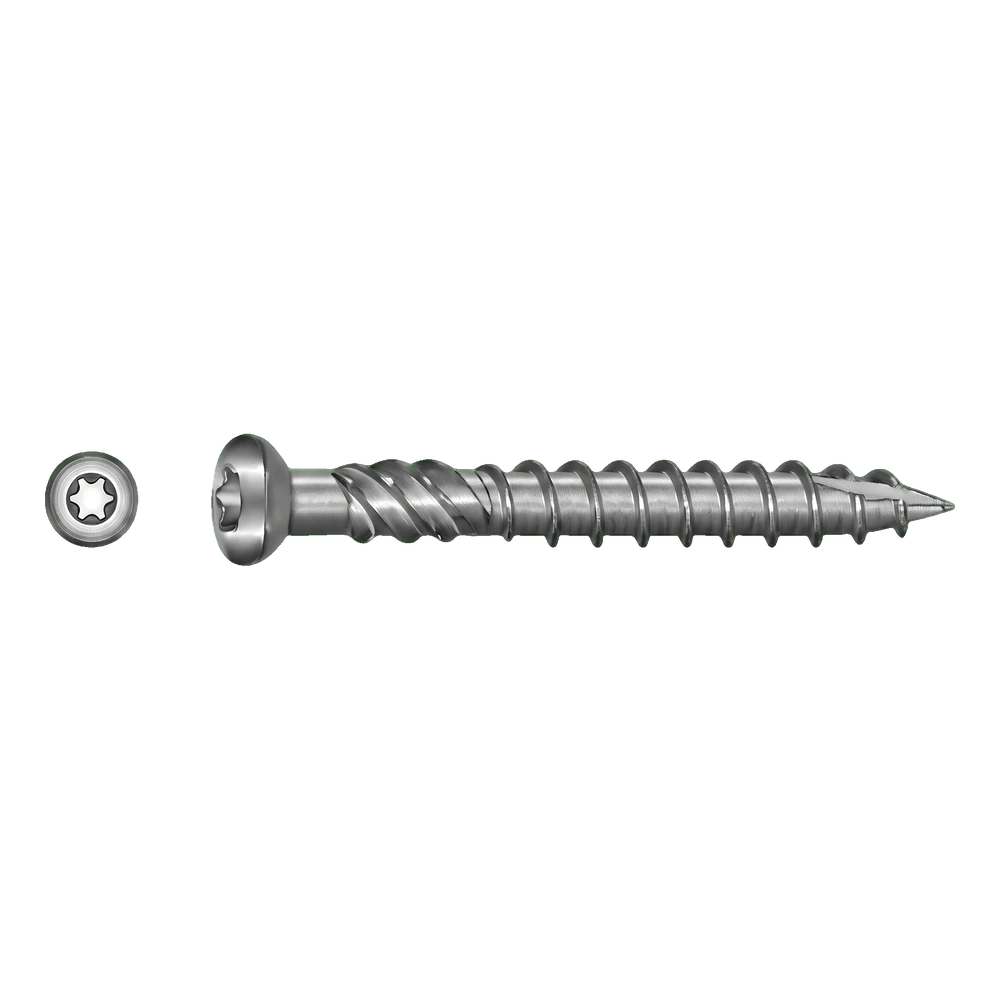

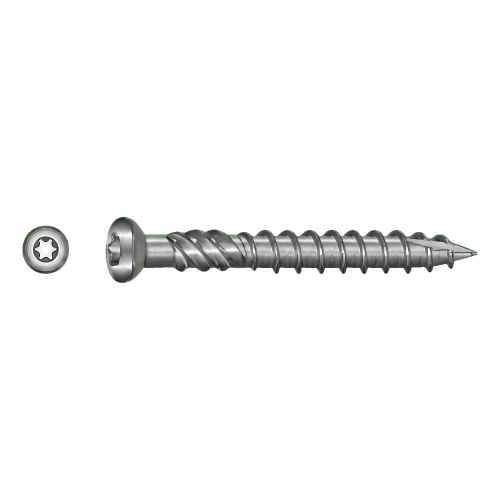

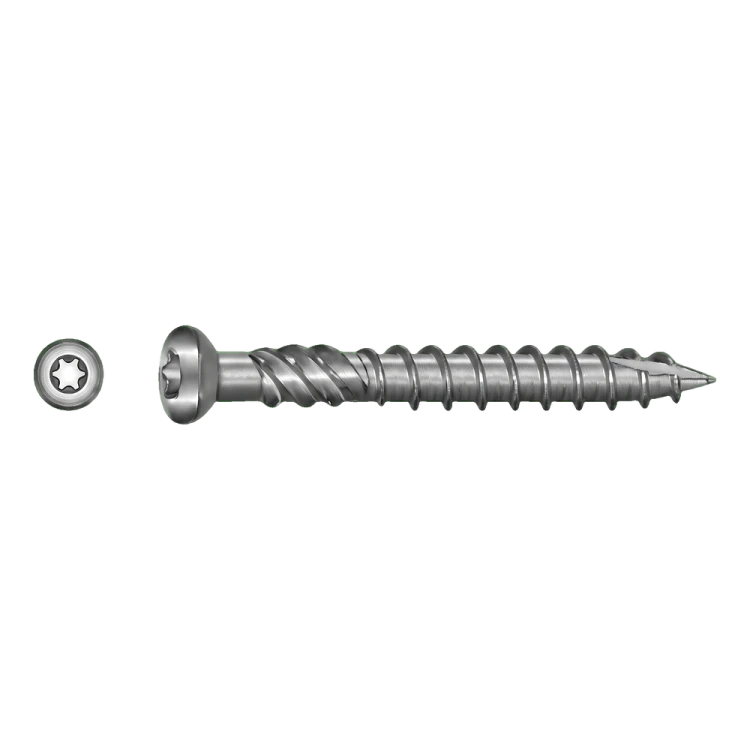

C1 (AISI 410) stainless steel decking screw TX25 5.0×80 mm – head with milling ribs – box of 100 pcs

Go to Product feedback

Decking screw in martensitic stainless steel C1 / AISI 410, 5.0 x 80 mm. TX25 drive, 8 mm diameter decorative head, 52 mm square thread, cut point. For fixing decking boards to timber substructures.

Go to full description
with VAT without VAT
Price €11.14
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] Wkręty #80

  • Material C1 (AISI 410) - stainless steel
  • Diameter 5
  • Length [mm] 80
  • Thread partial thread
  • Drive TX25
  • Coating Black anodised
  • Quantity per pack [pcs] 100
  • Brand F&F FILIPOWSKI

Description

Decking screw · 5 × 80 mm

Decorative head with milling ribs, TX25 drive, C1 (AISI 410) stainless steel

TX25Drive
C1Stainless steel
100 pcsper box
0.71 kgBox weight
Dimension drawing: decking screw 5 × 80 mm, values: l = 80 mm, b = 52 mm, d = 5 mm, dk = 8 mm, TX25 drive
Open the dimension drawing in full size
Illustrative drawing for size 5 × 80 mm, proportions to scale; values according to supplier data.

Quick choice

ApplicationFixing deck boards to timber joists
ConditionsC1: where chlorides are present (sea, swimming pool), choose the material for the exposure conditions
InstallationTX25 bit; choose the pilot hole for the timber

About the product

A decking screw is used to fasten decking boards to timber joists. It has a decorative head with milling ribs and a TX25 recess for driving with a TX25 bit. The head diameter is 8 mm.

The 5 × 80 mm screw is partially threaded: the thread is 52 mm long, and the rest of the shank under the head is smooth. Choose the pilot hole for the type of timber; pre-drilling near the edges of the board is advisable to reduce the risk of splitting. The screw dimensions do not determine the load capacity of the joint – this depends on, among other things, the timber, the screw engagement depth and the joint layout, and is set by the design.

The screw is made of C1 (AISI 410) stainless steel. Where chlorides are present, for example by the sea or a swimming pool, choose the material according to the exposure conditions and the design recommendations. Sold in boxes of 100 pcs; each box weighs 0.71 kg.

Dimensions

Thread diameter d5 mm
Length l80 mm
Thread length b52 mm
Head diameter dk8 mm
Headdecorative with milling ribs
DriveTX25
Nominal values according to supplier data.

Material and environment

MaterialC1 (AISI 410) stainless steel

Chloride environment

E.g. by the sea or a swimming pool: choose the material according to the exposure conditions and the design recommendations.

Packaging

Sales unitbox of 100 pcs
Box weight0.71 kg [2]
[2] Weight and sales unit according to supplier data.

Preparing the installation

  • ✓Choose the pilot hole for the type of timber.
  • ✓Pre-drill near the edges of the board – this reduces the risk of splitting.
  • ✓Drive in with a TX25 bit.

Important

The screw dimensions do not define the load capacity of a particular joint. The load capacity depends, among other things, on the timber, the screw-in depth and the joint layout – it is set by the design.
