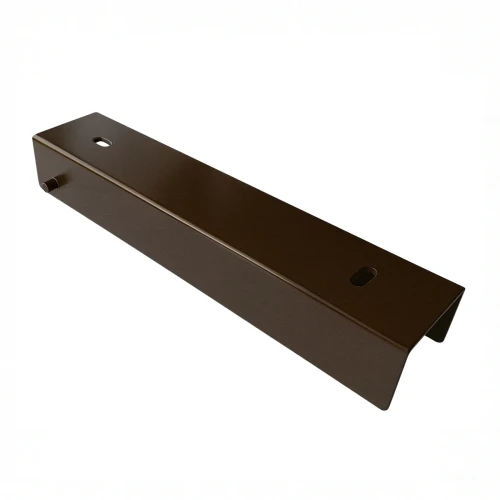

C-channel connector bracket for foundation wall 250x50 bronze

C-channel connector for fence foundation wall is a durable mounting element used for permanent connection of concrete foundation wall panels with fence posts. Designed for foundation walls with dimensions 250 × 50 mm, it ensures precise fitting and stable seating of the panel regardless of ground and weather conditions.

The product is made from galvanised steel covered with powder coating in bronze RAL 8017 colour. Double anti-corrosion protection — zinc coating plus powder coating — guarantees years of resistance to moisture, precipitation and corrosion, eliminating the need for additional maintenance. The aesthetic, uniform finish harmoniously complements modern panel fencing in popular bronze colouring.

Construction and assembly

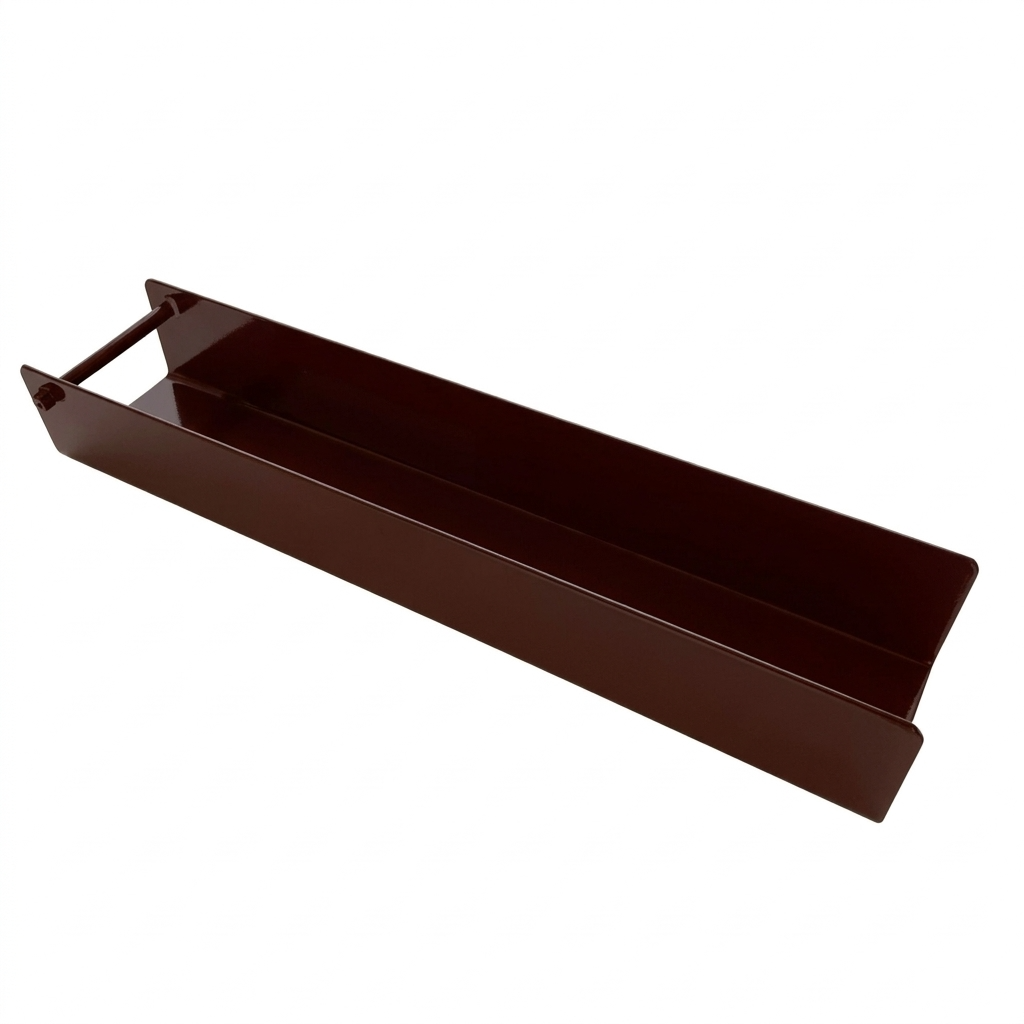

The C-channel has a C-shaped profile in which the concrete foundation wall panel is seated. The internal width of the profile is 62 mm, which allows for free and stable placement of a 50 mm thick panel with slight assembly clearance facilitating installation. The built-in Ø 6 mm cross rod acts as a lock — prevents the foundation wall from sliding out of the bracket, increasing the durability and safety of the entire fence structure.

Two mounting holes in the form of 6 × 12 mm slots enable quick screwing of the C-channel to the fence post. The elongated shape of the holes allows position adjustment during assembly, which significantly speeds up the installation team's work and facilitates levelling of the foundation wall line on uneven terrain. The flat base of the C-channel protects the concrete panel from mechanical damage during installation.

Technical parameters

Application

The C-channel is a universal element used in the assembly of residential, industrial and allotment fencing. It is ideal wherever a concrete foundation wall with 50 mm thickness requires permanent and aesthetic attachment to the fence post. Thanks to its simple construction and adjustable mounting holes, installation is quick and does not require specialist tools — standard screws and a spanner are sufficient.

Available colour variants

The C-channel is available in five colour versions (powder coating): graphite, black, green, brown and zinc (without powder coating). The wide colour palette allows the connector to be matched to the colour of panel fencing and posts, maintaining consistent aesthetics of the entire fence.
