C-channel connector bracket for foundation wall 200x55 brown
5
Description

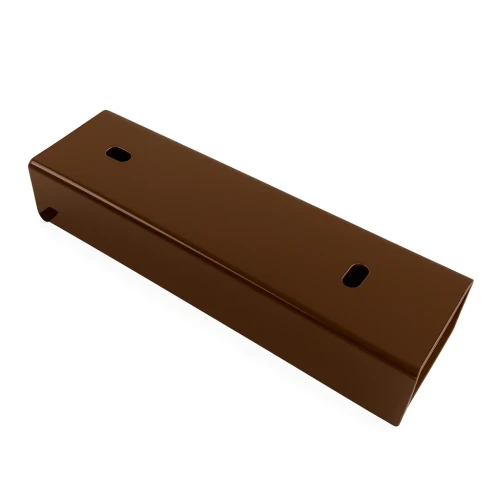

C-channel connector for fence foundation wall 200×55 mm brown RAL 8017
C-channel connector for fence foundation wall is a solid mounting element designed for permanent connection of concrete foundation wall panels to fence posts. It has been designed specifically for foundation walls with dimensions 200 × 55 mm, which guarantees precise fitting and stable panel placement in all conditions.
The product is made from galvanised steel coated with powder paint in brown RAL 8017 colour. Double anti-corrosion protection — zinc plating plus powder coating — ensures years of resistance to weather conditions, moisture and corrosion, eliminating the need for maintenance. The aesthetic finish harmonises perfectly with modern panel fencing.
Construction and mounting

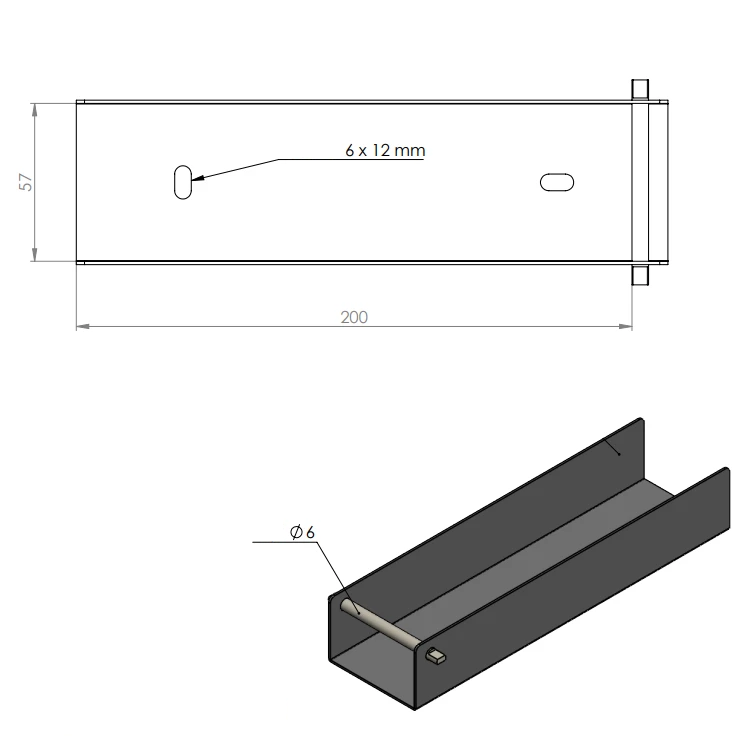

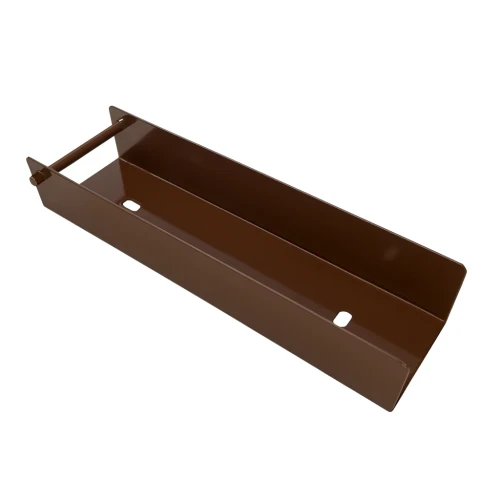

The C-channel has a C-shaped profile in which the concrete foundation wall panel is seated. The internal width of the profile is 57 mm, which allows for easy and stable placement of a 55 mm thick panel with slight mounting clearance. The built-in Ø 6 mm cross rod serves as a blocking function — it prevents the foundation wall from sliding out of the bracket, increasing the durability and safety of the entire structure.
Two mounting holes in the form of 6 × 12 mm slots enable quick screwing of the C-channel to the fence post. The elongated shape of the holes allows for position adjustment during mounting, which significantly speeds up the installation team's work. The flat base of the C-channel protects the foundation wall from mechanical damage during installation.
Technical parameters
- Purpose: for foundation wall with dimensions 200 × 55 mm
- C-channel length: 200 mm
- Internal width: 57 mm
- Sheet thickness: 1.5 mm
- Material: galvanised steel
- Finish: powder coating
- Colour: brown RAL 8017
- Mounting holes: 2 pcs. — slots 6 × 12 mm
- Blocking rod: Ø 6 mm
- Corrosion and weather resistance: yes
Application
The C-channel is a universal element used in the installation of residential, industrial and plot fencing. It is ideal wherever a concrete foundation wall requires permanent and aesthetic attachment to a fence post. Thanks to its simple construction and adjustable mounting holes, installation is quick and does not require specialist tools — standard screws and a spanner are sufficient.
Available colour variants
The C-channel is available in five colour versions (powder coating): graphite, black, green, brown and zinc (without powder coating). The wide colour palette allows matching the connector to the colour of panel fencing and posts.
Files to download:
Technical data
| Accessory Type | C-Channel for Foundation Wall |
| Colour | Brown RAL 8017 |
| C-channel dimension [mm] | 200x55 |
