C-channel connector bracket for foundation 200x55 green
Description

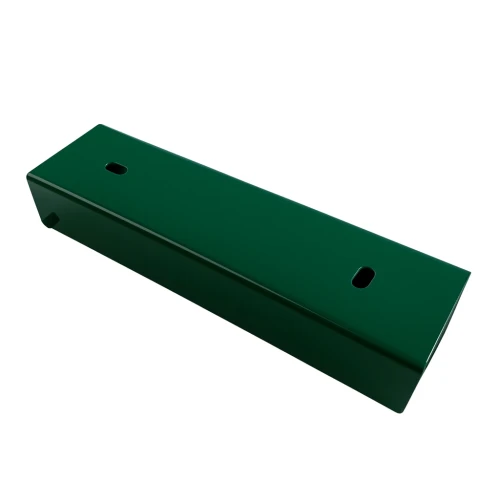

C-channel connector for fence foundation 200×55 mm green RAL 6005
C-channel connector for fence foundation is a robust mounting element designed for permanent connection of concrete foundation slabs to fence posts. It has been designed for foundations with dimensions of 200 × 55 mm, which guarantees precise fit and stable slab installation in all conditions.
The product is manufactured from galvanised steel coated with powder coating in green RAL 6005 colour. Double anti-corrosion protection — galvanising plus powder coating — ensures years of resistance to atmospheric conditions, moisture and corrosion, eliminating the need for maintenance. The aesthetic finish harmoniously complements modern panel fencing.
Construction and installation

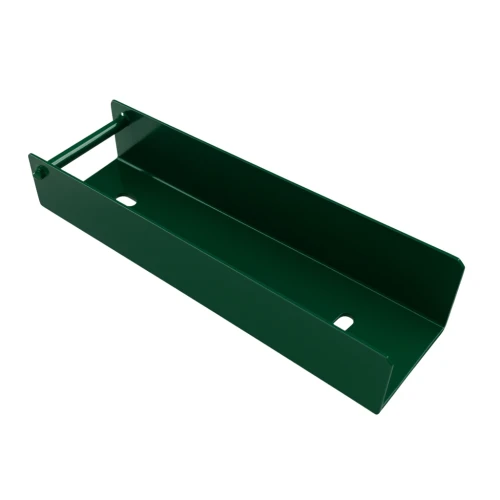

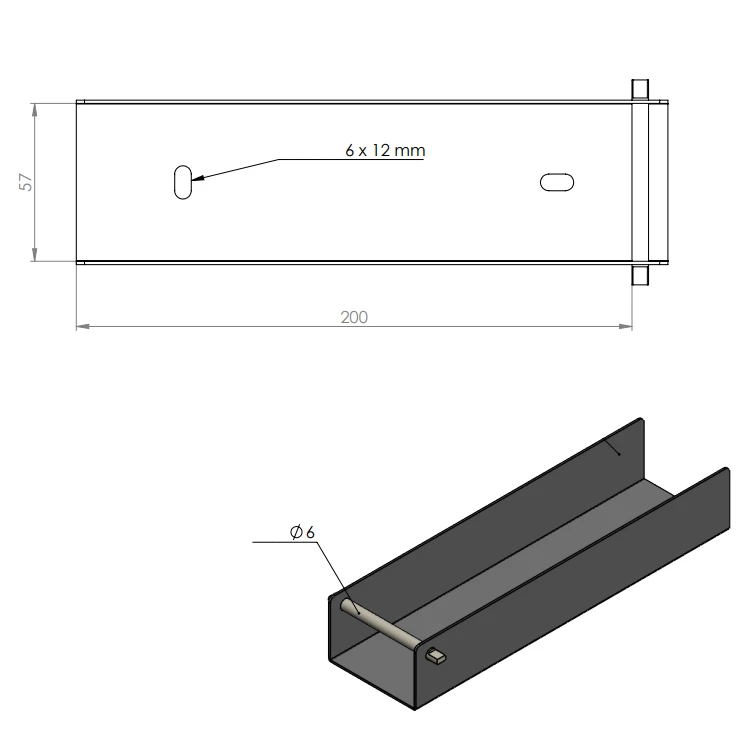

The C-channel has a C-shaped profile (C-channel) in which the concrete foundation slab is seated. The internal width of the profile is 57 mm, which allows for easy and stable placement of a 55 mm thick slab with a small installation clearance. The built-in 6 mm diameter crossbar serves as a lock — preventing the foundation from sliding out of the bracket, increasing the durability and safety of the entire structure.
Two mounting holes in the form of slots 6 × 12 mm enable quick bolting of the C-channel to the fence post. The elongated shape of the holes allows for position adjustment during installation, which significantly speeds up the installation team's work. The flat base of the C-channel protects the foundation from mechanical damage during installation.
Technical parameters
- Application: for foundation with dimensions 200 × 55 mm
- C-channel length: 200 mm
- Internal width: 57 mm
- Sheet thickness: 1.5 mm
- Material: galvanised steel
- Finish: powder coating
- Colour: green RAL 6005
- Mounting holes: 2 pcs. — slots 6 × 12 mm
- Locking bar: Ø 6 mm
- Resistance to corrosion and atmospheric factors: yes
Application
The C-channel is a universal element used in the installation of residential, industrial and allotment fencing. It is ideal wherever a concrete foundation requires permanent and aesthetic attachment to a fence post. Thanks to its simple construction and adjustable mounting holes, installation is quick and requires no specialist tools — standard bolts and a spanner are sufficient.
Available colour variants
The C-channel is available in five colour versions (powder coating): graphite, black, green, brown and galvanised (without powder coating). The wide colour palette allows the connector to be matched to the colour of panel fencing and posts.
Files to download:
Technical data
| Accessory Type | C-Channel for Foundation Wall |
| Colour | Green RAL 6005 |
| C-channel dimension [mm] | 200x55 |
