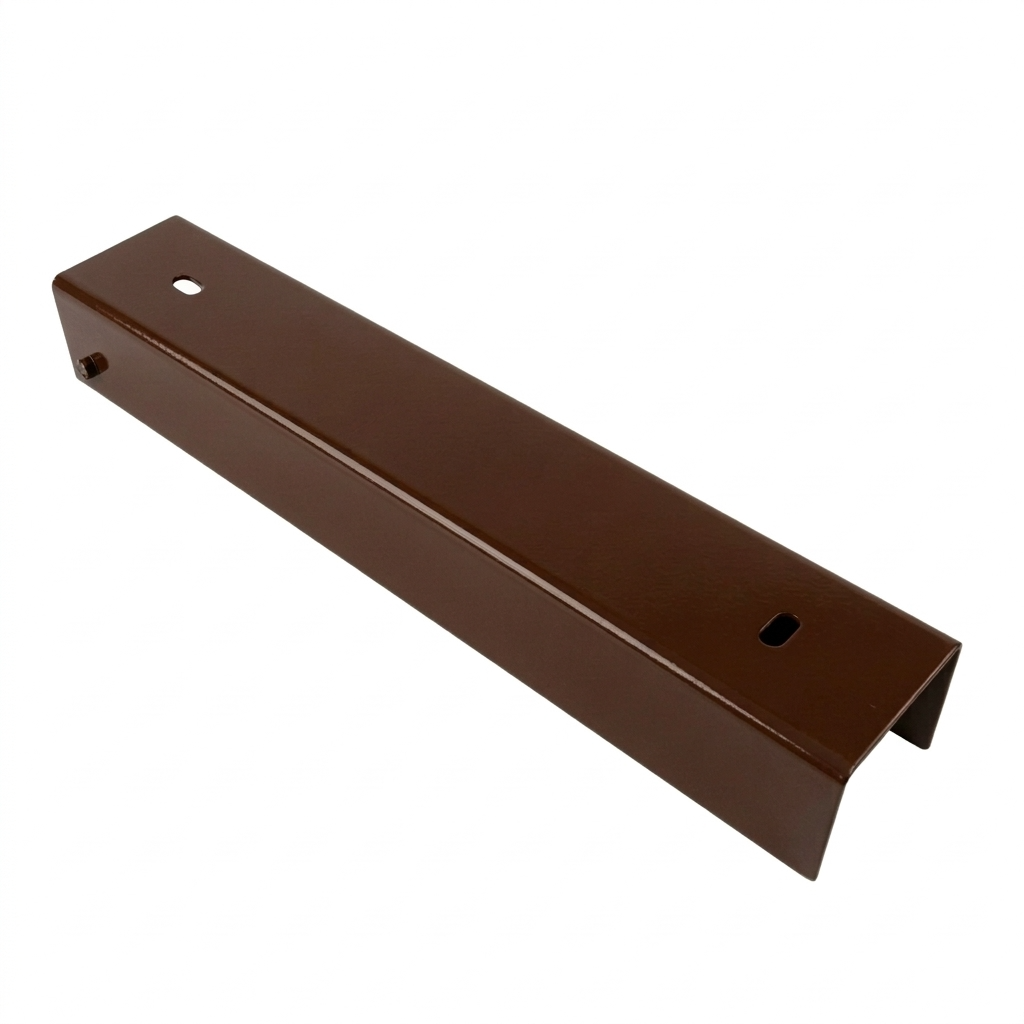

C-channel connector bracket for base wall 300x50 bronze

C-channel connector for fence curb is a durable mounting element designed for permanent connection of concrete curb panels to fence posts. Designed for curbs measuring 300 × 50 mm, it ensures precise fitting and stable installation of the panel regardless of terrain and weather conditions.

The product is manufactured from galvanised steel coated with powder paint in brown RAL 8017 colour. Double anti-corrosion protection — zinc coating plus powder coating — guarantees years of resistance to moisture, precipitation and corrosion, eliminating the need for additional maintenance. The aesthetic, uniform finish harmoniously complements modern panel fencing in the popular brown colour scheme.

Construction and assembly

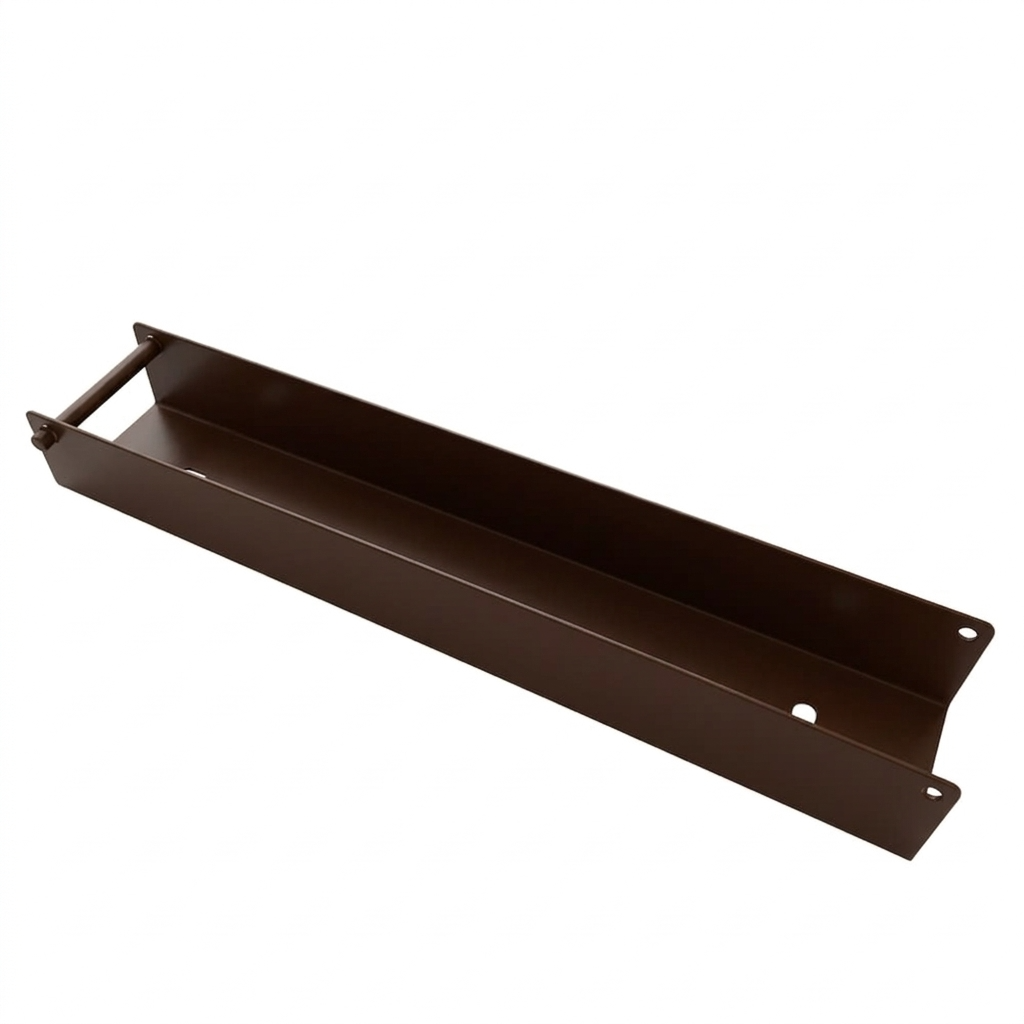

The C-channel has a C-shaped profile in which the concrete curb panel is seated. The external width of the profile is 52 mm, allowing free and stable placement of a 50 mm thick panel with slight assembly clearance that facilitates installation. The built-in Ø 6 mm cross rod acts as a lock — preventing the curb from sliding out of the bracket, increasing the durability and safety of the entire fence structure.

Two mounting holes in the form of slotted holes 6 × 12 mm enable quick screwing of the C-channel to the fence post. The elongated shape of the holes allows position adjustment during assembly, which significantly speeds up the installation team's work and facilitates alignment of the curb line on uneven terrain. The flat base of the C-channel protects the concrete panel from mechanical damage during installation.

Technical parameters

Application

The C-channel is a universal element used in the assembly of residential, industrial and allotment fencing. It works perfectly wherever a 50 mm thick concrete curb requires permanent and aesthetic attachment to the fence post. Thanks to its simple construction and adjustable mounting holes, installation is quick and does not require specialist tools — standard screws and a spanner are sufficient.

Available colour variants

The C-channel is available in five colour versions (powder coating): graphite, black, green, brown and galvanised (without powder coating). The wide colour palette allows matching the connector to the colour of the panel fencing and posts, maintaining consistent aesthetics of the entire fence.
