Bolt-down gate stop 158x138/H50 for swing gates
Leave feedback on the product
Gate stop for swing gates with base 158×138 mm and height 50 mm. Mounted with 4 screws Ø9 mm, hole spacing 130×110 mm, internal clearance 26 mm.
Product code: 000-241
Product features
[PIM] stopery-blokady-odbojniki #116
- Material Steel
- Finish Electrolytic Zinc
Description
Steel Gate Stop for Double Leaf Gates 158×138 mm H50 – Bolt-On

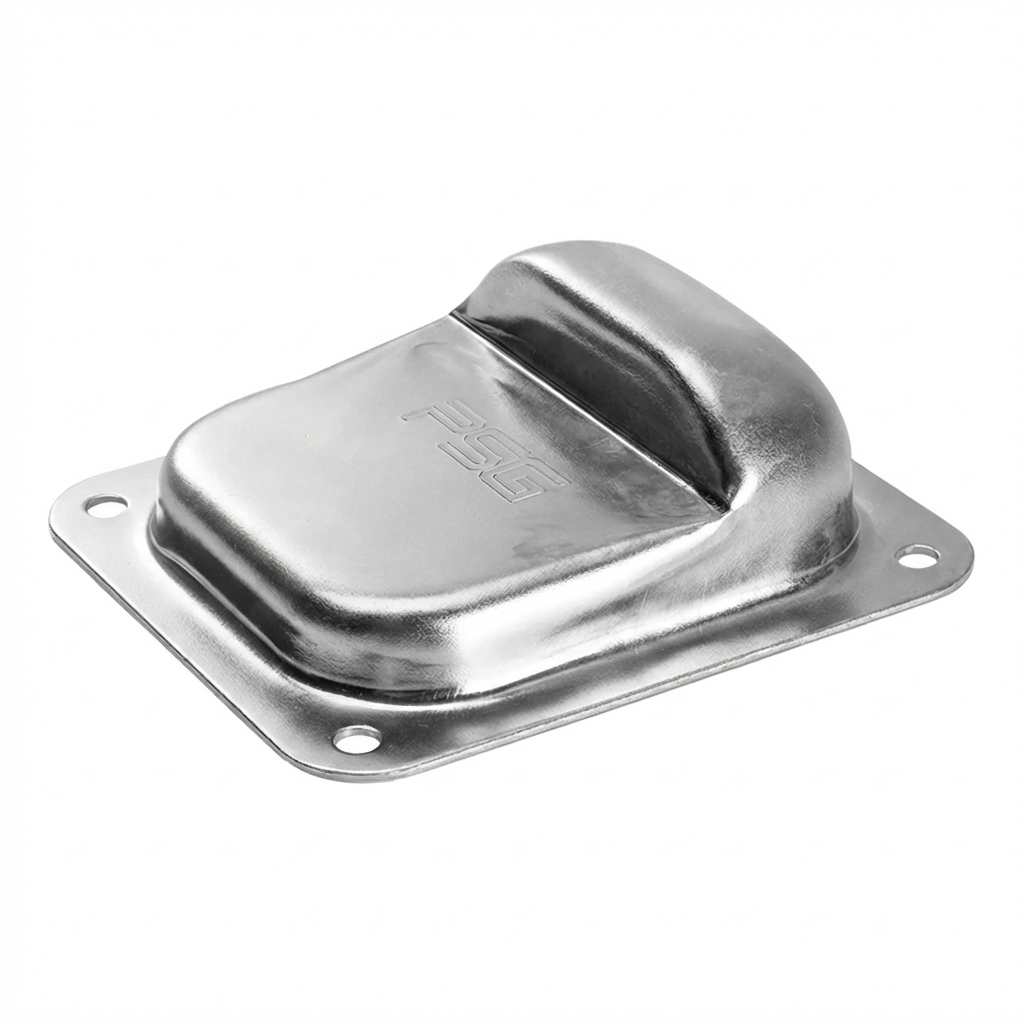

Steel gate stop (limiter) for double leaf gates, designed for installation at the meeting point of gate leaves. The robust, pressed construction with four mounting holes ensures quick and secure bolting to the surface — no welding or additional accessories required.
The gate stop effectively absorbs the impact of gate leaves, protecting both the gate structure and drive components from mechanical damage. The profile with a height of 50 mm and an internal clearance of 26 mm is ideally suited to popular closing profiles for double leaf gates. The compact base dimensions (158 × 138 mm) allow installation even in limited space between the leaves.

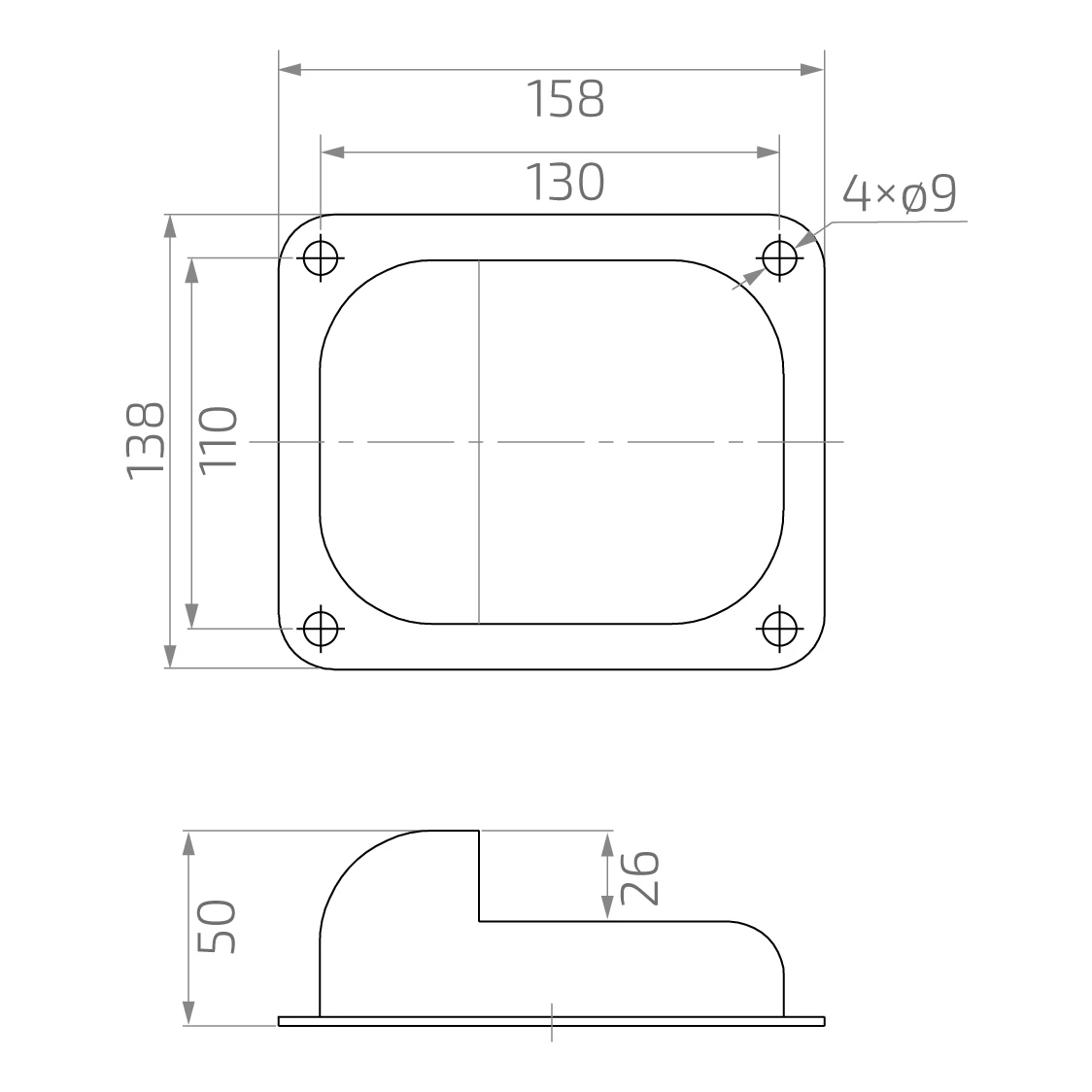

Dimensions and Mounting Parameters
- Base dimensions: 158 × 138 mm
- Mounting hole spacing: 130 × 110 mm
- Mounting hole diameter: Ø 9 mm (4 pcs.)
- Overall height: 50 mm
- Internal clearance: 26 mm
- Material: steel
- Weight: 0.46 kg
Installation simply involves bolting the gate stop with four screws (Ø 9 mm) directly to the surface — such as concrete, block paving or a steel base plate. The symmetrical hole arrangement with a spacing of 130 × 110 mm ensures even load distribution and stable fixing even under intensive gate use.
The gate stop is suitable for both industrial gate installations and residential driveway gates — wherever a durable and reliable leaf travel limiter is required.
