Bent handrail connector glue-in fi 12 mm – stainless steel AISI 304 satin
0
Description

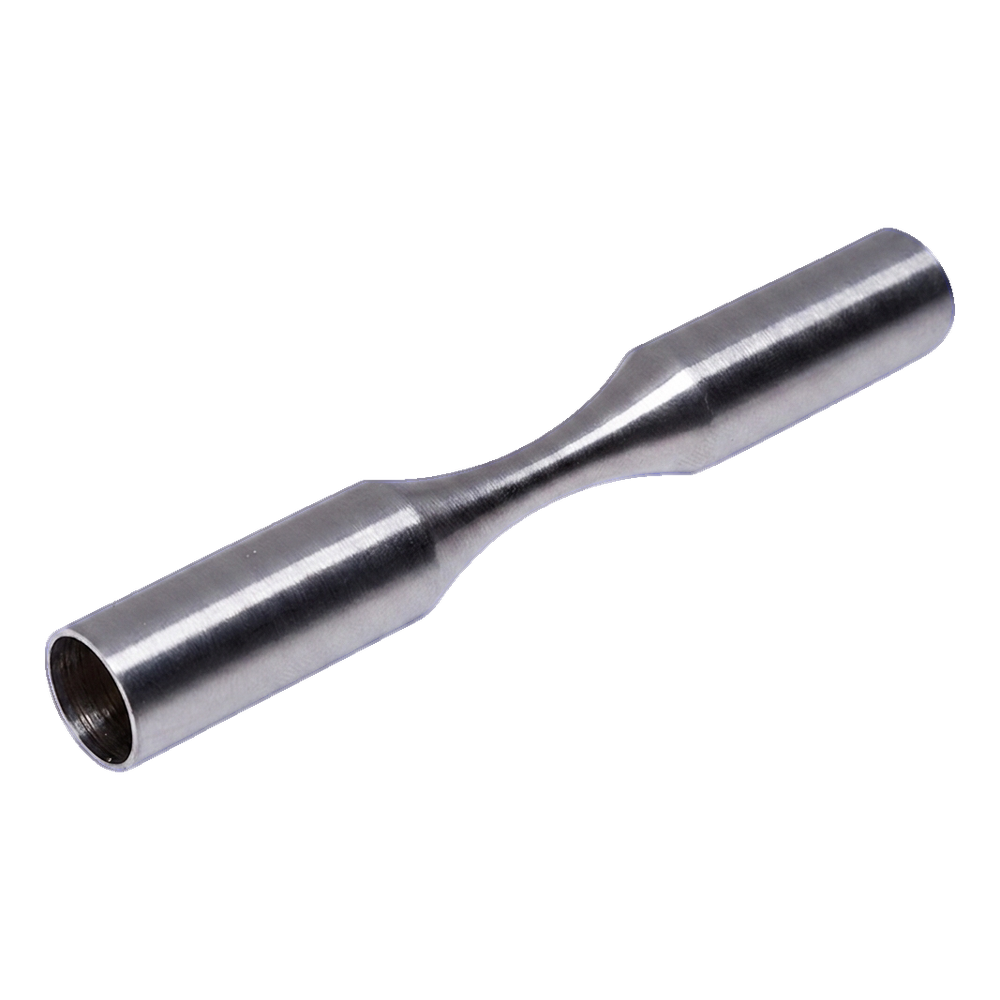

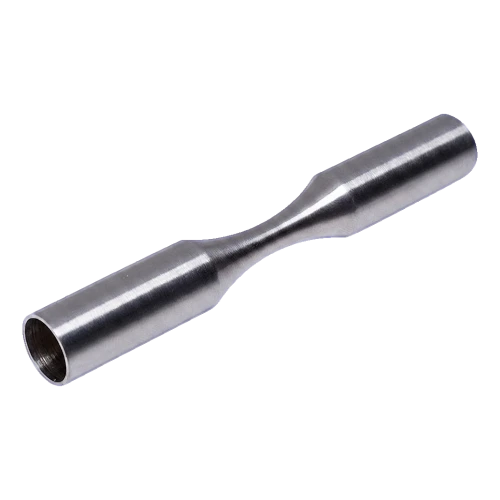

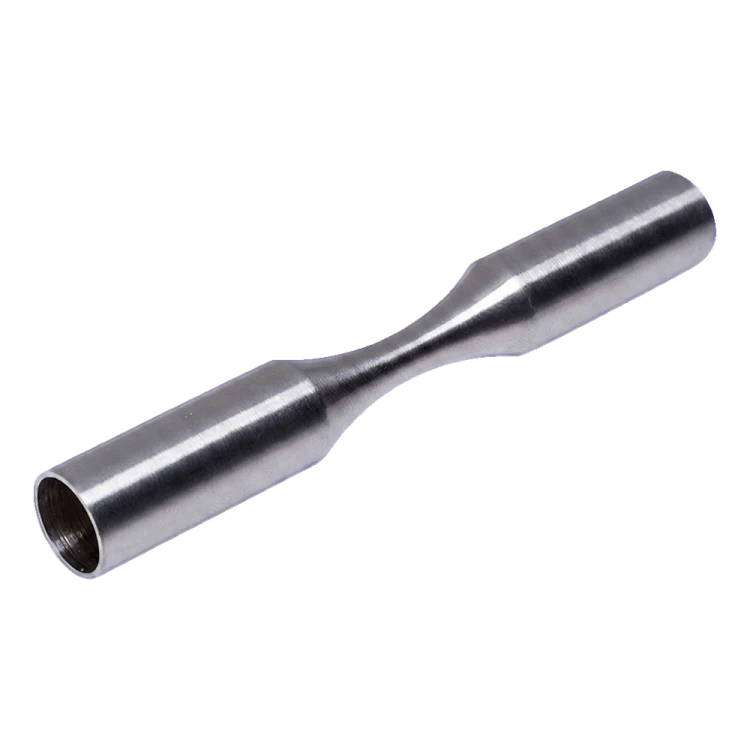

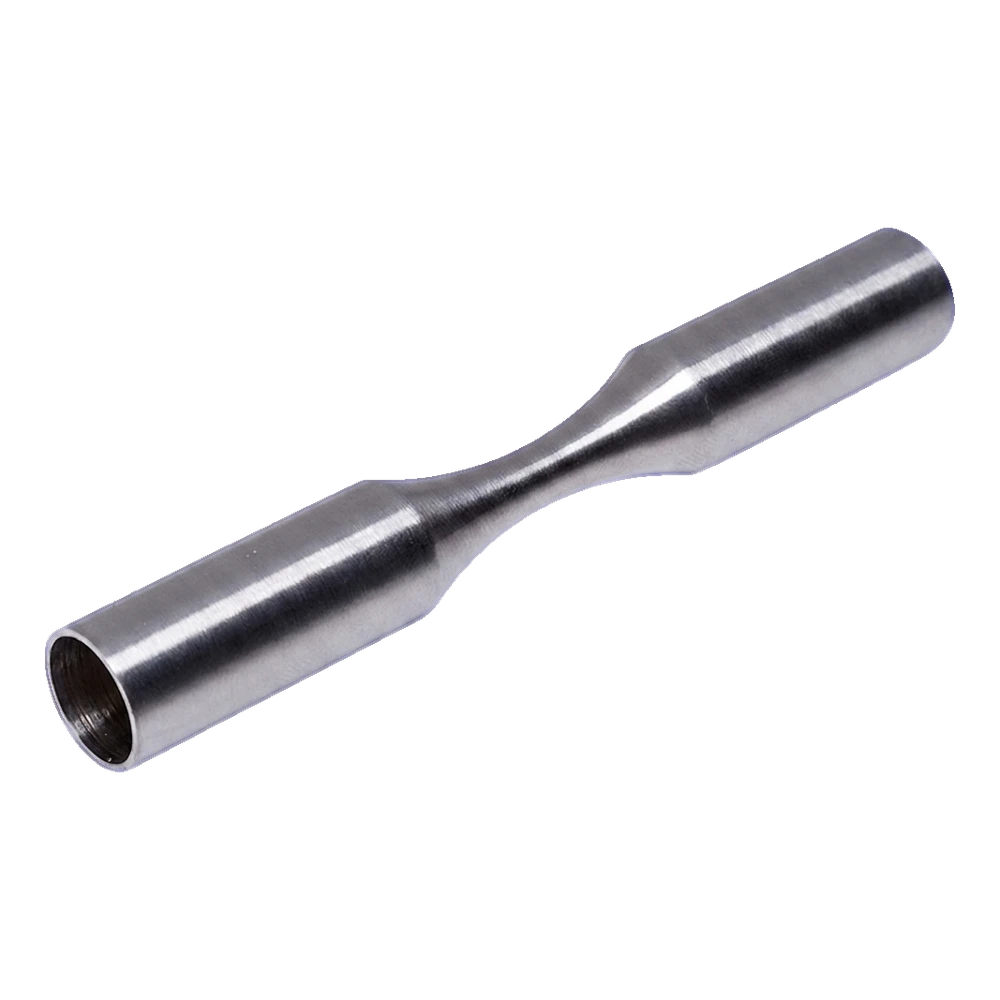

Bent handrail connector glue-in fi 12 mm – stainless steel AISI 304 satin
Universal handrail connector for tube and rod fi 12 mm, designed for mounting interior balustrades with complex routes and shapes. Made of high-quality stainless steel AISI 304 in satin finish — combines structural function with decorative purpose, forming an aesthetic finishing element for any balustrade.
Connector mounted by gluing method — using anaerobic adhesive, which bonds under contact with metal and hardens after cutting off the air supply. This provides a permanent, invisible connection without the need for welding. The characteristic narrowing in the central section gives the element an elegant, rounded shape and ensures visual lightness of the structure.

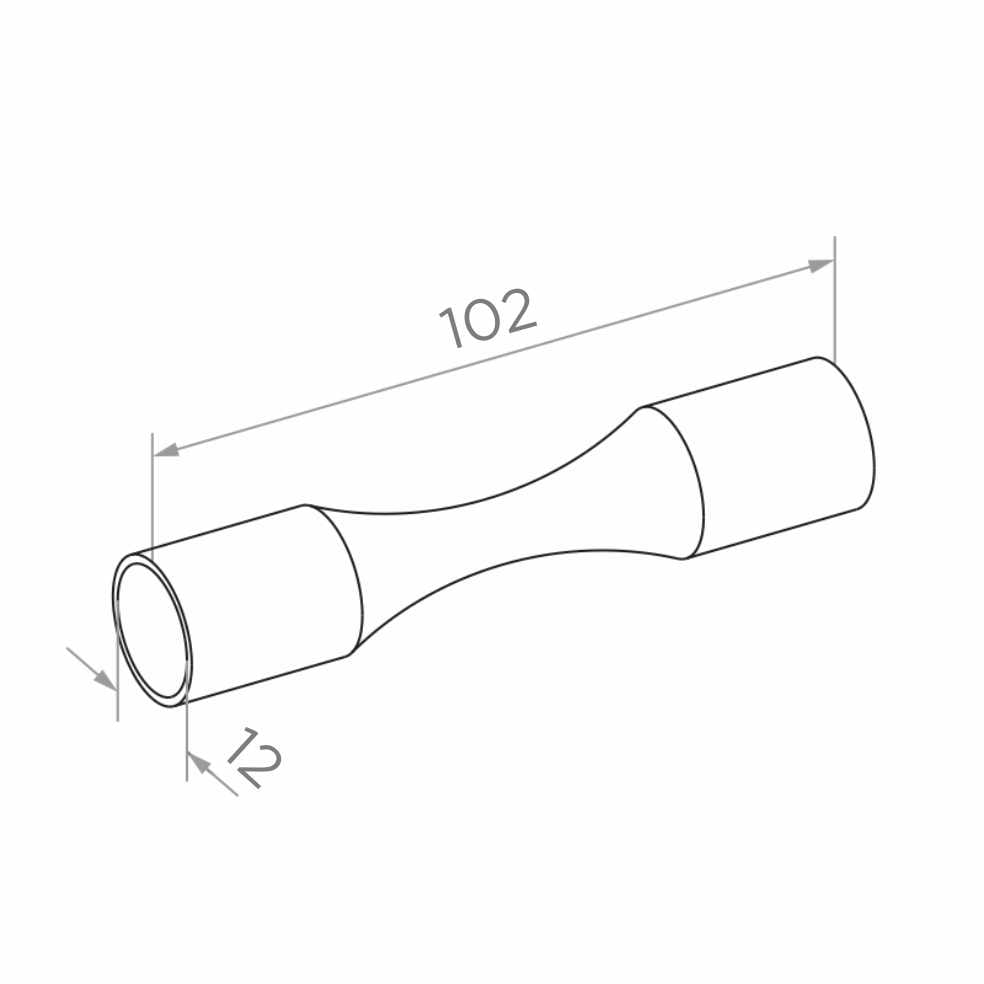

Technical parameters
- Tube/rod diameter: fi 12 mm
- Total length: 102 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Mounting type: glue-in (anaerobic adhesive)
- Application: universal — tube and rod
- Weight: 0.05 kg
- EAN: 5901289673334
Application and mounting
The connector is an ideal solution wherever the balustrade route requires smooth changes of direction — both vertically and horizontally. Universal construction allows use with tubes and rods with diameter 12 mm, providing great flexibility when designing balustrades with non-standard shapes. Satin finish ensures visual consistency with other stainless steel elements and works perfectly in modern interior arrangements.
Technical data
| Material | AISI 304 |
| Finish | Satin |
