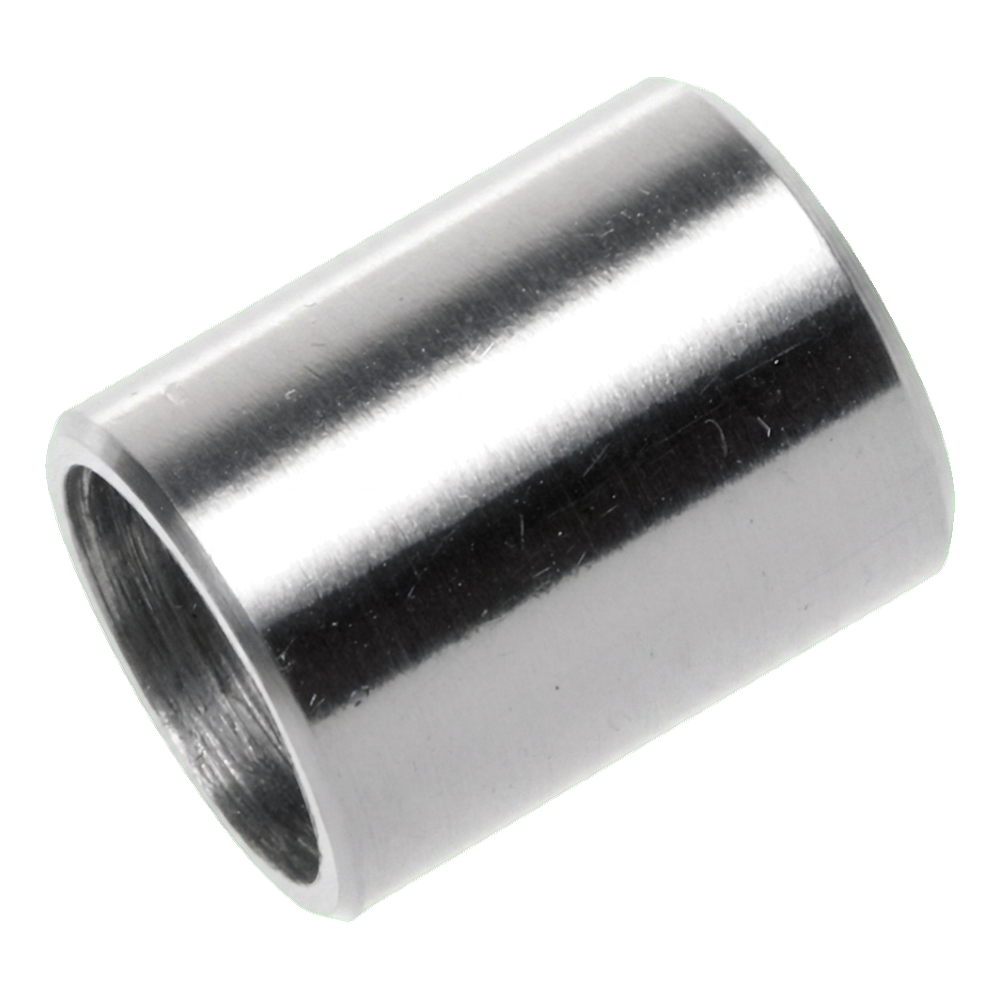

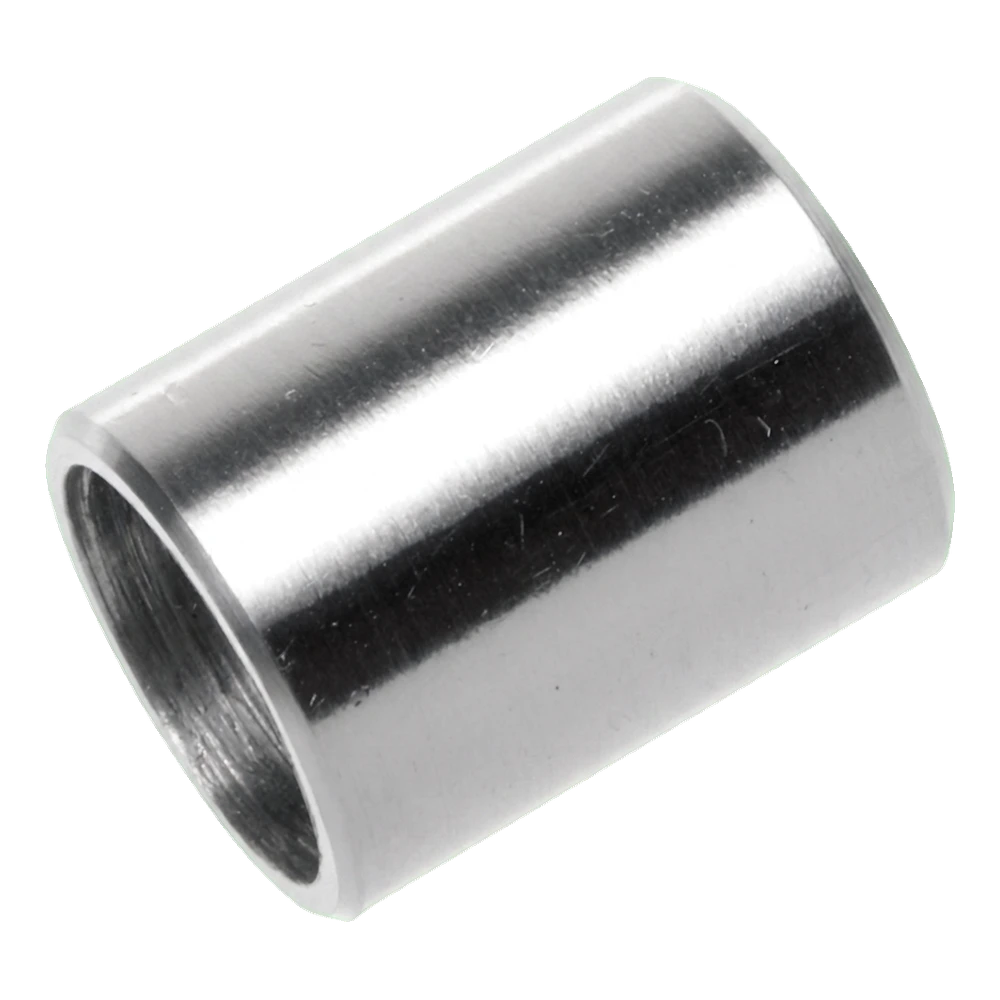

Balustrade rod end cap fi 10 mm – AISI 304 stainless steel satin
Description
Balustrade rod end cap fi 10 mm – AISI 304 stainless steel satin
Universal rod end cap fi 10 mm made of AISI 304 stainless steel with satin finish — an aesthetic detail that gives the balustrade a professional, complete appearance. The sleeve is designed to be bonded onto the end of a rod or tube with a diameter of 10 mm, ensuring a durable and clean handrail finish without visible mechanical connections.
The element has the form of a small cylindrical sleeve, which is fitted and bonded onto the rod end. Thanks to its compact dimensions (Ø12 × 15 mm) the end cap does not visually dominate the balustrade construction, whilst effectively protecting the open edge of the tube from moisture and mechanical damage. For installation, the manufacturer recommends using anaerobic adhesive, which bonds upon contact with metal and hardens when oxygen supply is cut off — this guarantees a permanent, invisible connection.

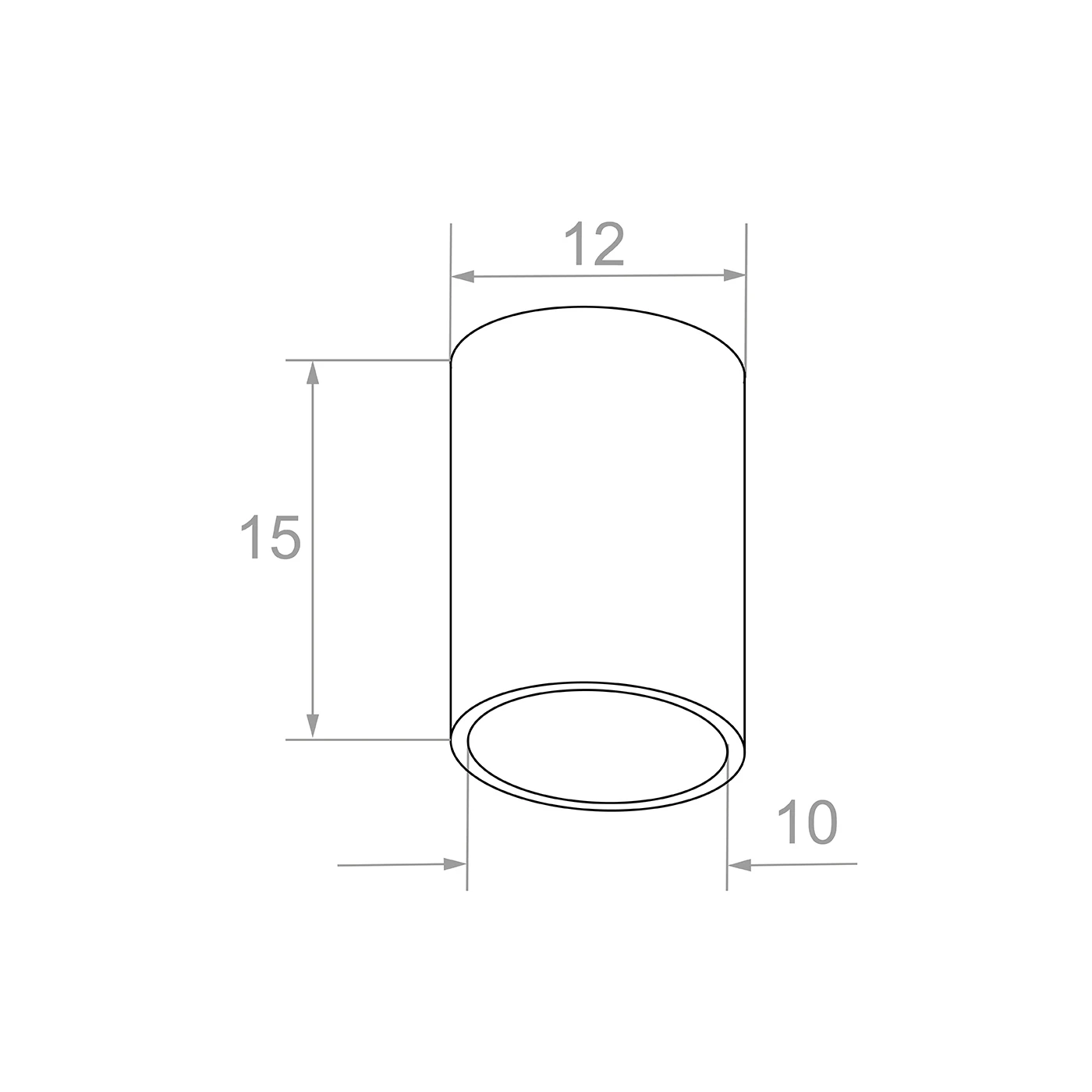

Dimensions and technical parameters
- Internal diameter (hole): 10 mm
- External diameter: 12 mm
- Height (H): 15 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.014 kg
- Volume: 2.16 cm³
- Installation: bonded (anaerobic adhesive)
- Application: universal — balustrade rod/tube end cap
- EAN: 5901289672634
Application and benefits for the installer
The rod end cap is a finishing detail essential when constructing stainless steel balustrades. The satin surface harmoniously complements typical balustrade systems, ensuring a uniform, cohesive appearance of the entire construction. Low weight and compact dimensions facilitate storage — the element takes up minimal space in the installation kit. AISI 304 steel guarantees high corrosion resistance, making the end cap suitable for both internal applications and external building use.
Technical data
| Material | AISI 304 |
