Balustrade rod end cap Ø 12 mm – stainless steel AISI 316 satin
0
Description

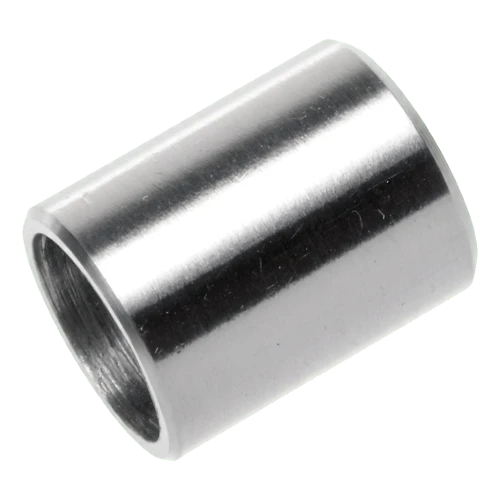

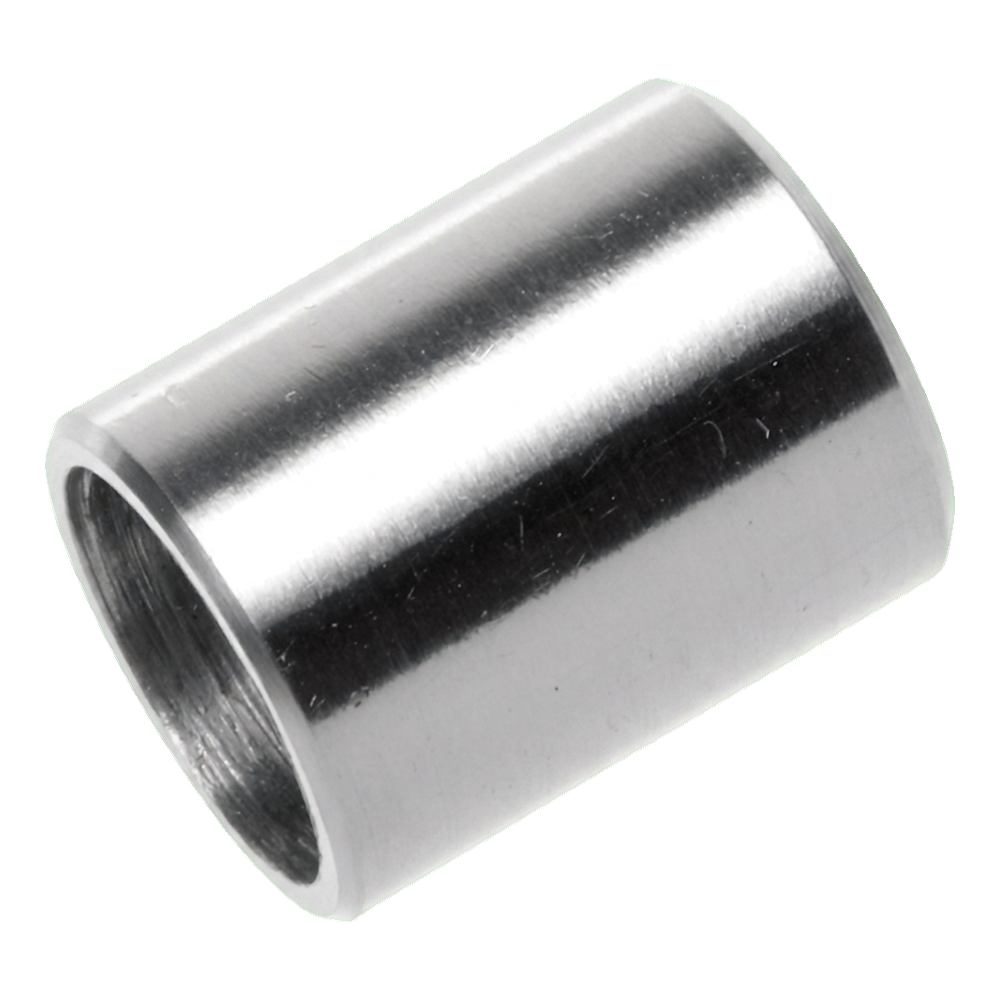

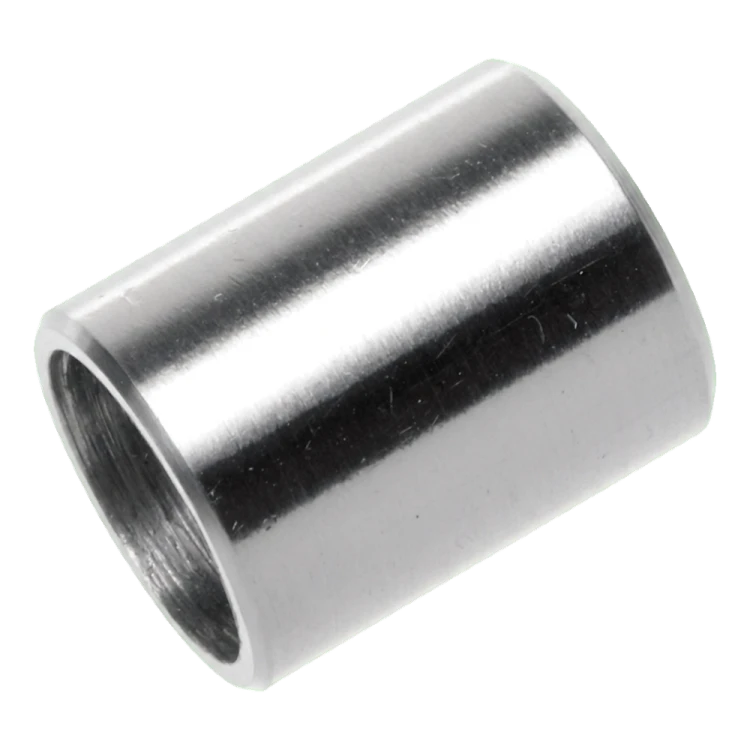

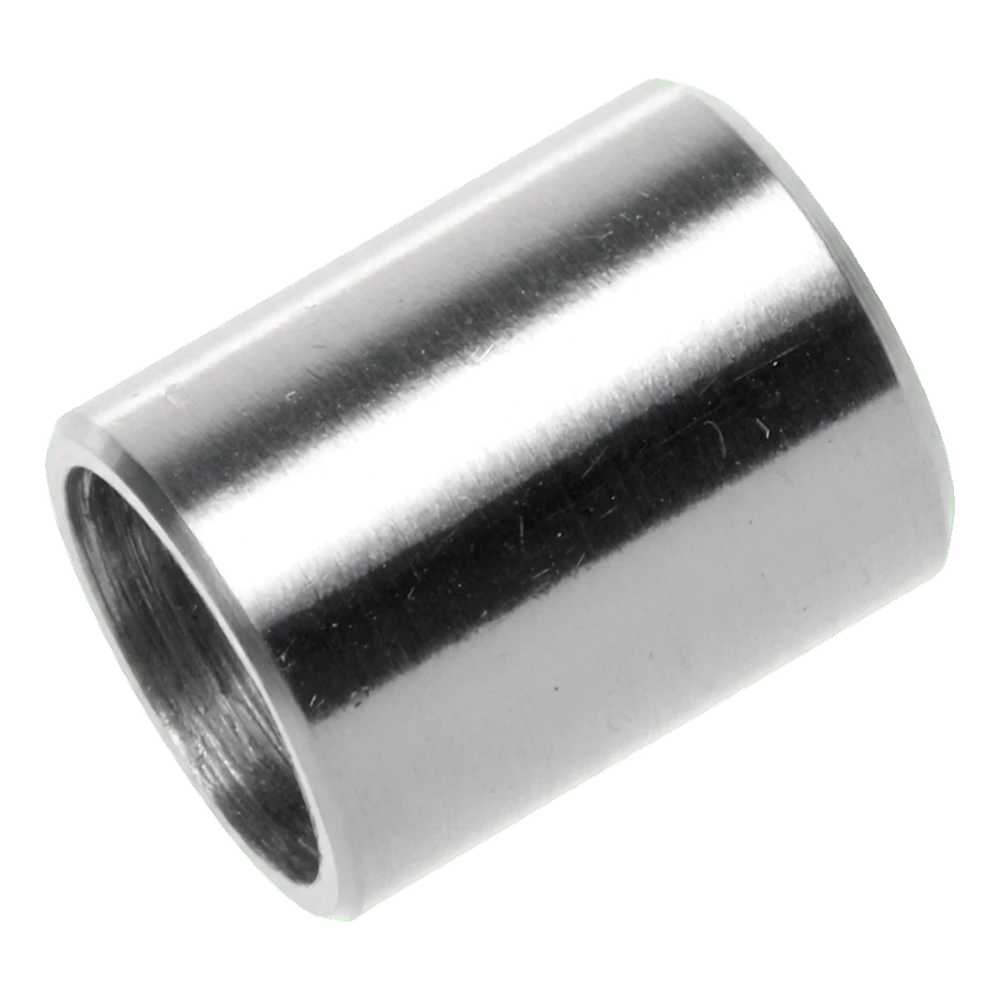

Balustrade rod end cap Ø 12 mm – stainless steel AISI 316 satin
Rod end cap Ø 12 mm is a universal finishing element designed for mounting at the ends of balustrade rods and tubes with a diameter of 12 mm. It serves a dual function — aesthetic-decorative and protective, securing open ends of handrails from sharp edges and giving the balustrade an elegant, complete appearance.
Element made from stainless steel AISI 316 — a grade with enhanced corrosion resistance, designed for both indoor and outdoor applications. Satin finish provides a matt, modern appearance resistant to visible fingerprints and minor scratches. For installation companies, this means durable and aesthetic implementations without complaints.

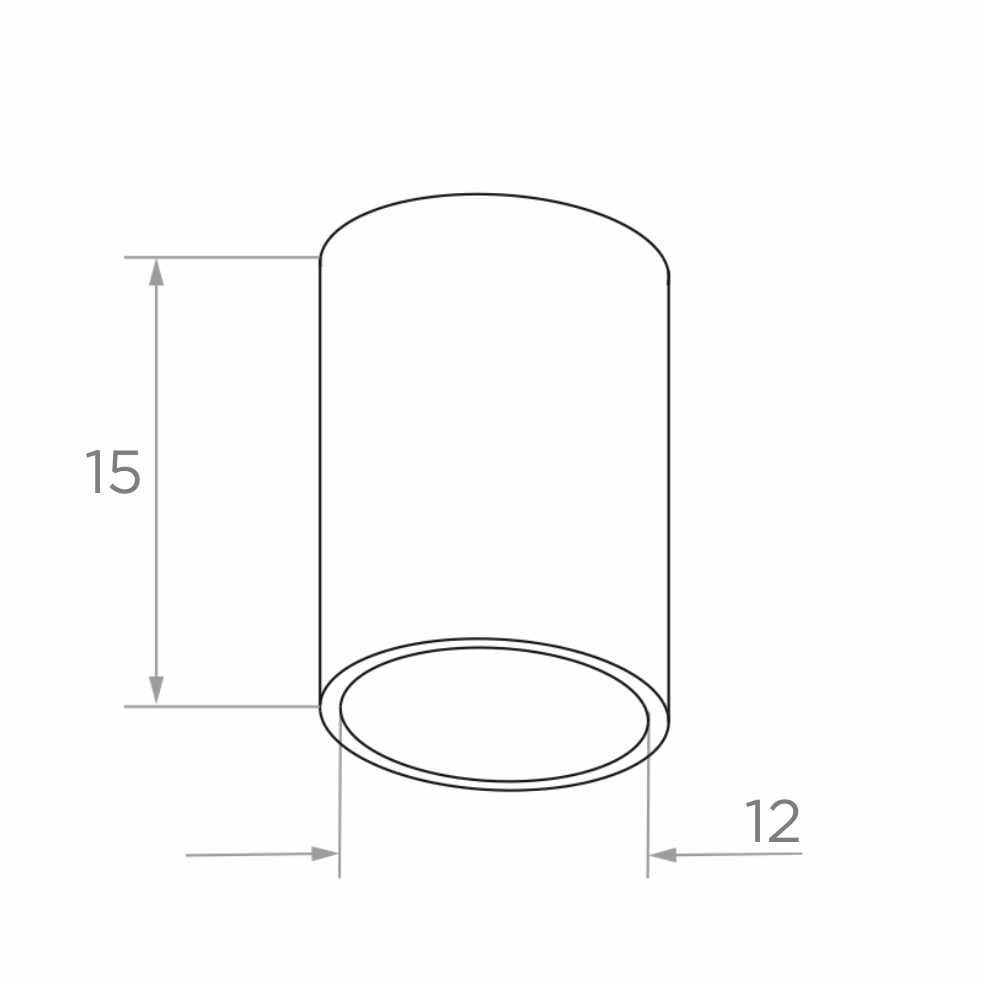

Dimensions and technical data
- External diameter (Ø): 12 mm
- Height (H): 15 mm
- Material: stainless steel AISI 316
- Surface finish: satin
- Type: universal (fits rod and tube Ø 12 mm)
- Weight: 0.014 kg
- Volume: 2.94 cm³
- EAN: 5901289672665
Application
The end cap is designed for mounting at the ends of handrails and balustrade infills with diameter Ø 12 mm. Universal construction enables application on both solid rods and tubes. Compact dimensions (12 × 15 mm) ensure the element discretely integrates into the balustrade structure, maintaining an elegant and cohesive appearance of the entire installation.
Technical data
| Material | AISI 316 |
