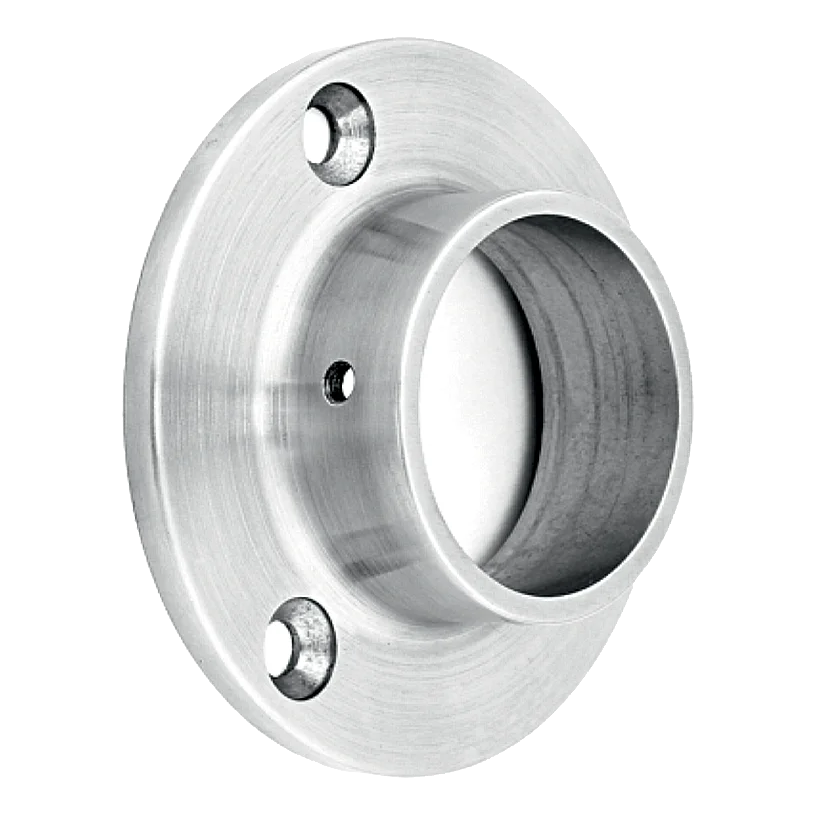

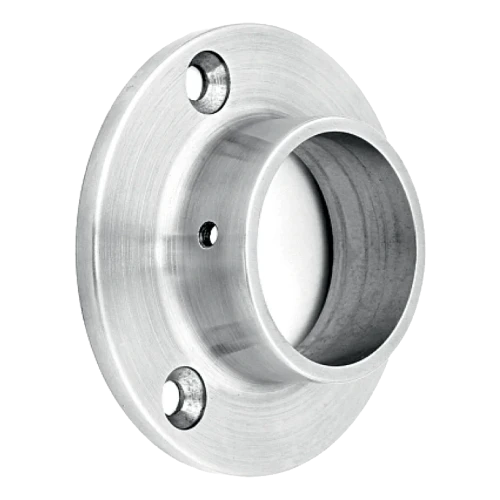

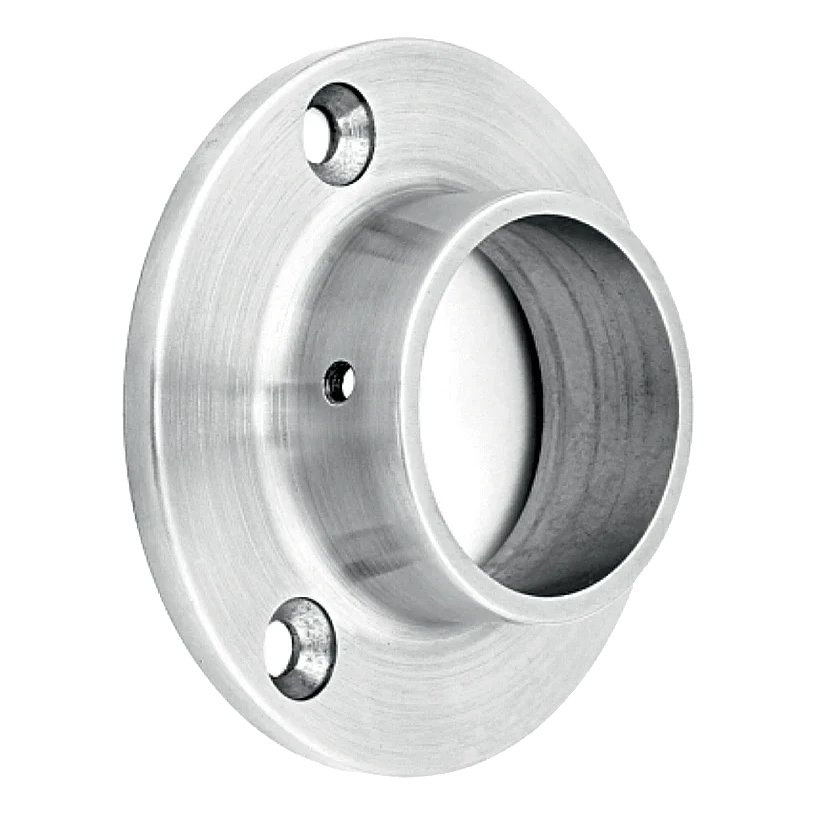

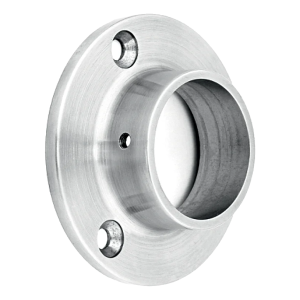

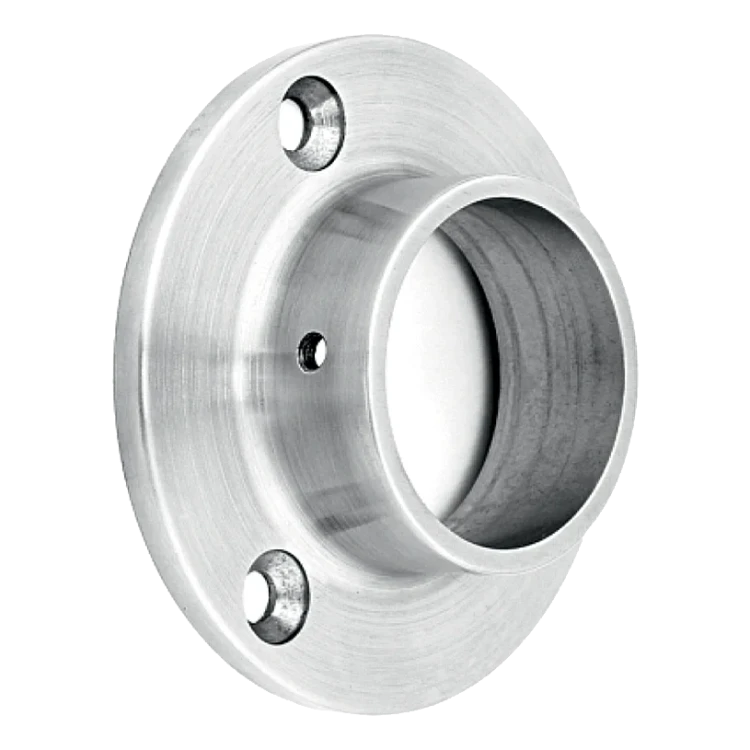

Balustrade mounting collar for 42.4 mm tube – AISI 304 stainless steel polished
Leave feedback on the product
Balustrade mounting collar made of AISI 304 stainless steel, polished finish. External diameter 50 mm, socket 42.4 mm, length 25 mm. M8 thread, weight 0.147 kg. For axial mounting of handrails for balcony and staircase balustrades.
Product code: 001-172
Product features
[PIM] kolnierze-mocowania-osiowe #160
- Material AISI 304
- Finish High Gloss
- Mounting System 42.4 mm
Description
Balustrade mounting collar for 42.4 mm tube – AISI 304 stainless steel polished
Mounting collar (axial fixing) designed for tubes with 42.4 mm diameter — a universal element for balcony, terrace and staircase balustrade systems. Made of AISI 304 stainless steel with polished finish, it combines high corrosion resistance with an elegant appearance that requires no additional surface treatment.
The collar is used for mounting balustrade handrails to the wall using M8 thread. The axial mounting method ensures a stable and aesthetic connection of the tube to the substrate. Three mounting holes in the collar allow secure fastening of the element, and the side hole for the grub screw enables additional stabilisation of the tube in the socket.

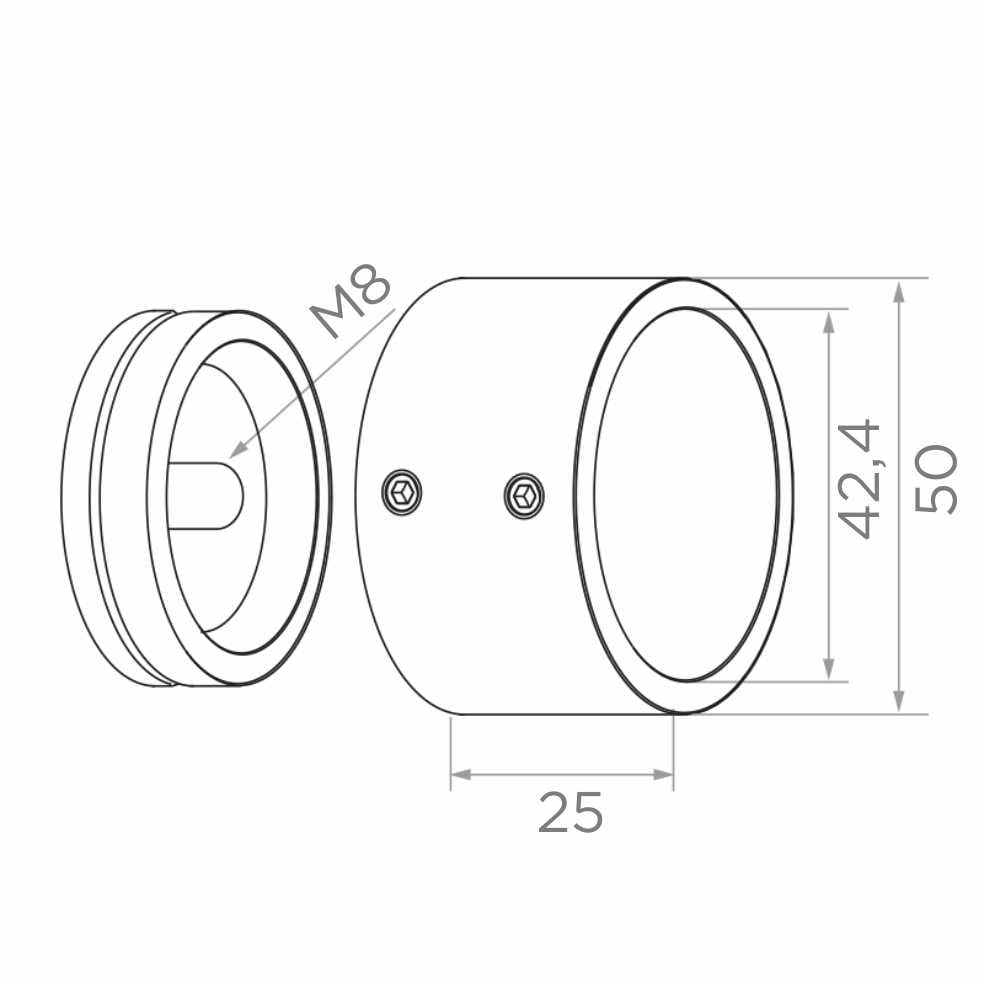

Dimensions and technical data
- External collar diameter: 50 mm
- Socket diameter (for tube): 42.4 mm
- Insertion depth (length): 25 mm
- Mounting hole: 8 × 16 mm
- Axial mounting thread: M8
- Material: AISI 304 stainless steel
- Surface finish: polished
- System: 42.4
- Weight: 0.147 kg
- EAN: 5901289673686
Application
Element designed for professional stainless steel balustrade systems. Ideally suited for mounting handrails on balconies, terraces and staircases. The polished finish ensures visual consistency with other components of the 42.4 mm system, eliminating the need to match shades and finish treatments on site.
