Balustrade handrail support rod ø 14×75 mm AISI 304 – M8 thread, satin
0
Description

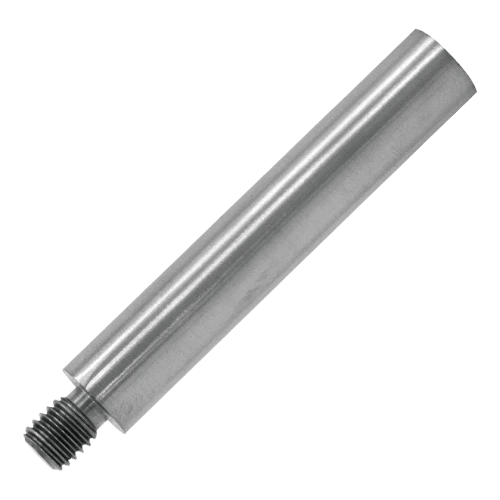

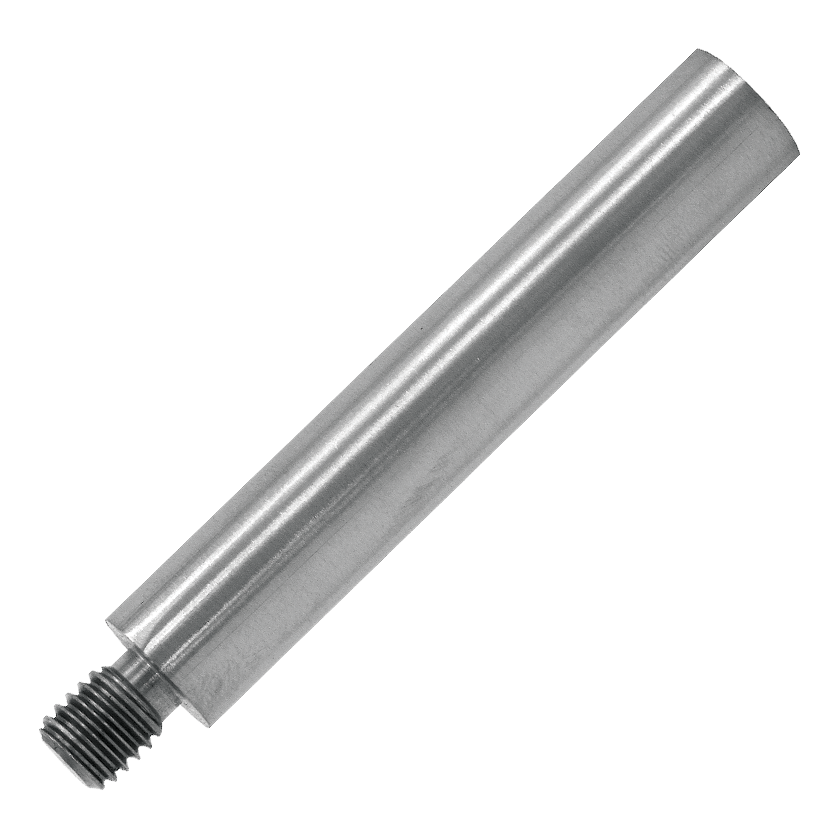

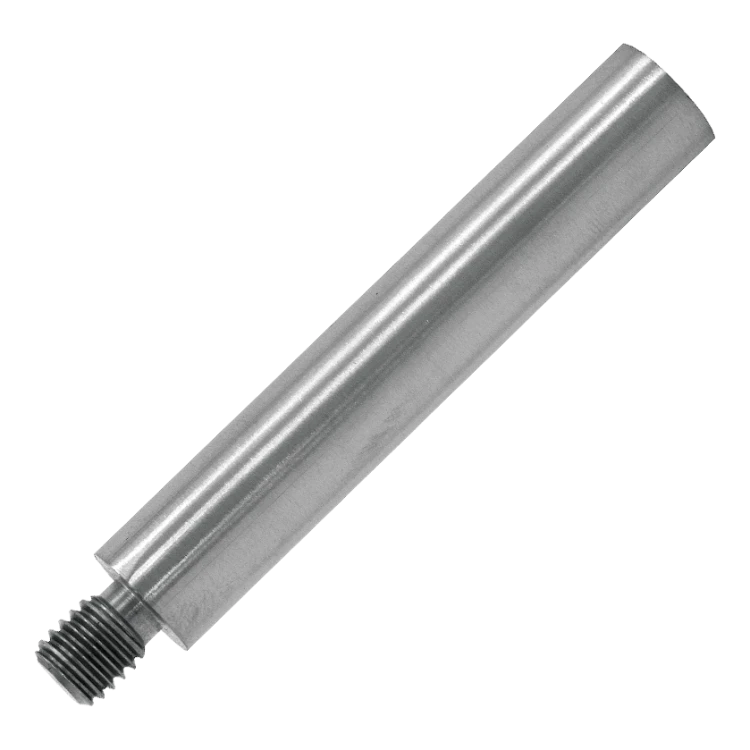

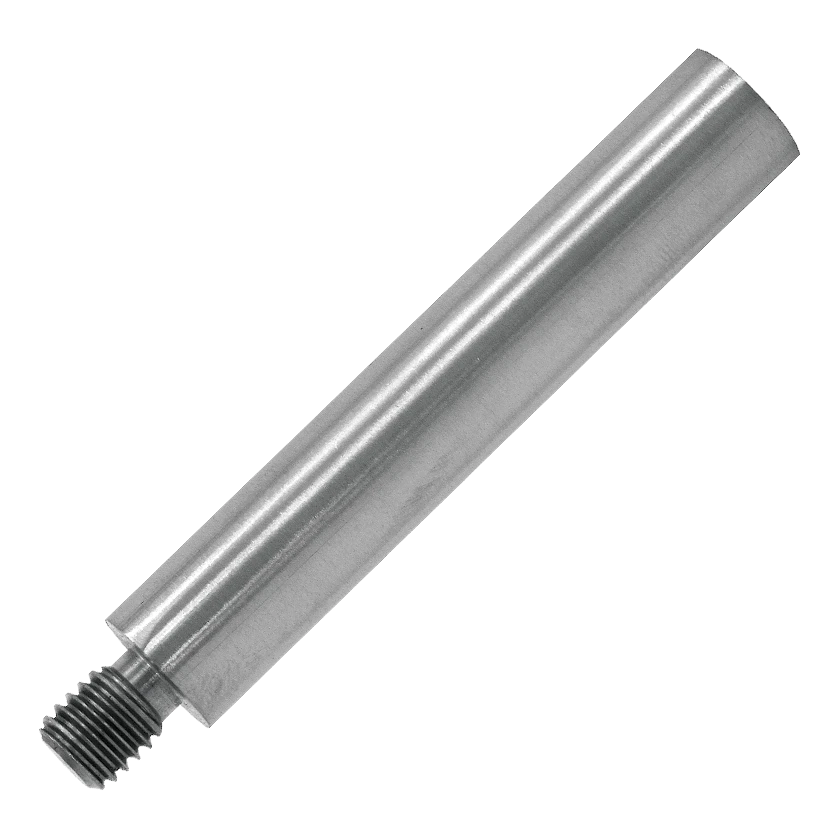

Balustrade handrail support rod ø 14×75 mm AISI 304 – M8 thread, satin
Handrail support rod ø 14×75 mm is a structural element for steel balustrades designed for welding. Made of AISI 304 stainless steel with satin finish, it provides durable and aesthetic handrail mounting on balustrade posts. External M8 thread enables secure connection with handrail bracket, and compact dimensions make the element universal and suitable for most popular balustrade systems.
AISI 304 stainless steel guarantees high corrosion resistance and easy maintenance – key features for stair, balcony and terrace balustrades exposed to variable weather conditions. Satin surface finish gives the element a modern, understated appearance, consistent with the most popular stainless steel balustrade systems.

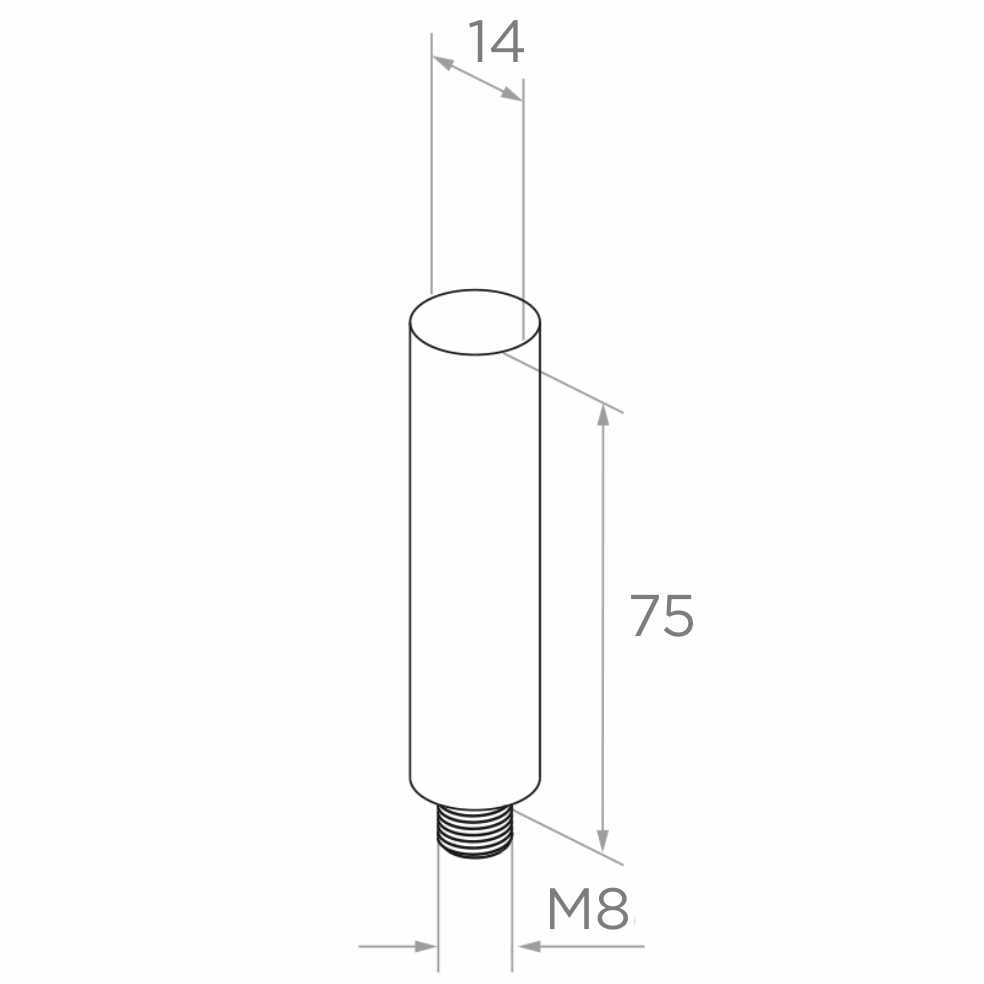

Technical parameters
- Rod diameter: ø 14 mm
- Length: 75 mm
- External thread: M8
- Material: AISI 304 stainless steel
- Surface finish: satin
- Installation: for welding
- Weight: 0.09 kg
- Type: universal
- EAN: 5901289672269
Application
The handrail support rod is a key structural element affecting the stability and durability of the handrail balustrade. Used in stair, balcony and terrace balustrades – wherever reliable, welded connection of handrail to post is required. Universal design allows application in various balustrade system configurations, which reduces the number of variants needed in installation company warehouse.
Technical data
| Material | AISI 304 |
| Finish | Satin |
