Axial handrail mounting bracket Ø 42.4 mm to wall – AISI 304 stainless steel satin
0
Description

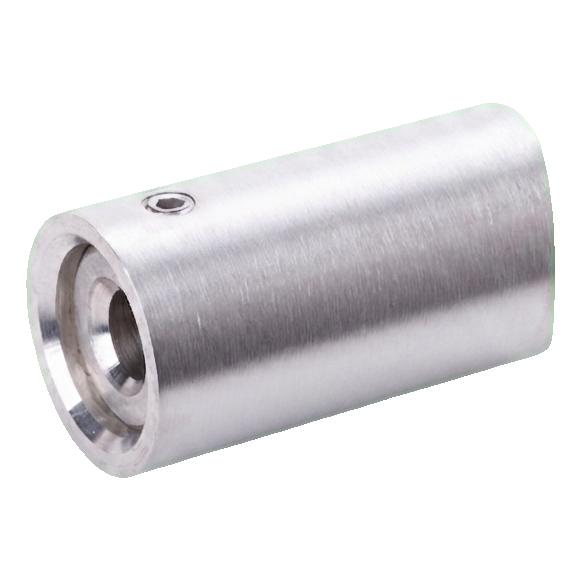

Axial handrail mounting bracket Ø 42.4 mm to wall – AISI 304 stainless steel satin
Axial bracket for Ø 25 mm rod designed for mounting handholds with diameter Ø 42.4 mm. Component designed with professional stainless steel balustrade and handrail constructions in mind — provides rigid, axial connection of the handhold to the wall. Thanks to its compact construction and satin finish, the bracket discretely complements balustrade systems whilst maintaining a consistent, elegant appearance of the entire construction.
Installation is carried out using the wall-mounted fixing method, which guarantees secure and permanent handhold positioning. The bracket represents one of the key components when building complete handrail and balustrade systems — works perfectly with tubes and connectors from the Ø 42.4 mm system.
Technical specification
- Application: for tube Ø 42.4 mm
- Rod diameter: Ø 25 mm
- Body dimensions: Ø 25 × 43 mm
- Mounting method: wall-mounted fixing
- Material: AISI 304 stainless steel
- Finish: satin
- Weight: 0.112 kg
- System: 42.4 mm
Material and durability
The bracket is manufactured entirely from AISI 304 stainless steel — a grade with high corrosion resistance, intended for internal and external applications. The satin finish gives the component an aesthetic, matt lustre that resists fingerprints and is easy to keep clean. This is a proven solution in public buildings, office buildings, hotels and residential homes.
Application
The axial mounting bracket represents an essential component when creating professional balustrade and handrail constructions. It is used wherever a handhold with diameter Ø 42.4 mm requires secure, axial fixing to the wall — on staircases, at ramps, on terraces and balconies. Compatible with other components from the Ø 42.4 mm system, which allows for the construction of complete, visually consistent installations.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
