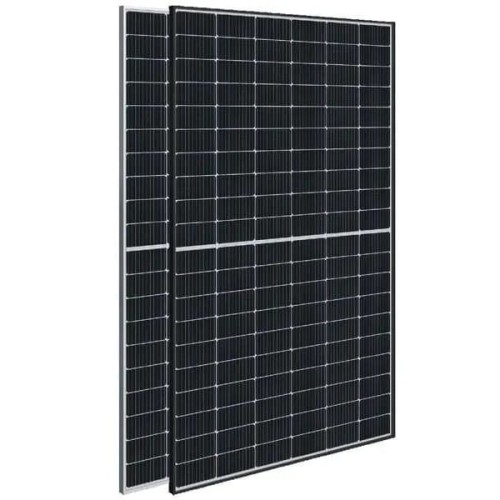

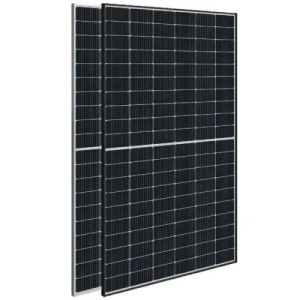

Astronergy Panel N T480Wp – 480Wp monocrystalline PV module

Go to Product feedback

480Wp monocrystalline photovoltaic module ASTRO N5, black frame, CHSM60N(DG)(BF)/F-HC ASTRONERGY

Go to full description
with VAT without VAT
Price €99.48
incl. 23% VAT
Availability:
Temporarily unavailable
Unavailable

Description

Astronergy Panel N T480Wp

480Wp monocrystalline photovoltaic module ASTRO N5, black frame, CHSM60N(DG)(BF)/F-HC ASTRONERGY

The 480Wp monocrystalline photovoltaic module ASTRO N5 with black frame, CHSM60N(DG)(BF)/F-HC ASTRONERGY, uses the photovoltaic effect to convert solar energy into electricity. It consists of many cells made of semiconductors such as silicon or its derivatives. When sunlight falls on them, photons excite the electrons in the cells, causing an electric current to flow.

These panels are mainly used to generate electricity in solar installations that can supply homes, commercial buildings and power grids. They are environmentally friendly because they emit no harmful greenhouse gases or other pollutants, which makes them an increasingly popular source of renewable energy.

Key features of the series:

  • TOPCon / Half-cut
  • Low temperature coefficient (Pmpp)
  • Non-destructive cutting
  • PID resistance
FAQ

I want to choose panels for your carports. How do I do that?

Each carport we sell has a dedicated panel set that exactly matches the carport roof area. You will find them in the Panels category or among the related products of each carport.

Why is transporting a single panel so expensive?

Because shipping even a single panel requires preparing a special pallet to protect it during transport.

I want to buy 12 panels. How do I do that?

The cheapest option in this case is to choose a pack of 10 and add it to the basket, then choose 2 single panels and add them to the basket as well. You will then have 12 panels in the basket at the best possible price.

TECHNICAL DATA

Our modelsN T480Wp
 Technical data
Dimensions1908 x 1134 x 30 mm
Cell typeN-type monocrystalline
Number of cells120 (6x20)
FrameAluminium, black anodised
Glass1.6 + 1.6 mm
Cable length(+) 350 mm, (-) 250 mm
Cable cross-section4 mm² / 12 AWG
Maximum mechanical load5400 Pa front / 2400 Pa rear
Connector typeHCB40 (standard) / MC4-EVO2A (optional)
Module weight23 kg
Number of diodes3
Junction boxIP68 PROTECTION
 Electrical characteristics (STC)
Rated power (Pmpp / Wp)480 W
Rated voltage (Vmpp / V)36.52 V
Rated current (Impp / A)13.14 A
Open-circuit voltage (Voc / V)43.46 V
Short-circuit current (Isc / A)13.91 A
Module efficiency22,2%
 Electrical characteristics (NMOT)
Rated power (Pmpp / Wp)361 W
Rated voltage (Vmpp / V)34.37 V
Rated current (Impp / A)10.50 A
Open-circuit voltage (Voc / V)41.28 V
Short-circuit current (Isc / A)11.23 A
Maximum system voltage1500 V DC
Fuse rating25 A
 Temperature coefficients (STC)
Temperature coefficient (Pmpp)-0.29%/°C
Temperature coefficient (Isc)0.043%/°C
Temperature coefficient (Voc)-0.25%/°C
Nominal module operating temperature (NMOT)41 ± 2°C
