Articulated handrail support rod fi 12 mm AISI 304 – mounting for stainless steel balustrade
0
Description

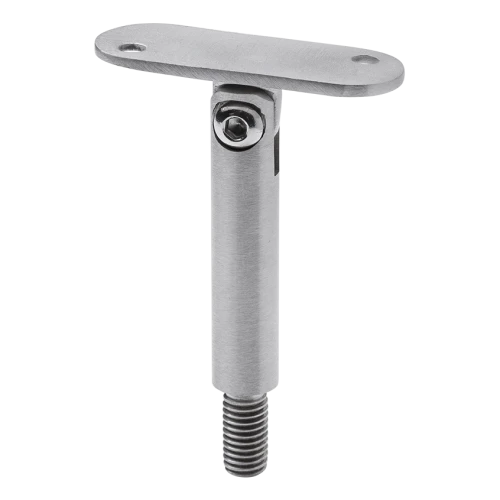

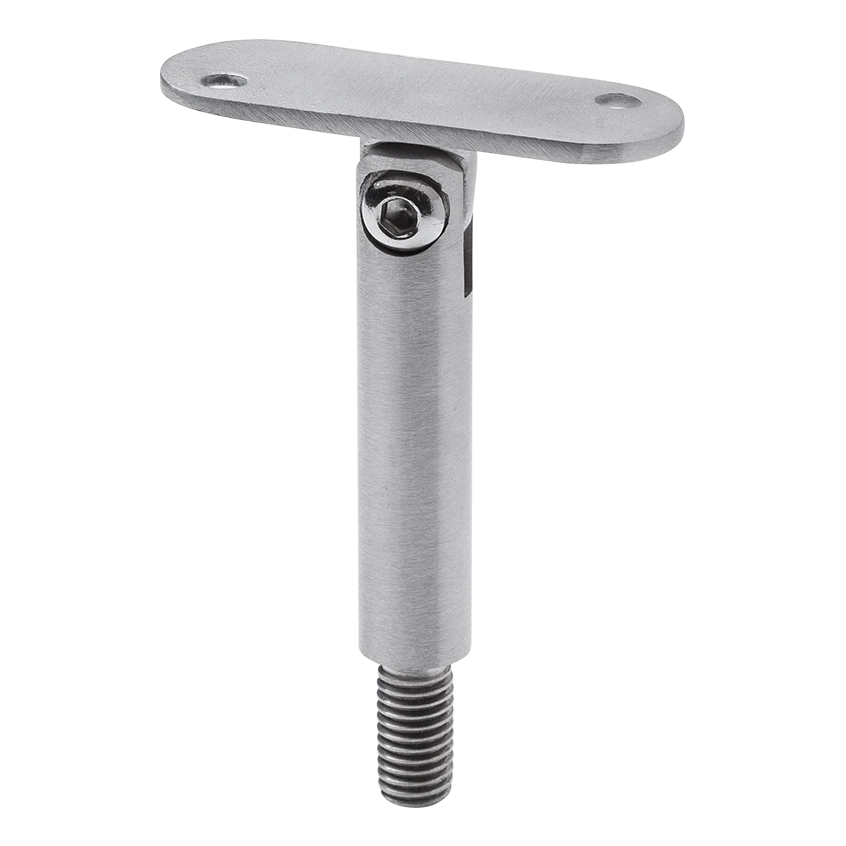

Articulated handrail support rod fi 12 mm AISI 304 – mounting for stainless steel balustrade
Articulated handrail support with flat mounting plate, designed for stainless steel balustrades in flat systems. The articulated rod enables handrail angle adjustment, which is particularly useful when installing stair balustrades — allowing precise setting of handrail slope to match the stair run.
The bottom part of the rod is terminated with an M8 external thread, which enables the support to be screwed directly into the balustrade post. The upper flat mounting plate with two holes serves for screwing on the handrail. The joint between the stem and plate ensures complete freedom of angle adjustment, so that one type of support handles both straight and sloped sections.

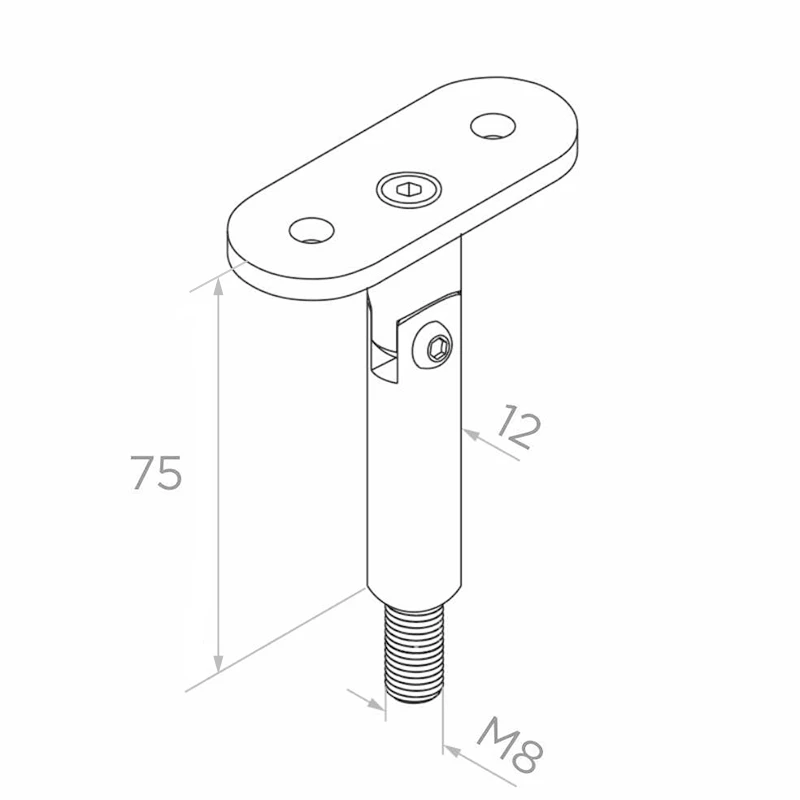

Dimensions and technical data
- Stem diameter: fi 12 mm
- Height (from thread to plate): 75 mm
- External thread: M8
- Material: AISI 304 stainless steel
- Surface finish: satin
- System: flat
- Connection type: articulated — handrail angle adjustment
- Mounting plate: flat, with two mounting holes
- Weight: 0.11 kg
- EAN: 5901289672238
Application
The support is intended for mounting handrails on stainless steel balustrade posts — both on straight and stair sections. The articulated construction eliminates the need to use separate supports for different angles of inclination, which simplifies ordering and reduces the number of stock items. Element ideal for flat balustrade systems made from AISI 304 steel with satin finish.
