Articulated handrail support rod fi 12 × 75 mm – AISI 304 stainless steel, satin finish
0
Description

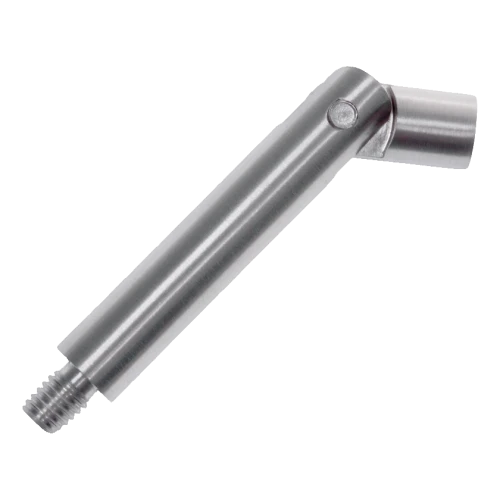

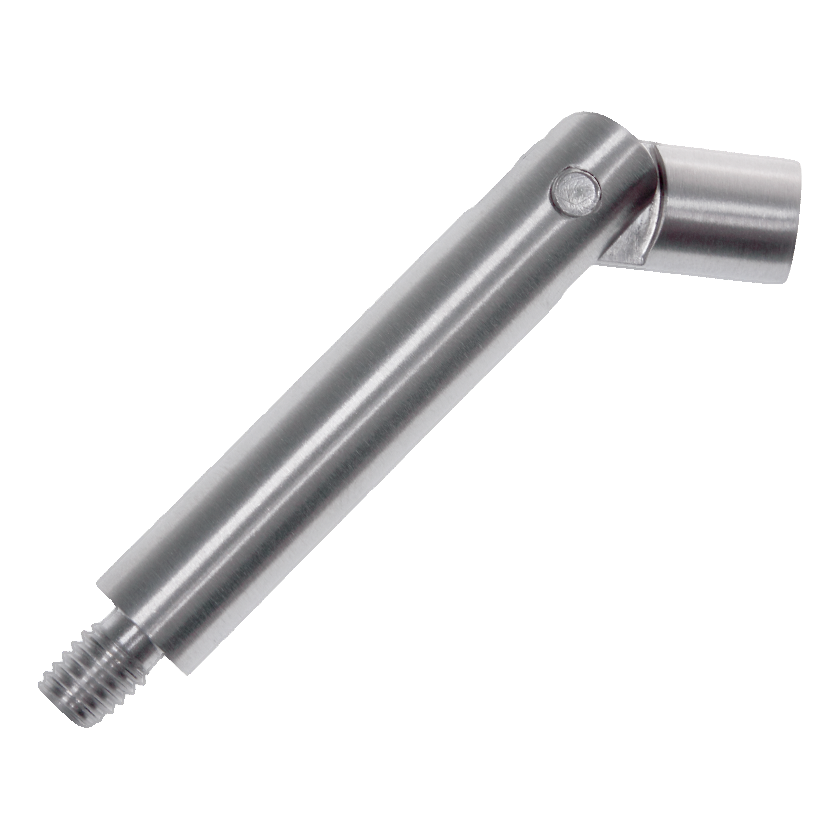

Articulated handrail support rod fi 12 × 75 mm – AISI 304 stainless steel, satin finish
Articulated handrail support rod in stainless steel AISI 304 with satin finish — a universal mounting element designed for connecting handrails to supports on uneven or inclined surfaces. Thanks to the built-in articulation, it enables adjustment of the handrail angle, which significantly reduces installation time and eliminates the need for additional angle adapters.
The articulation located in the central part of the rod allows for free adjustment of the angle between the support and the handrail — an ideal solution when mounting on stairs, ramps and balustrades with non-standard alignment. The element is fully ready for installation and requires no additional machining.
Construction and material
The body is made from austenitic stainless steel AISI 304, which provides high corrosion resistance and operational durability both indoors and in outdoor conditions. The satin surface finish gives the element an aesthetic, modern appearance and is resistant to fingerprints.

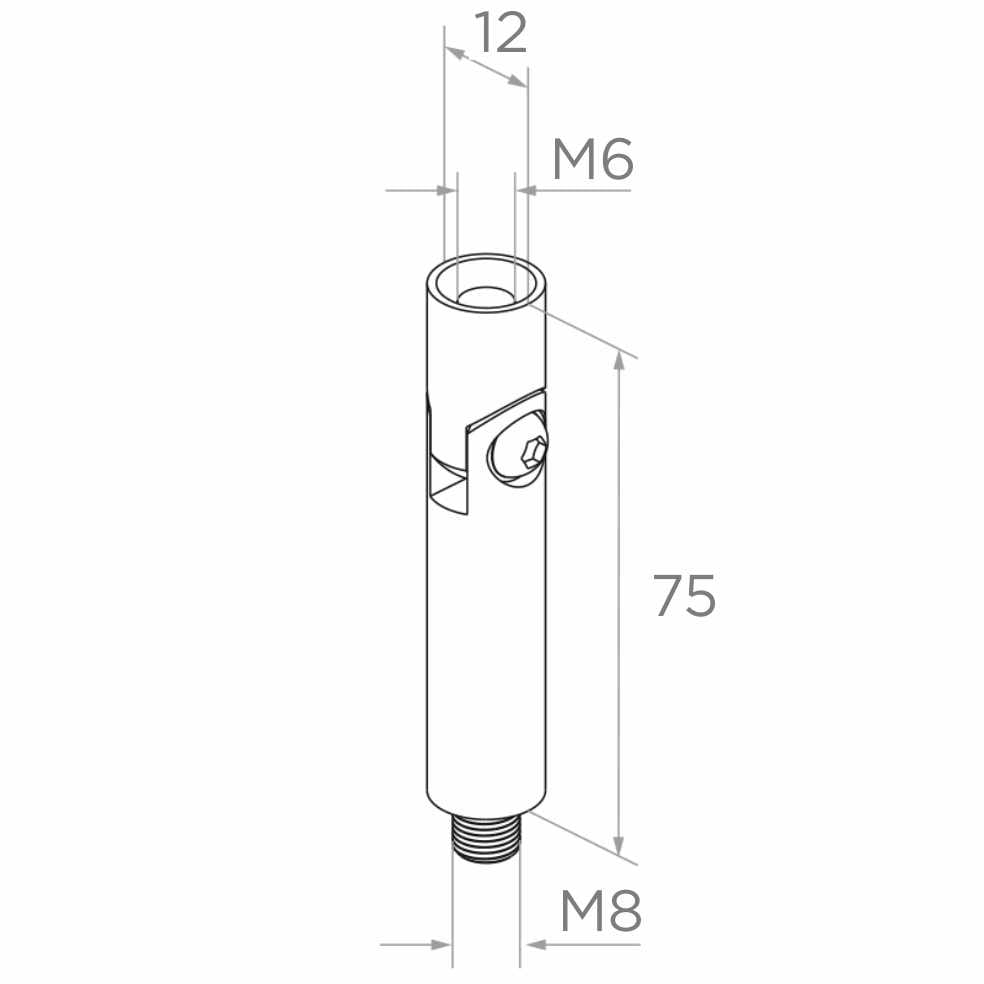

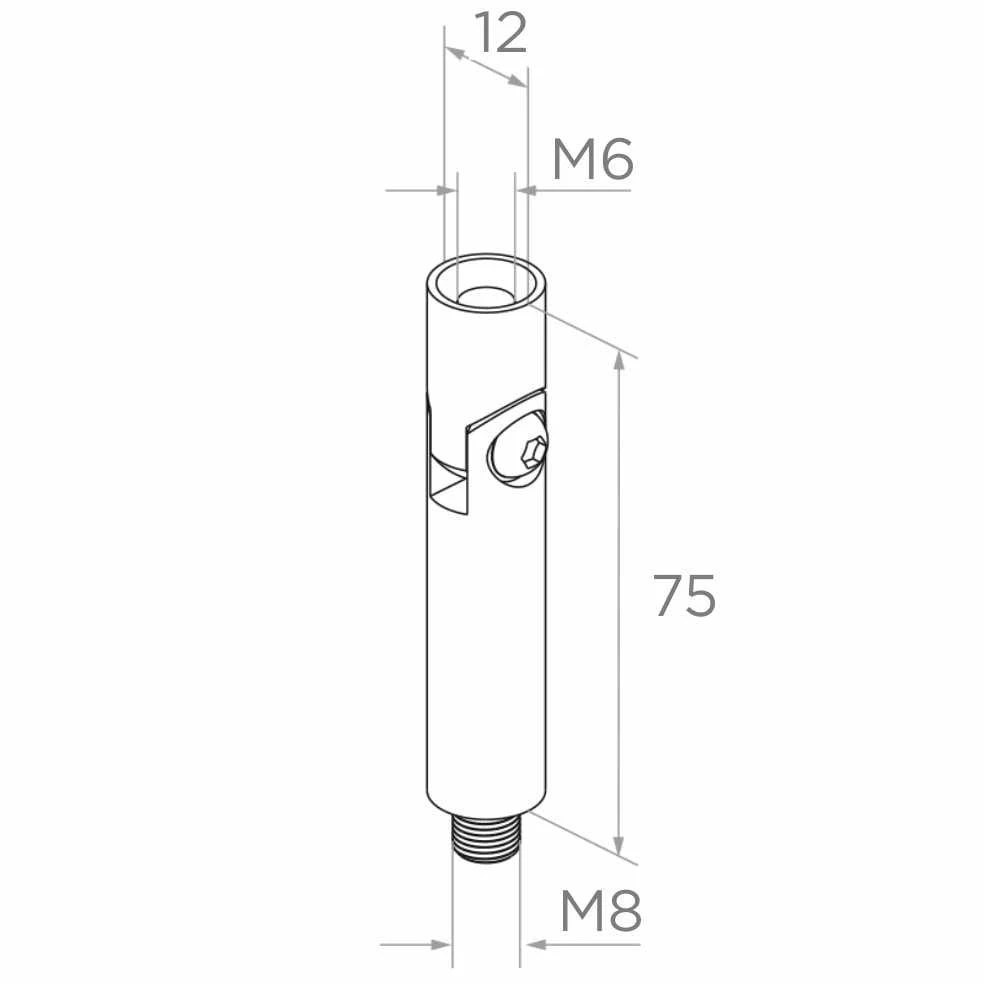

Technical parameters
- Body diameter: fi 12 mm
- Body length: 75 mm
- External thread (bottom): M8
- Internal thread (top): M6
- Material: AISI 304 stainless steel
- Finish: satin
- Type: universal
- Weight: 0.07 kg
- EAN: 5901289672191
Application
The articulated rod is designed for mounting handrails on supports in stainless steel balustrade systems. The external thread M8 screws into the support, whilst the internal thread M6 accepts the screw for securing the handrail. Thanks to the articulated construction, the element compensates for differences in inclination angles — particularly useful on stairs and ramps, where the handrail inclination changes on straight sections and turns.
