Articulated flat handrail mounting bracket 64x24 mm – AISI 304 stainless steel satin
Description

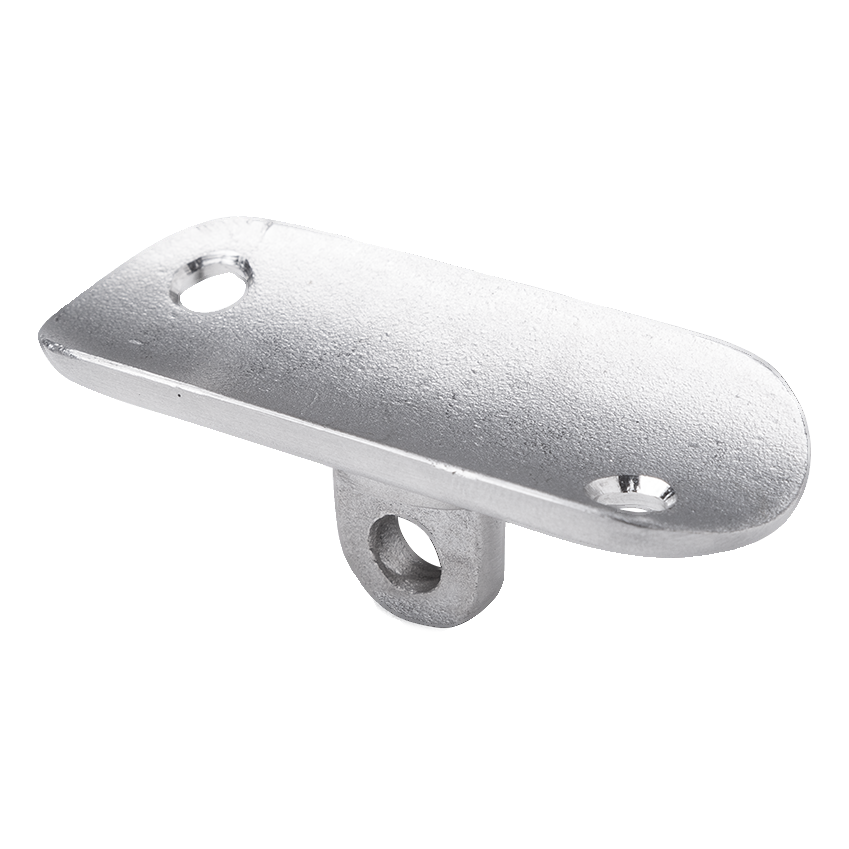

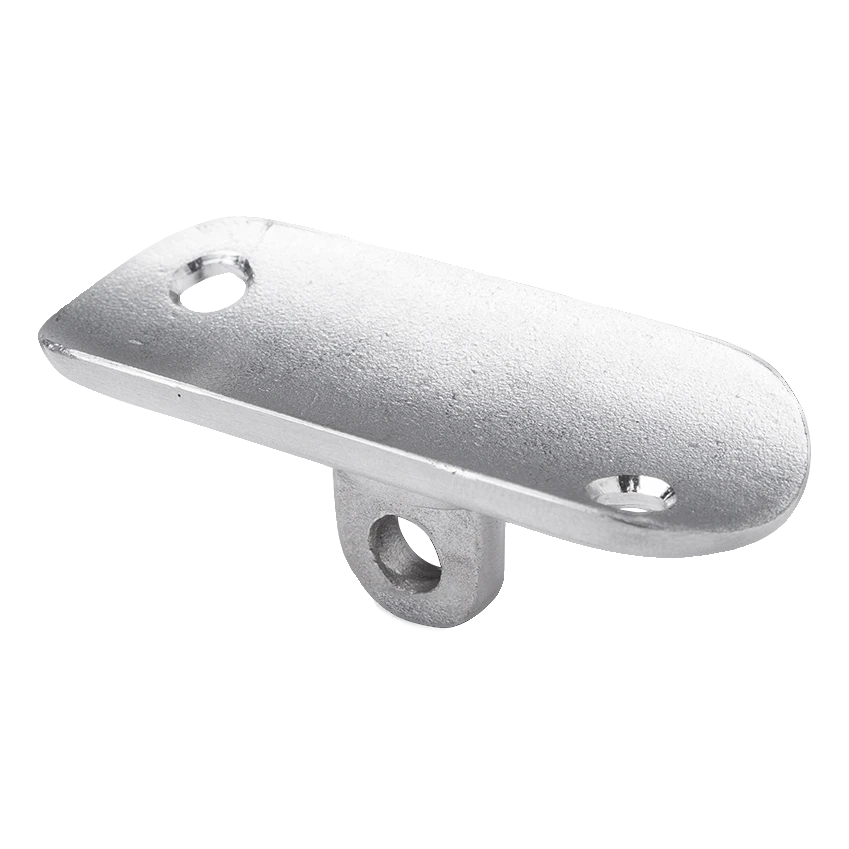

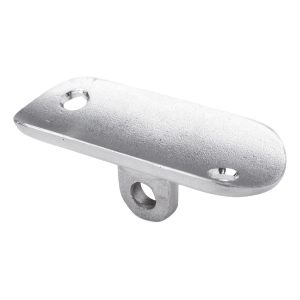

Articulated flat handrail mounting bracket 64x24 mm – AISI 304 stainless steel satin
Articulated mounting bracket for balustrade handrails with diameter 42.4 mm — structural element made of AISI 304 stainless steel with satin finish. The flat, articulated construction enables flexible connection between handrail and balustrade post, significantly facilitating installation on stairs and inclined surfaces. Compact dimensions 64 × 24 × 4 mm and low weight (0.03 kg) allow for quick and precise installation.
The bracket is equipped with two mounting holes in the flat section and an articulated eye in the lower section, enabling adjustment of the handrail inclination angle. Thanks to this, a single element allows connecting the handrail at various angles without the need for additional adapters.

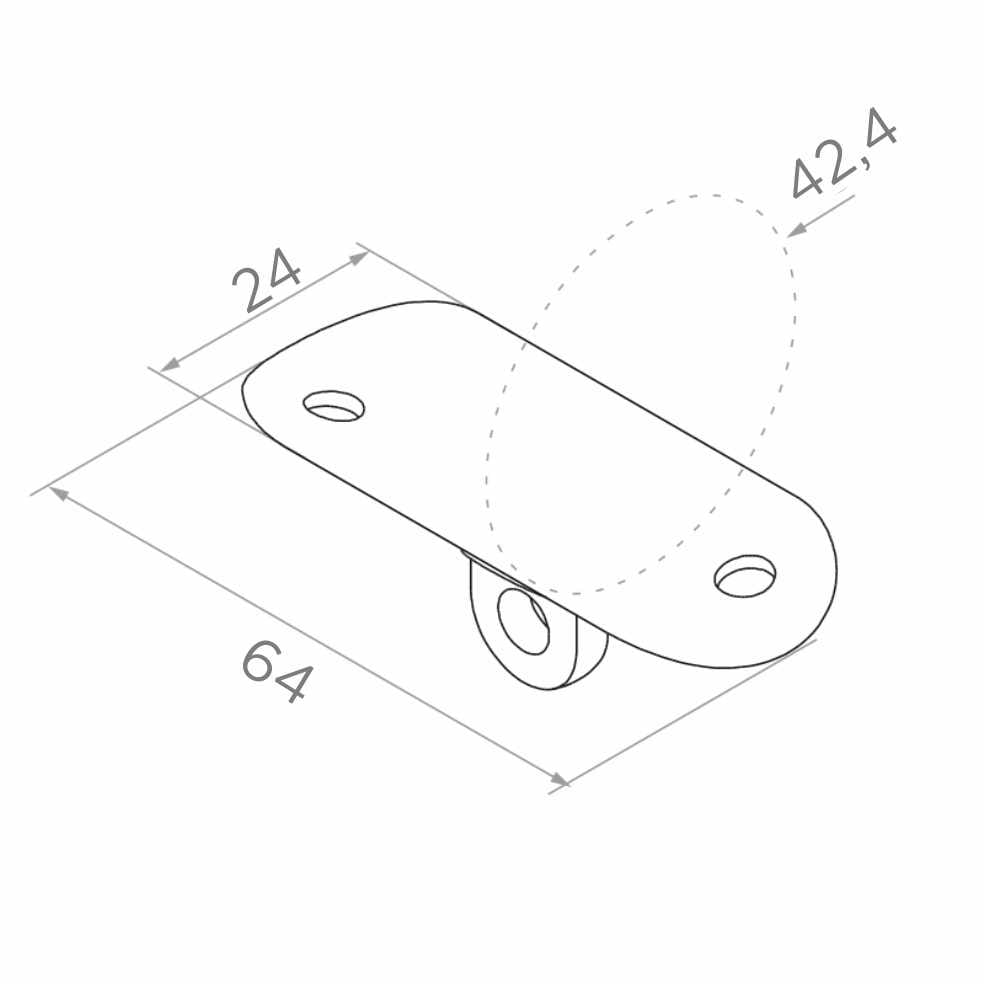

Dimensions and technical data
- Length: 64 mm
- Width: 24 mm
- Thickness: 4 mm
- Compatible handrail diameter: Ø 42.4 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Type: articulated flat
- Weight: 0.03 kg
- EAN: 5901289672160
Application and compatibility
The bracket is designed for balustrade systems based on tubes with diameter 42.4 mm. It constitutes a connecting element between handrail and post via an articulated mechanism, allowing adjustment of the handrail inclination angle to match the geometry of stairs or ramps. Made of AISI 304 stainless steel with satin finish ensures corrosion resistance and aesthetic, uniform appearance when combined with other balustrade system components.
