Angle hook, metric thread, galvanised M6×160 mm
Leave feedback on the product

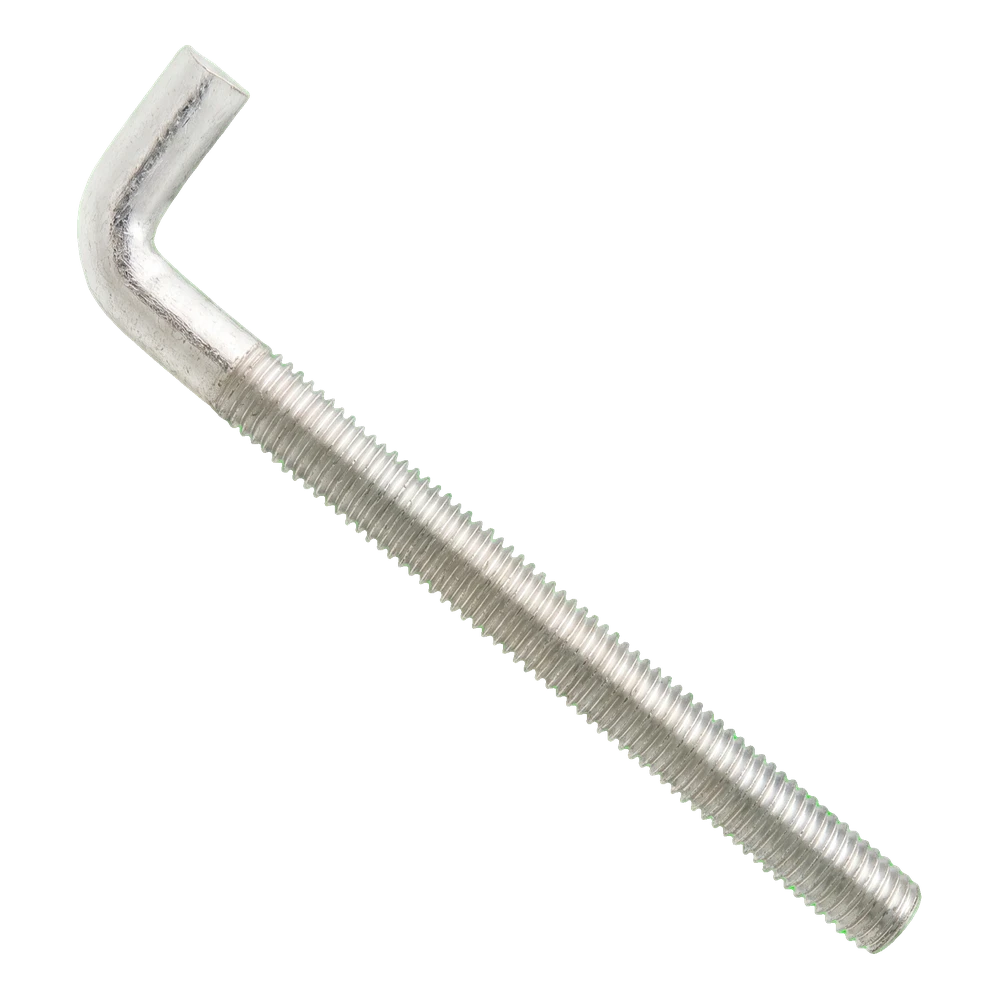

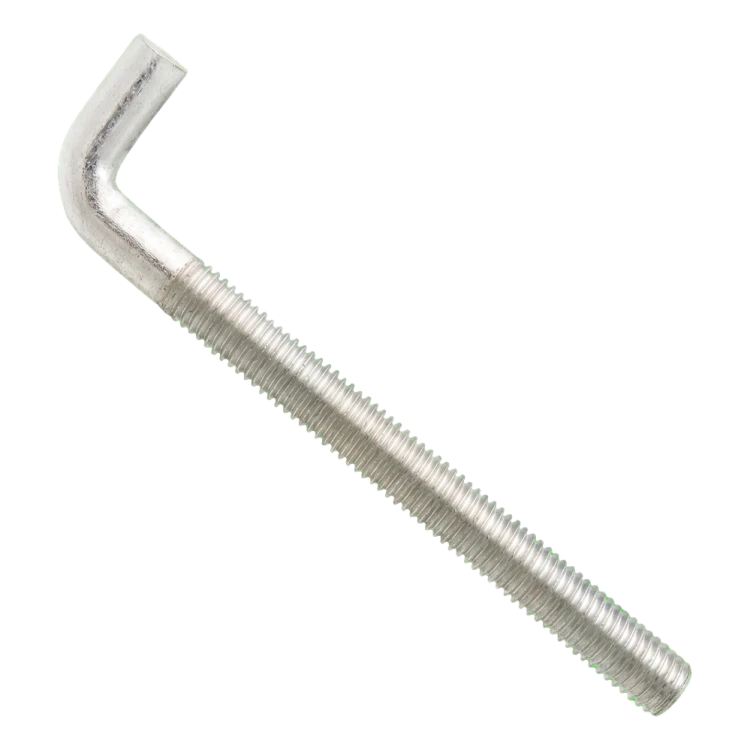

HP Angle hook, metric thread, made of electro-galvanised steel, M6 thread, length 160 mm. Thread length 144 mm, bend length 15 mm, strength class 5.8, weight 0.028 kg. For casting into concrete and fixing components in concrete and masonry structures.
Product code: 002-350
Product features
[PIM] haki-budowlane #1022
- Hook end angled (L-shaped) HP
- Thread type M6
- Length [mm] 160
Description
Threaded rod with an end bent at a right angle – for screwing into a metric thread and supporting or suspending items; property class 5.8 steel, bright zinc-plated
About the product
An angle hook with a metric thread is a threaded rod with an end bent at a right angle. It screws into an internally threaded component and is used to support or suspend items such as pipes, battens and brackets.
The hook's thread size is M6 — the anchor sleeve, nut or tapped hole must have a matching internal thread. The overall length H is 160 mm, measured from the end of the thread to the furthest point of the bent section. The thread length L1 is 144 mm, and the bent leg length A is 15 mm. These are nominal values according to the manufacturer's table. Screw the hook in to the depth required by the mating component and secure any thread projecting beyond that component with a locknut. After installation, align the end with the direction of the load; do not apply sideways loads to the hook at the bend.
Material: steel, property class: 5.8 (according to the manufacturer's data), coating: electro-galvanised. The zinc coating protects the steel against corrosion under typical conditions. Where exposed to salt, chemicals or persistent moisture, choose a version suitable for the exposure conditions. The manufacturer does not specify the hook's load capacity. The permissible load depends on the substrate and fixing method — it is specified by the design or the anchor manufacturer. Do not use the hook for lifting loads or for personal fall protection.
Selection and installation
- ✓Match the thread of the mating component to M6 – an anchor, nut or internally threaded sleeve.
- ✓Screw the hook in to the depth required by the mating component (available thread: L1 = 144 mm); secure any thread projecting beyond the component with a locknut.
- ✓After installation, align the end with the direction of the load; do not apply sideways loads to the hook at the bend.
Important
The manufacturer does not specify the hook's load capacity. The permissible load depends on the substrate and fixing method – it is specified by the design or the anchor manufacturer. Do not use the hook for lifting loads or for personal fall protection.
