Aluminum profile 665cm 40x40 for T-screw
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
5.919 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description
Aluminum profile 665cm 40x40 for T-screw
Mounting profile in Aluminium 6060 665cm for hammer bolt type 28/15 M10, for photovoltaic modules.

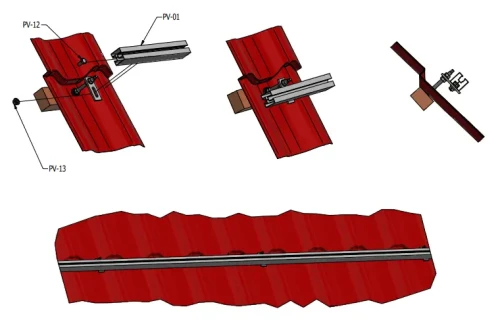

The mounting profile is suitable for fixing photovoltaic panels with centre and end clamps. The clamps are fixed to the top rail channel of the profile. The lower rail channel allows the profile to be mounted on adapters, roof hooks or triangles.
- Mounting is carried out using M10 T-bolts and M10 flange nuts.
- The 4x4cm long mounting profiles for hexagonal screws are made of high quality 6060 aluminium.
- The length of the profiles can be extended using profile connectors, which are sold separately.
- Also available black anodised for high resistance and protection against environmental influences.
- Only available with delivery option "FTL (Full Truckload)".
Properties of Aluminium 6060
- Resistant to corrosion and external influences.
- Good mechanical strength, impact resistance.
- Suitable for anodising providing additional protection and a decorative finish.
Available sizes
Length [cm]
Width [cm]
Height [cm]
10
4
4
195
4
4
208
4
4
221
4
4
235
4
4
240
4
4
416
4
4
443
4
4
625
4
4
665
4
4
Available Materials
Material
ALU
ALU Anodised
| Our Models | 10cm | 195cm | 208-240cm | 416-665cm | |||
|---|---|---|---|---|---|---|---|
| Specification | |||||||
| Material | Aluminium 6060 | ||||||
| Length [cm] | 10 | 195 | 208-240 | 416-665 | |||
| Height [cm] | 4 | ||||||
| Width [cm] | 4 | ||||||
| Delivery | Sample (economy delivery) | Courier (economy delivery) | Courier (long shipment) | FTL (Full Truckload) | |||
| Approximate weight per metre | 0,89 kg/m | ||||||
| Installation top duct | Nut T M8 or square nut DIN 557 M8 | ||||||
| Assembly bottom channel | Hammer head screw M10 type 28/15 | ||||||
| Anodised version | Yes | Yes | Yes | Yes | |||
Technical data
| Coating type | Raw |
| Mounting type | T-bolt |
| Cross-section | 40x40 |
| Length [cm] | 665 |
| Cable channel | None |
| Length [mm] | 6650 |

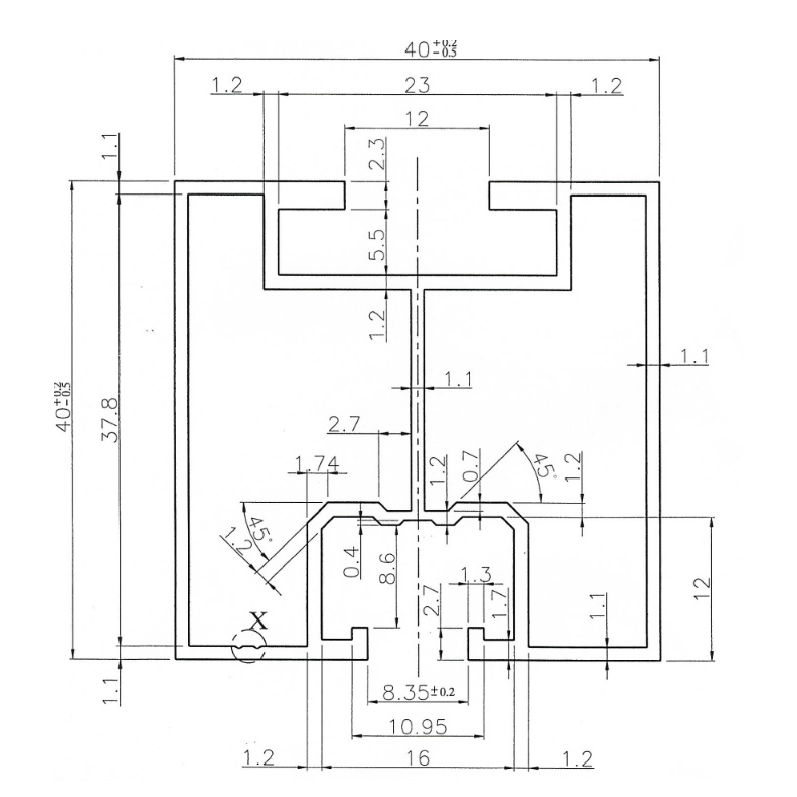

| Profile [mm] | 40×40 |
| Slot Type | Hammer bolt groove |
| Finish | Natural |
